NOTE:

IMEI number: Chile:You need to register for the GSM service using the IMEI number.
India, Pakistan and other countries,
You can register for global GSM carrier services.
India, Pakistan, Turkey, Colombia,
National customers are requested to note the valid IMEI number in the local country in the order.
We will modify it for you.

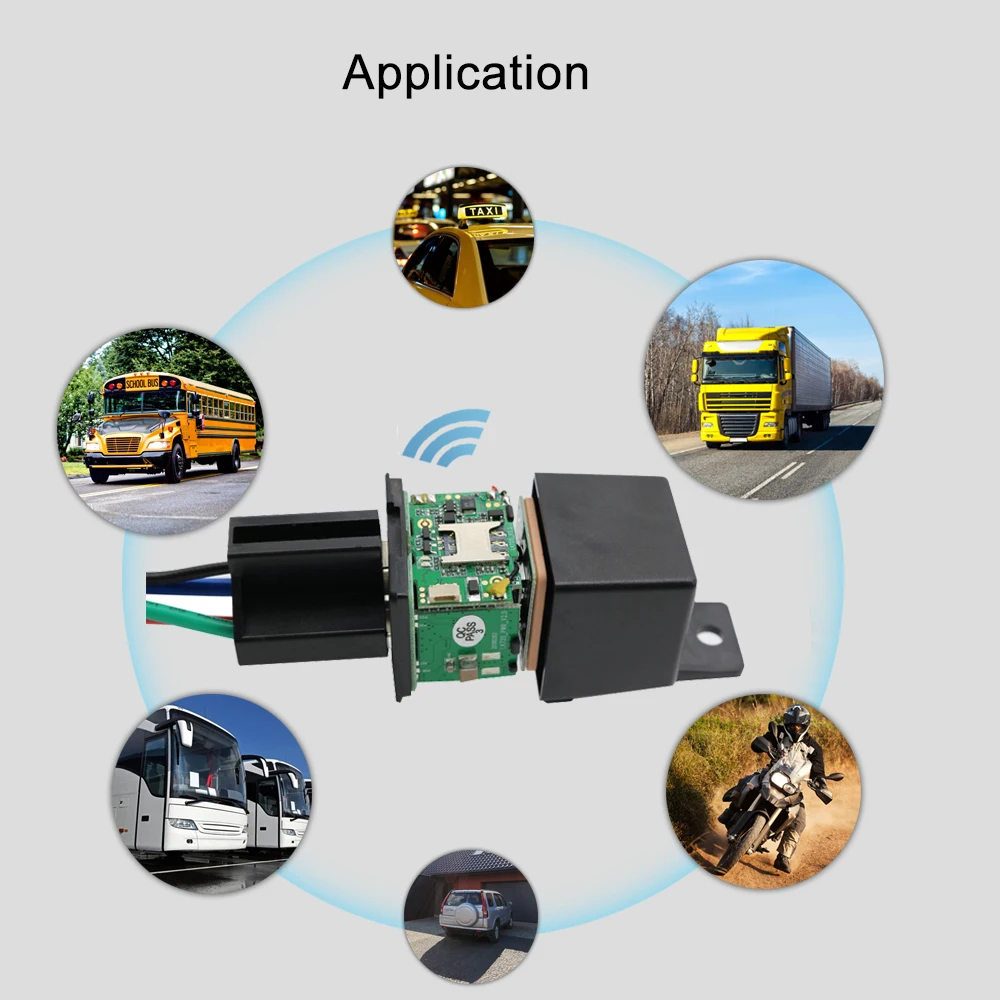

Application

Wide operating voltage 5-95V DC,compatible wilth all vehicles on the market

Realtime Tracking

Support GPS And GLONASS Positioning

Remotely cut off oil

User can remotely cut off the oil once the car was stolen

Overspeed Alarm

This alarm works only under continuous positioning mode.

When the unit speed is exceed the speed you presetted, it will send message “speed alarm!” to the admin number

History Route Playback

The APP and web server can record the upload data of the device up to 6 months

you can playback the history route at any time!

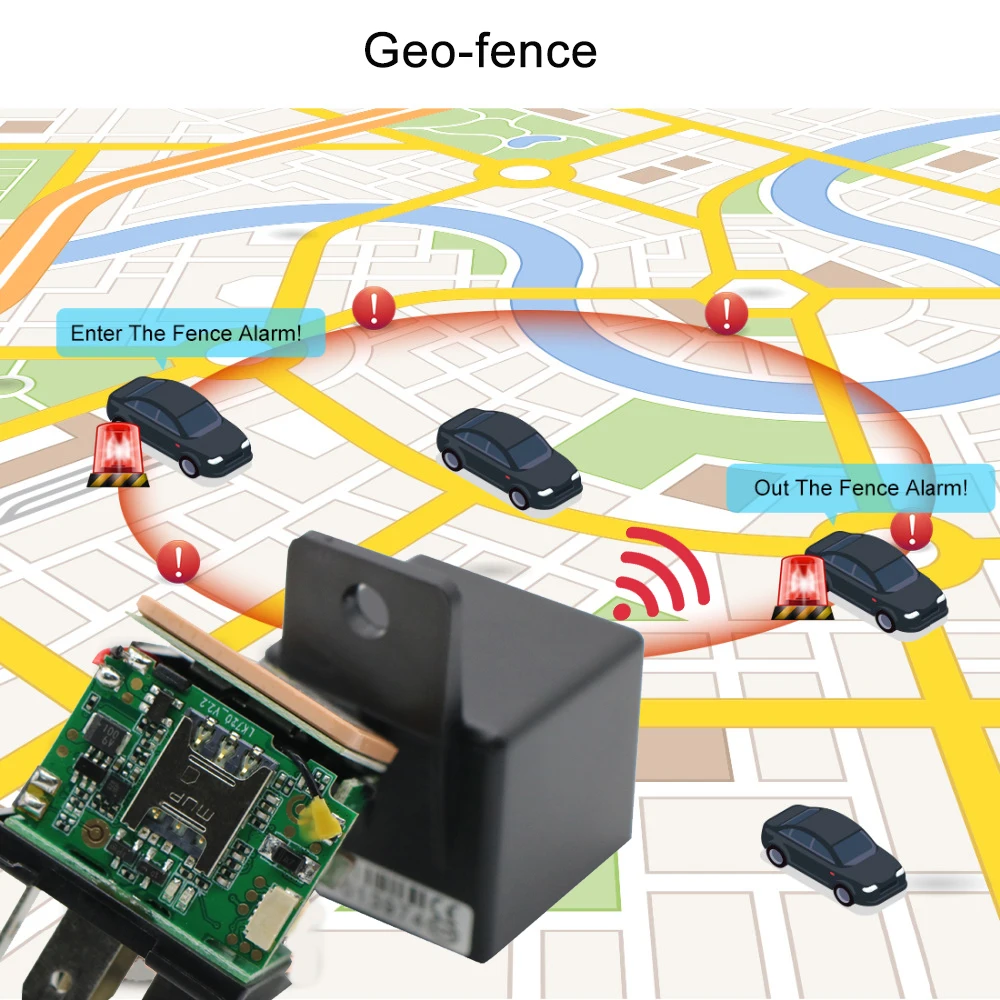

Geo-fence

Set up a geofence for the tracker to restrict its movements within a district.

The unit will send alarm information to APP and web server when it goes out of or get in

this district.

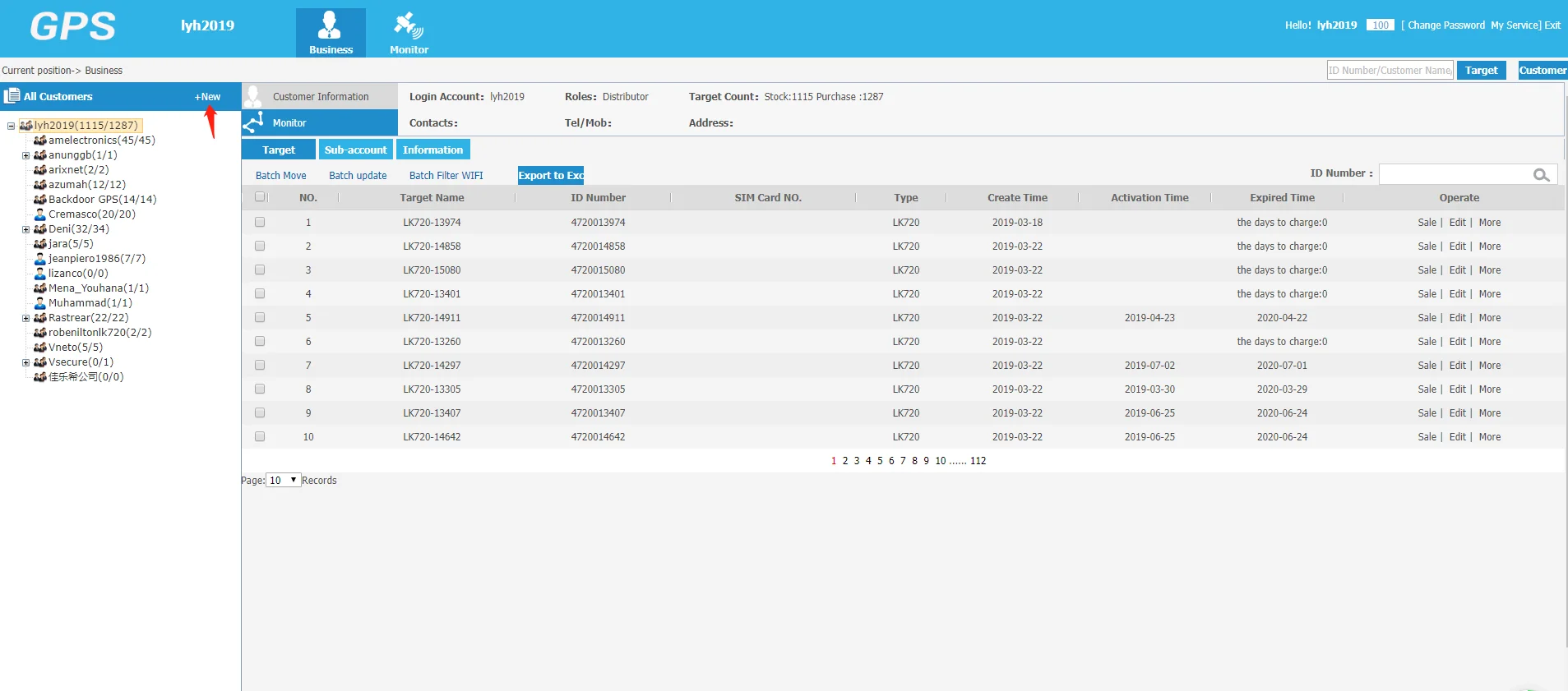

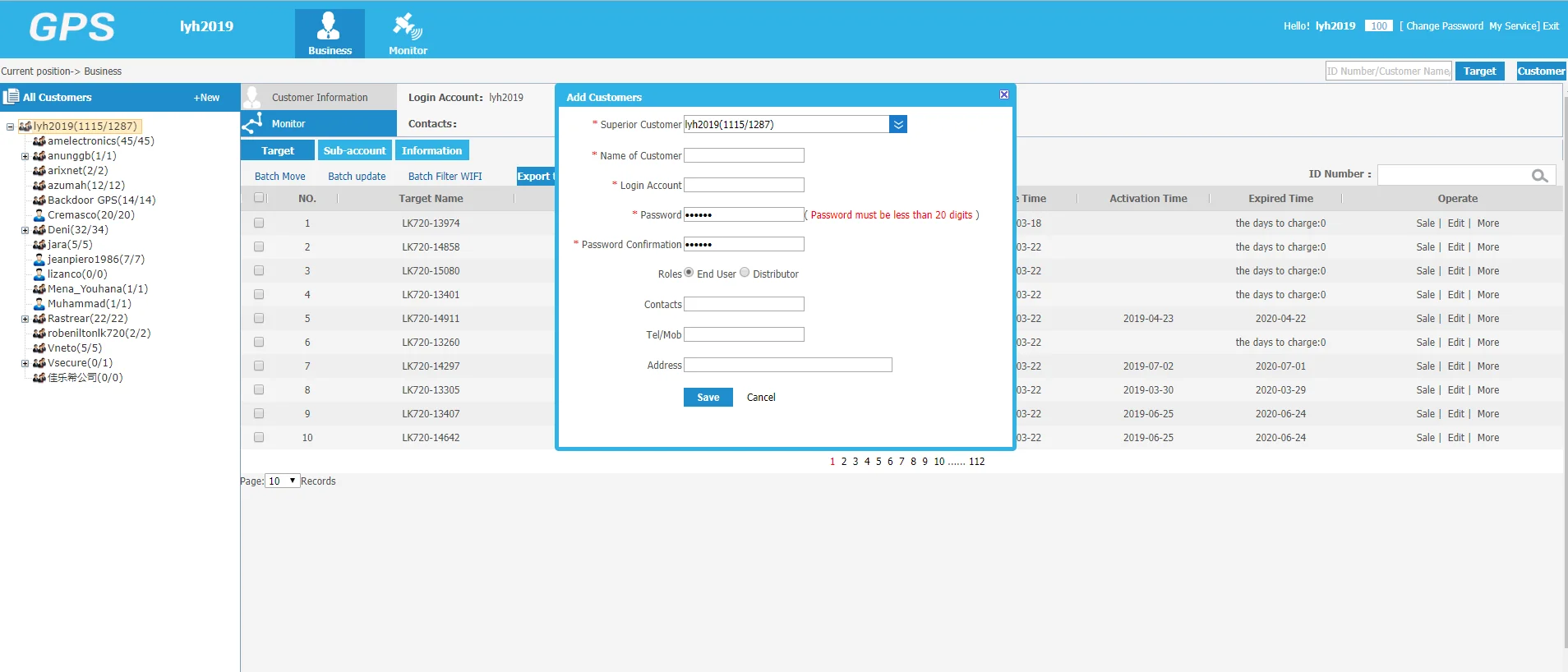

Dealer account

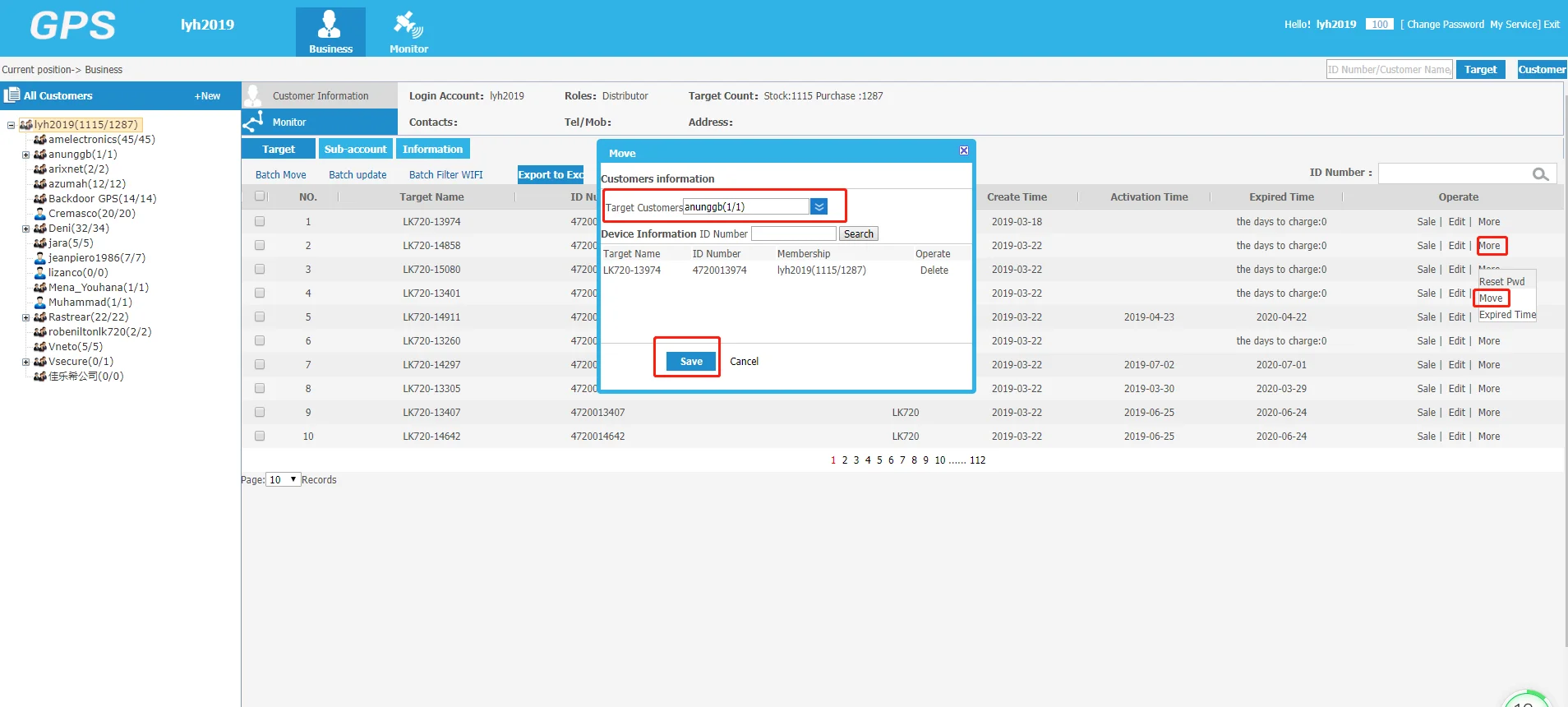

Add new user guidance

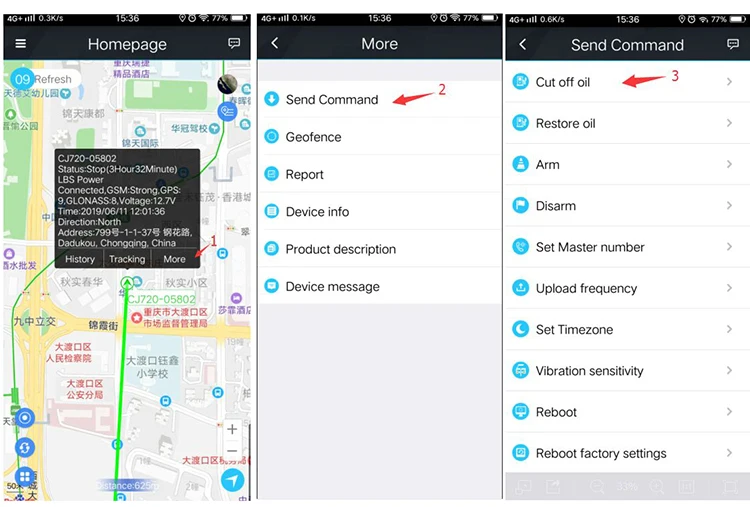

APP How to cut off the oil

How to use

(I) opend the cover,Insert a NANO SIM card support GSM/GPRS network into the slot and make sure the chip side is up

(II)Connect cable follow the picture

(III) Set admin number by sending a SMS command to the SIM card inside device

For example: admin123456+86186******(+86186*****should be youe phone number)

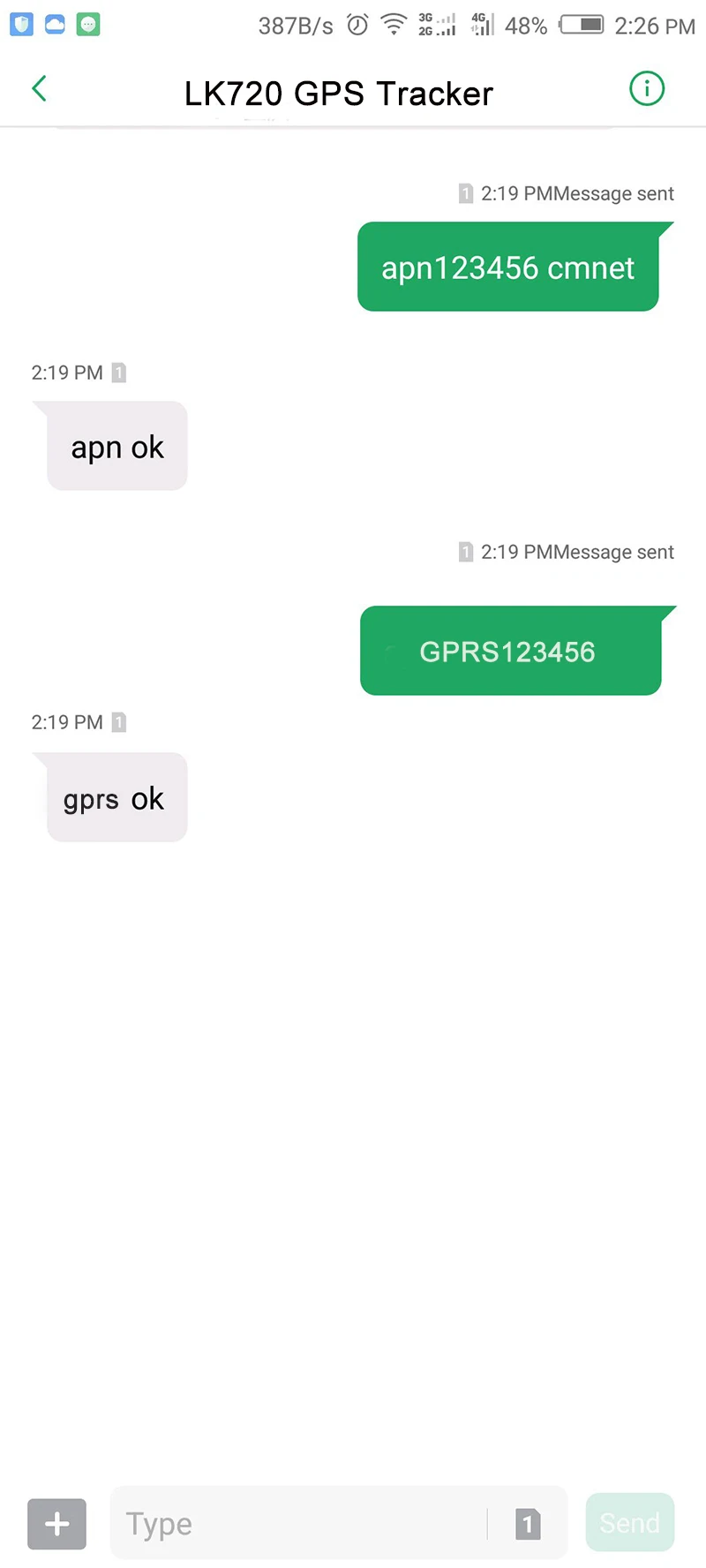

(IV)Set APN: APN123456 CMNET（please use your local APN instead of CMNET，if you do not know the APN content,you should contact your SIM card supplier）

How to solve problems

Q: If the device start up fail

A:Check the cable connect right or not.

Q:If The device can not obtain location information

A:Place the unit at the open area to test

Q:How to chose the SIM card?

A:The SIM card need support GSM/GPRS and ensure that the card has enough currency and credit

Q:How to use in the foreign country？

A： Please set the APN befor use ,please edit the text “APN123456 CMNET” and send it to the SIM card of the device ,CMNET is Chinese operator’s APN, Replace the corresphonding APN when use in other country,APN detail can contact your SIM card carrier

Main Functions:

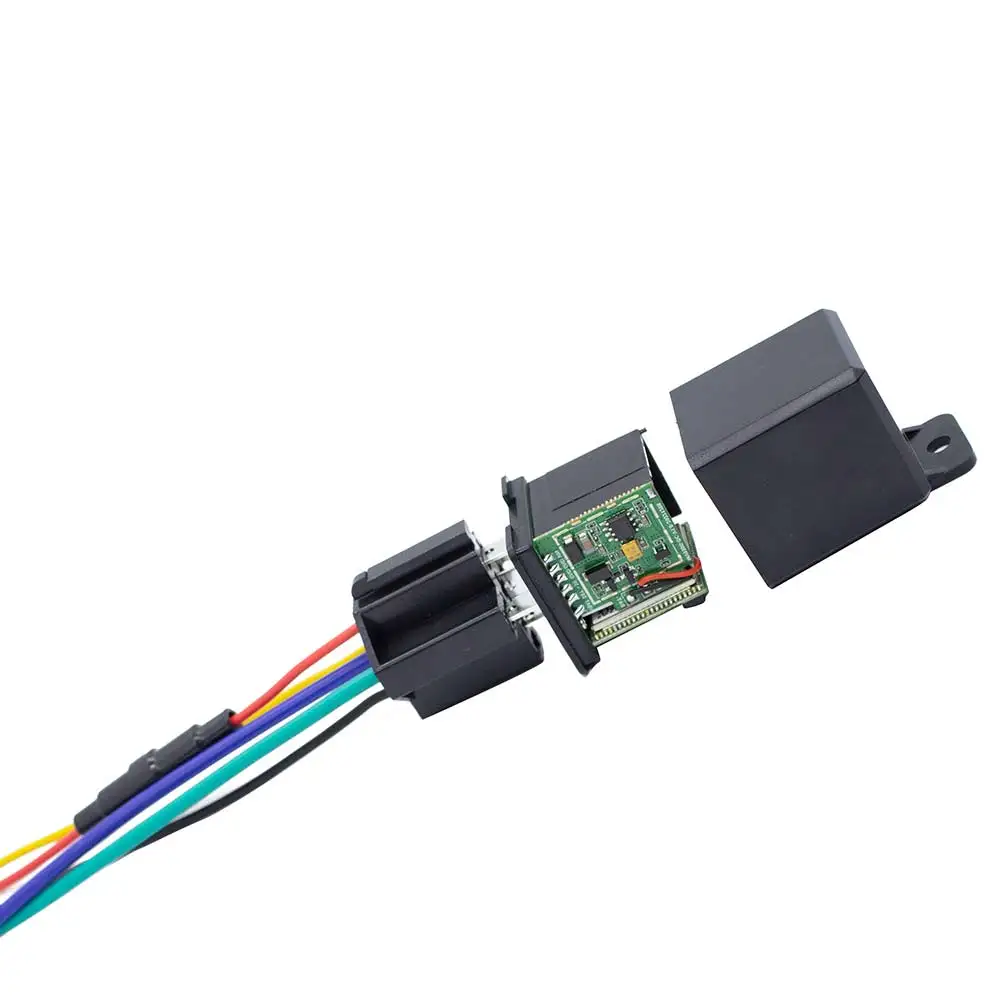

1. Hidden Design and Easy Installation
relay outlook design makes the device very convenient for hide and install

2. Wide Operating Voltage 10-40V DC, compatible with vehicles on the market!

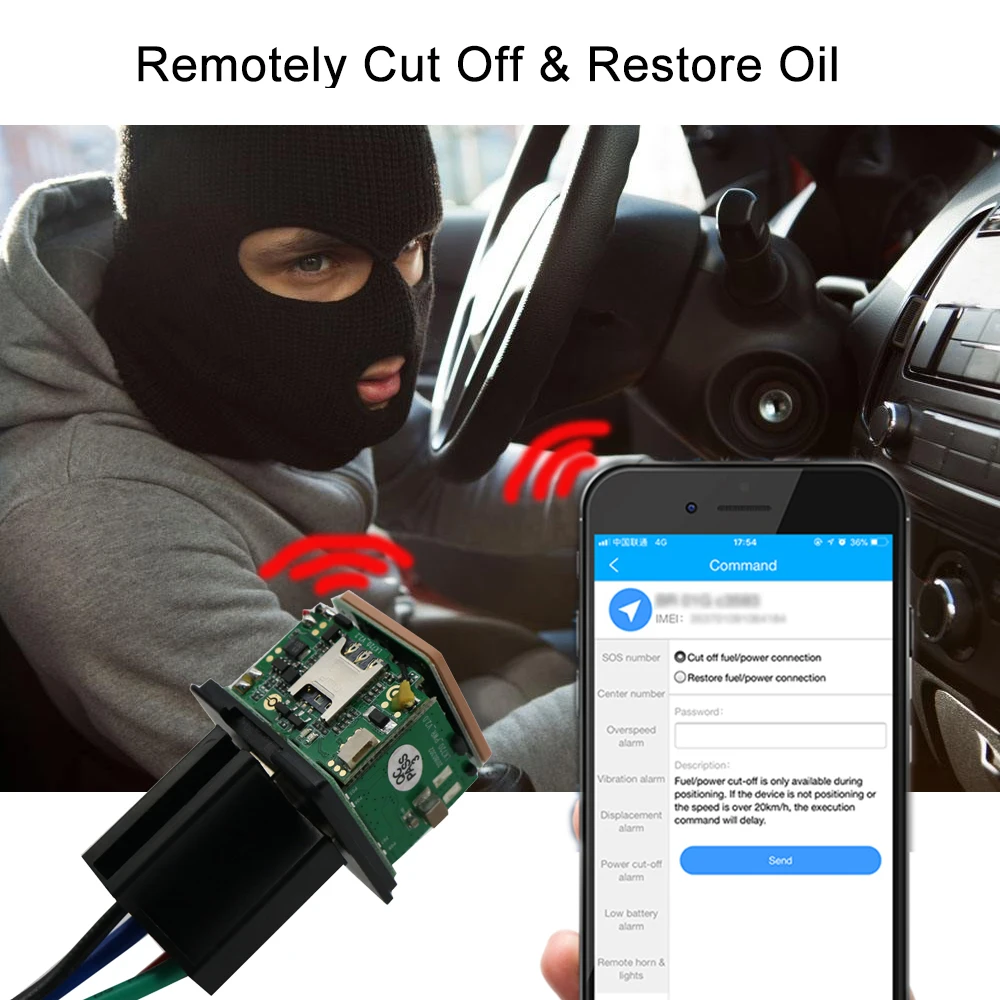

3. Remotely Cut Off & Resume Fuel
Once your vehicle was stolen or meet any emergency, you will can remotely cut off the fuel via SMS command or APP to stop the vehicle, of course you also can resume the fuel remotely.

4. GPS+LBS Double Positioning Ways
If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!

5. Realtime Tracking
You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!

6. History Route Playback
The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time!

7. Power Saving Mode
The device will go into standby mode automatically when there isn’t vibration for 3 minutes , it will go into working mode when it detect vibration again

8. Overspeed Alarm
This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message “speed alarm!” to the admin number every 5 minutes.

9. Shake Alarm
After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS “sensor alarm!” to the admin number when the unit get shocked.

10. Movement Alarm
When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command “move+passord”, then in case the device moved 500m it will send alarm SMS “Move Alarm+Latitude and longitude” to the authorized number.

11. Virtual Fence
Set up a virtual fence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.

12. Sleep Mode

* Sleep by time mode
After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will works in low consumption mode. SMS, call will can wake up the tracker.

* Sleep by shock sensor mode
After did this setting, if no shock for 5 minutes, the tracker will work under “sleep by shock” mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.

13. Illegal Cutting Line Alarm Under arm mode, if someone cut the wires of the device, you will can get alarm information from the device

14. LIFETIME FREE WEB TRACKING SOFTWARE AND MOBILE APP !
