Description

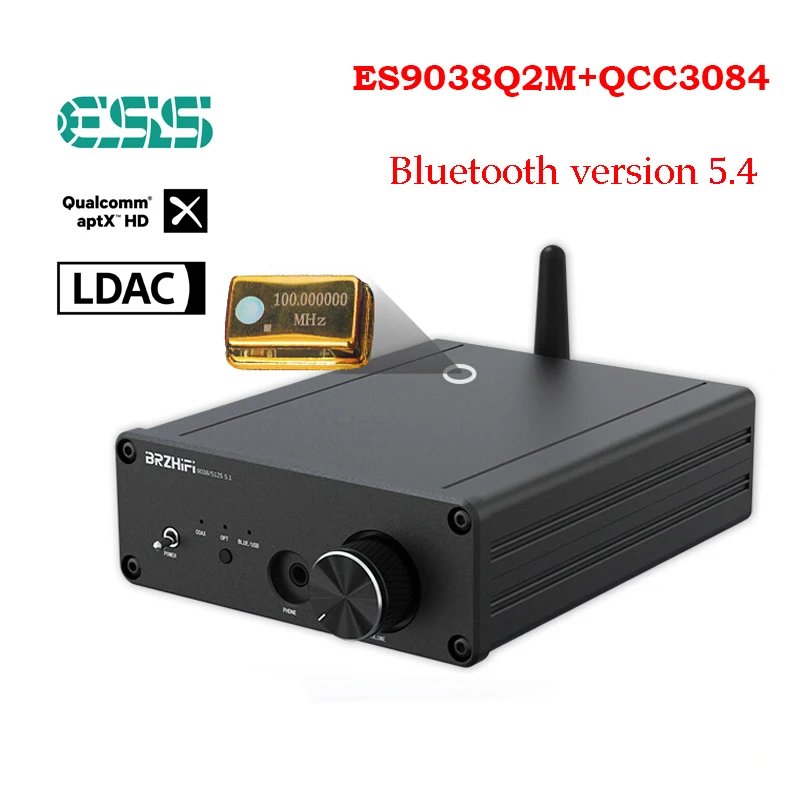

QCC3084 Bluetooth 5.4 receiver ES9038 decoder APTX-HD LDAC decoder hifi audiophile
Bluetooth PIN code: 0123
Product Description

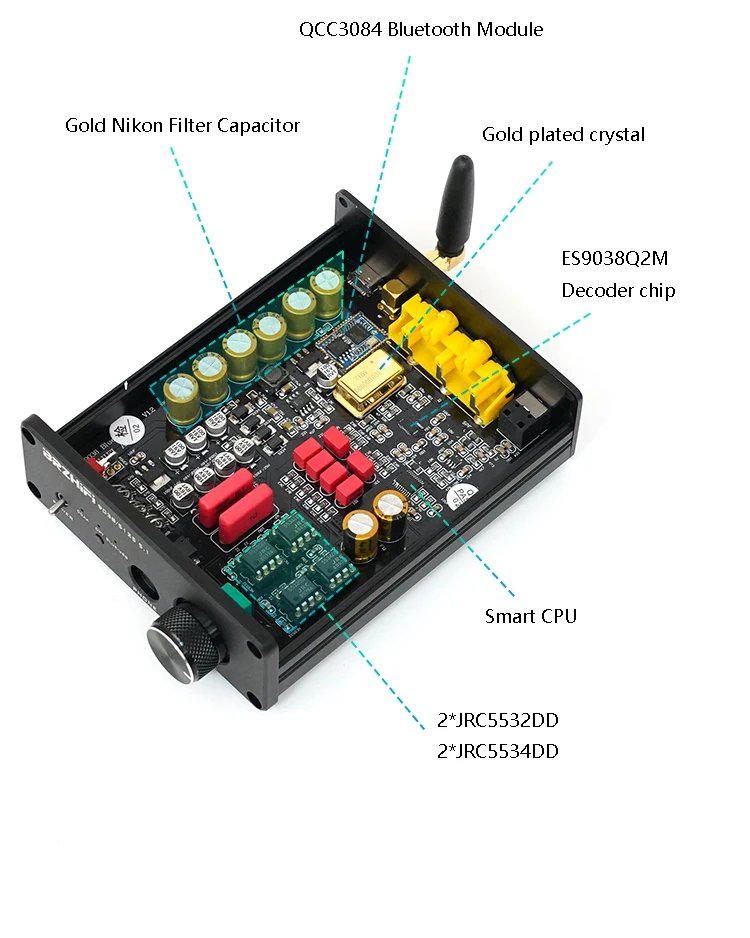

1: Equipped with high-performance Bluetooth 5.4 chip, support Bluetooth dual mode, fast transmission, 0 delay, no lagging.

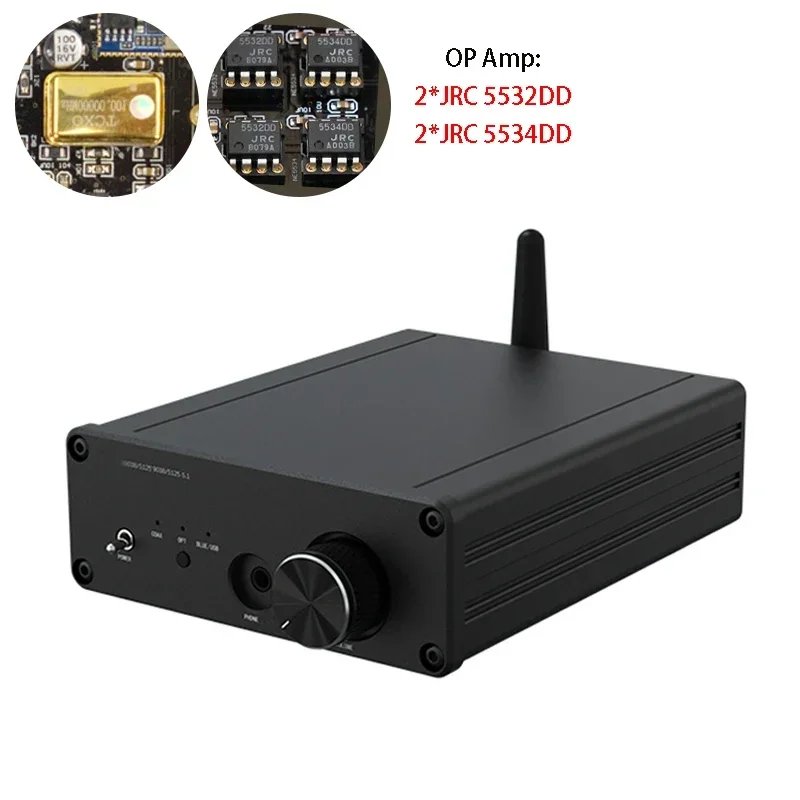

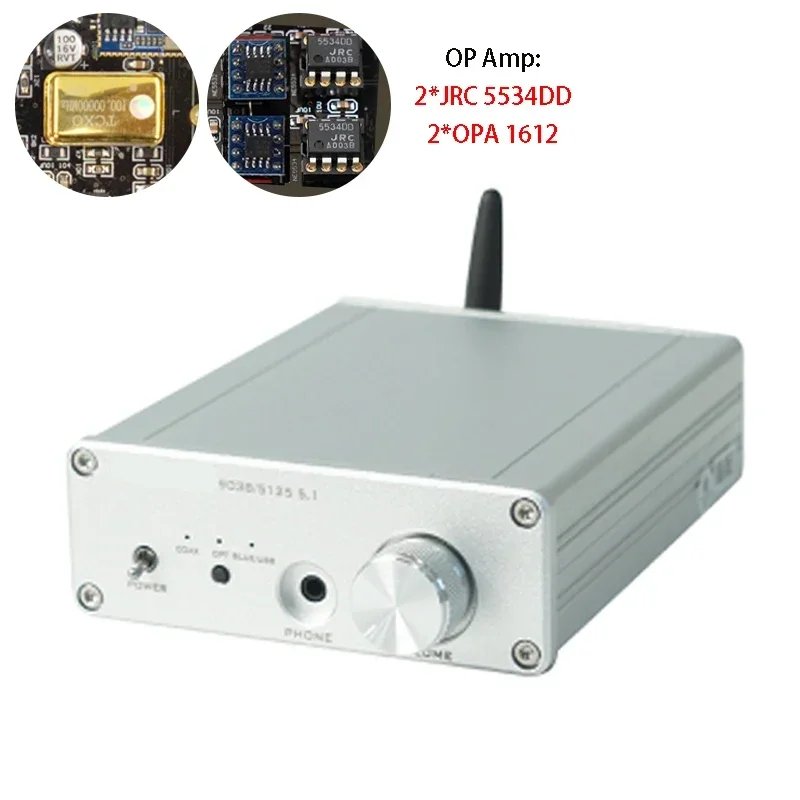

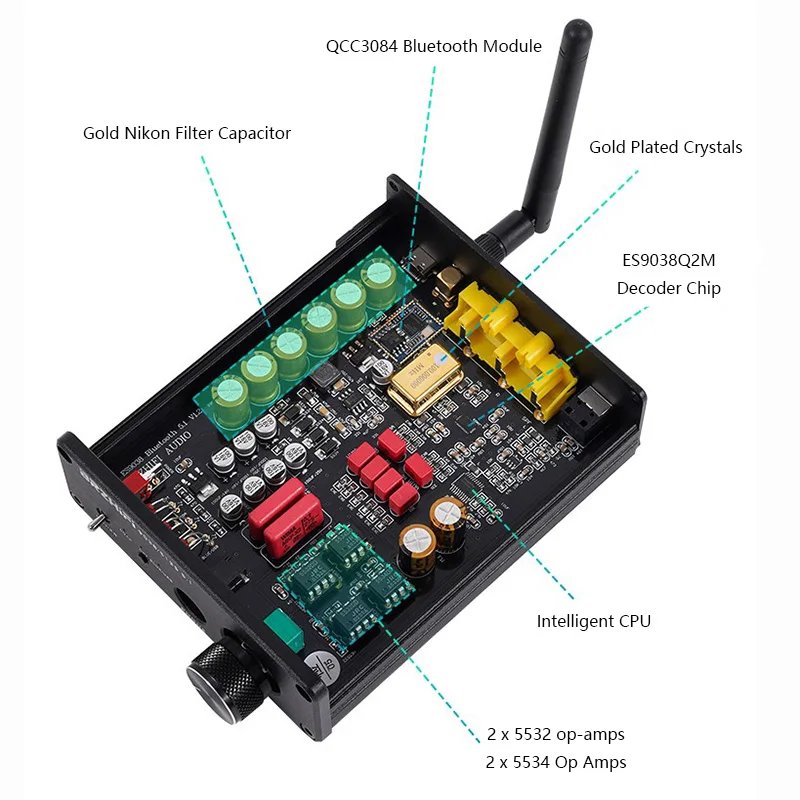

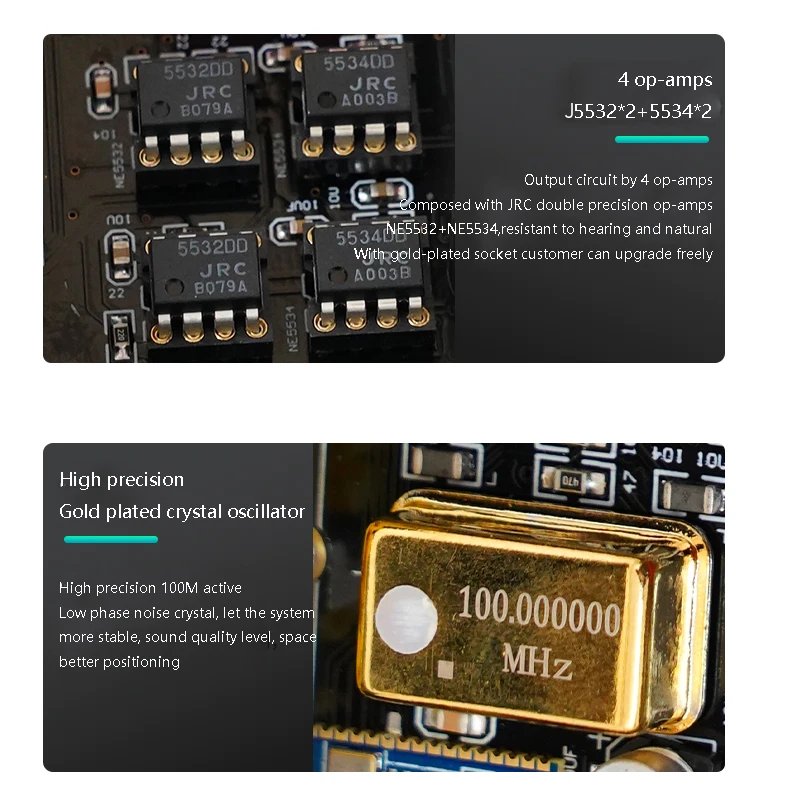

2: The output circuit is composed of 4 pieces of op-amp output, using JRC double precision op-amp NE5532 + NE5534, listenable and natural, with gold-plated socket customers can freely upgrade.

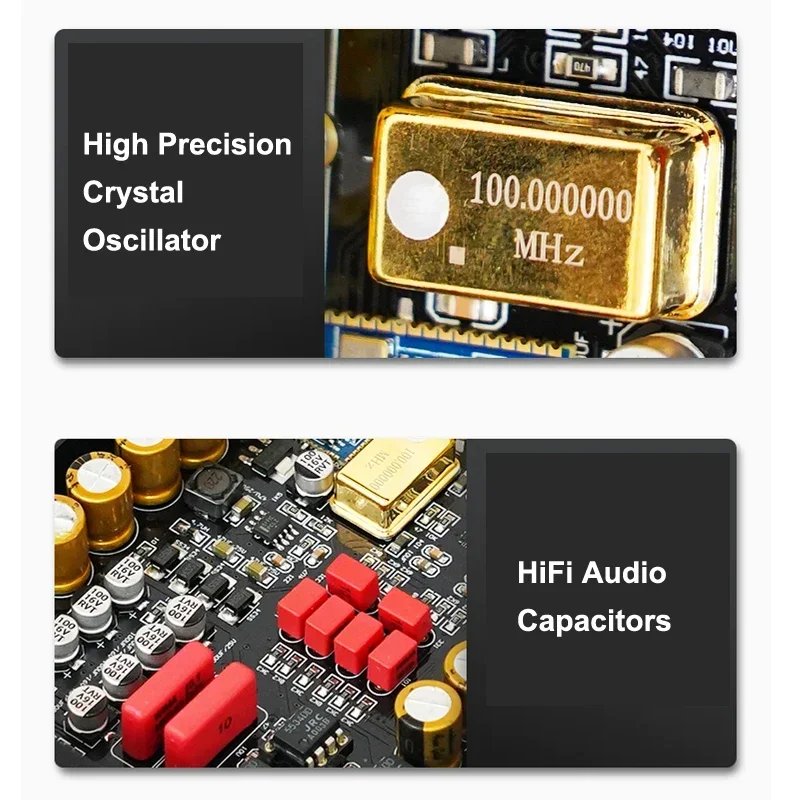

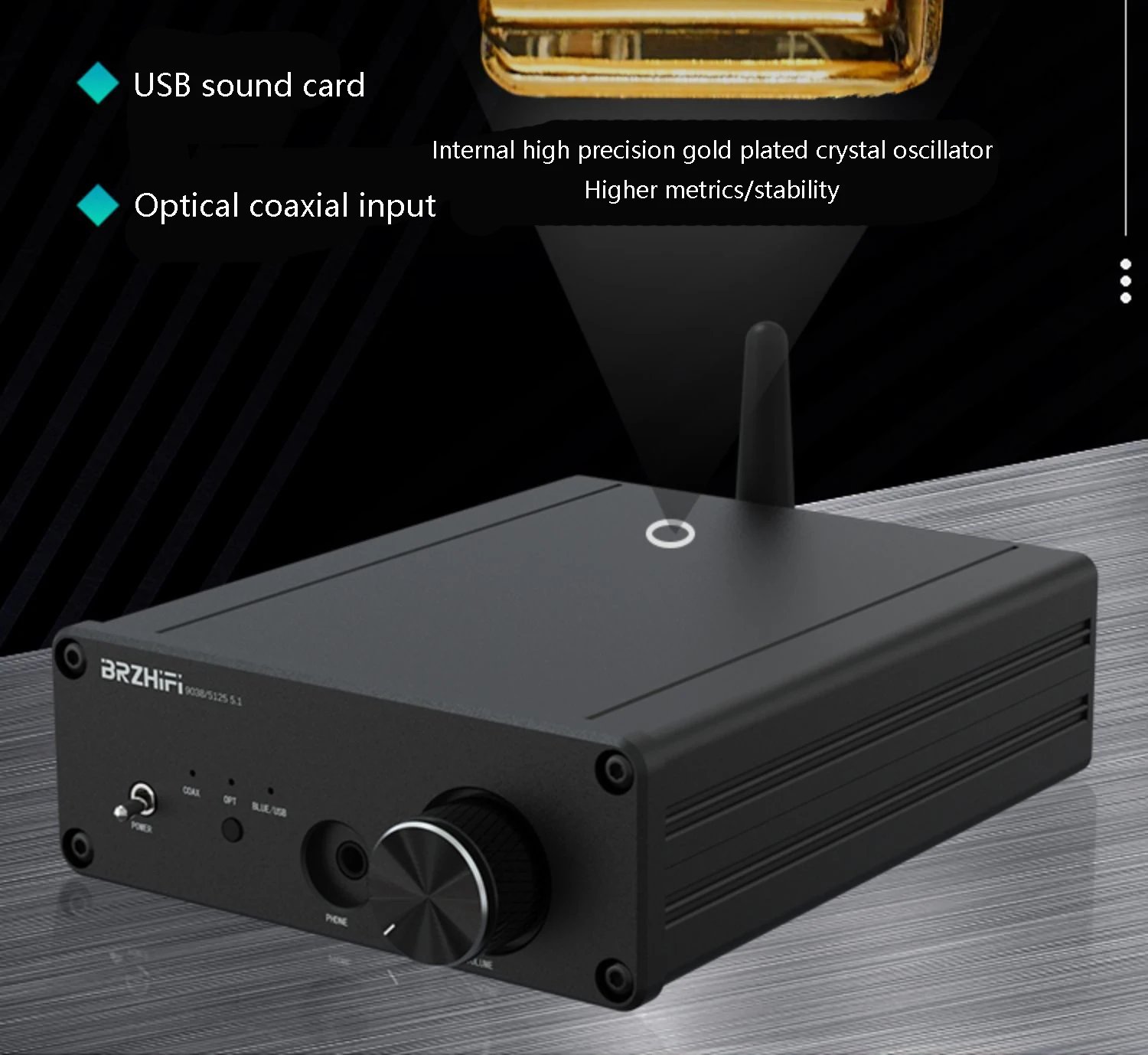

3: Gold-plated crystal, high precision 100M active low phase noise crystal, so that the system is more stable, sound quality levels, better spatial positioning.

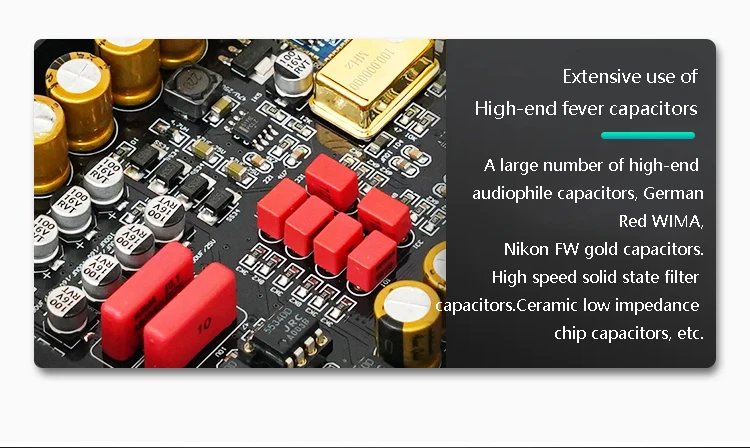

4: A large number of high-end fever capacitors, German red WIMA, Nikon FW gold capacitors, high-speed solid-state filter capacitors, ceramic low-impedance chip capacitors, etc.

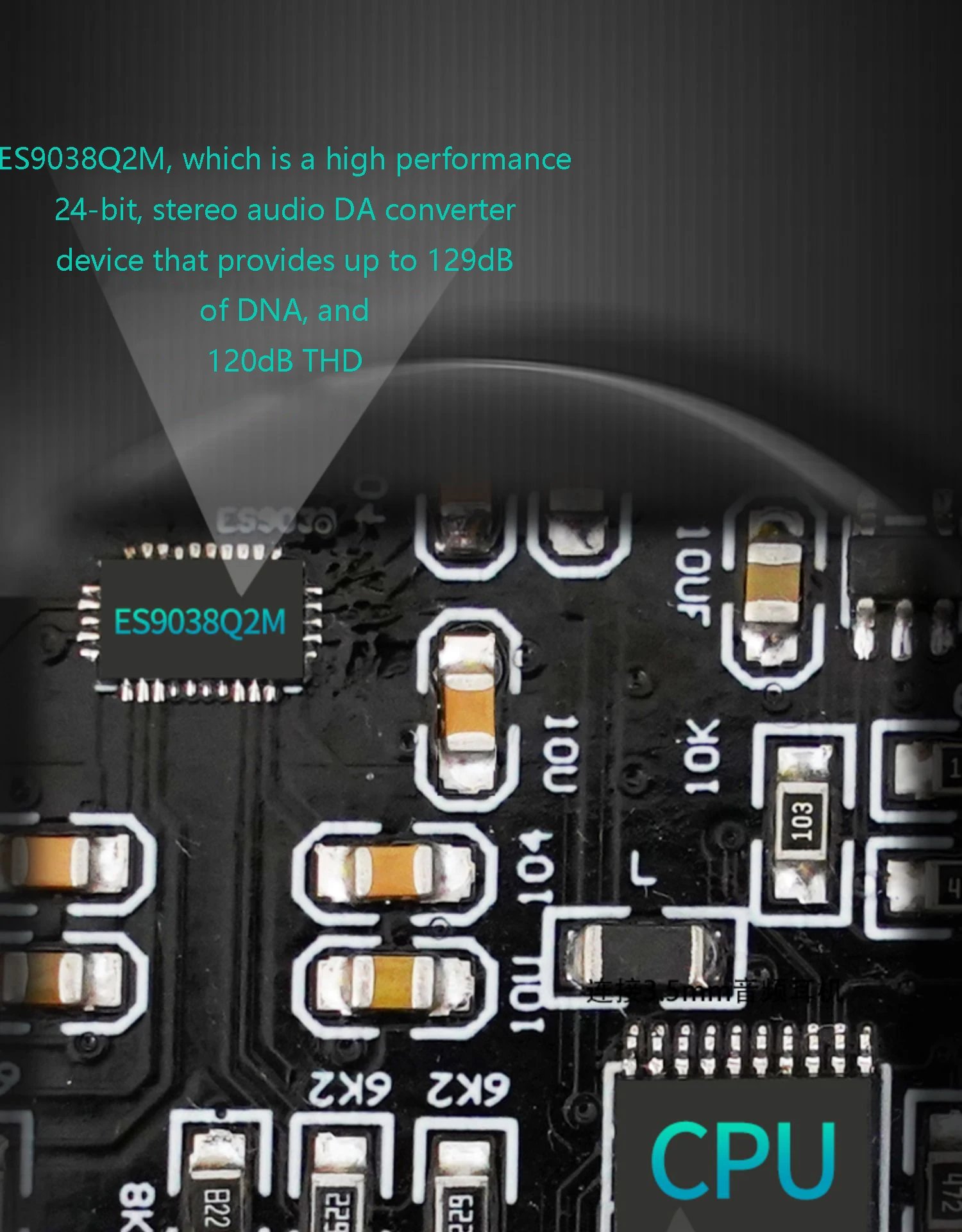

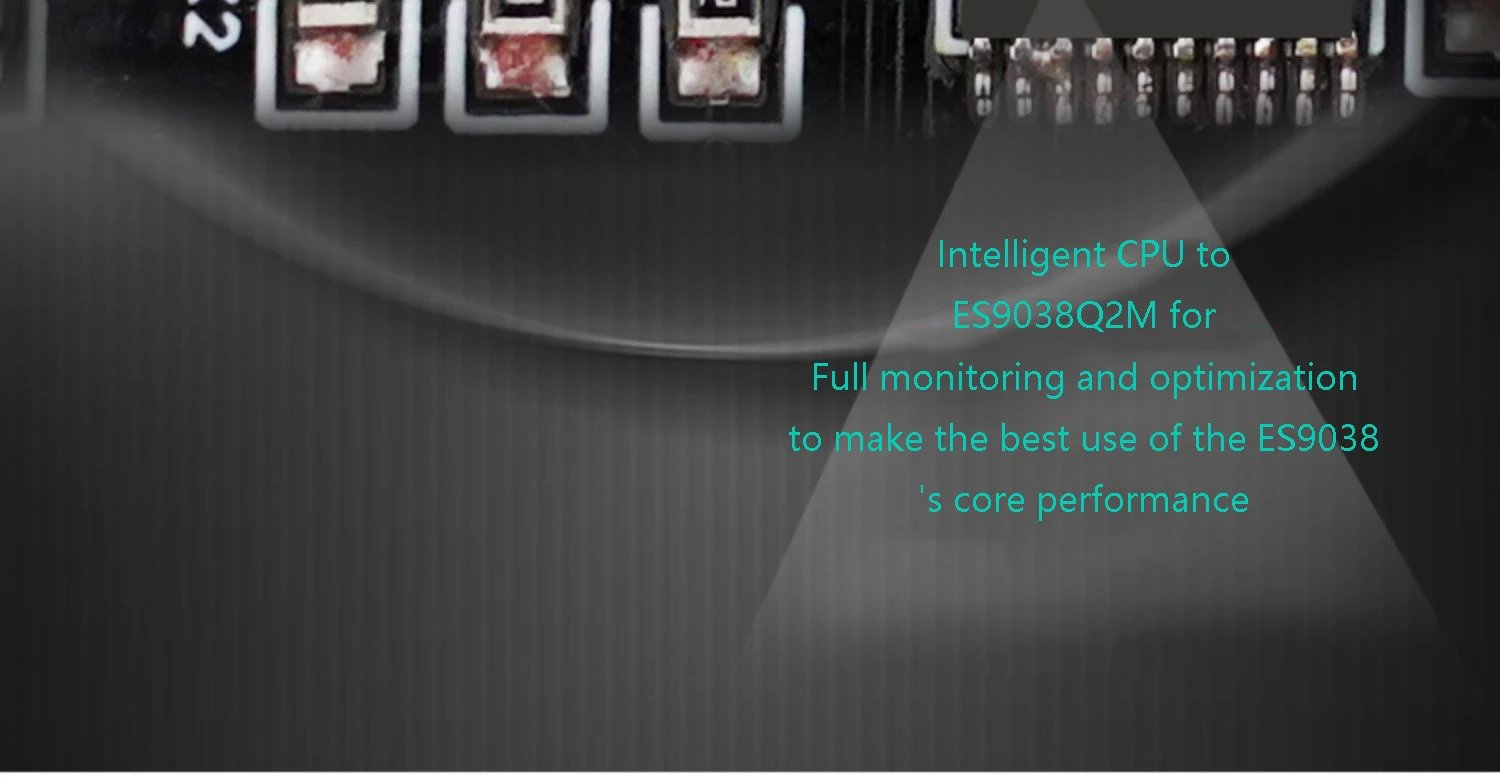

5: ES9038Q2M, which is a high performance 24bit, stereo audio DA converter, providing up to 129dB
of DNA, and 120dB of THD.
Product Specifications
Power supply: 5V/2A
Product Net Weight: 340g
Op-amp voltage: ±12V
Decoder chip: ES9038Q2M

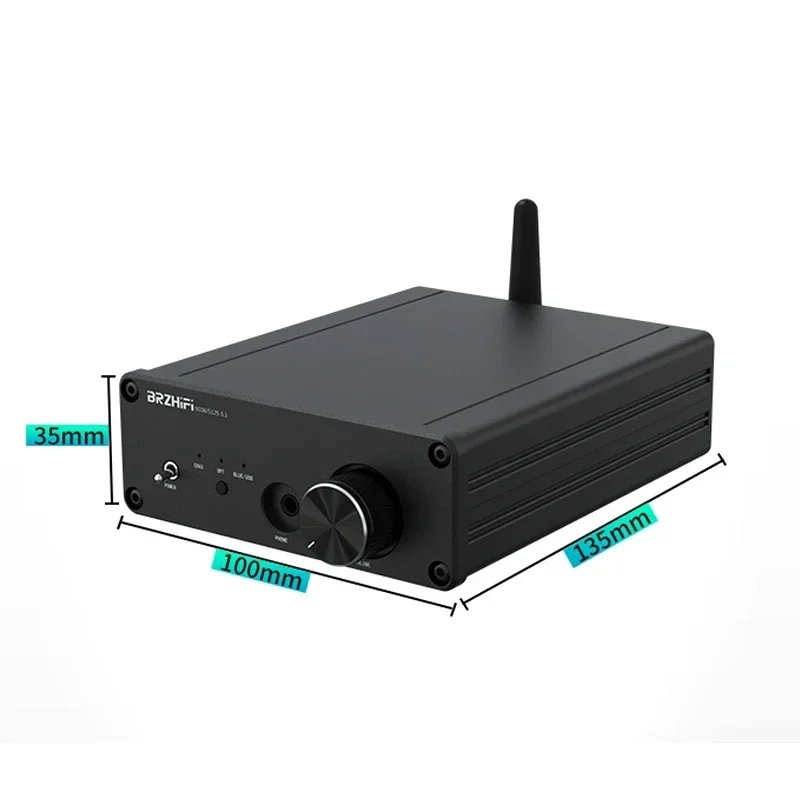

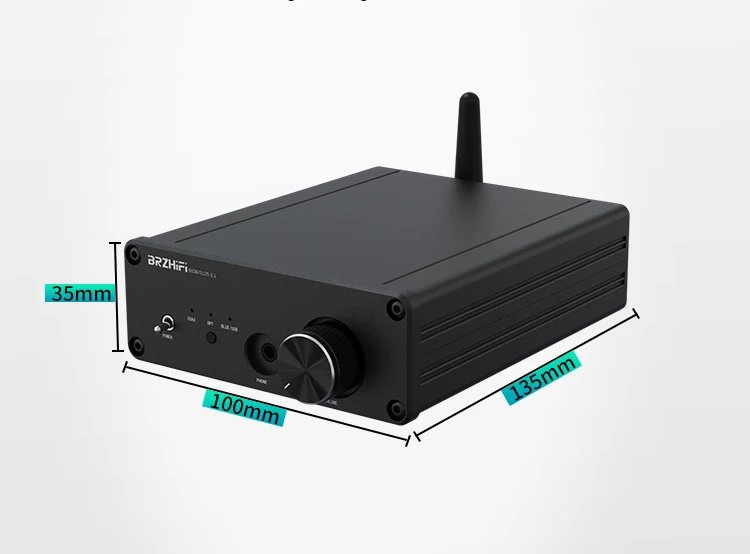

Product size: 100*138*35mm
Headphone impedance range: 16-300Ω
Accessories: comes with a TYPE-C power cable
Output level: 2.5Vrms@OdBFS

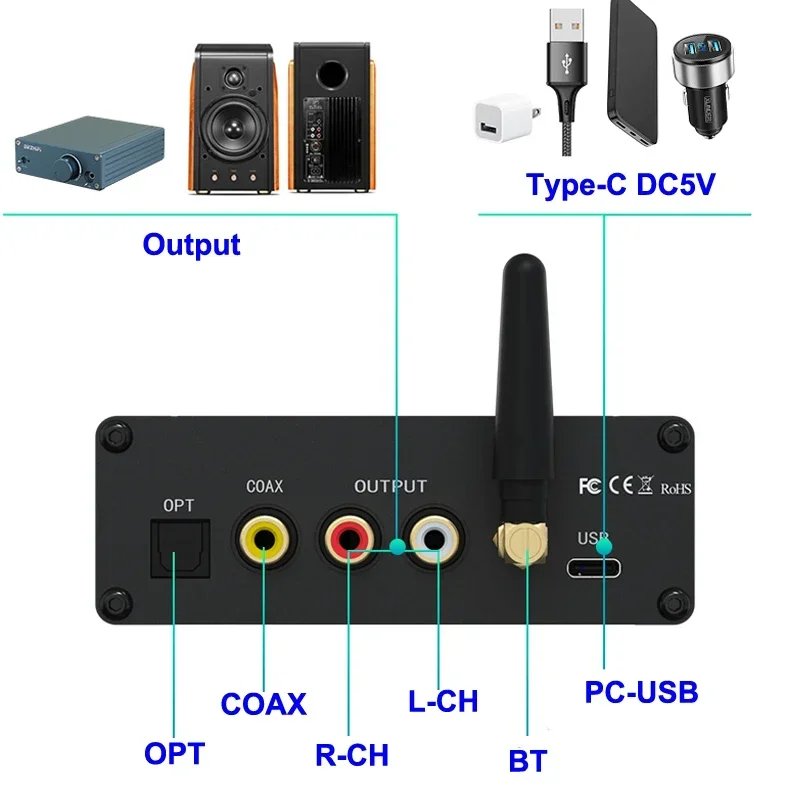

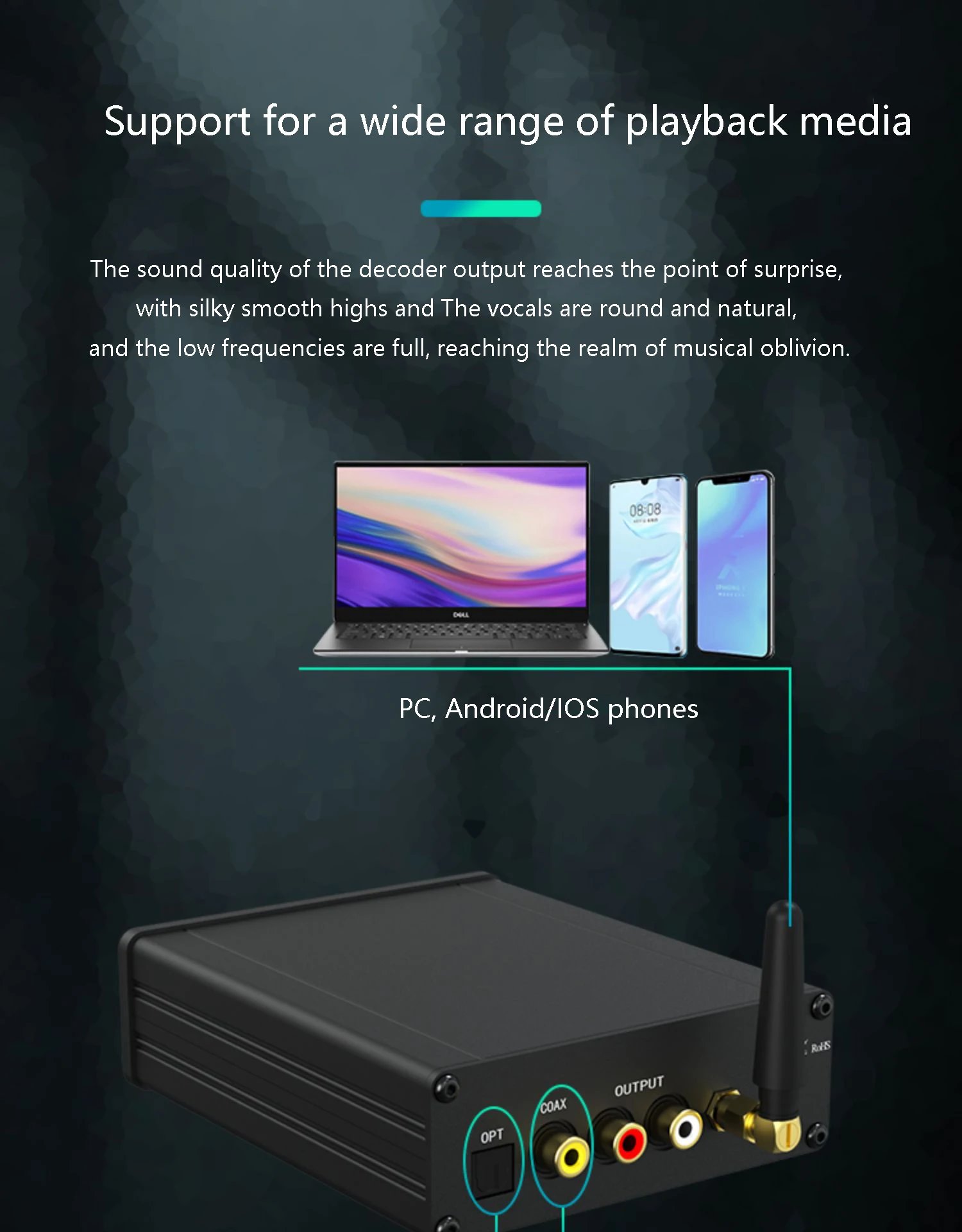

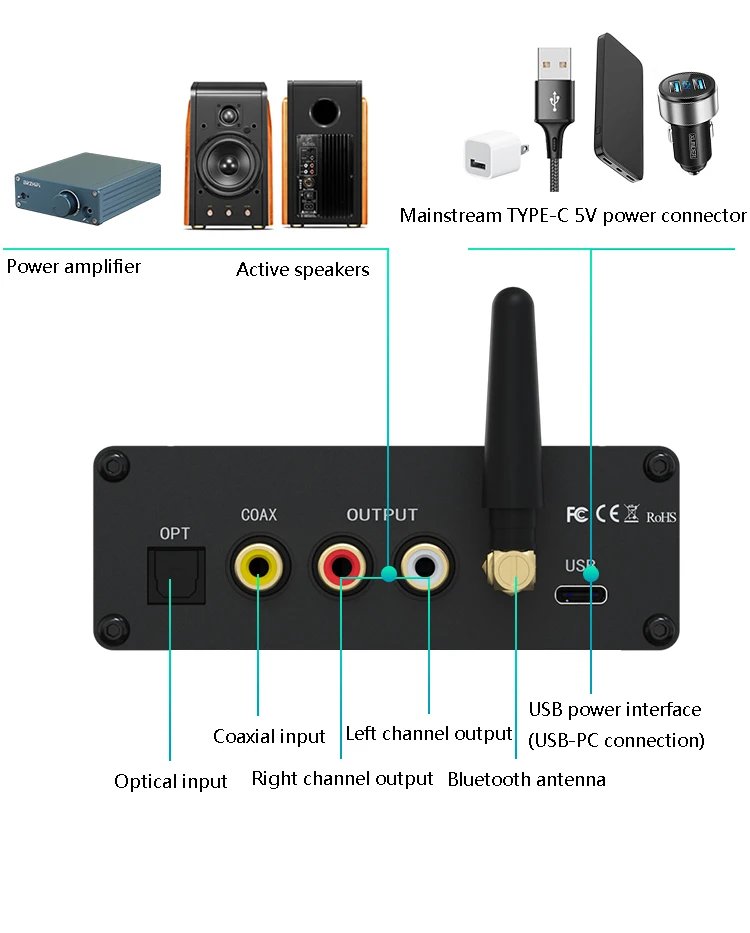

Input: USB-PC/coaxial/optical/bluetooth

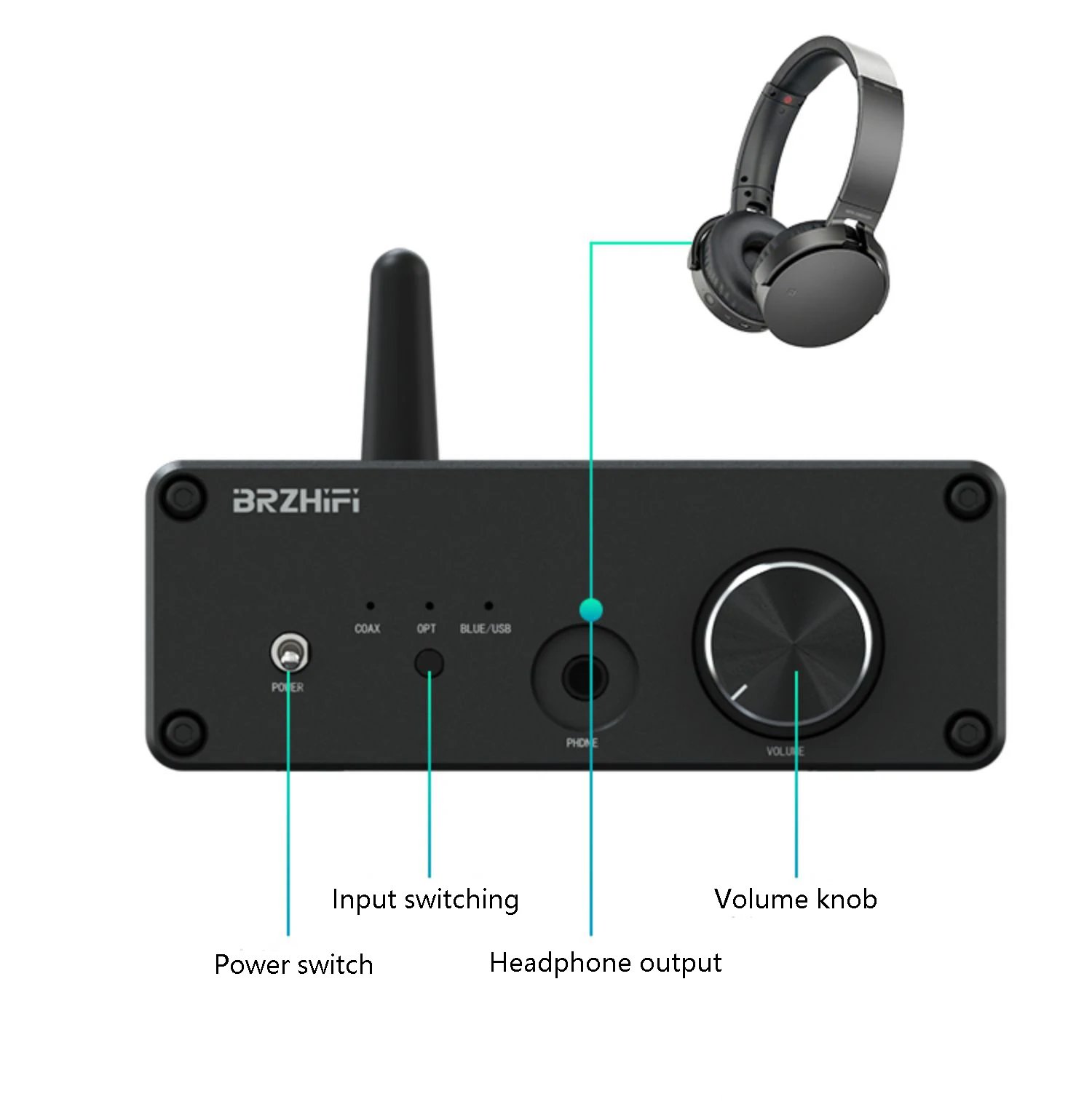

Output: RCA/3.5mm headphone output
Bluetooth protocol: LDAC/APTX/AAC/SBC
Frequency response: 20-20KHz +/-0.15dBRCA
USB interface support (PC):44.1KHz/48KHz
Bluetooth sample rate support: 44.1KHz/48KHz/96KHz
Usage environment: Windows/MAC/partial mobile devices
Coaxial optical sampling rate support: 44.1KHz/48KHz/88.2KHz/96KHz/176.4KHz/192KHz
