PRODUCT DETAILS

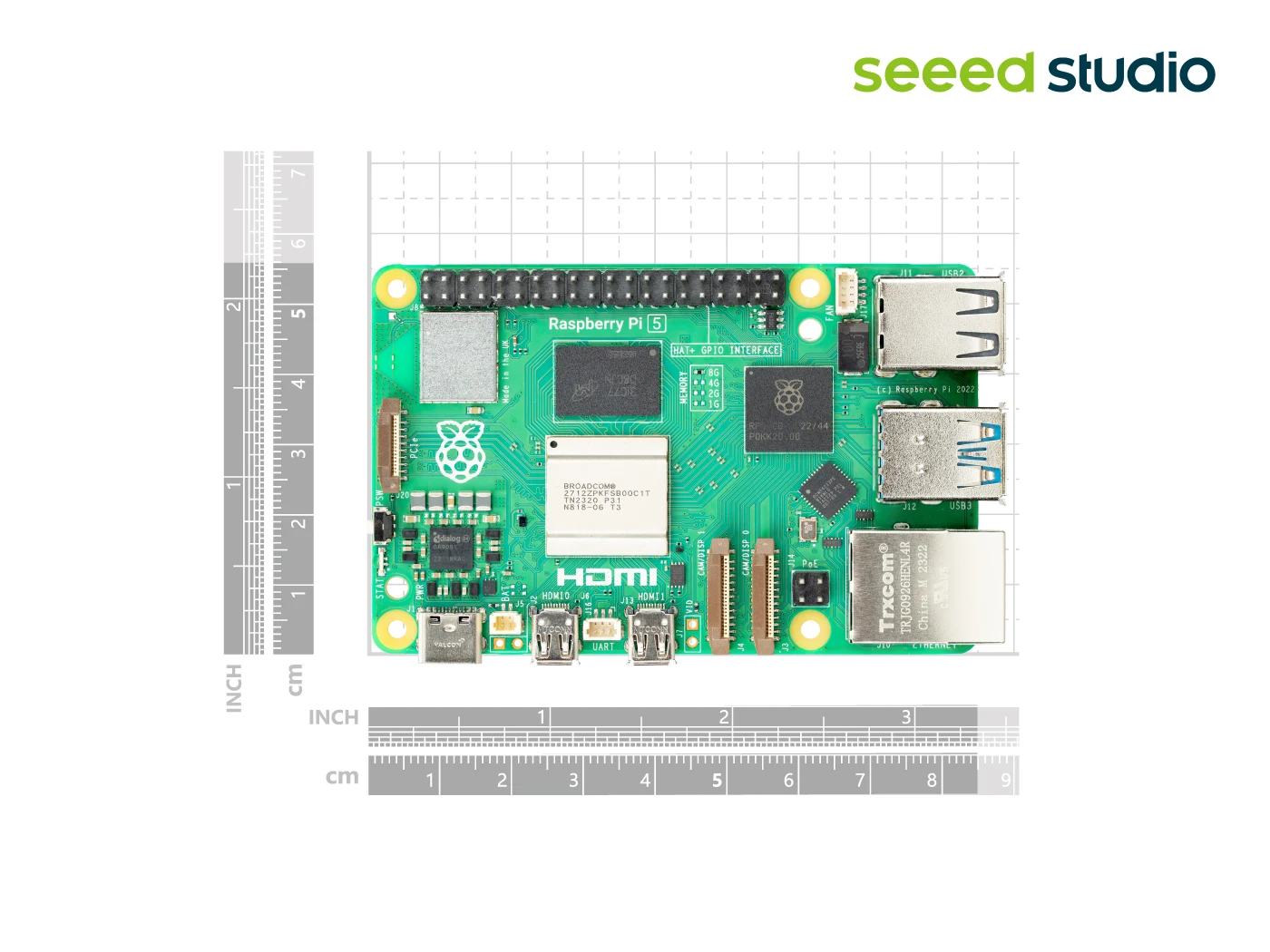

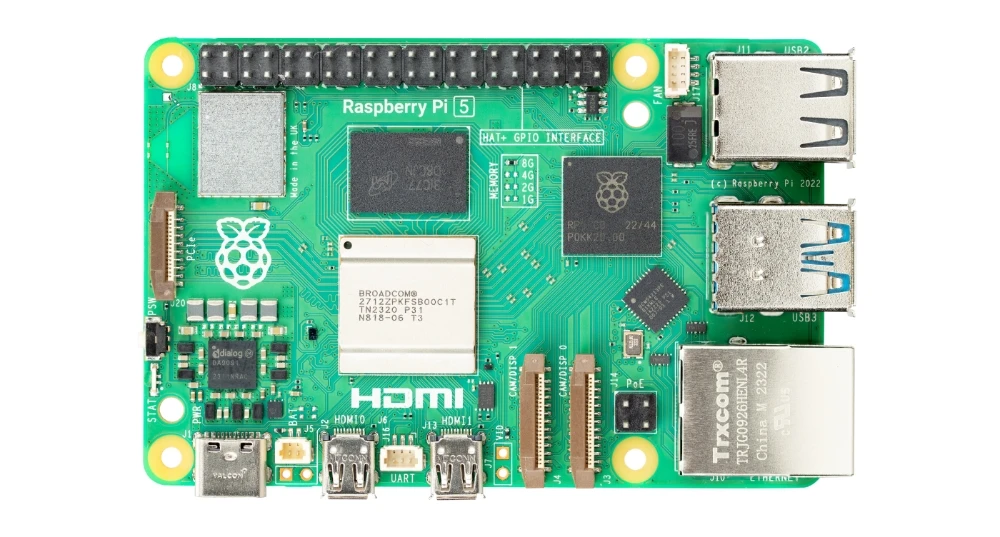

Raspberry Pi Fifth Flagship Development Computer is assembled with a powerful 2.4GHz 64-bit quad-core Arm processor and an 800MHz VideoCore VII GPU for impressive graphics. It offers advanced camera support, versatile connectivity, and enhanced peripherals, perfect for multimedia, gaming, and industrial tasks.

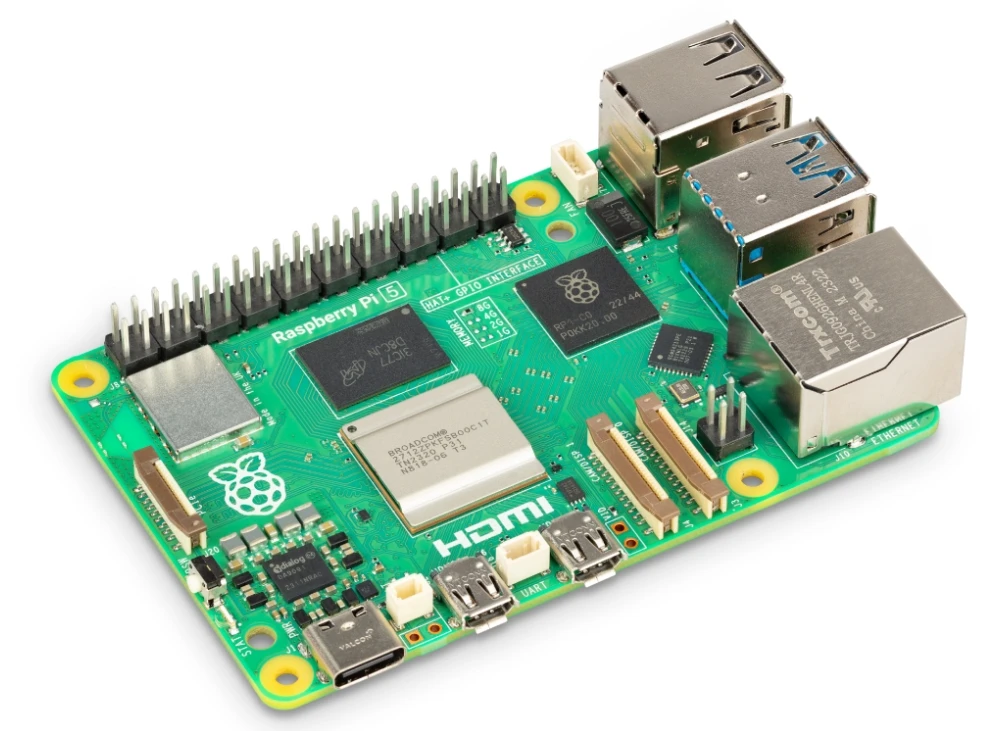

Raspberry Pi Fifth Flagship Development Computer is a powerhouse of performance and functionality. Powered by a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz where offers 2x – 3x higher performance than the previous generation, this board utilizes silicon developed in-house by Raspberry Pi, resulting in a significant boost in peripheral performance.
Featuring an additional 800MHz VideoCore VII GPU, it delivers superior graphics performance, making it ideal for multimedia applications, gaming, and graphics-intensive tasks. It also comes with two-lane 1Gbps MIPI camera, tripling the total bandwidth and allowing for the use of up to two cameras or displays in any combination. The developers can capture stunning visuals and harness the power of multiple cameras with ease.
Feature:
🌱 Raspberry Pi Fifth Flagship Development Computer:
Feature a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, using silicon built in-house at Raspberry Pi, offering a step change in peripheral performance and functionality
🌱Significant Graphics Capability:
Equip an 800MHz VideoCore VII GPU and deliver better graphics performance, suitable for multimedia applications, gaming, and graphics-intensive tasks
🌱State-of-the-Art Camera Support:
Built with the dedicated dual 4-lane 1Gbps MIPI DSI/CSI connectors, tripling total bandwidth, and supporting any combination of up to two cameras or displays
🌱Versatile Connectivities:
Offer Gigabit Ethernet and a PCIe interface, along with dual-band Wi-Fi and Bluetooth 5.0/BLE wireless capability
🌱Enhanced Peripherals:
Provide 1x UART connector, 1x microSD card slot supporting high-speed, 2x USB.0 3.0 supporting sync 5Gbps operation, 2x USB2.0 ports ports, 1x RTC, 2x 4Kp60 display output with HDR support
Application
-
PC alternatives
-
Multimedia Center
-
Console
-
Education and Learning Tools
-
Smart Home Systems
-
Sensor Network
-
Remote Monitoring
-
Industrial Automation
-
Embedded Systems Development
Hardware Overview:
|
Parameters |
Description |
|
CPU |

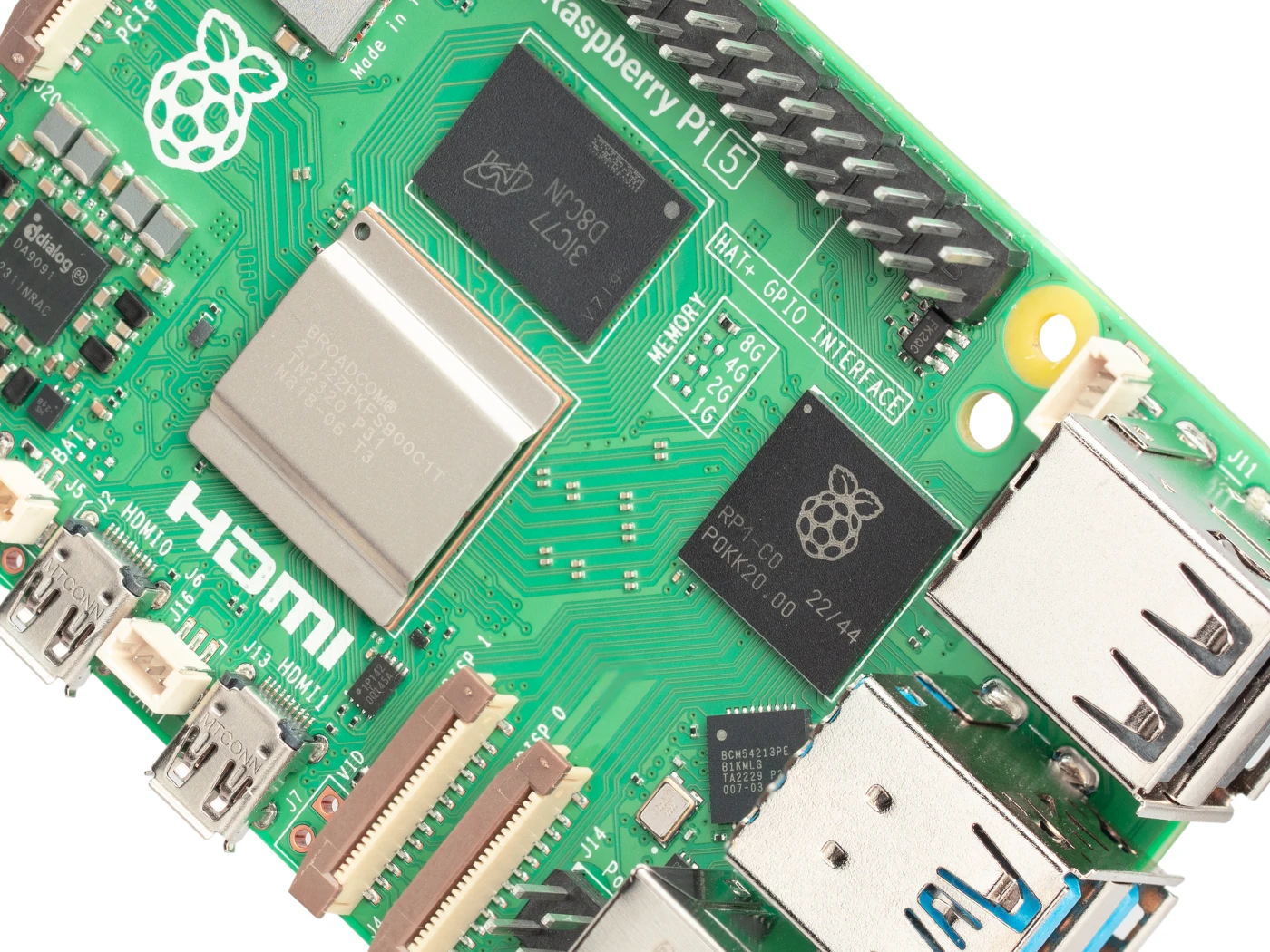

2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache |
|
GPU |
VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2 |
|
Display Output |
Dual 4Kp60 HDMI® display output with HDR support |
|
Video Decoder |
4Kp60 HEVC decoder |
|
RAM |
4GB LPDDR4X-4267 SDRAM |
|
Wi-Fi |
Dual-band 802.11ac Wi-Fi® |
|
Bluetooth |
Bluetooth 5.0/ Bluetooth Low Energy (BLE) |
|
Storage |
microSD card slot, with support for high-speed SDR104 mode |
|
Power Button |
On/Off included |
|

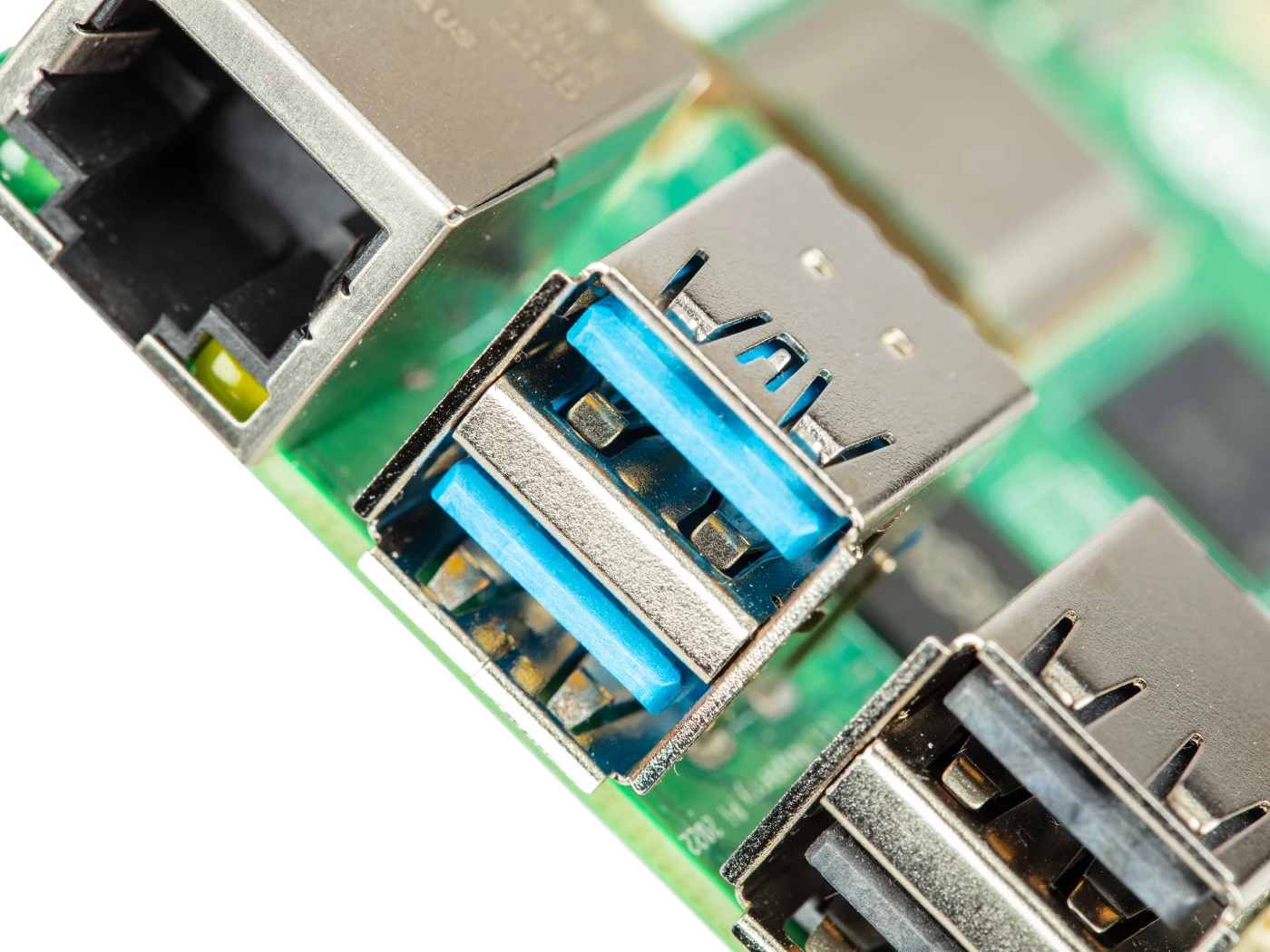

USB Ports |
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation |
|
2 × USB 2.0 ports |
|
|
Ethernet |
Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT) |
|
Camera/Display |
2 × 4-lane MIPI camera/display transceivers |
|
PCIe Interface |
PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter) |
|
Power |
5V/5A DC power via USB-C, with Power Delivery support |
|
Raspberry Pi Header |
Raspberry Pi standard 40-pin header |
|
Real-time Clock (RTC) |
Powered from external battery |
