Description
Main features of the product:
1. Adopt IPQ8072A Qualcomm chip, Quad core Arm Cortex A53s CPU, the main frequency is up to 2.2 GHz MHZ

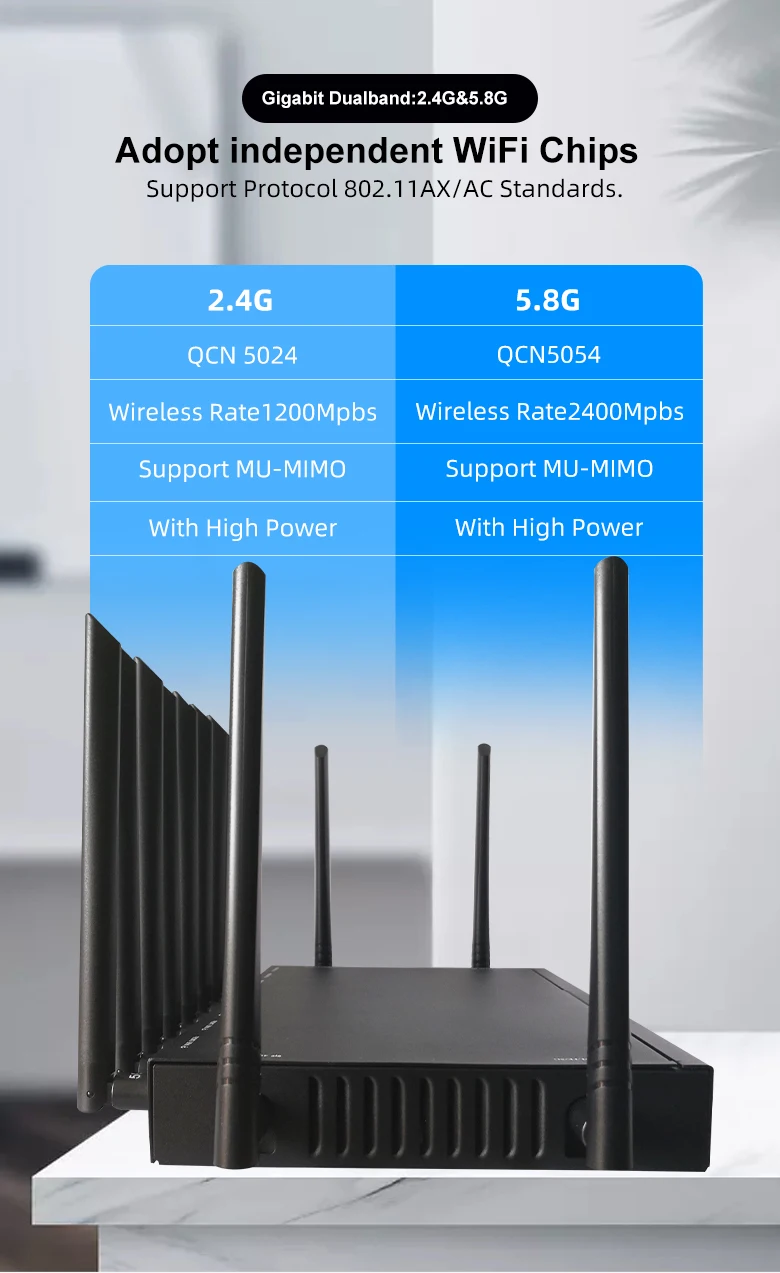

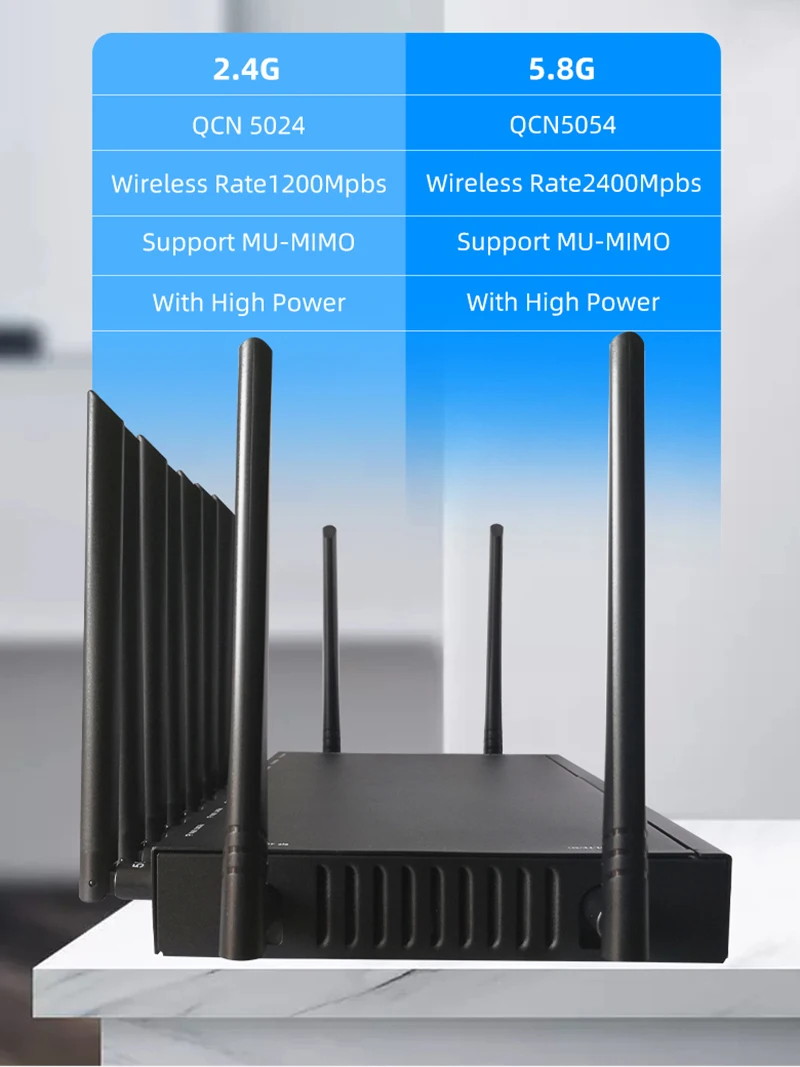

2. Adopt independent WiFi chip, 2.4G is qcn5024, 5.8G is qcn5054
3. 2.4G rate up to 1147Mbps, 5.8G rate up to 2402Mbps, 2.4G&5.8G supports MU-MIMO
4. Large RAM 1GB DDR4 with 8MB nor flash and 256MB Nand flash.
5. 1*WAN, 4*LAN are 1000Mbps adaptive network ports, support automatic flip (Auto MDI/MDIX)
6. Built-in M.2 standard interface, can be used to connect 5G mobile communication module.
7. External standard SIM card interface, support SIM/USIM card
8. 5G module power supply is independently controlled by GPIO
9. IPQ8072 with watchdog function, which can reboot automatically in case of crash.
10. External high gain omnidirectional antenna, wireless signal 360 degrees
11. Support MESH automatic networking when multiple products are used at the same time.

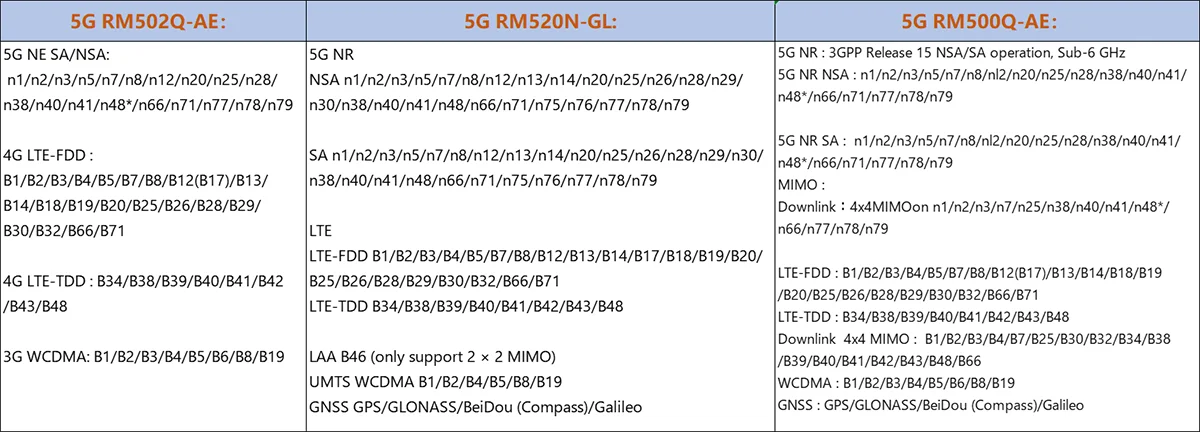

● The “NO 5g Modem No sim” come does not contain any 5g modems, NO modem no 4g/5g wifi, you need to install a 5G modem on the board. That you can insert the SIM card , and get the 4g/5g wifi
|

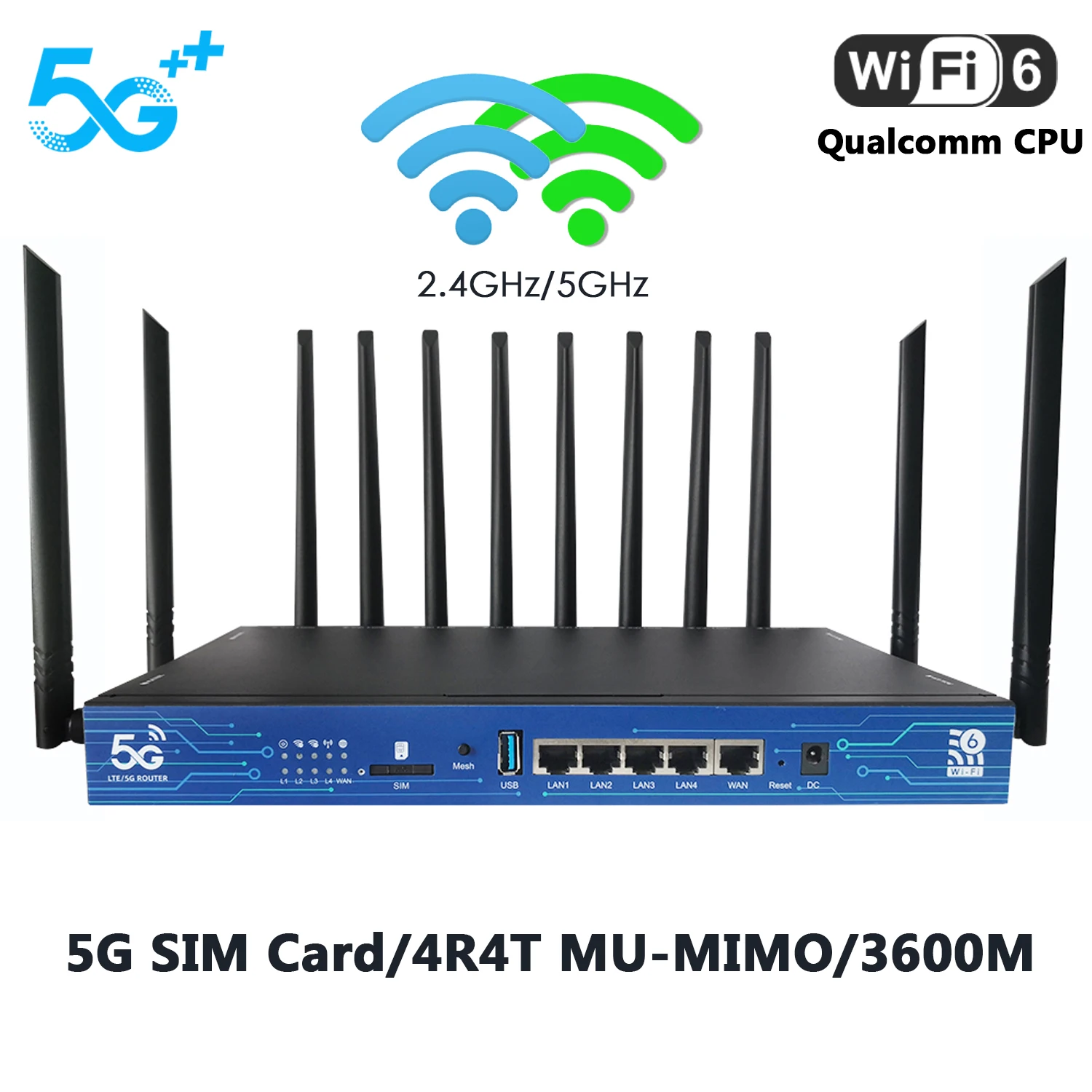

Product |
Z800AX-T 5G Router |
|
Chipset |
Qualcomm IPQ8072A |
|
Standards And Protocols |
Wi-Fi 802.11g/b/n, Wi-Fi 802.11ac, Wi-Fi 802.11a, Wi-Fi 802.11ax |
|
Wi-Fi Frequency |
5.8G 2.4G wifi |
|
Encryption Type |
WPA2-PSK, WPA2 |
|
Function |
FireWall, QoS, VPN, SDK available |
|
LAN Ports |
4 x 10/100/1000Mbps |
|
WAN Ports |
1 x 10/100/1000Mbps |
|
2.4G Wi-Fi Transmission Rate |
1147Mbps |
|
5.8G Wi-Fi Transmission Rate |
2402Mbps |
|
Wireless Speed |
2.4GHz 1200Mbps + 5.8GHz 2400Mbps (3600mbps) |
|

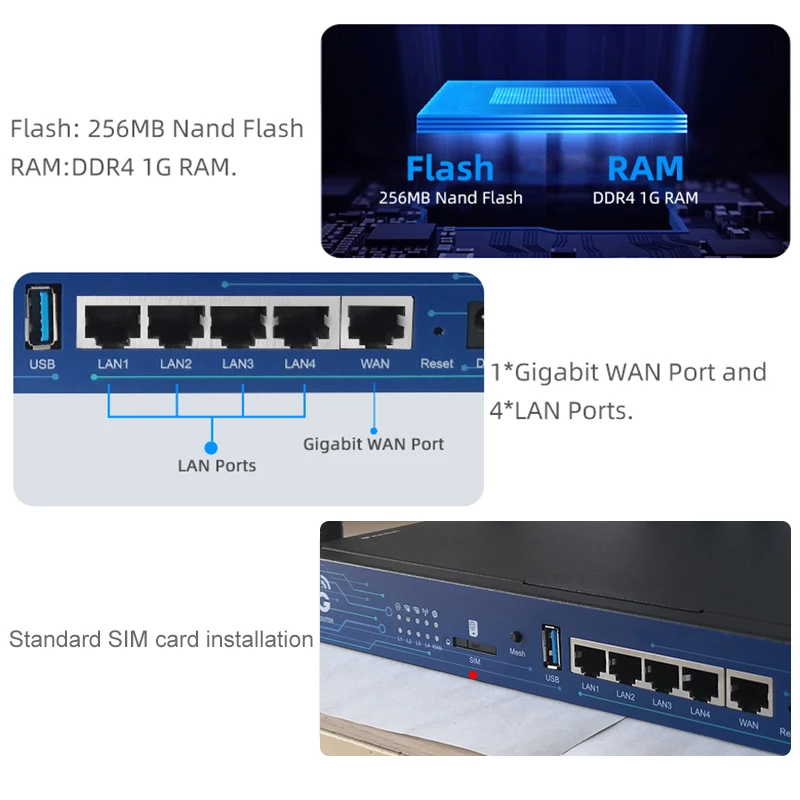

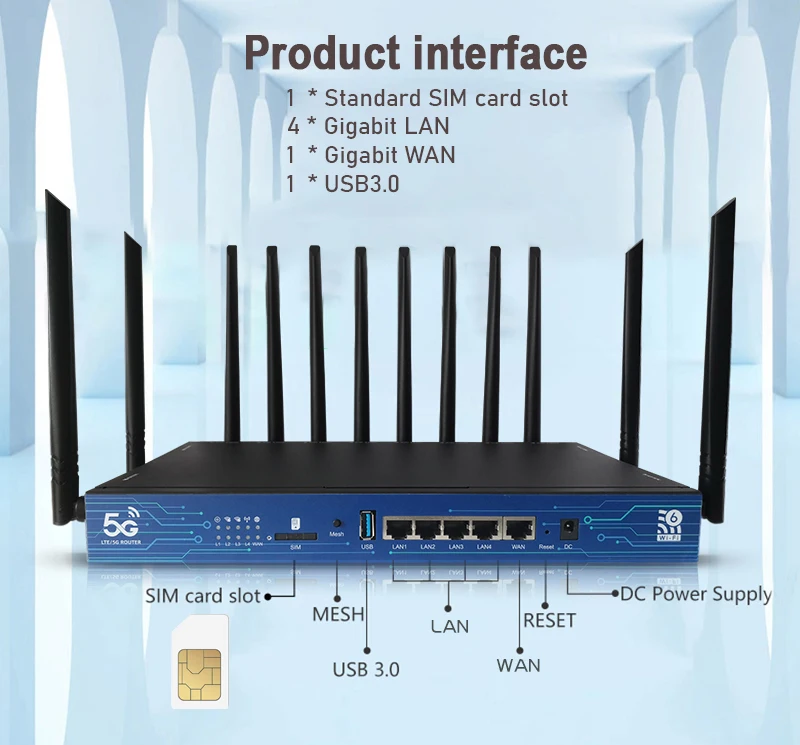

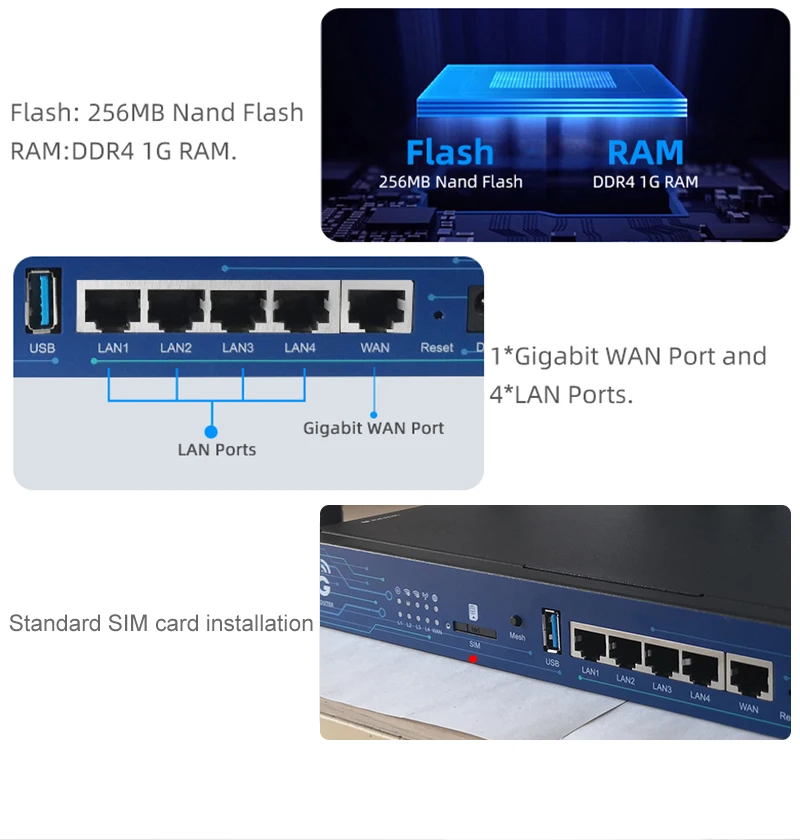

Interface |

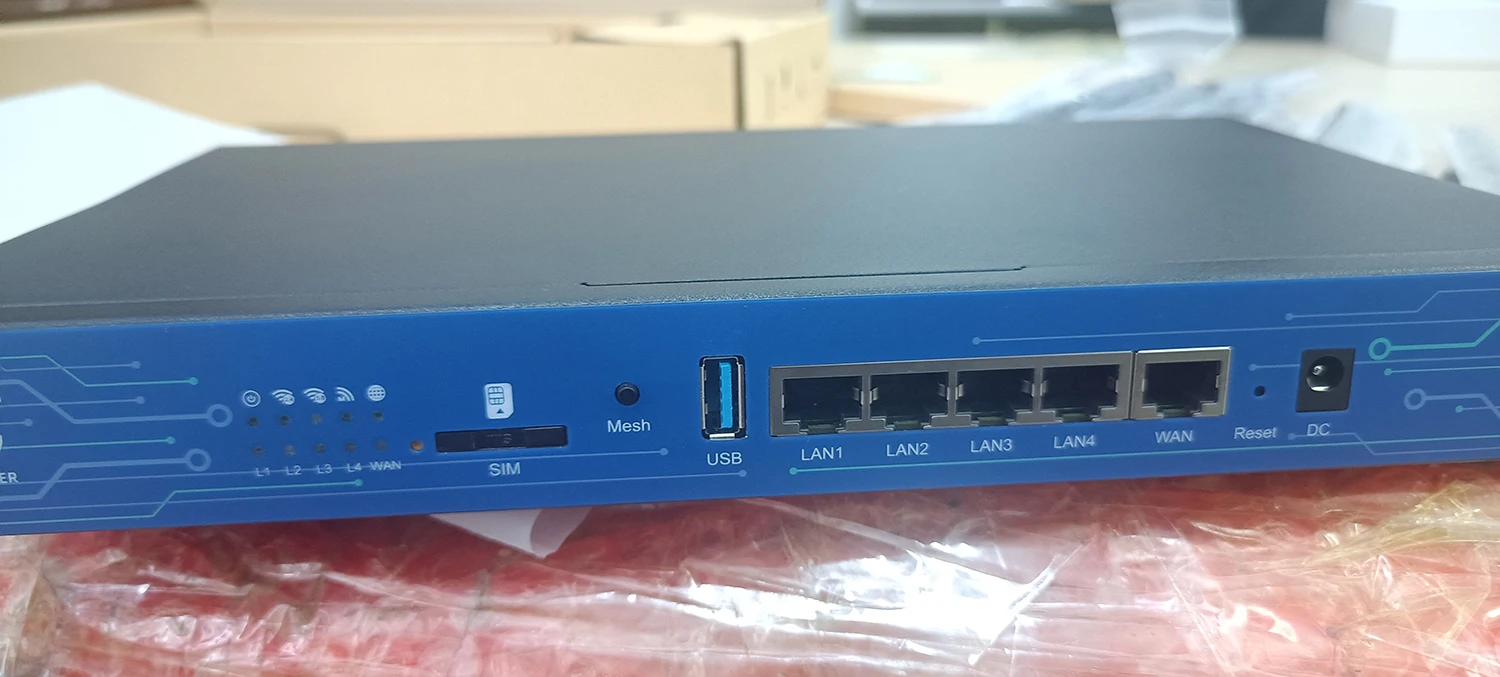

1 WAN + 4 LAN,1* Sim card slot, 1*USB3.0 port |
|
Flash/Ram |
8MB Nor Flash, 256MB NAND + 1GB DDR4 |
|
Chipset Frequency |
2.2GHz |
|
Wired Transfer Rate |
10/100/1000Mbps |
|

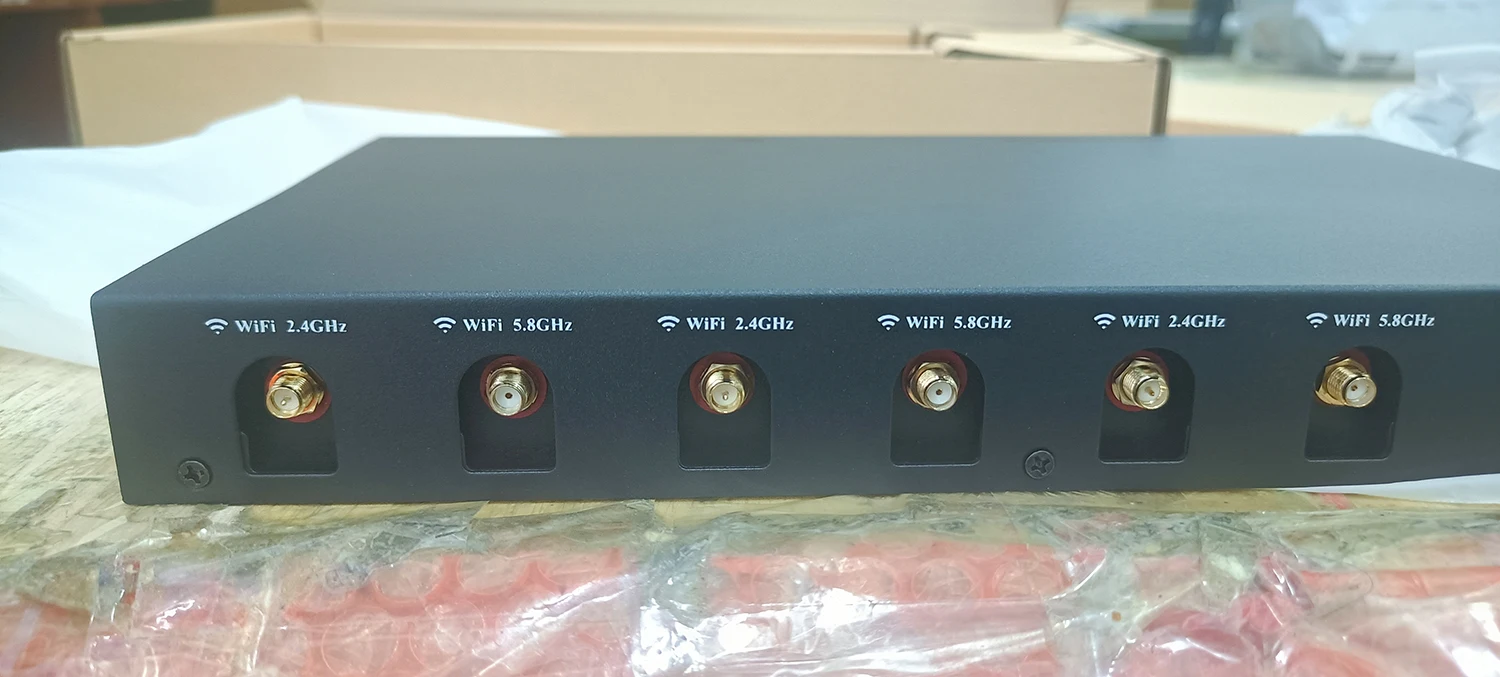

Antenna |
12 external antennas, detachable |
|
Antenna type |
4 *2.4G antennas, 4 *5.8G antennas, 4 *4G/5G antennas |
|
Button |
1*Reset, 1*Mesh |
|
Work Environments |
Operating Temperature: 0℃~ 40℃; |
|
Storage Temperature: -40℃~ 70℃; |
|
|
Operating Humidity: 10%~90% non-condensing |
|
|
Storage Humidity: 10%~90% non-condensing |
|
|

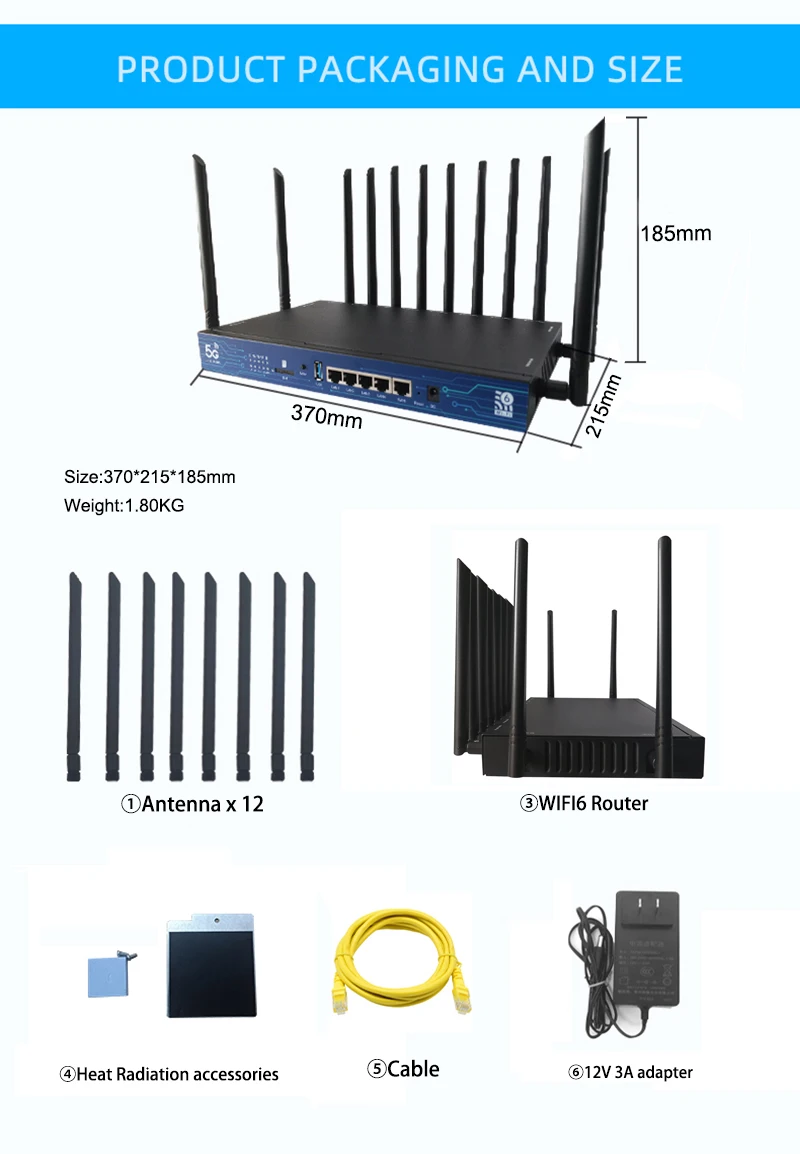

Size & Weight |
370*215*185mm , 1.80KG |
|
Accessories |
WIFI6 router* 1 PCS |
|
Heat Radiation accessories* 2PCS |
|
|
12V 3A Adapter* 1 PCS |
Qualcomm IPQ8072A Chip
4-core ARM Cortex A53s CPU with up to 2.2GHz main frequency

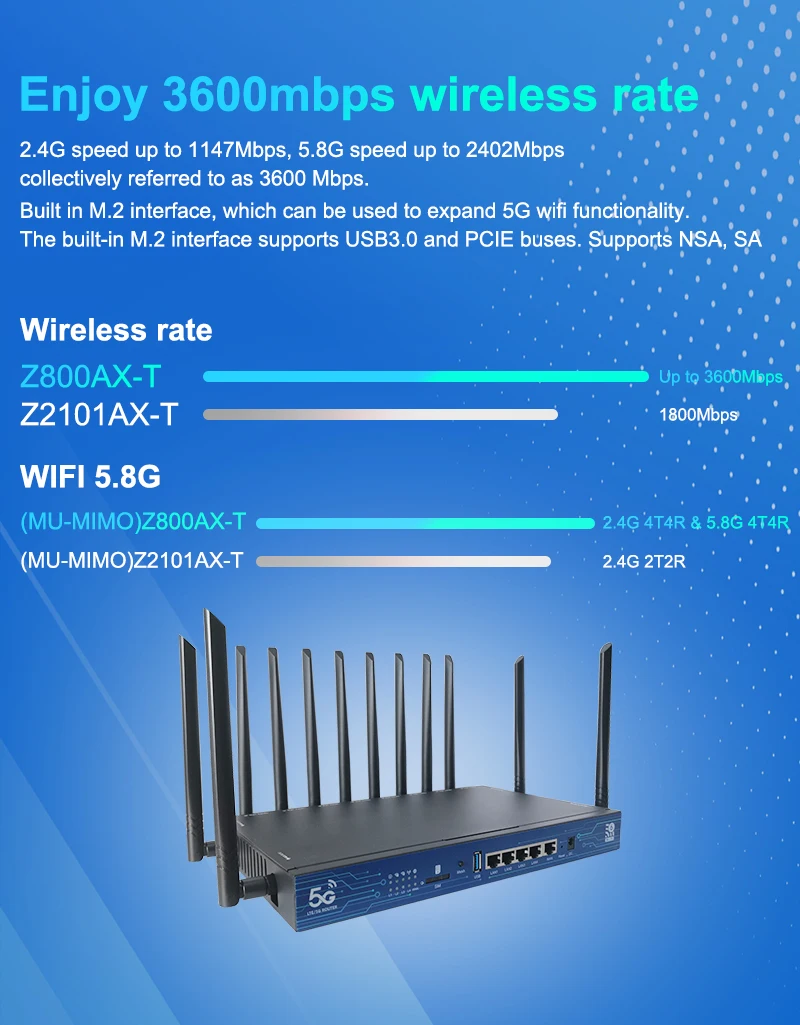

3600mbps wireless rate
2.4G speed up to 1147Mbps, 5.8G speed up to 2402Mbps, collectively referred to as 3600 Mbps.
Built in M.2 interface, which can be used to expand 5G wifi functionality. The built-in M.2 interface supports USB3.0 and PCIE buses. Supports 5G NSA, SA
4T4R MU-MIMO Networking Technology
Compatible with IEEE 802.11 b/g/n/ac/ax, supporting 20MHz or 40MHz, modulation method 1024-QAM/OFDMA, using 4T4R MU-MIMO antenna technology, with a maximum connection rate of up to 1147Mbps, achieve optimal, efficient, and stable transmission.
MESH networking
Pressing the MESH key for two products at the same time can achieve MESH automatic networking

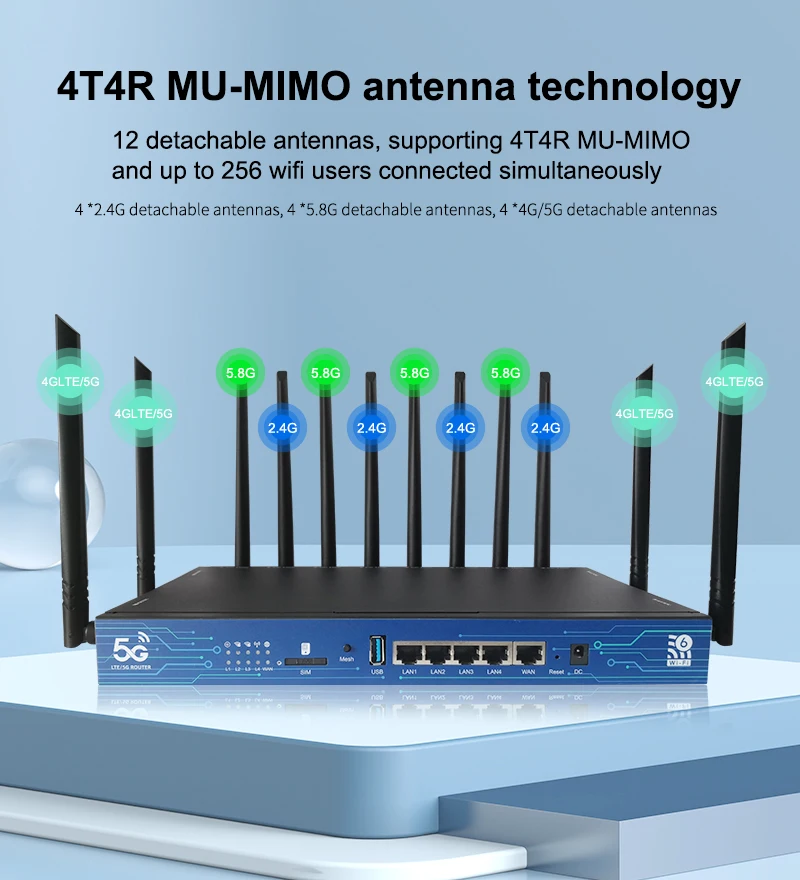

4T4R MU-MIMO Antenna Technology
12 detachable antennas, supporting 4T4R MU-MIMO, and up to 256 wifi users connected simultaneously
