Description

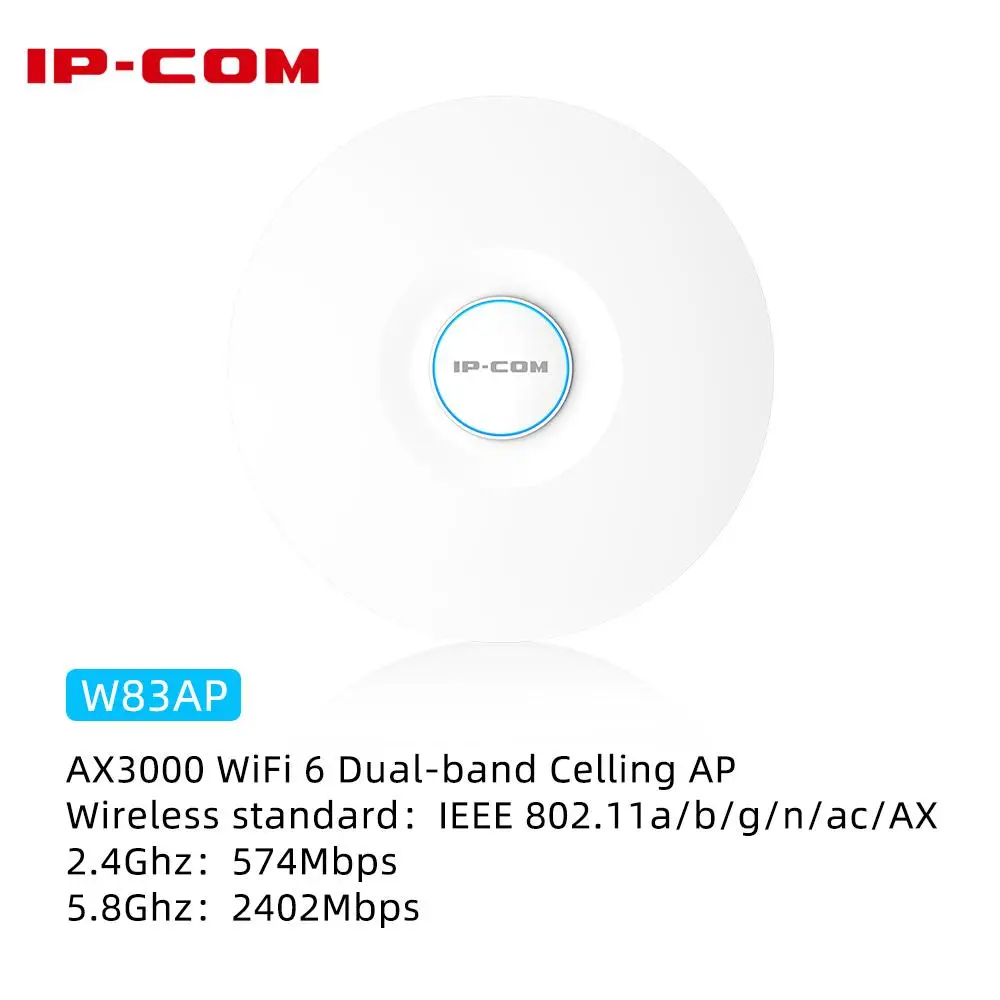

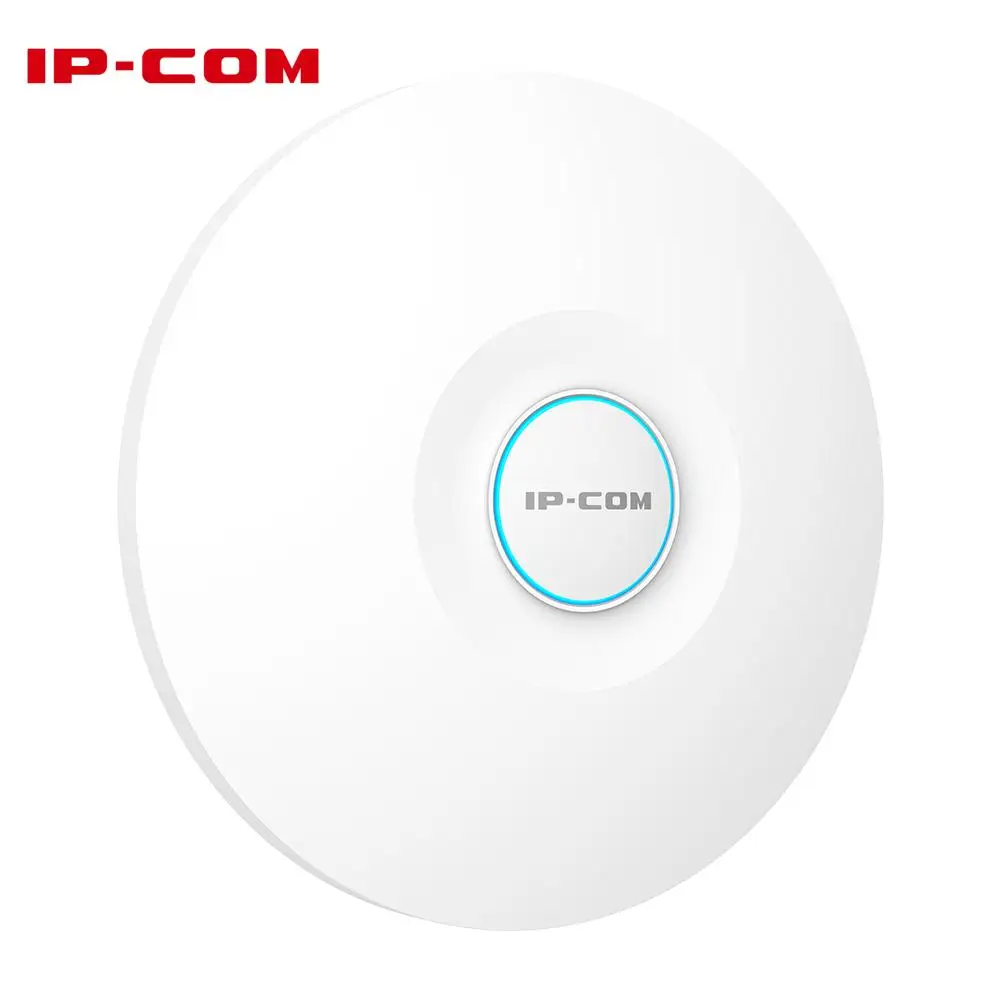

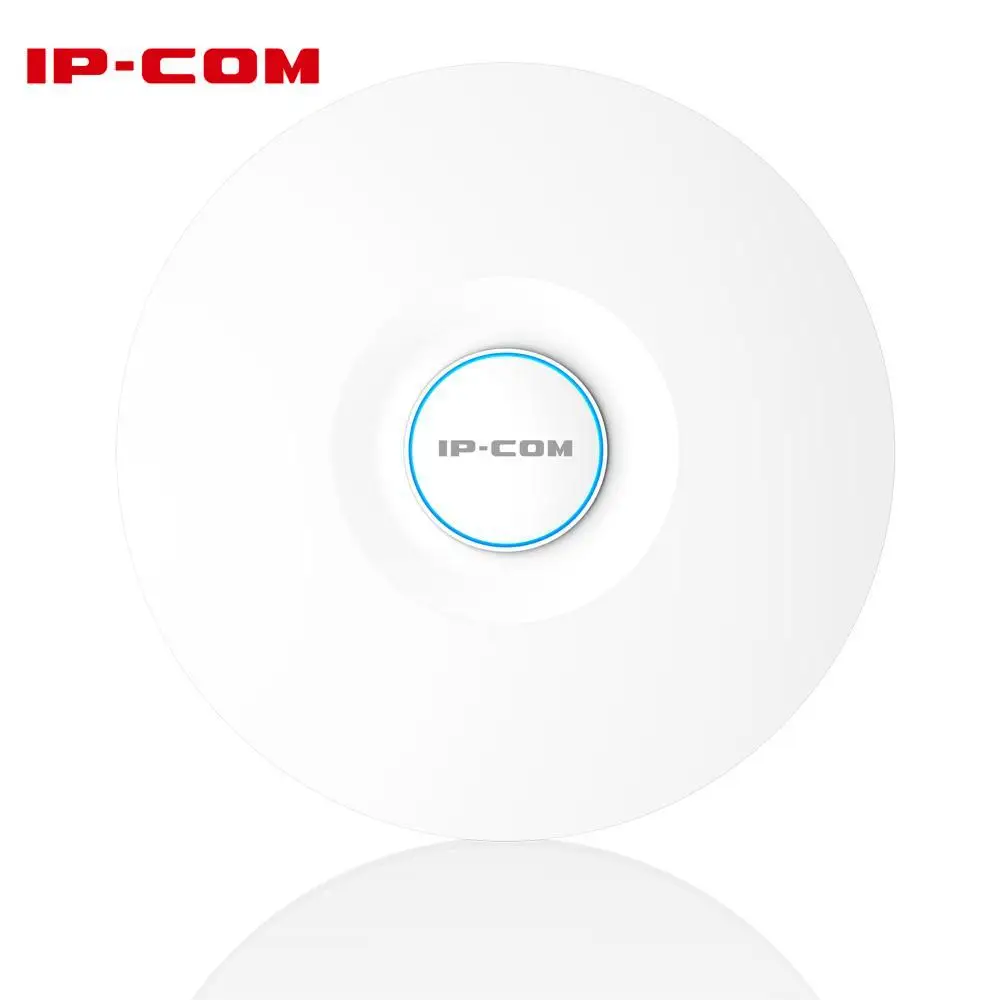

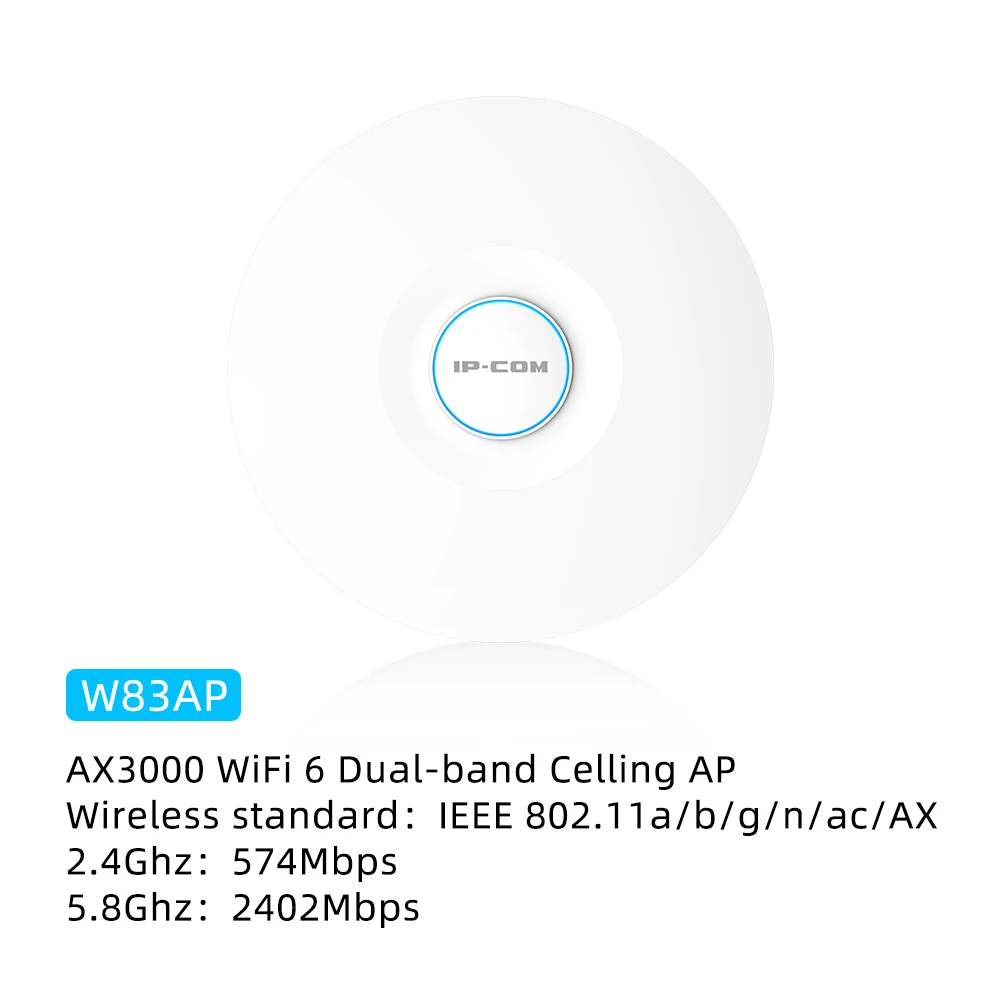

AX3000 Wi-Fi 6 Dual-band top-up AP

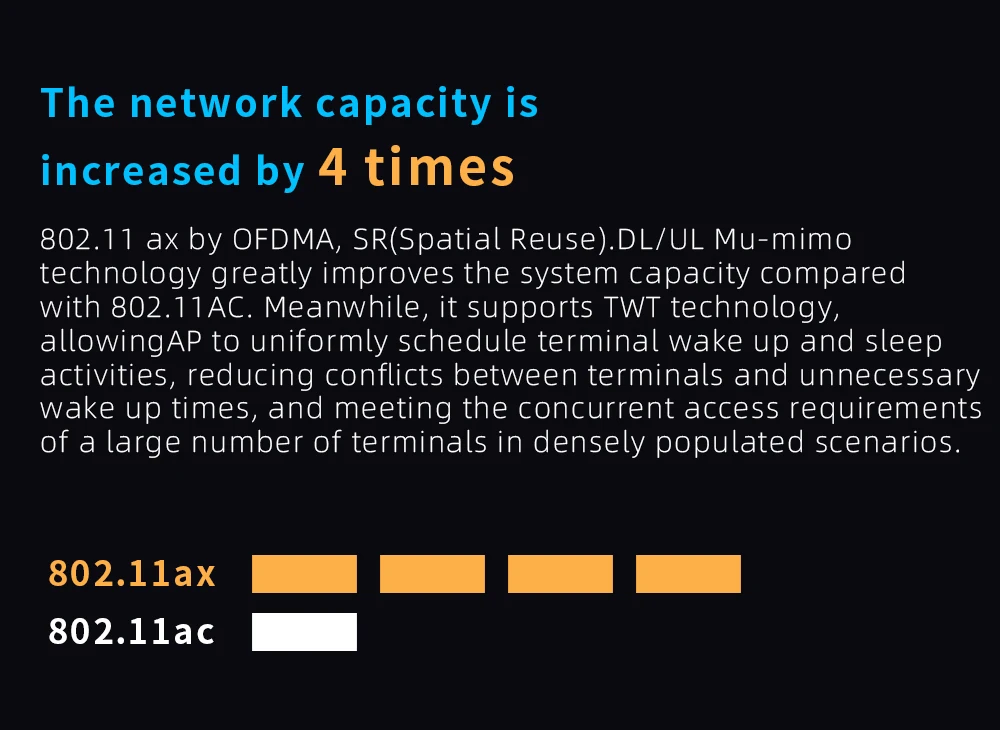

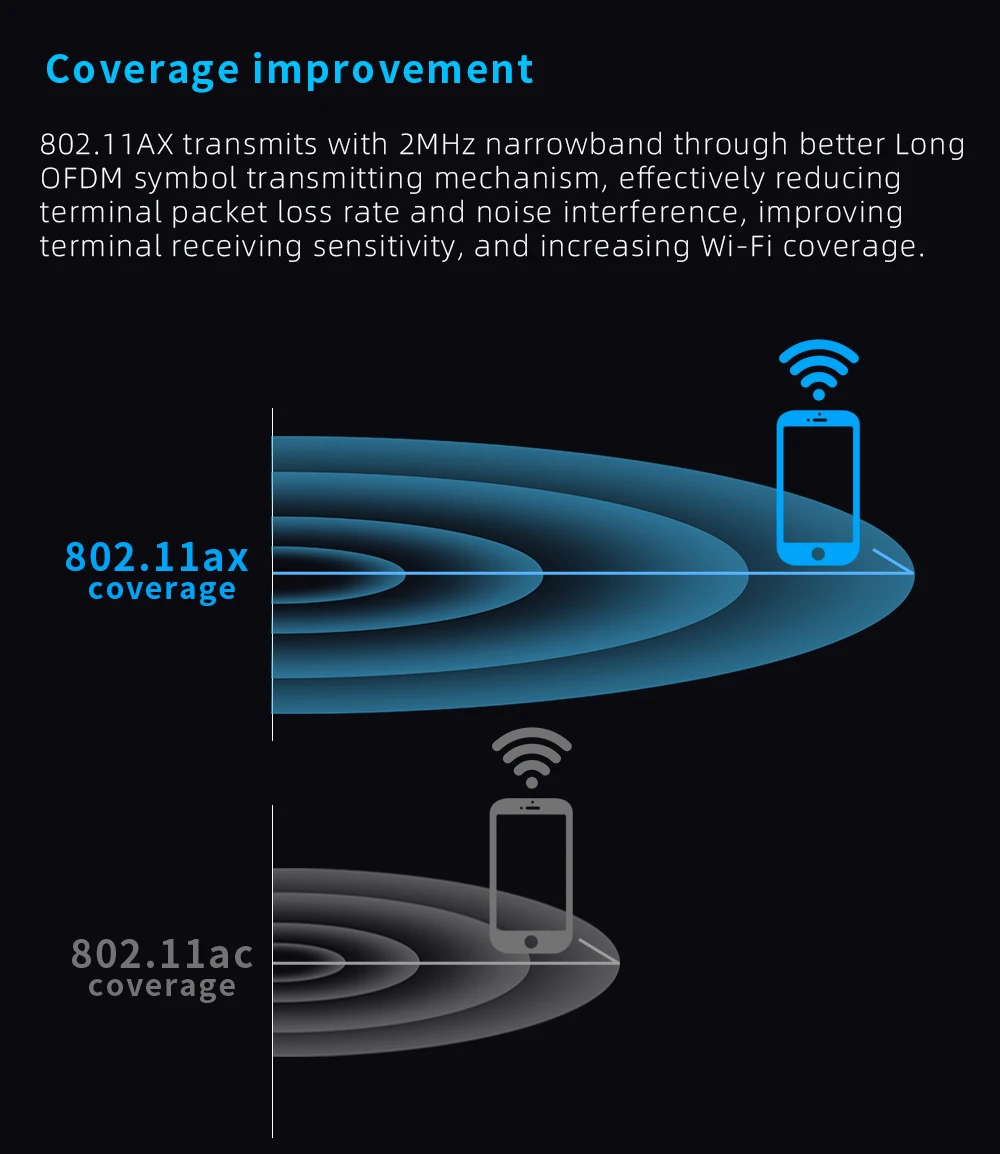

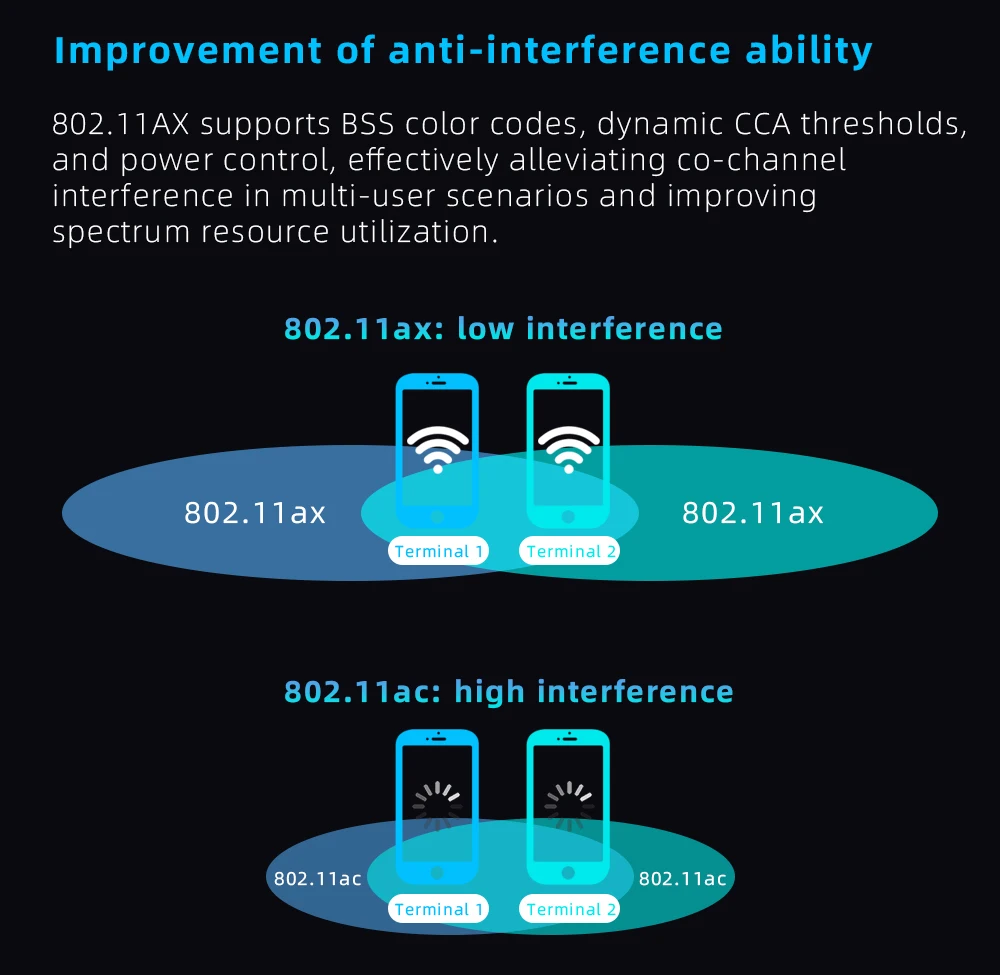

W83AP is a gigabit port dual-frequency top AP based on the new Wi-Fi 6 standard. It can support 160MHz bandwidth, twice that of ordinary wi-FI6 products, and the wireless speed is up to 3000Mbps. Through OFDMA and other technologies, the new 802.11AX protocol not only improves the system capacity of single AP compared with 802.11AC, but also greatly improves the anti-jamming ability. TWT technology allows AP to uniformly schedule the wake up and sleep of terminals, reducing conflicts between terminals and unnecessary wake times, and meeting the concurrent access requirements of a large number of terminals in densely populated scenarios. W83AP uses a high specification of radio design, coverage than ordinary WI-FI 5 AP more than 20%, is your deployment of high performance WLAN network wise choice.
Features

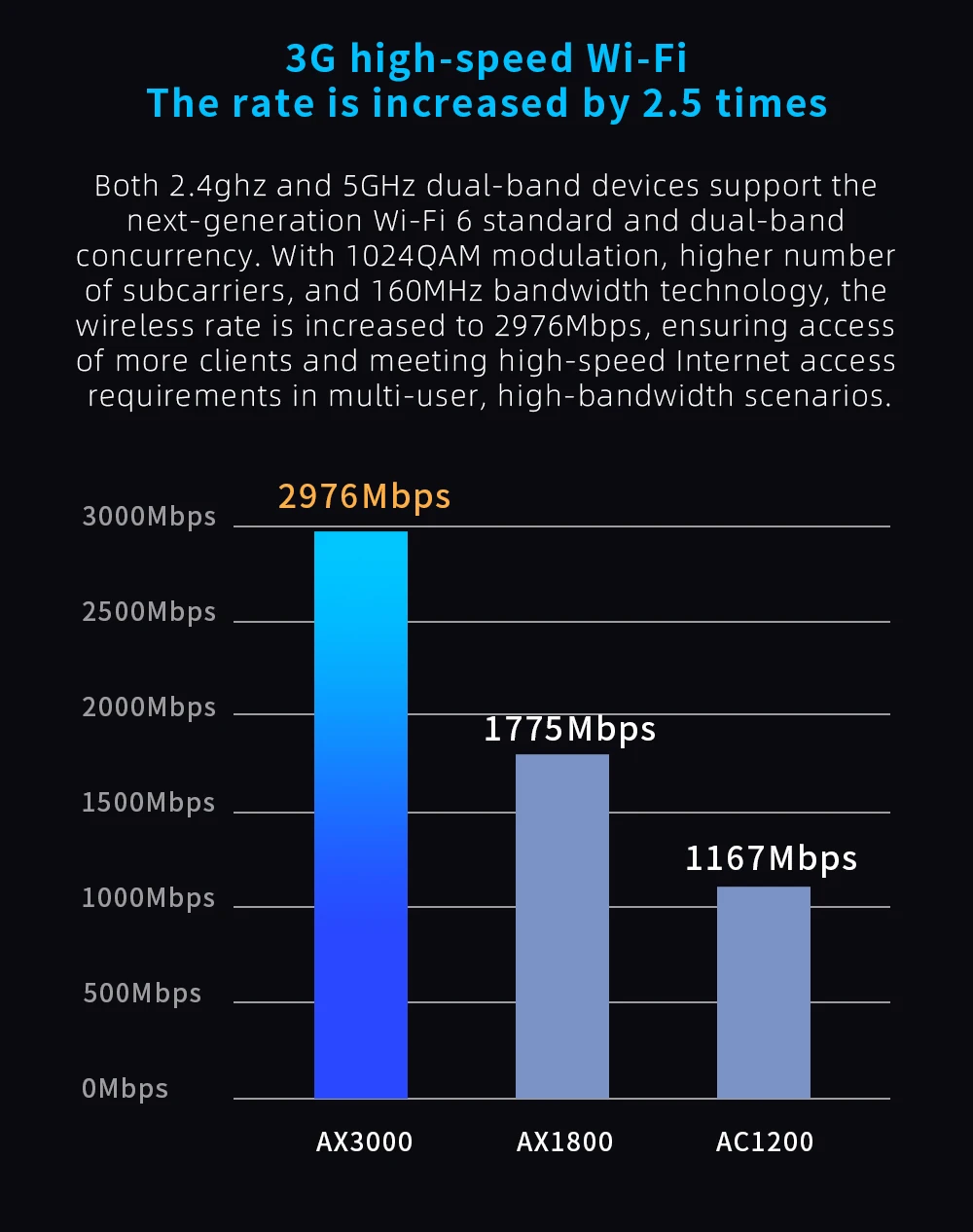

-160MHz bandwidth, wireless rate up to 3000Mbps

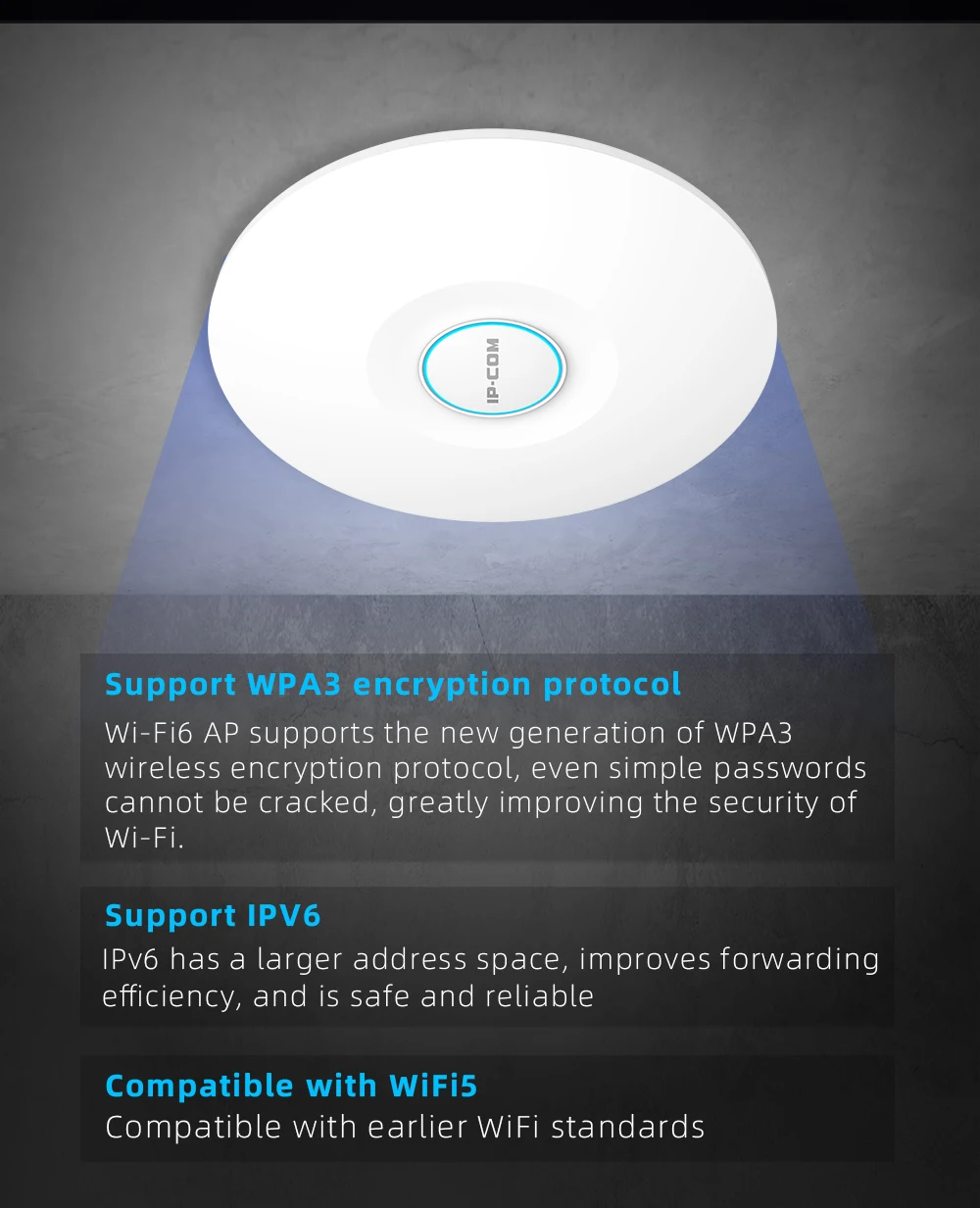

– the new generation of WPA3 encryption, network security is watertight
-OFDMA, UL/DL MU-MIMO Higher capacity, more concurrent connections

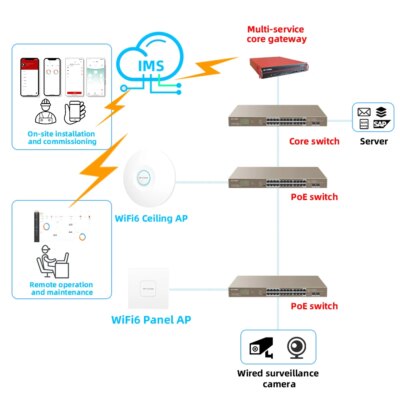

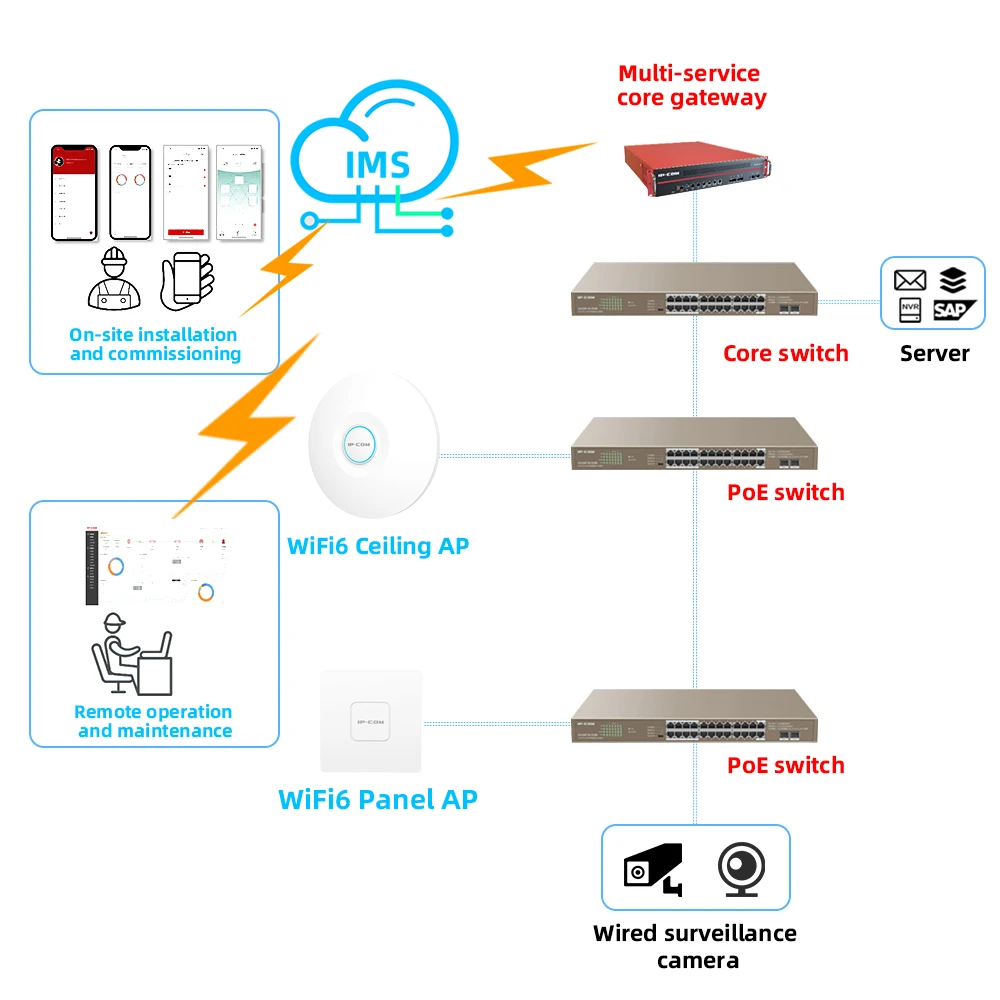

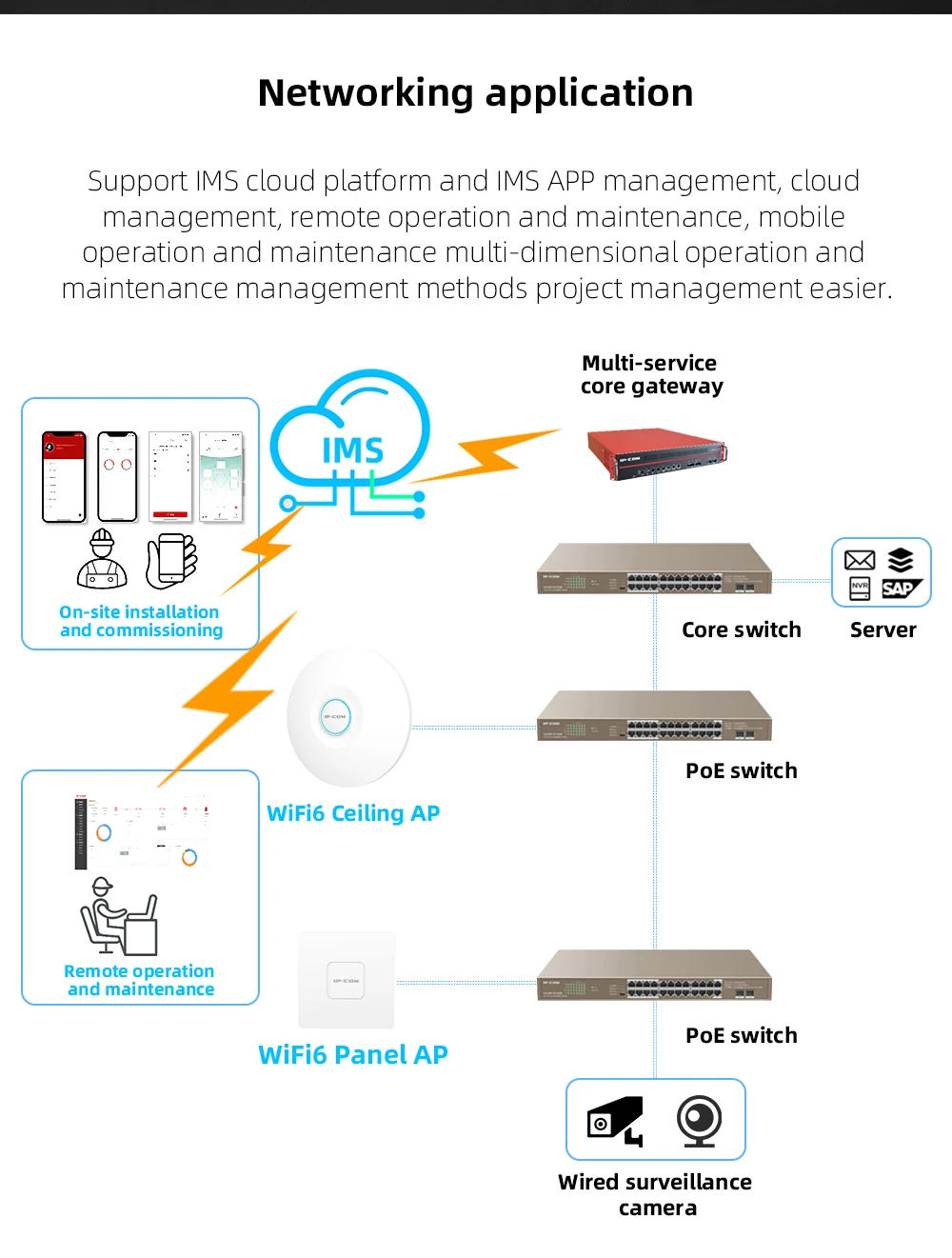

– Supports multi-dimensional operation and maintenance management of hardware controller, cloud platform and APP
|
Product Information |
|
|
Model |
W83AP |
|
Category |
Ceiling |
|

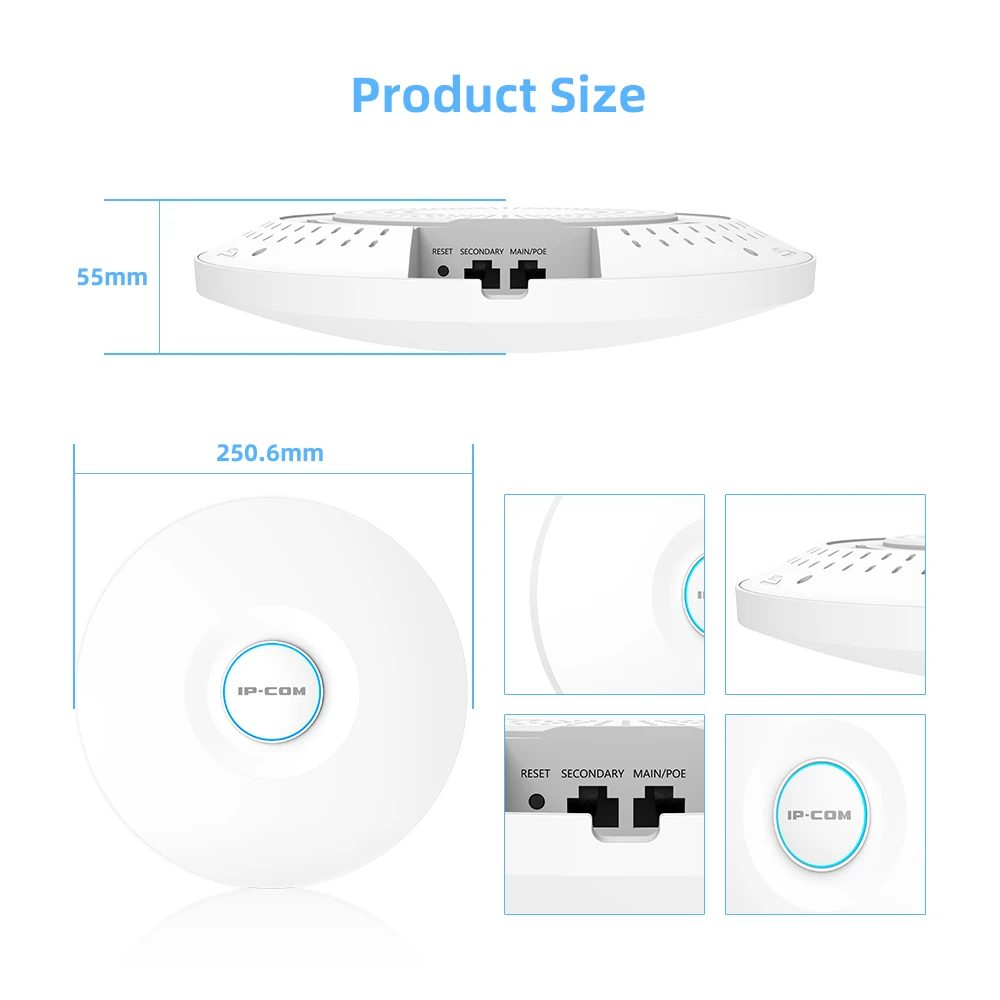

Dimensions |
Φ250.6*55 mm |
|
Hardware Specifications |
|
|
Frequency band |
2.4 GHz, 5 GHz |
|
Wireless standards |
IEEE 802.11a/b/g/n/ac/ax |
|
2.4 GHz data rate |
1-574 Mbps |
|
5 GHz data rate |
6-2402 Mbps |
|
Channel width |
20 MHz/40 MHz/80 MHz/160 MHz |
|
MU-MIMO |
2X2 MU-MIMO |
|

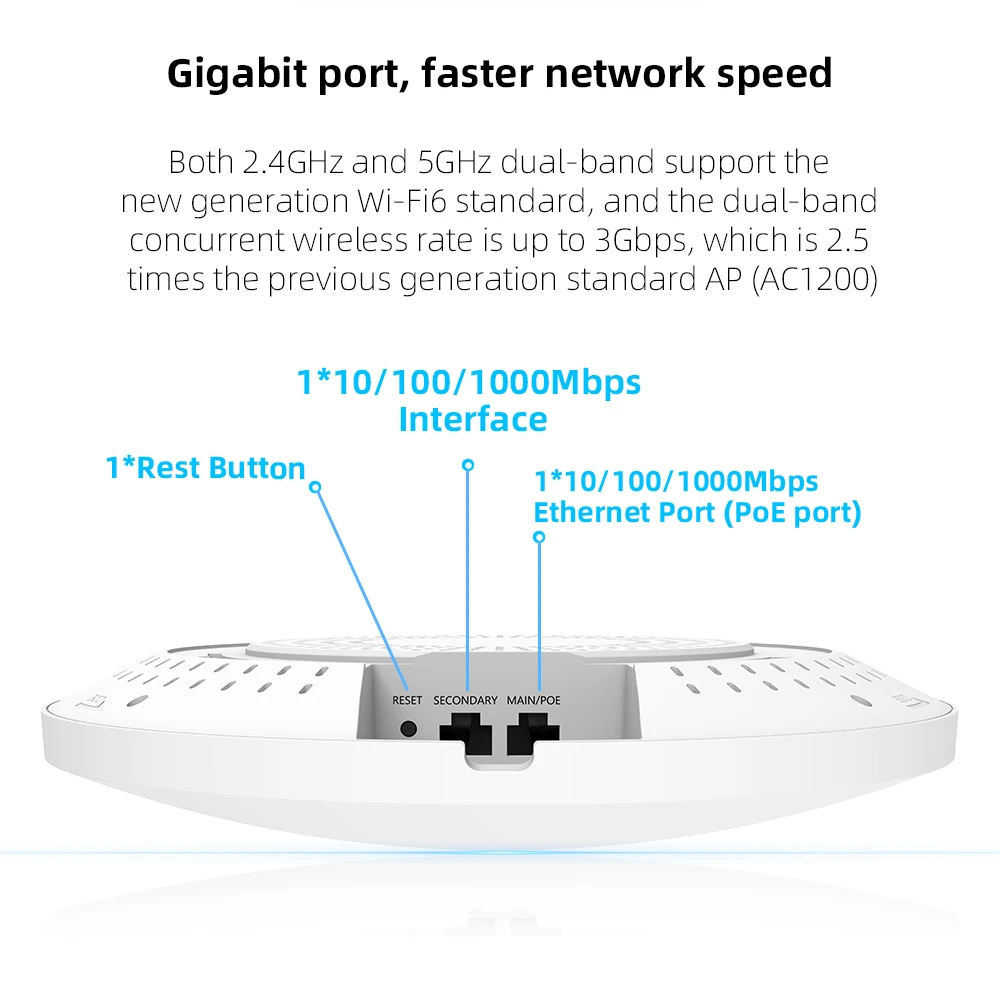

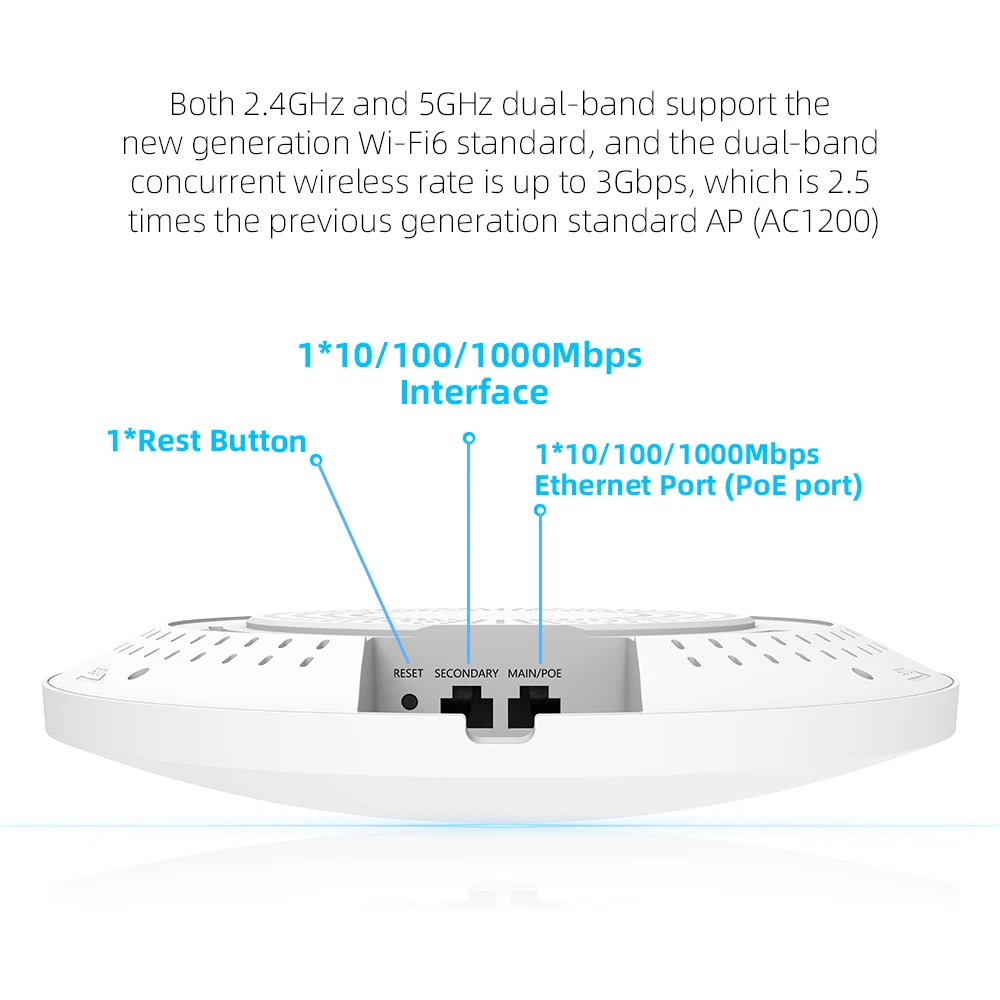

Ethernet port |
One 10/100/1000 Mbps Ethernet Port |
|
Button |
1*Reset |
|
LED indicator |
RGB |
|
Max. power consumption |
15.74 W |
|
Power supply standard |
IEEE 802.3at PoE |
|
Concurrent clients |
254 |
|
Antenna gain |
4*4 dBi |
|
2.4 GHz Max. output power |
29+/-1.5 dBm |
|
5 GHz Max. output power |
29+/-1.5 dBm |
|
802.11b RX sensitivity |
-97 dBm |
|
2.4 GHz 802.11n (MCS7) RX sensitivity |
-75 dBm |
|
5 GHz 802.11a RX sensitivity |
-95 dBm |
|
5 GHz 802.11n (MCS7) RX sensitivity |
-75 dBm |
|
Software Specifications |
|
|
Operating mode |
AP |
|
Hide SSID |
Supported |
|
Max. No. of SSID |
2.4 GHz: 7 5 GHz: 4 |
|
OFDMA |
Supported |
|
Beamforming |
Supported |
|
TWT |
Supported |
|
802.11 k/v |
Supported |
|
WEP |
Supported |
|
WPA-PSK |
AES/TKIP |
|
WPA2-PSK |
AES/TKIP |
|
WPA3-ASE |
AES |
|
WPA |
Supported |
|
WPA2 |
Supported |
|
Access control |
MAC address-based |
|
Adjustable power transmit |
Supported |
|
Frequency analysis |
Supported |
|
AP isolation |
Supported |
|
Connected clients control |
Supported |
|
RSSI threshold |
Supported |
|
VLAN tagging for SSID |
Supported |
|
LED indicator control |
Supported |
|
Diagnostics tool |
Ping, Traceroute |
|
Scheduled reboot |
Supported |
|
Reboot at specified interval |
Supported |
|
System logs |
Supported |
|
Firmware upgrade |
Supported |
|
Reboot |
Supported |
|
Reset |
Supported |
|
Backup configuration |
Supported |
|
Restore configuration |
Supported |
|
Operating Environment |
|
|
Default login IP address |
192.168.0.254 |
|
Default user name |
admin |
|
Default password |
admin |
|
Operating temperature |
-10℃ – 45℃ |
|
Operating humidity |
(10% – 90%) RH, non-condensing |
|
Storage temperature |
-30℃ – 70℃ |
|
Storage humidity |
(10% – 90%) RH, non-condensing |
