SMD Soldering Iron Hot Air 2 in 1 BGA Rework Solder Station Heat Gun Desoldering Repair For Cell-phone PCB IC Welding Tools Kit

2 in 1 Soldering station LCD Digital display welding rework station

This is a brand new 2in1 SMD Rework Soldering Station . Alloy metal body with highquality silicone shell features elegant appearance and power saving. You can use hot air gun and soldering iron separately, with no interference with each other.

Because of the handle with sensor switch, the system can quickly access operating mode while gripping handle.

Meanwhile, the system will transfer to standby mode while handle released. Especially suitable for mounting and reworking SMD components by hand. Really a must have!

Hot air heater and welding iron 2in1 rework soldering station.
Dual LCD digital displays to show precision temperature.
Extremely low noise and space saving design.
Intelligence self-detection function features safe personal operation.
Automatic cooling function for effectively prolonging the heater’s life and protecting the hot air heater.
Hot air gun
Working Voltage: AC220-240V OR AC100-130V
Frequency: 50Hz/60Hz
Output Power: 500W
Temperature Range: 100°C~480°C
Temperature Stability:±2℃
Air Flow: 120L/min (max)
Soldering iron
Working Voltage: AC220-240V OR AC100-130V
Output Power: 60W
Frequency: 50Hz/60Hz
Temperature Range: 180°C-500°C
Temperature Stability: ±1°C
Soldering Iron : ESD design
Heater Material : Ceramics
How to use:
1. Clean the electronic components to be soldered.
2. Once iron reaches temperature (not too high, recommend 300-400℃).
3. Apply a little solder to the heated iron tip to prevent oxidation, then rub the iron tip to evenly extend the solder to the surface of the iron tip.
4. Start to solder

Features:

· microcomputer control, quick warming-up;

· PID technology to enhance temperature stability;

· Adjust the airflow and temperature control rotation easily;

· ntelligence self-detection function features safe personal operation;

· Automatically stop rotation when the temperature is less than 70’C

· Handle with sensor switch features access operating mode when picks up or standby mode when lays down;

· Automatic cooling function for effectively prolonging the heater’s life and protecting the hot air gun;

· ESD design of soldering iron to protect sensitive components;

· International standard heater for convenient use and exchange;

· High-quality resistance for durable use;

· Plastic holder for placing the hot air gun;

· Metal stand for keeping the iron from flammable materials;

· Fits for heating shrink, drying, lacquer removal, viscidity removal, ice-out, pre-heating and glue soldering;

· Voltage: 220v AC. / 110V AC.

SET-1 Package Include ：

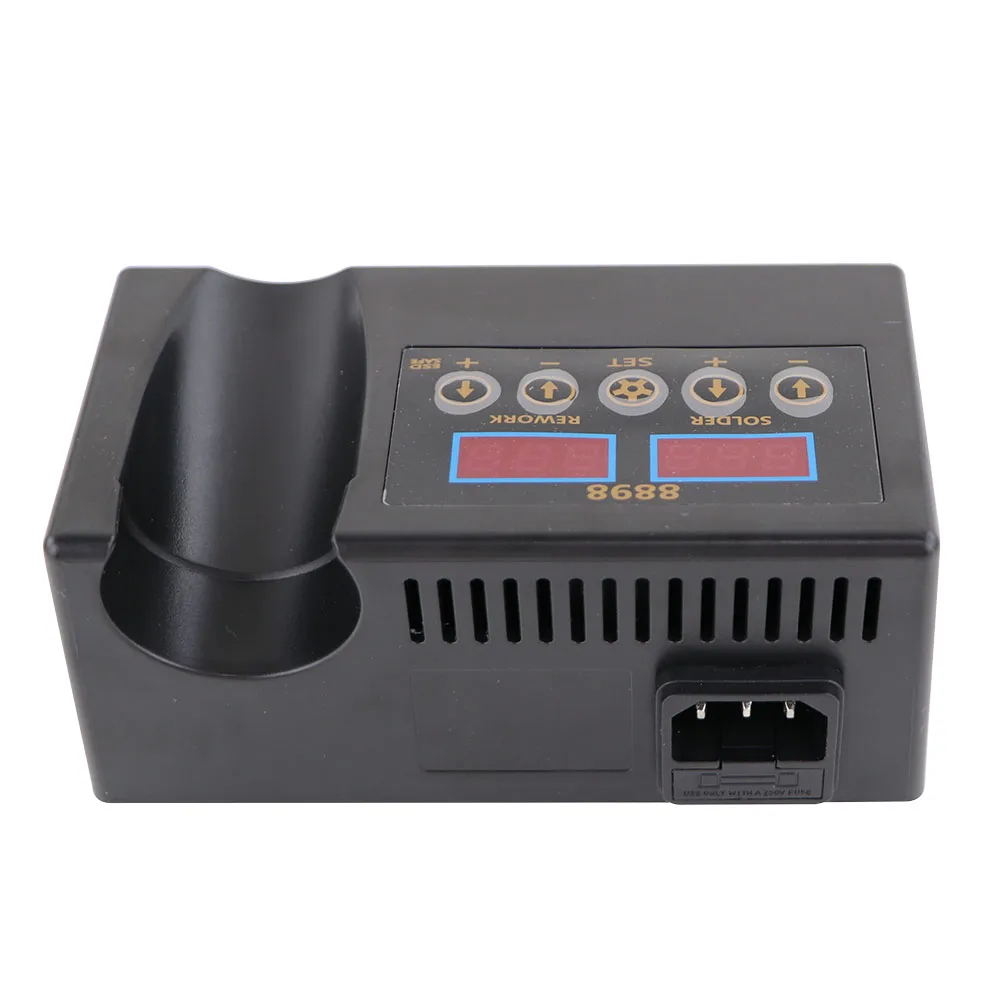

1pcs 8898 Control Unit
1pcs Soldering Iron Handle
1pcs Hot Air Gun Handle
1pcs Bracket
8pcs Nozzles
1pcs Manual
12pcs Iron Tips
1pcs Tweezers
1pcs Solder Wire

SET-2 Package Include ：

1pcs 8898 Control Unit
1pcs Soldering Iron Handle
1pcs Air Gun Handle
1pcs Bracket
8pcs Nozzles
1pcs Manual
2pcs Soldering Wire
2pcs Tweezers
1pcs Air Gun Heater
1pcs Iron Heater
12pcs Iron Tips
1pcs Brush

SET-3 Package Include ：

1pcs 8898 Control Unit
1pcs Soldering Iron Handle
1pcs Air Gun Handle
1pcs Bracket
3pcs Nozzles
1pcs Manual
1pcs Electric Tape
5pcs Sponge
3pcs Tweezers (ESD-12 / ESD-14 / ESD-15)
1pcs Scraper
1pcs 939 Suction Pen
2pcs Copper Line
3pcs Brush (black / red / yellow )
1pcs Sucker
1pcs Soldering Wire (50g)
1pcs CP-2015 Desoldering Wire
1pcs High Temperature Tape
1pcs Hot Air Heater
1pcs Iron Heater
5pcs Iron Tips

Product Show
