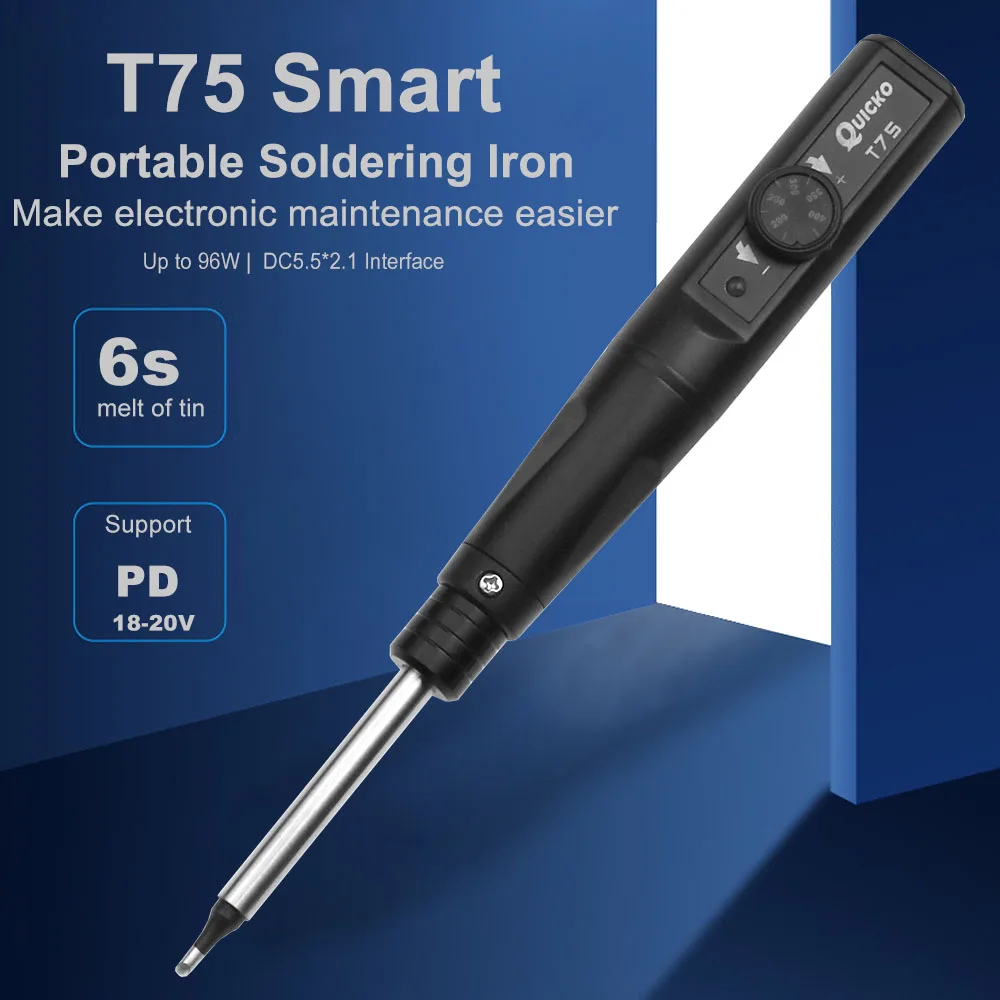

Description

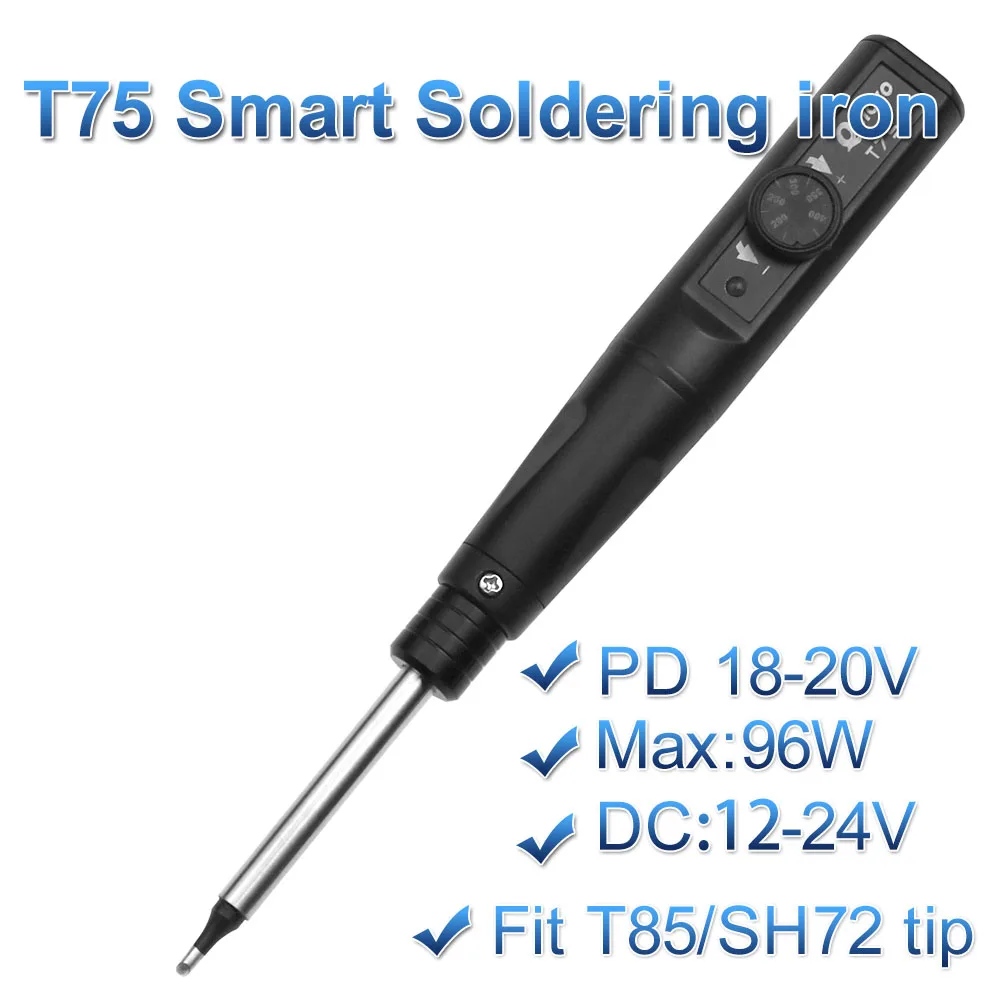

Product specification
Power: 96W
Power interface: 5.5*2.1
Working voltage: DC12-24V, (inner positive and outside negative)
Work current: >=1.5A
Temperature range: 200-400C （Simulated temperature, inaccurate!）
Size of the control handle: 112*16*15mm
Tip size: 110*5.5mm
Weight: 28g
Package weight: 60g
Installation&usage

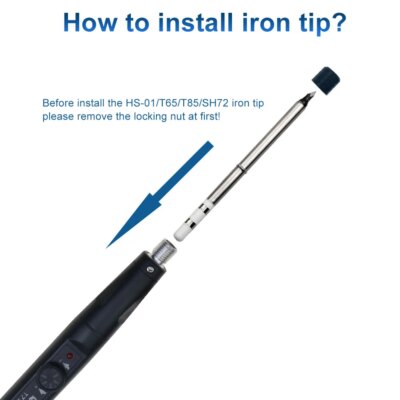

1 After the package is opened, loosen and remove the fastening nut;
2 Insert the head of soldering tip with conducting ring into the soldering iron seat;
3 Insert and tighten the nut; tighten the soldering tip;
4 Rotate the thermal control turntable and set it to proper temperature (increase the temperature it is rotated clockwise; reduce the temperature it is rotated anticlockwise);
5 Power on the well-prepared power adapter (DC12-24V); insert the DC plug to DC seat of the control handle of the soldering iron.
.
Change soldering tip：
1 Disconnect T75 power supply;
2 Loosen and remove the fitting nut;
3 Pull out the original solder tip and insert another solder tip again
Note:T75 adopts analog temperature control, and the temperature value on the turntable is not accurate, for reference only!

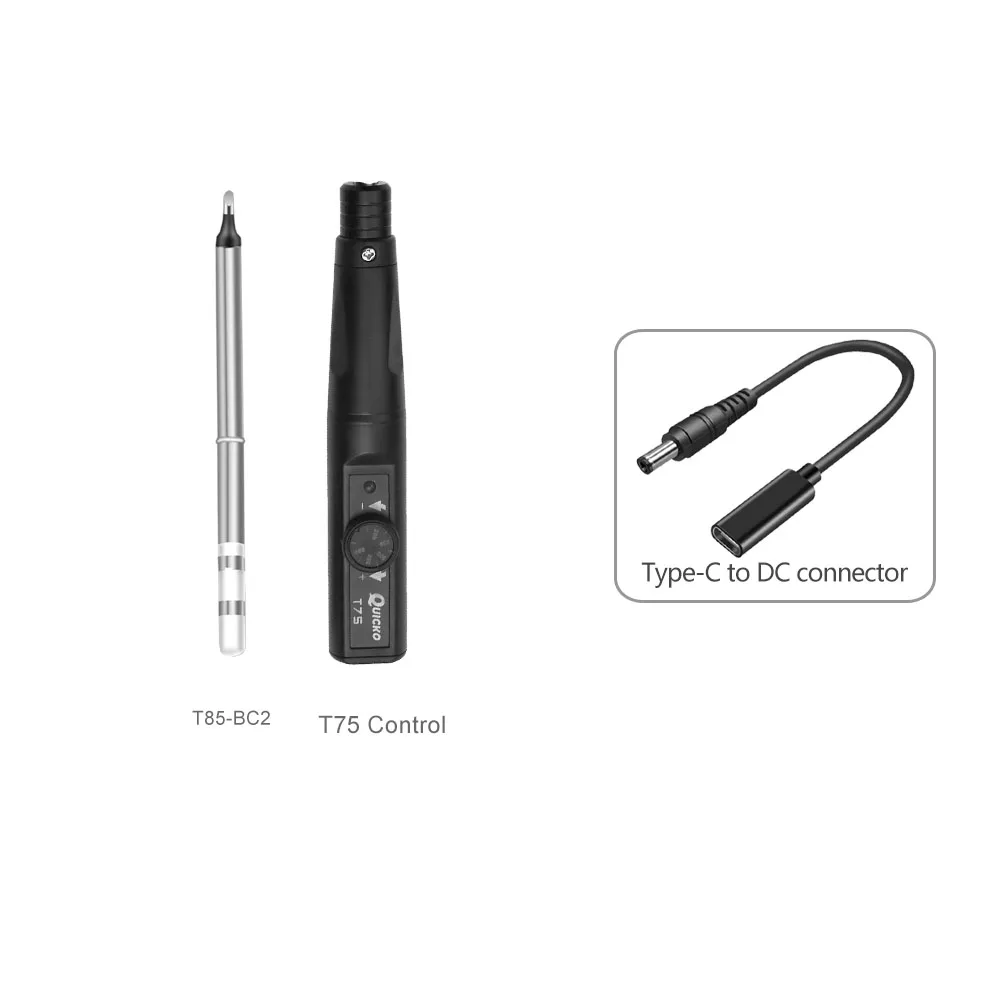

PD/QC
