Description

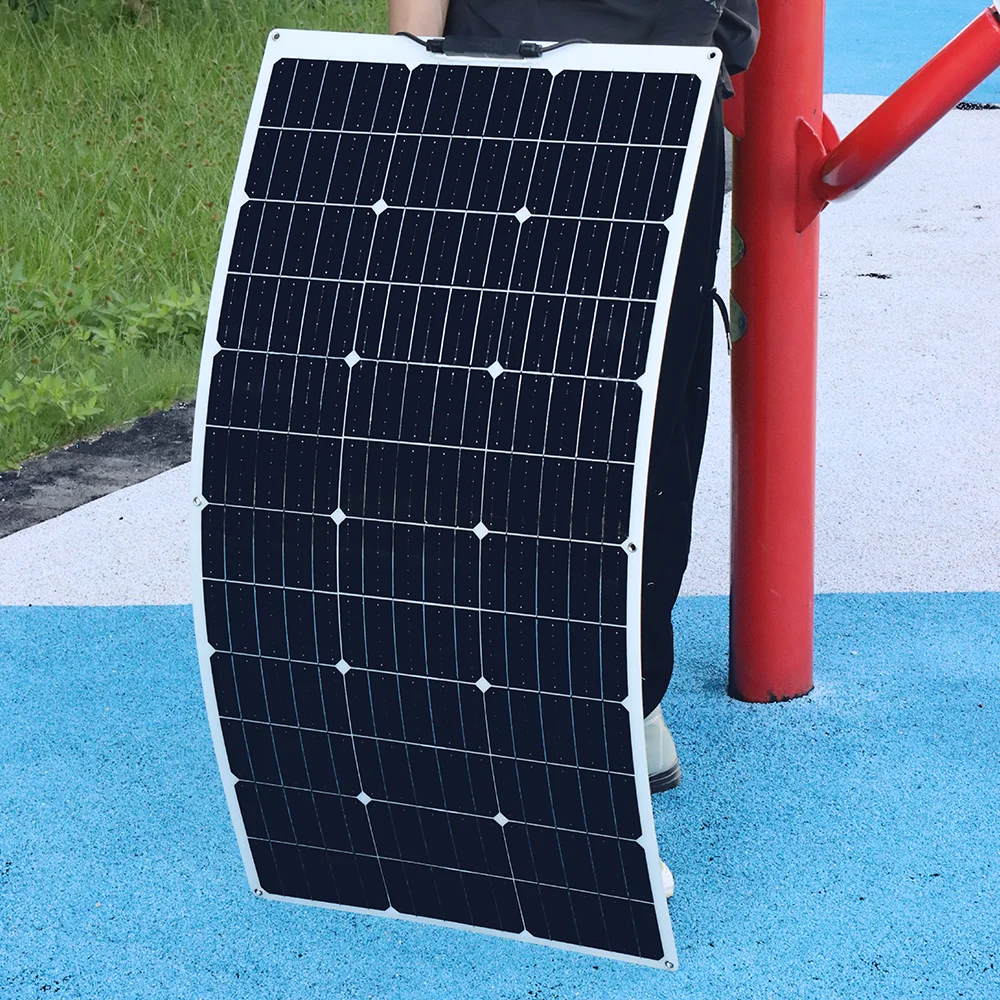

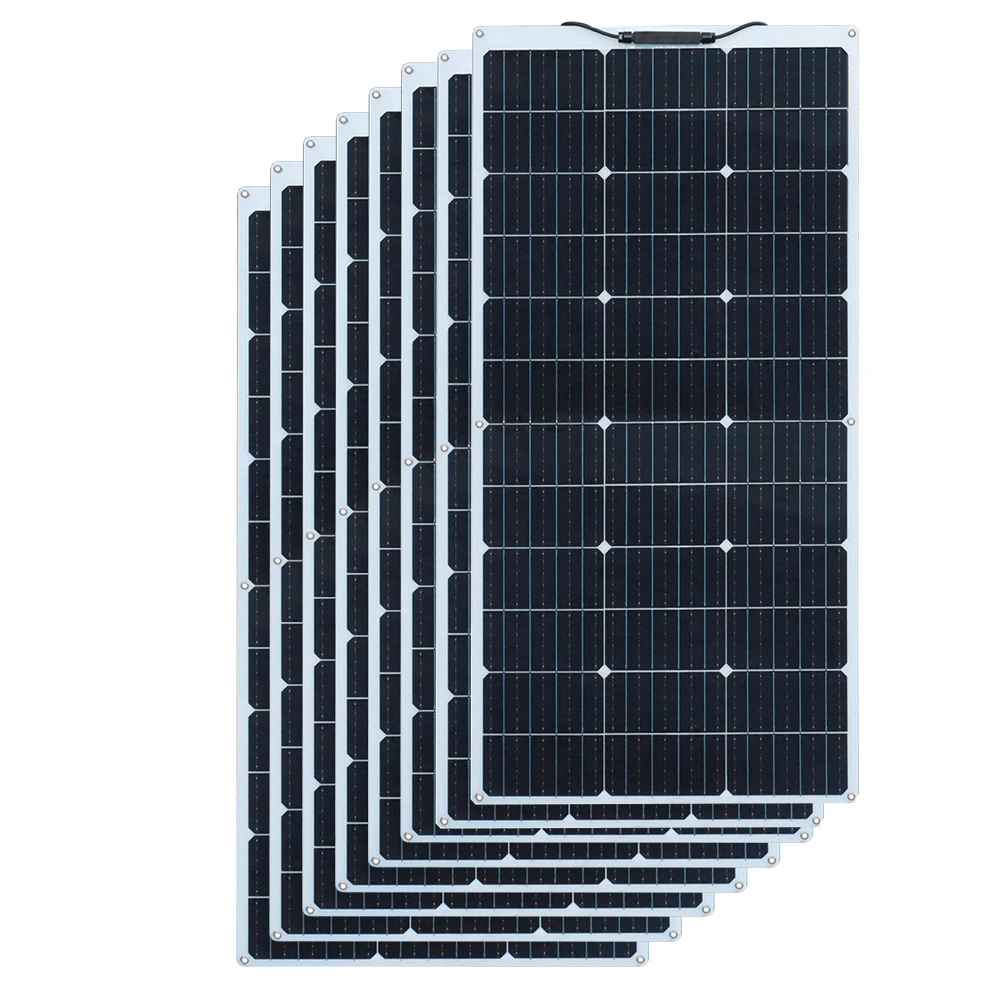

XINPUGUANG 100w 200w 12v portable Solar Panel Flexible 18V 800W 1000W plate CELLS Monocrystalline silicon Panel Solar kit

Purchase Notes

Please Note That All of Our Products Have Been Upgrade

100W New Flexible Product size: 955*530mm, the old size is: 1060*530mm.

United States /Canada warehouse flexible solar board new and old -fashioned mixed delivery

Please Note that if you have a request for the size of the solar panel, please contact us beface ordering.

Since the solar panels are beyond the dimensions of DHL.

So the set will be divided into two packages,

All accessories are dispatched by DHL logistics company.

Solar panels may use DPD or GLS logistics companies.

Please note that customers ordering the set will have two packages.

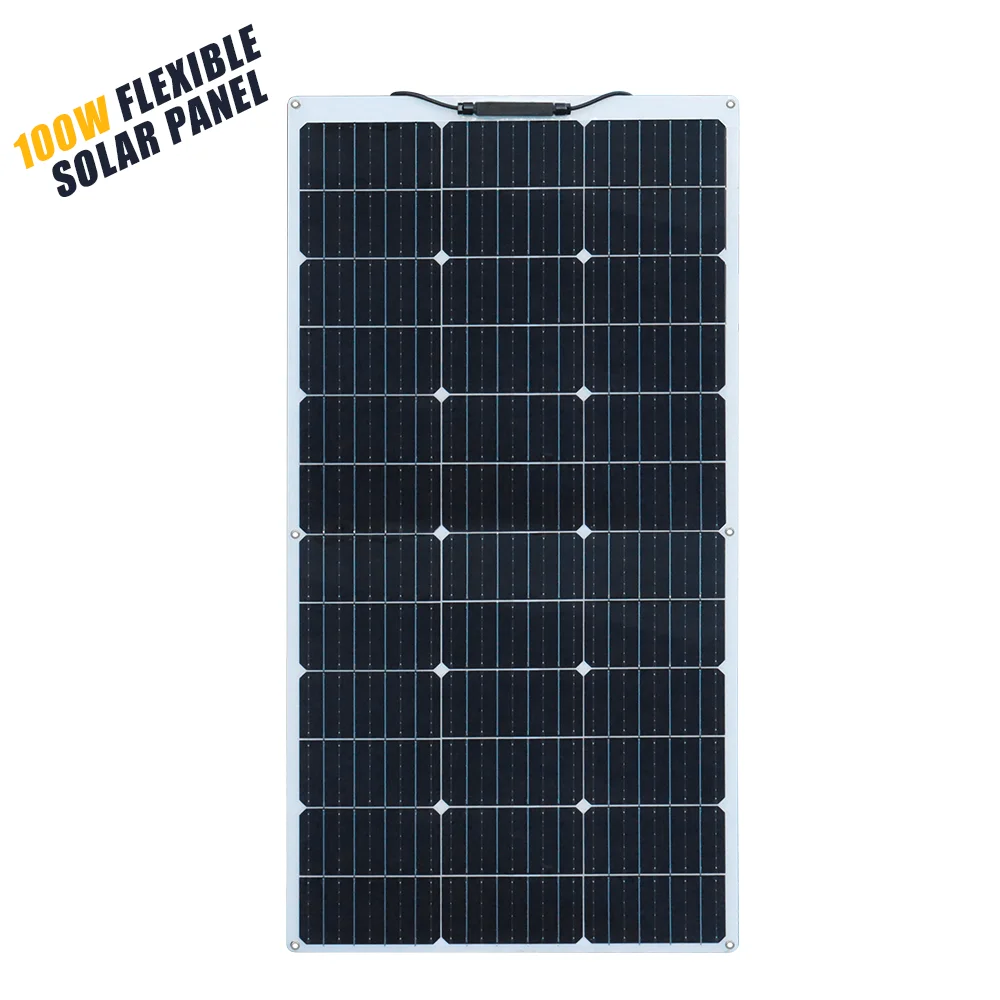

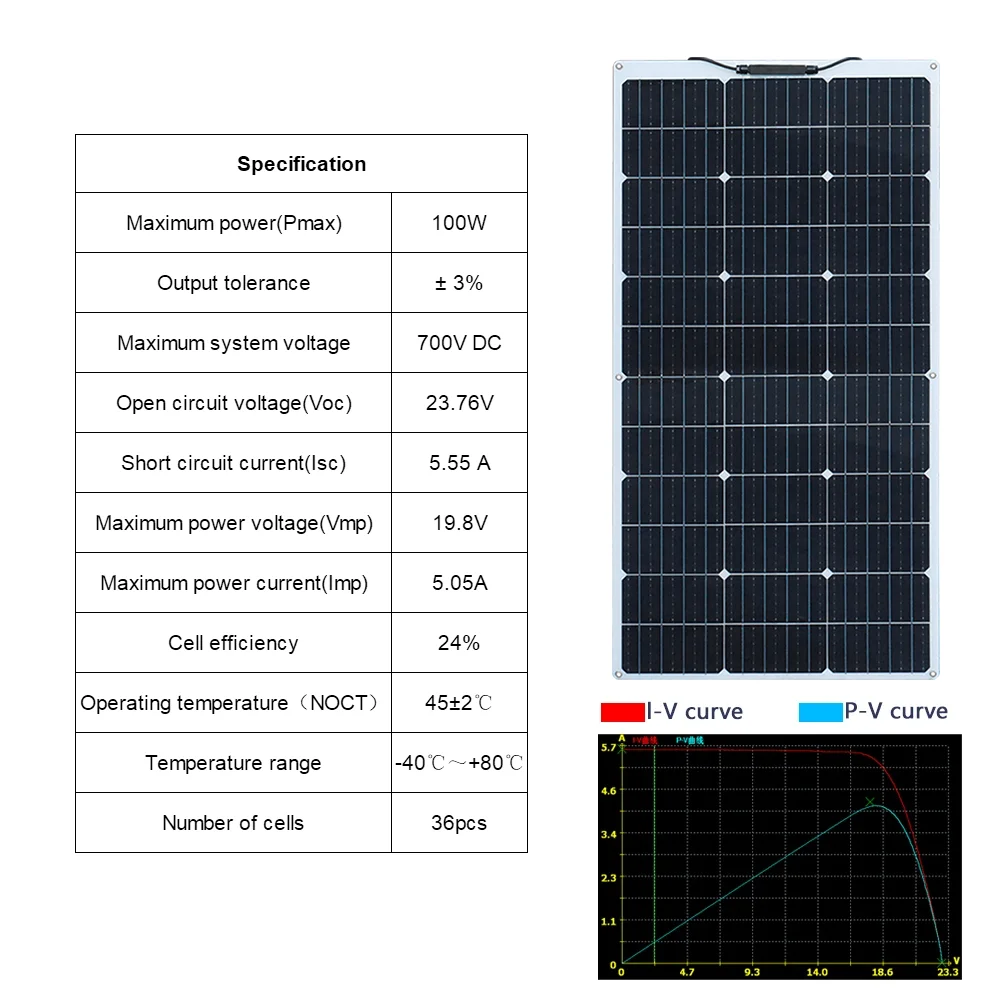

Maximum power(Pmax)                           100W
Output tolerance                                  ± 3%
Maximum system voltage                       700V DC
Open circuit voltage(Voc)                        23.7V
Short circuit current(Isc)                          5.55A
Maximum power voltage(Vmp)               19.8V
Maximum power current(Imp)                 5.05A
Cell efficiency                                        24%
Operating temperature(NOCT)          45±2℃
Temperature range                                 -40℃～+80℃
Number of cells                                      33pcs
Weight                                               1500g

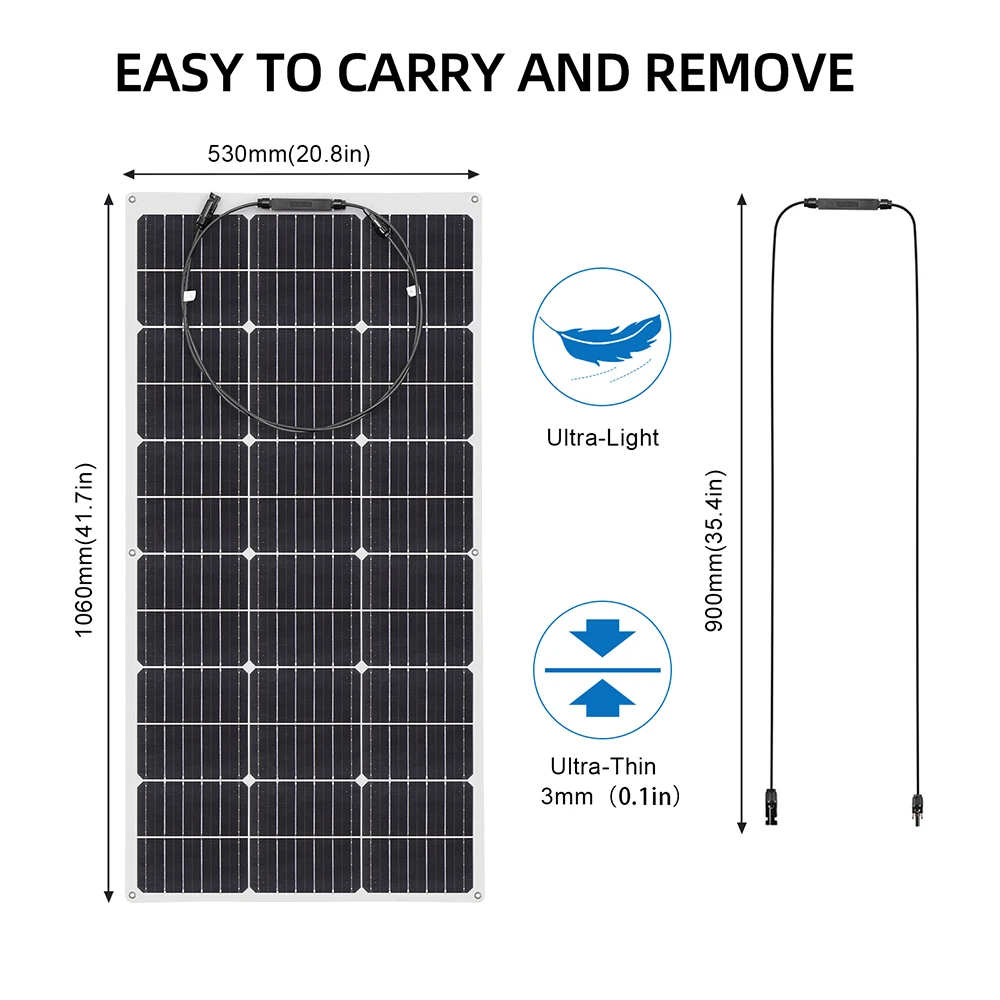

Size                                              1060*530*2.5 mm

Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5

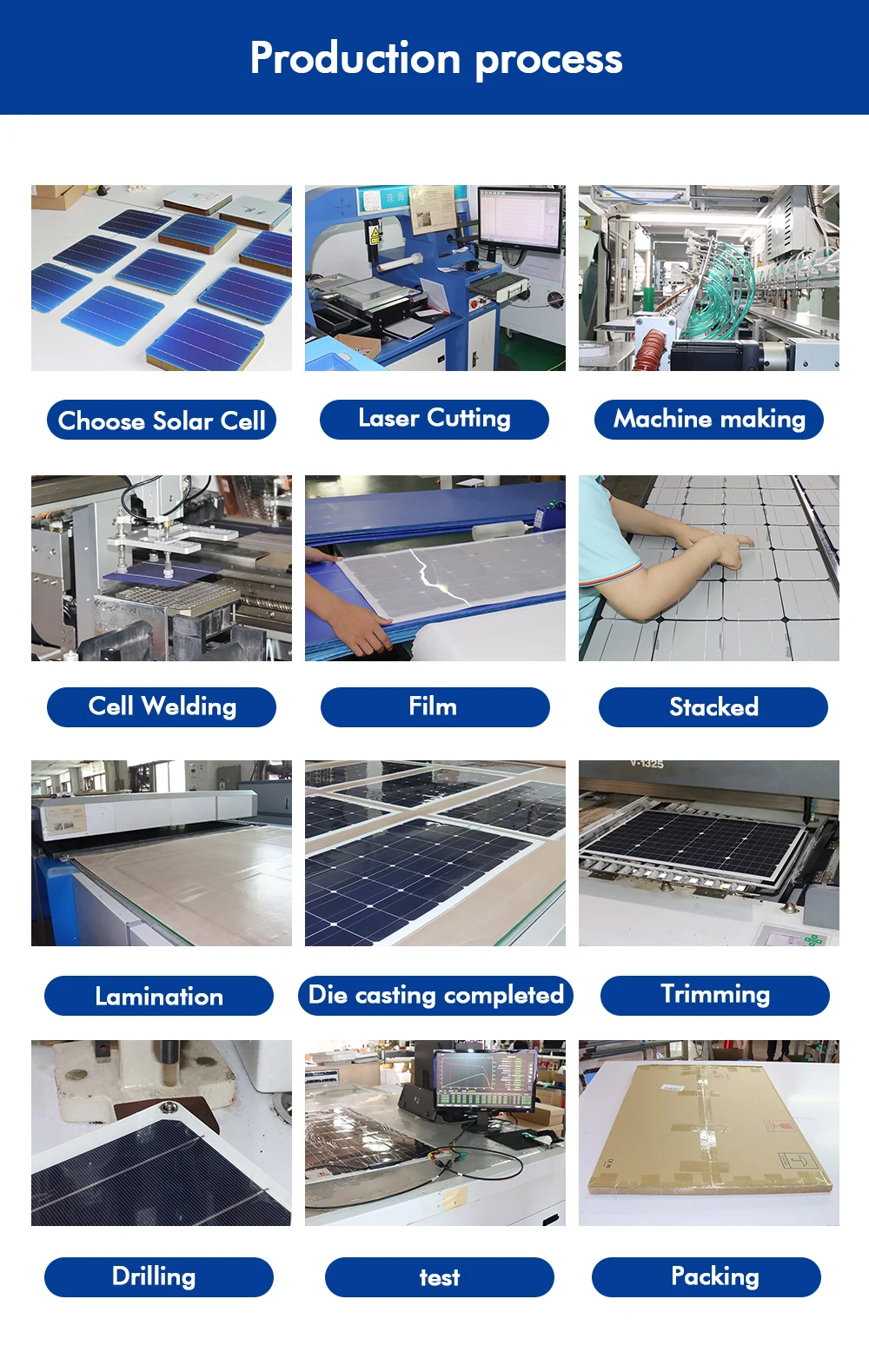

Material structure:

1 floor: PET

2 floor: EVA Film

3 floor: High Efficiency Solar Cell

4 floor: EVA Film

5 floor: TPT Backsheet

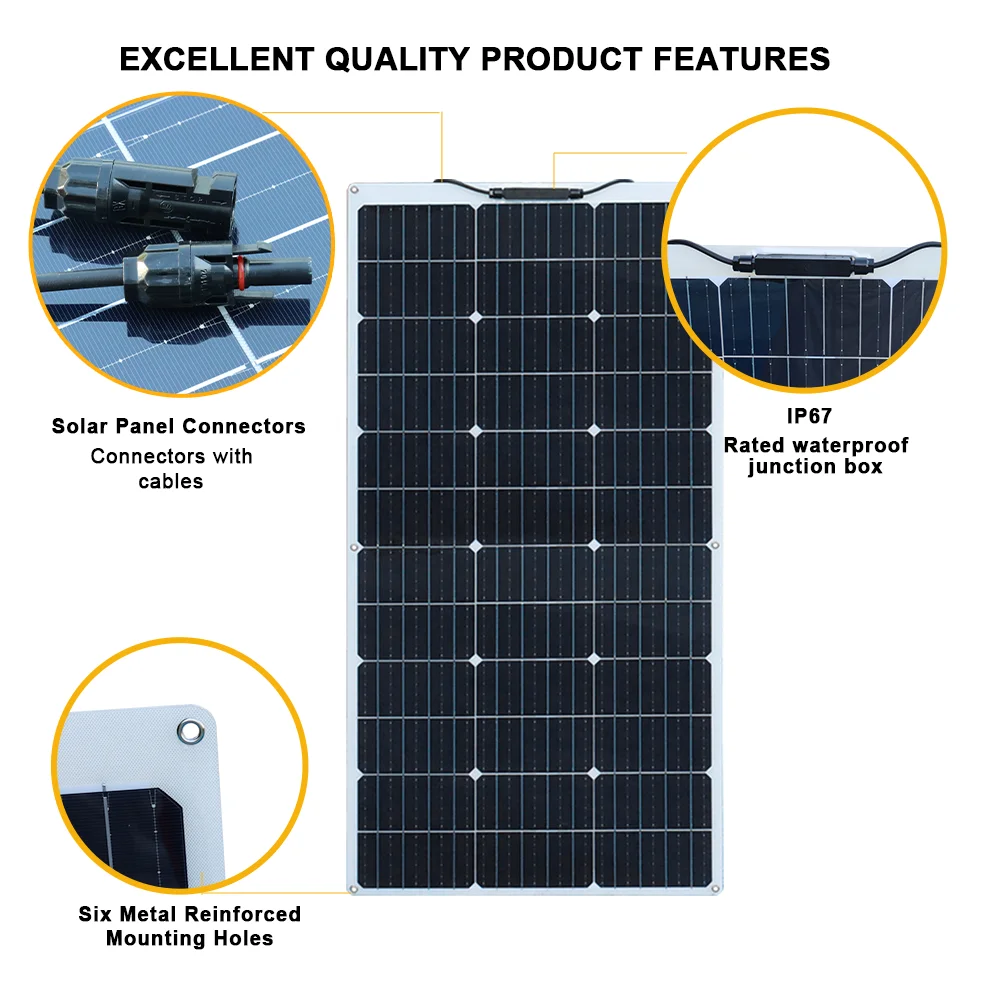

waterproof level:IP67(Junction Box)

(The above data is based on the laboratory standard test environment)

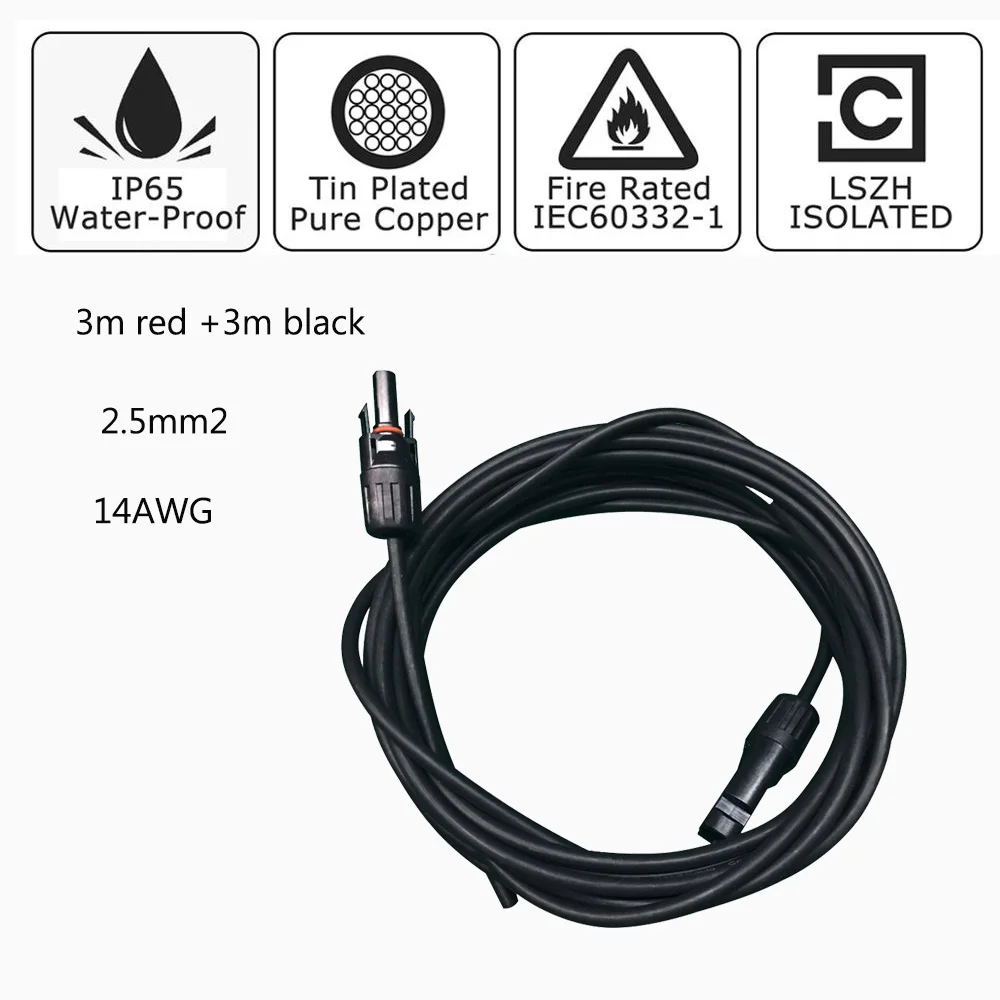

For field connections,use minimun No.14AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃

(The size is manually measured and there is a certain error. Customers who want accurate size please don’t buy,thank you)

Package list(1):1pcs 100W Flexible Solar panel (100W)

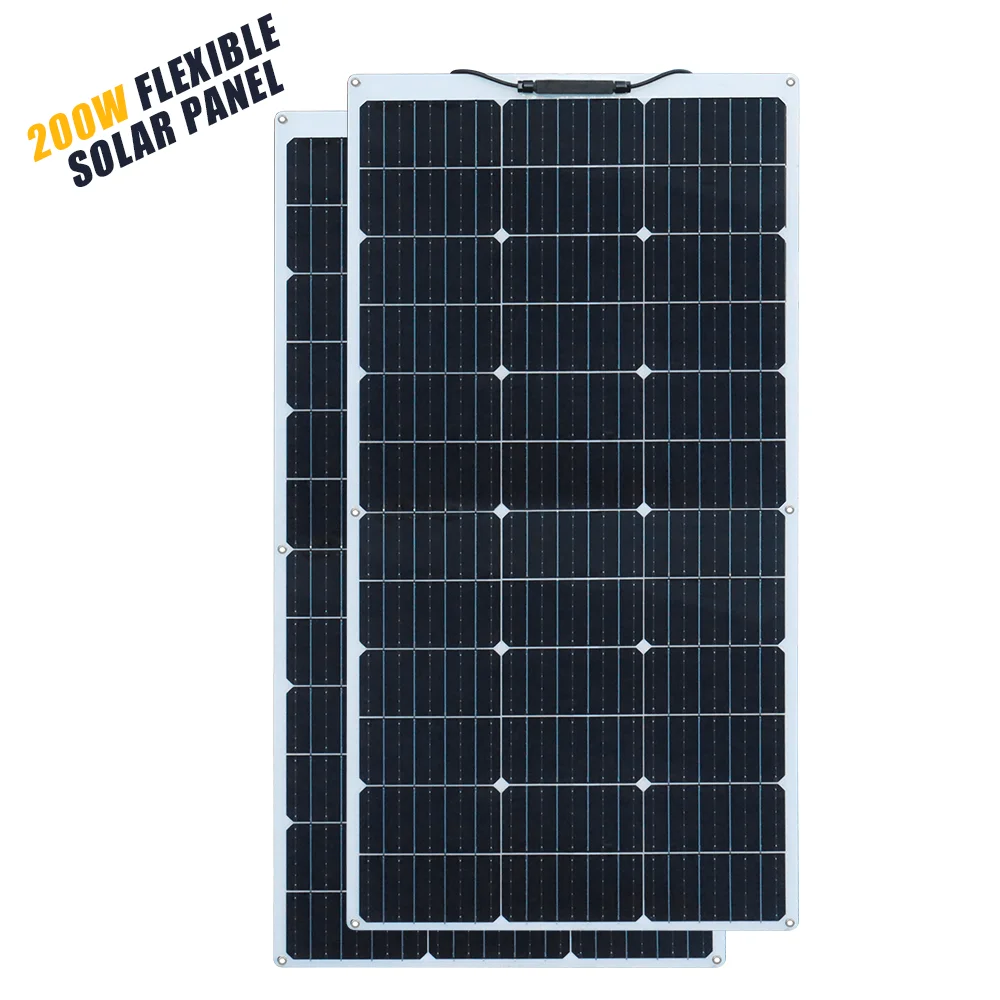

Package list(2):2pcs 100W Flexible Solar panel (200W)

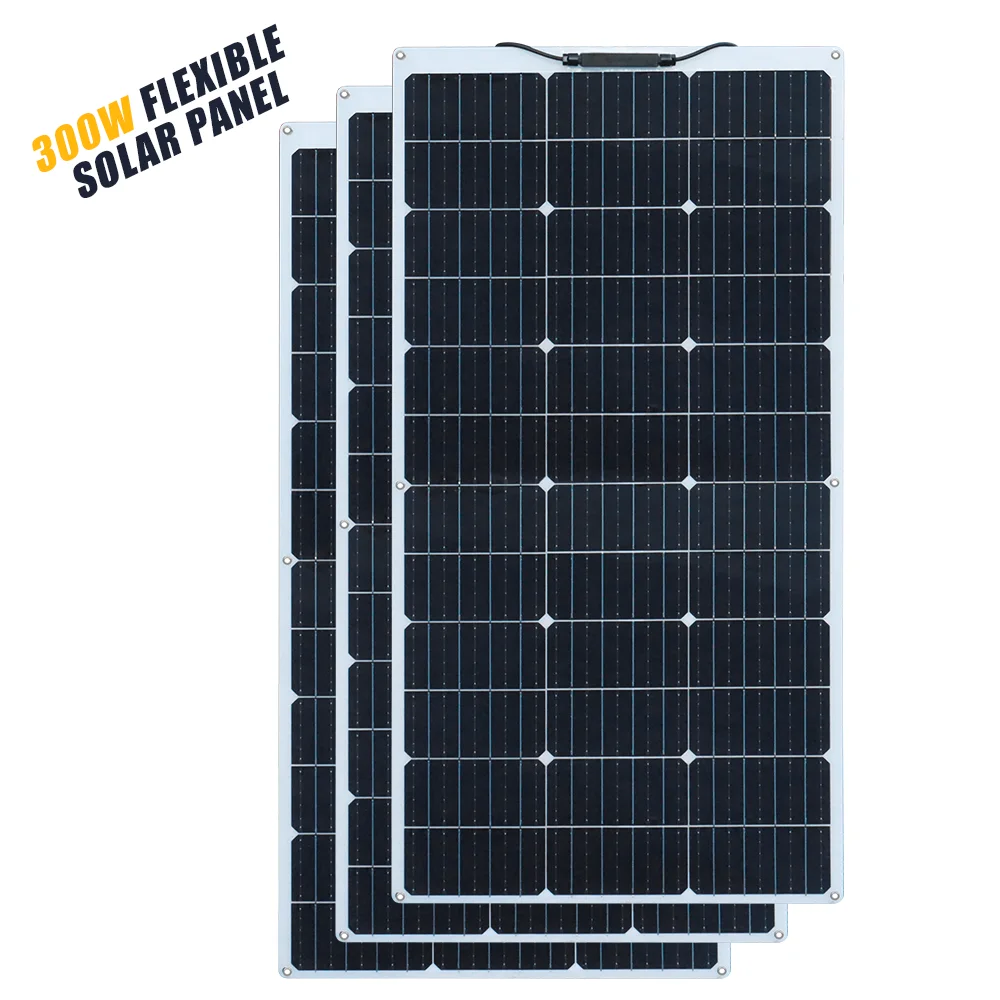

Package list(3):3pcs 100W Flexible Solar panel (300W)

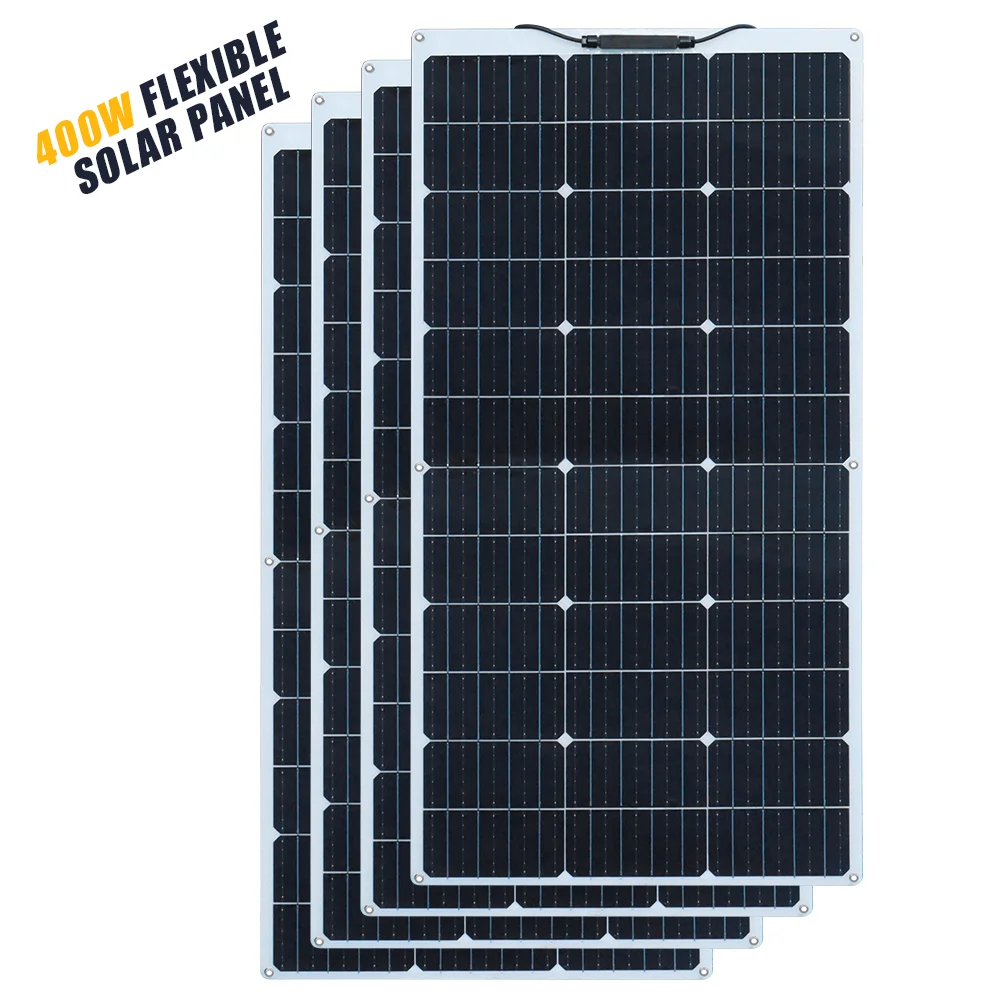

Package list(4):4pcs 100W Flexible Solar panel (400W)

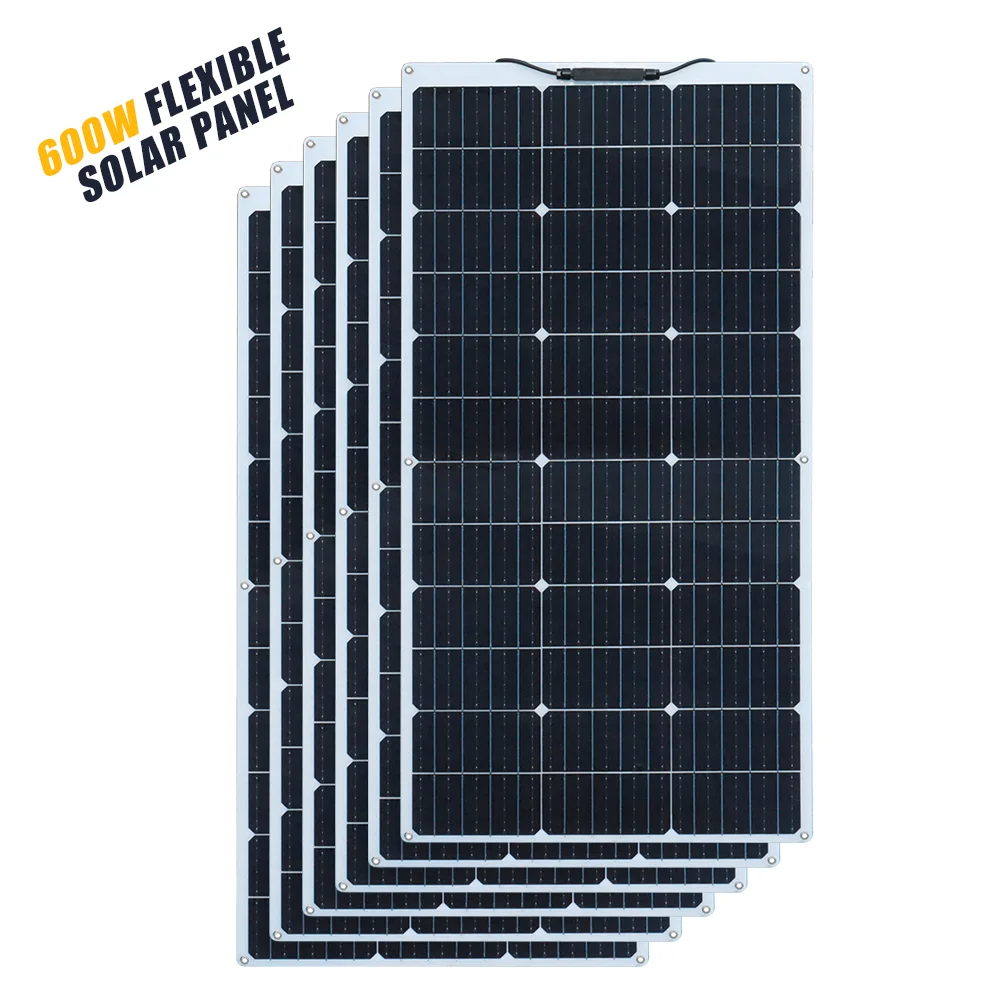

Package list(5):6pcs 100W Flexible Solar panel (600W

Package list(6):8pcs 100W Flexible Solar panel (800W)

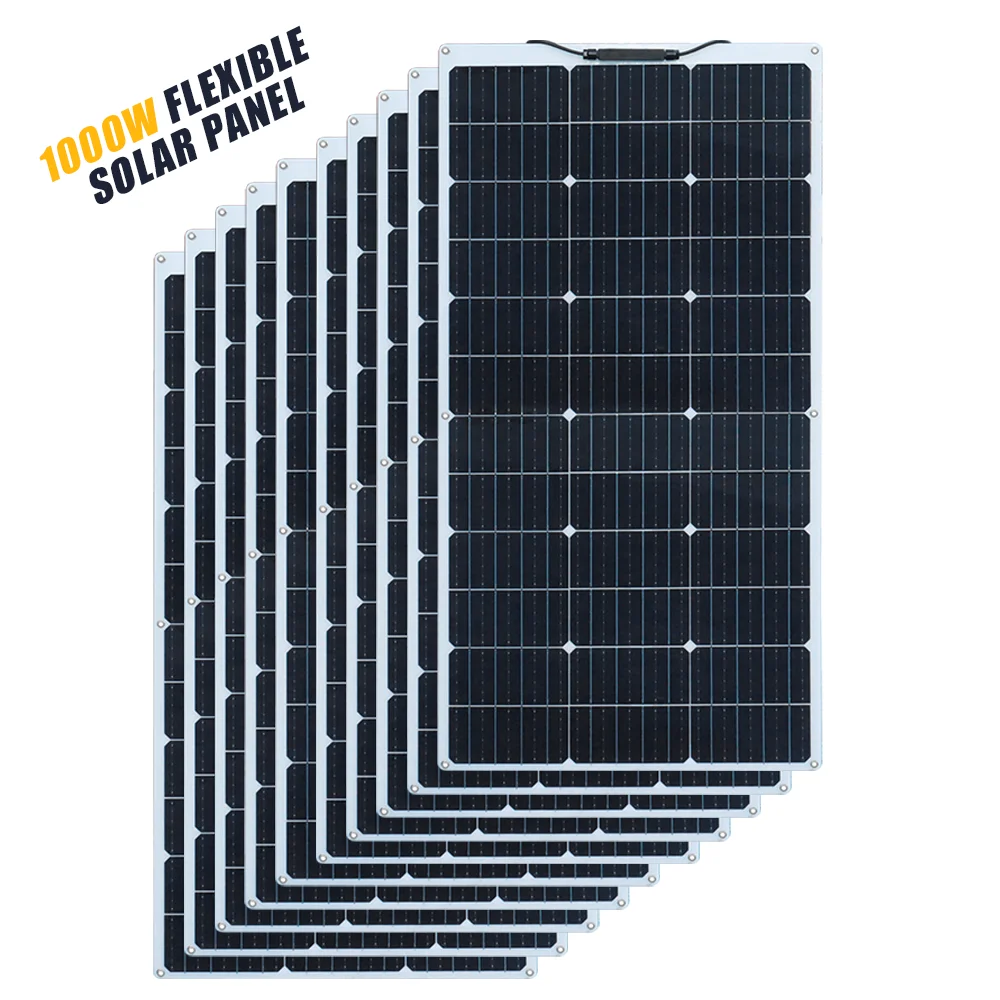

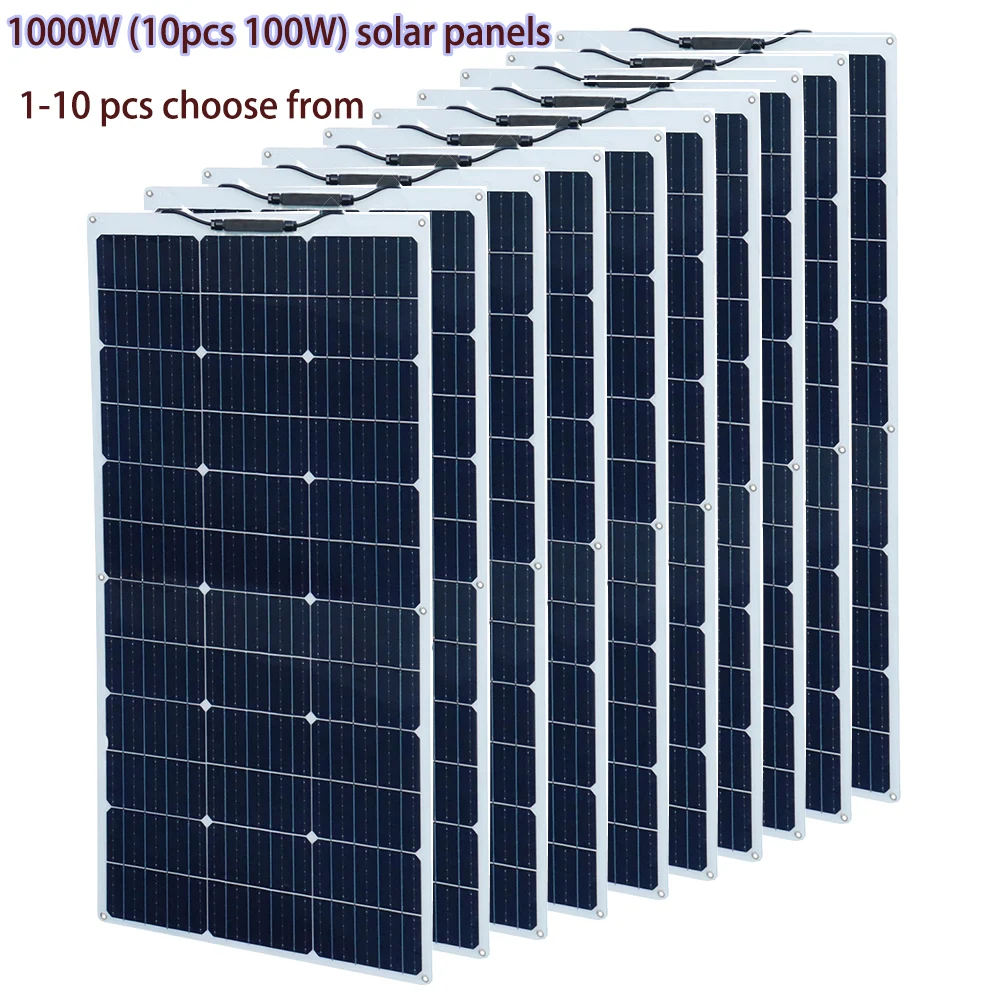

Package list(7):10pcs 100W Flexible Solar panel (1000W)

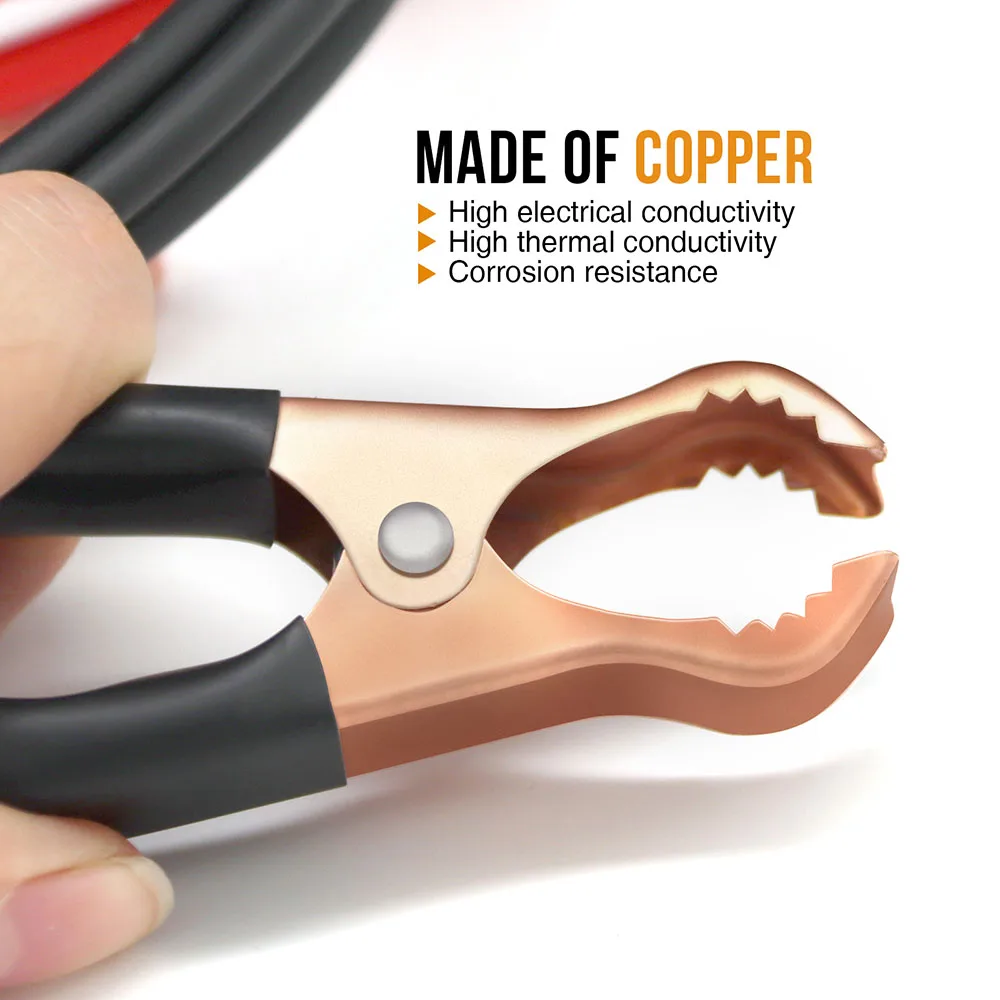

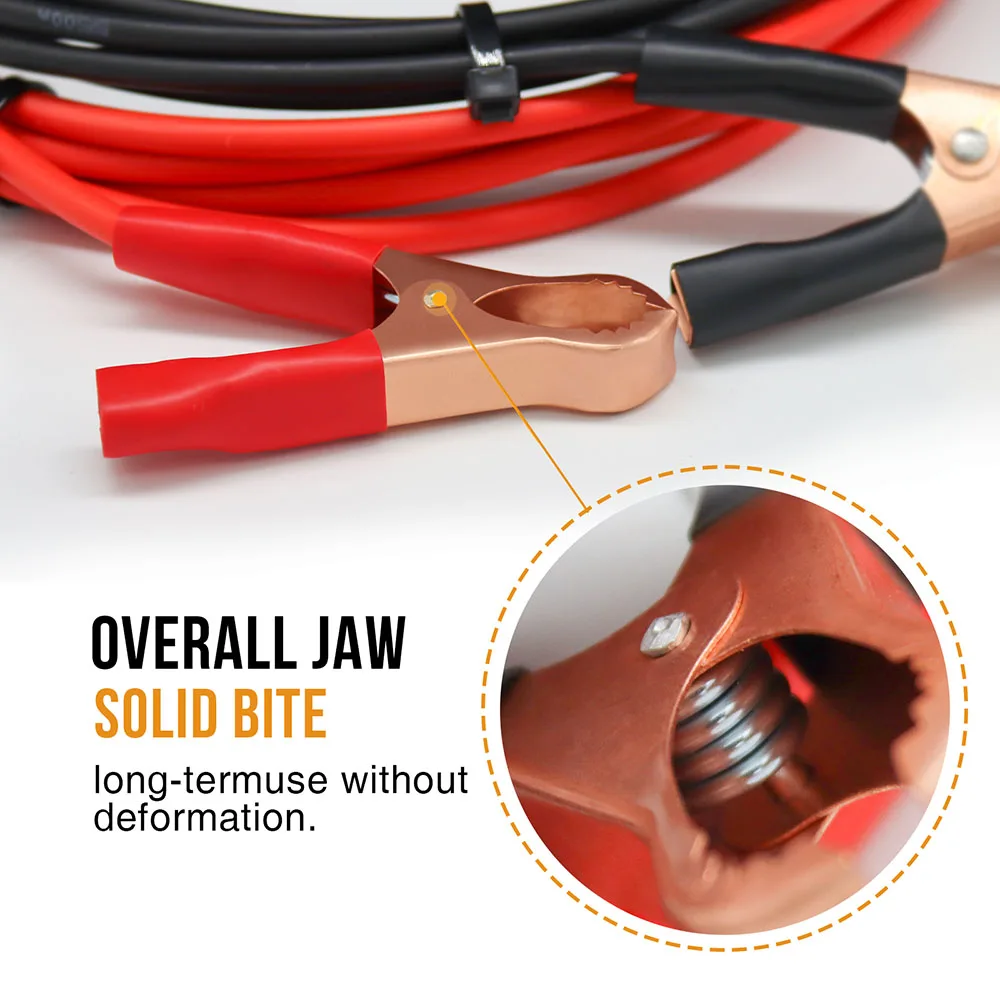

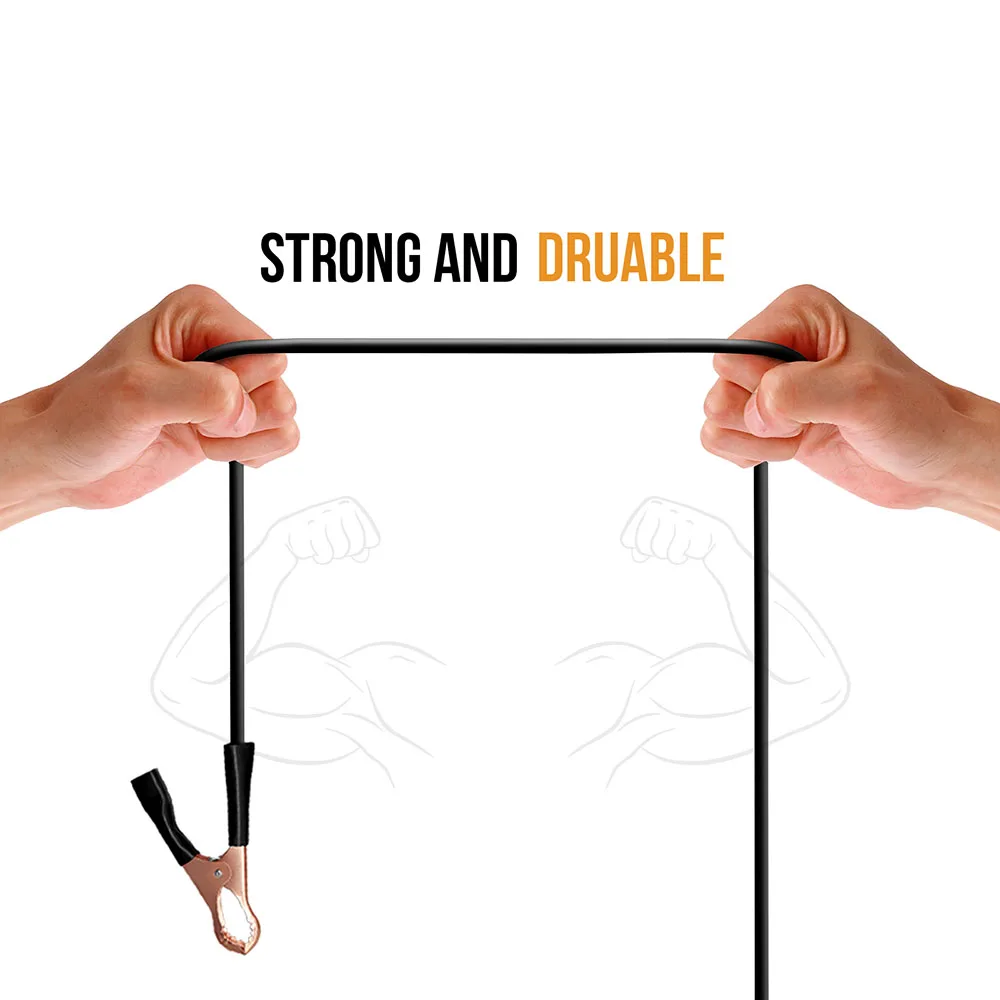

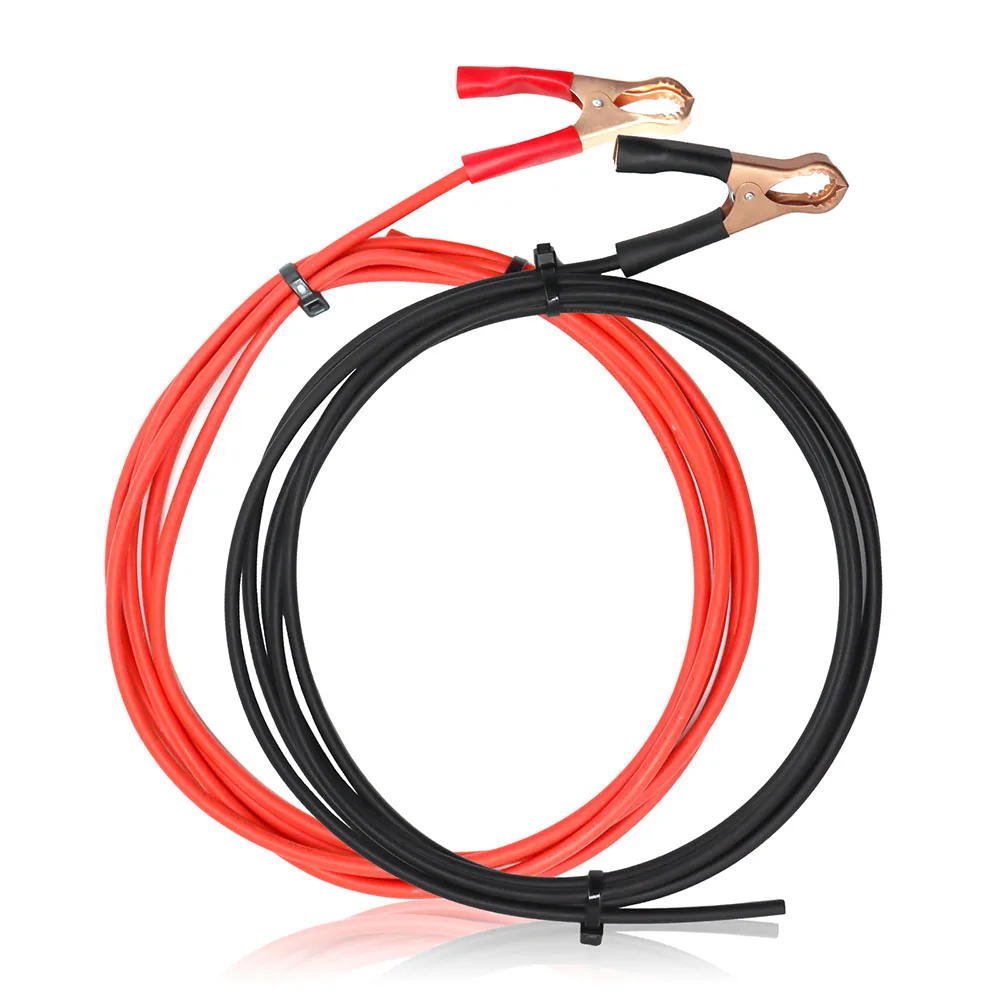

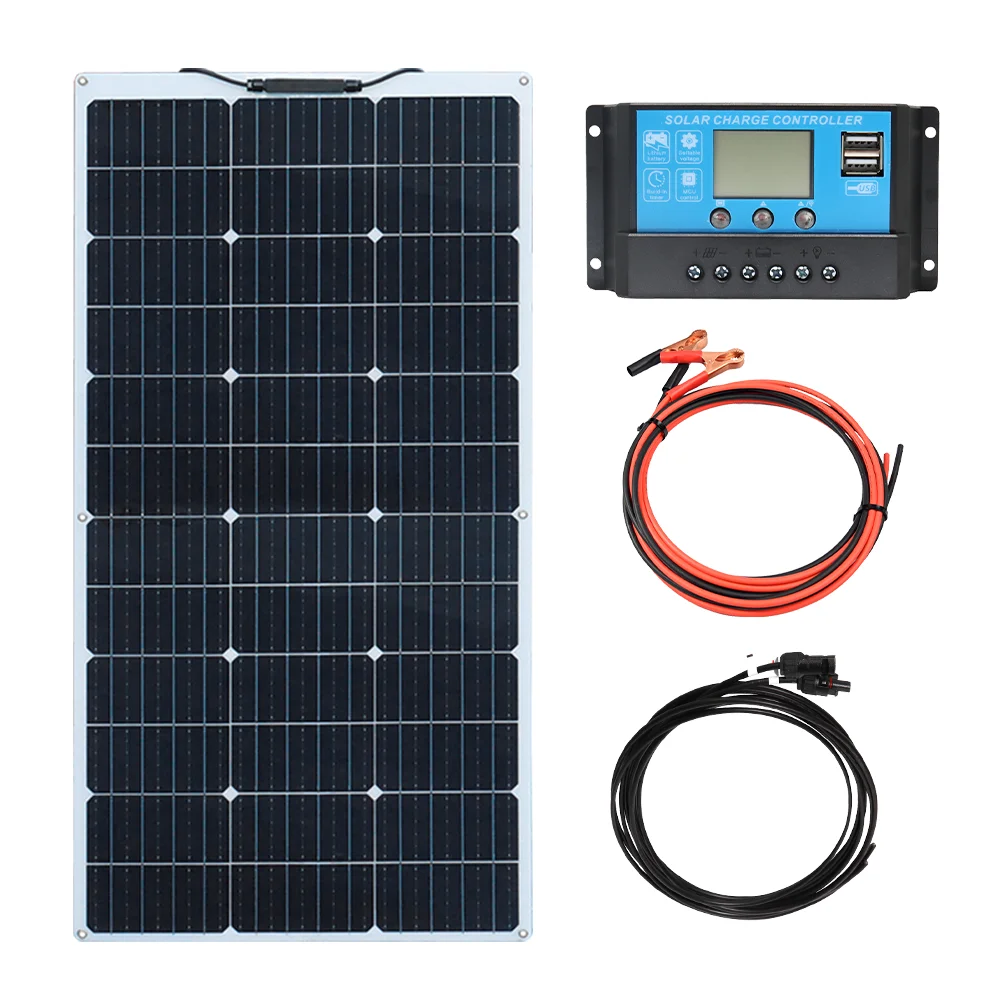

Package list(12V 100W Solarkit):1pcs 100W Flexible Solar panel +1 set 3m cable with PV connector+1 set 3m cable with Alligator clip+1 X 10A Controller

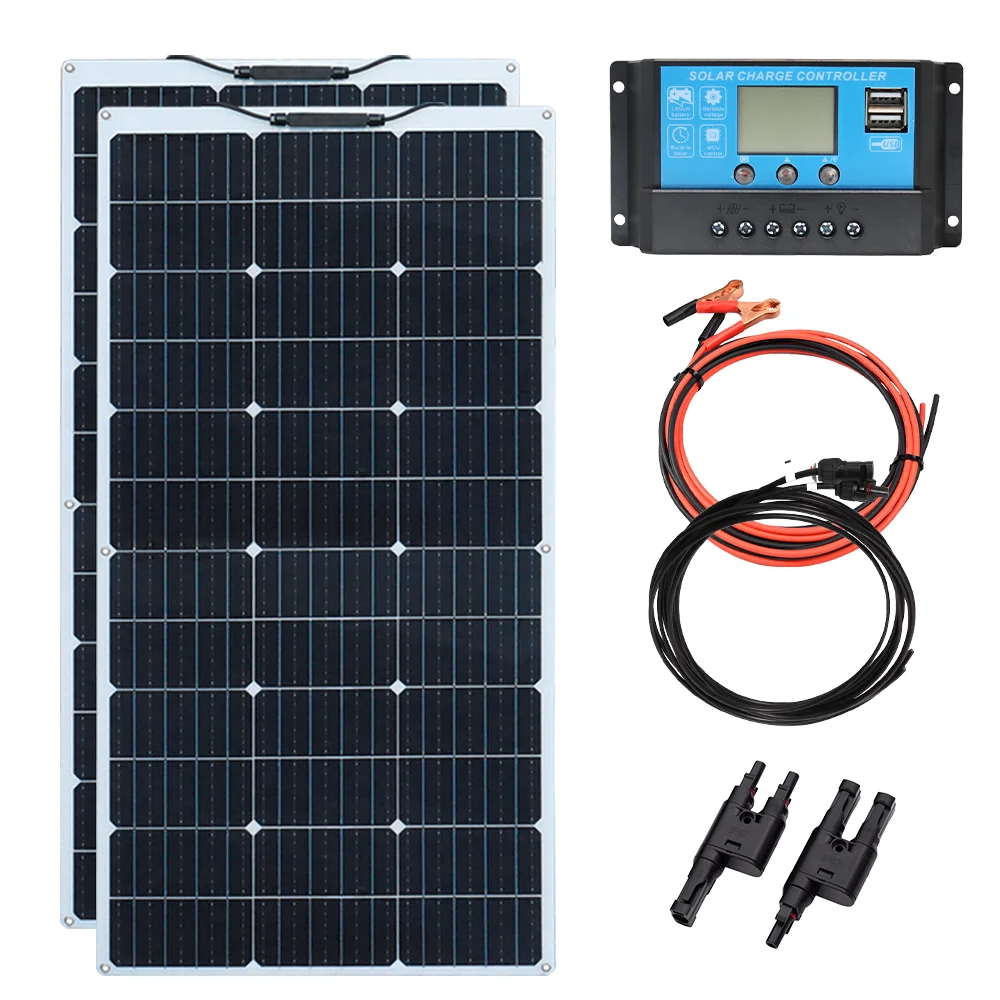

Package list(12V 200W Solarkit):2pcs 100W Flexible Solar panel +1 set 3m cable with PV connector+1 set 3m cable with Alligator clip+1 X 20A Controller+1X 2 in 1 connector

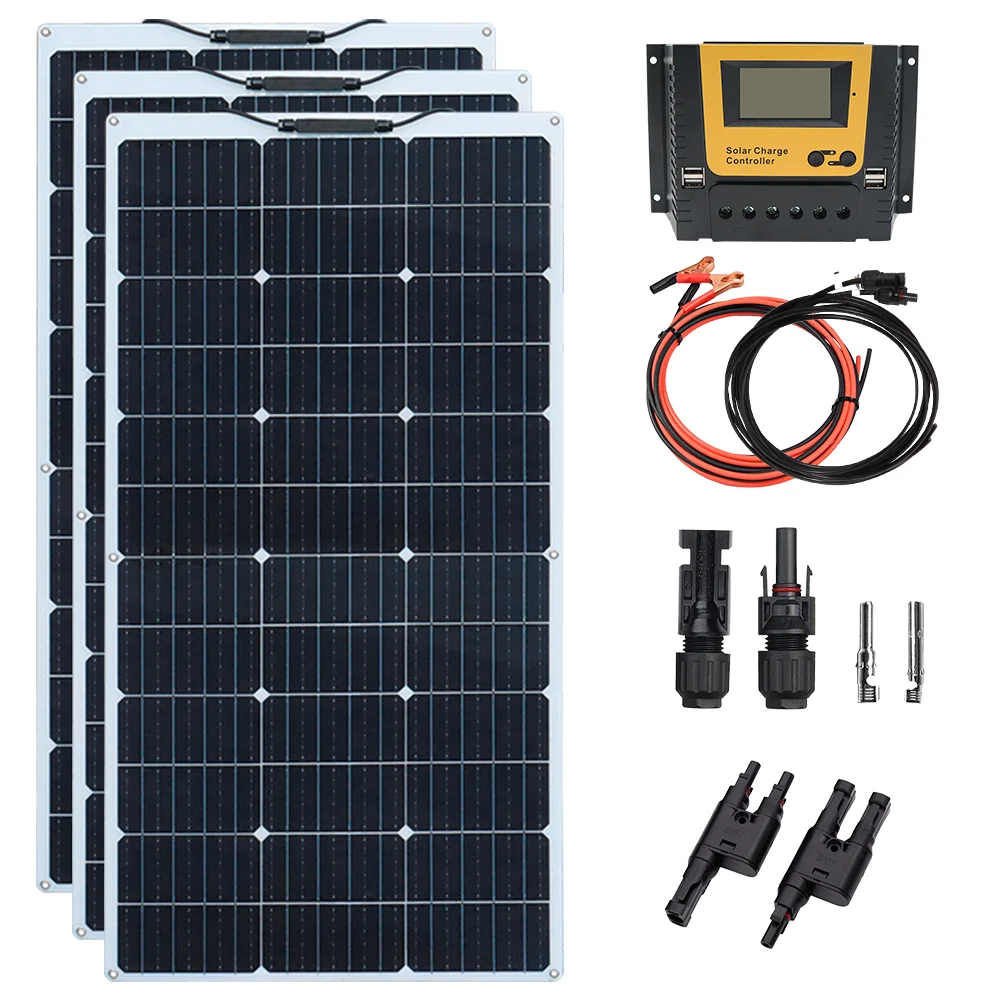

Package list(12V 300W Solarkit):3pcs 100W Flexible Solar panel +1 set 3m cable with PV connector+1 set 3m cable with Alligator clip+1 X 30A Controller+1X 3 in 1 connector

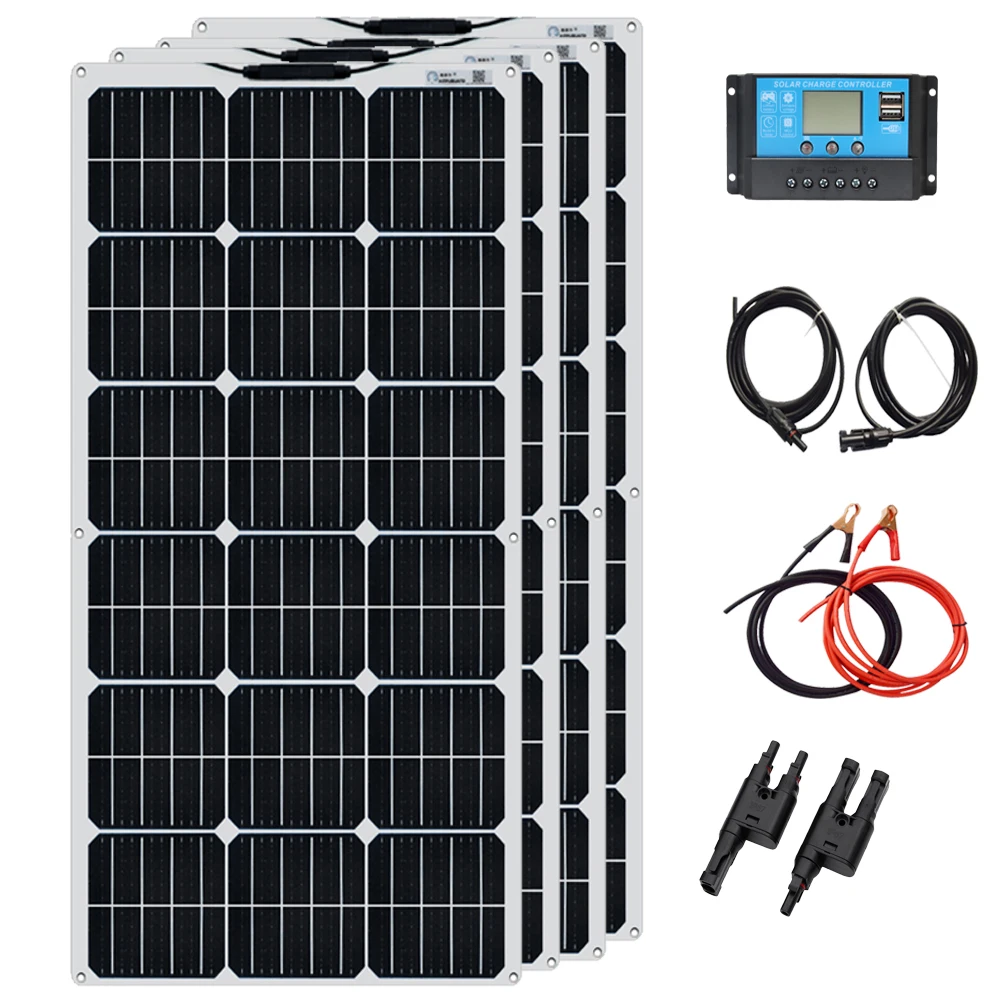

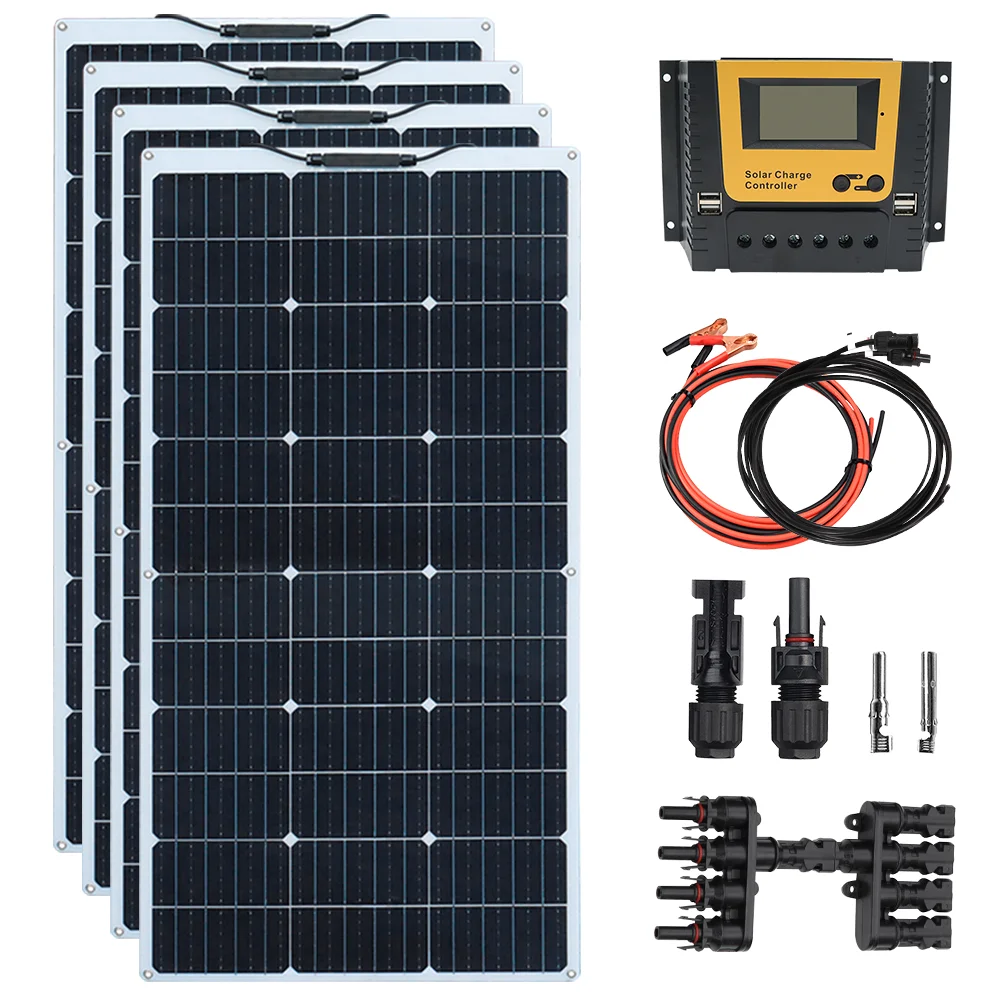

Package list(12V 400W Solarkit):4pcs 100W Flexible Solar panel +1 set 3m cable with PV connector+1 set 3m cable with Alligator clip+1 X 30A Controller+1X 4 in 1 connector

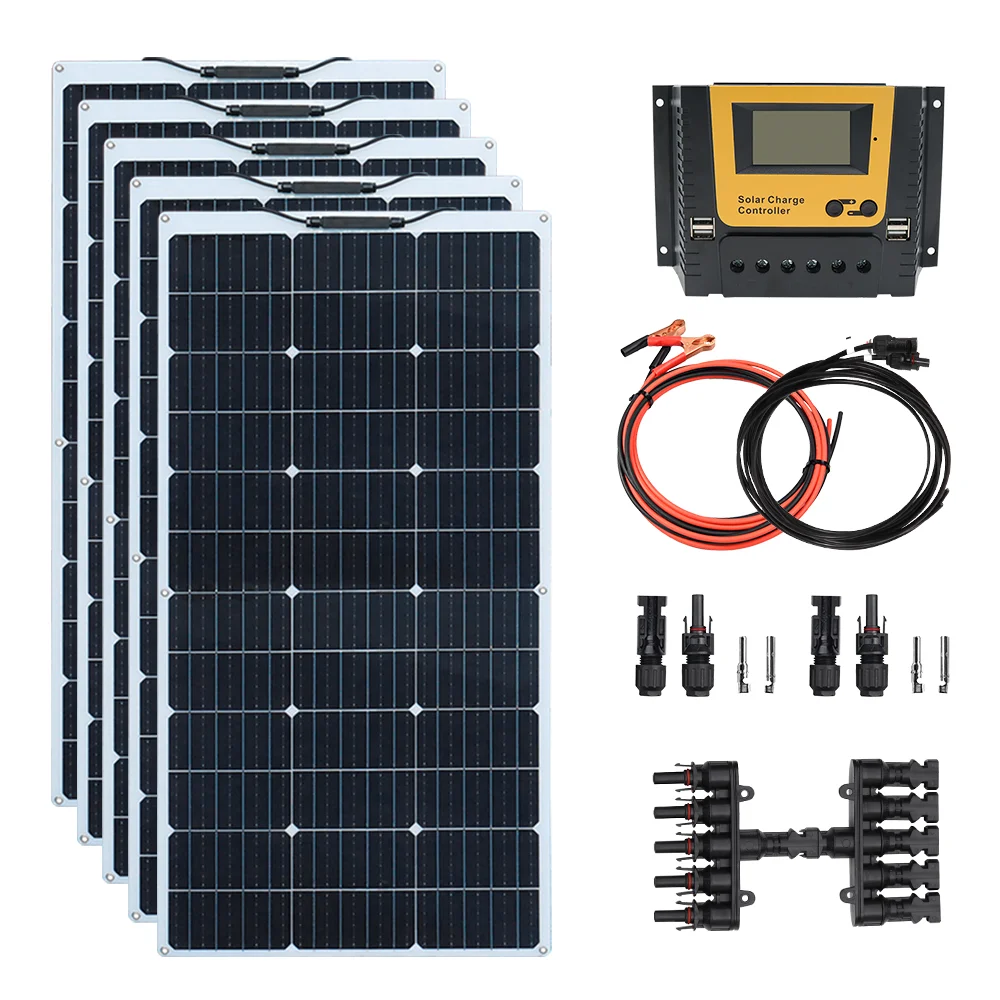

Package list(12V 500W Solarkit):5pcs 100W Flexible Solar panel +1 set 3m cable with PV connector+1 set 3m cable with Alligator clip+1 X 40A Controller+1X 5 in 1 connector

Safety Instructions:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

2.The battery cable should be as short as possible to minimize loss.

3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL,lithium ions batteries).

4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

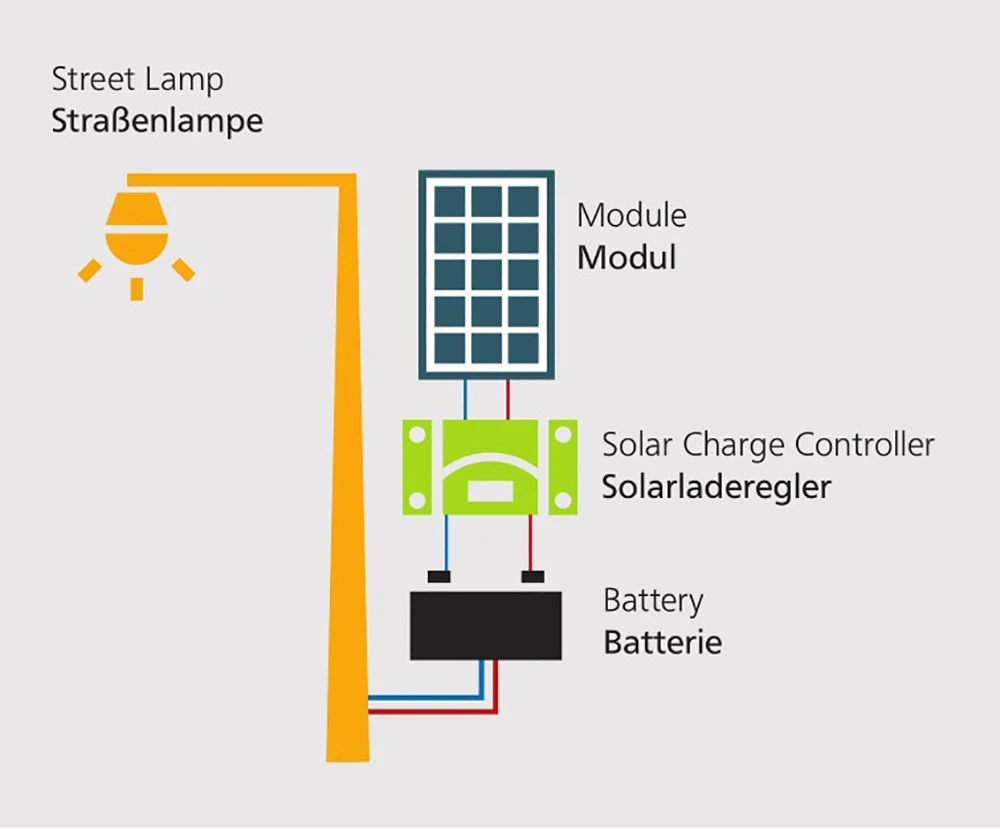

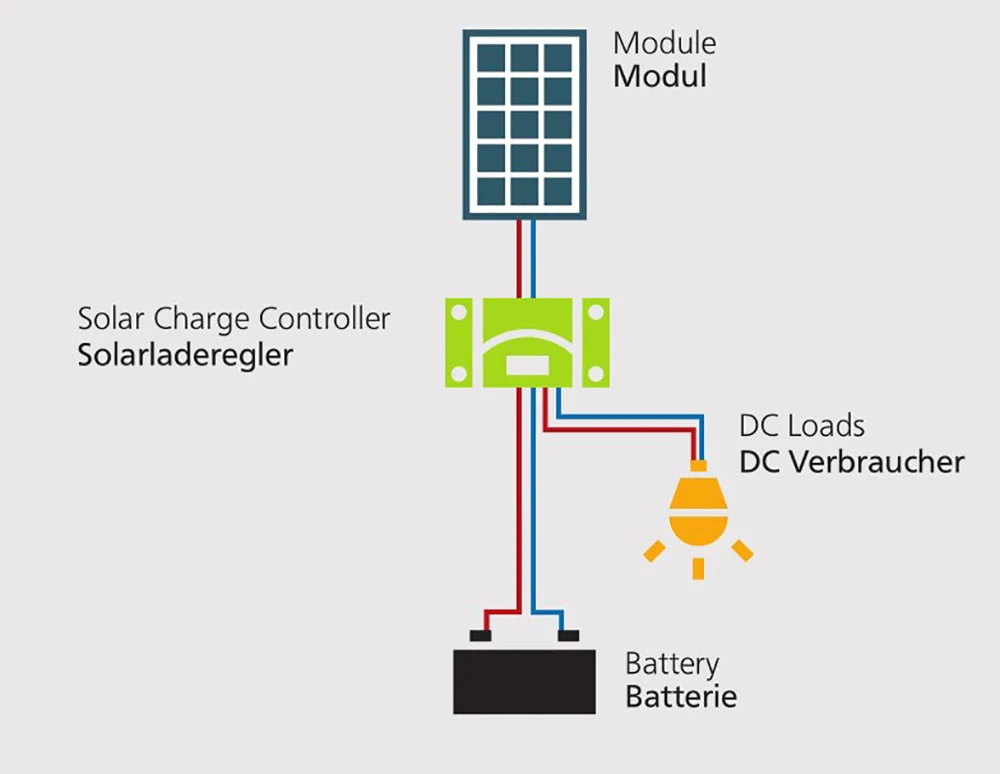

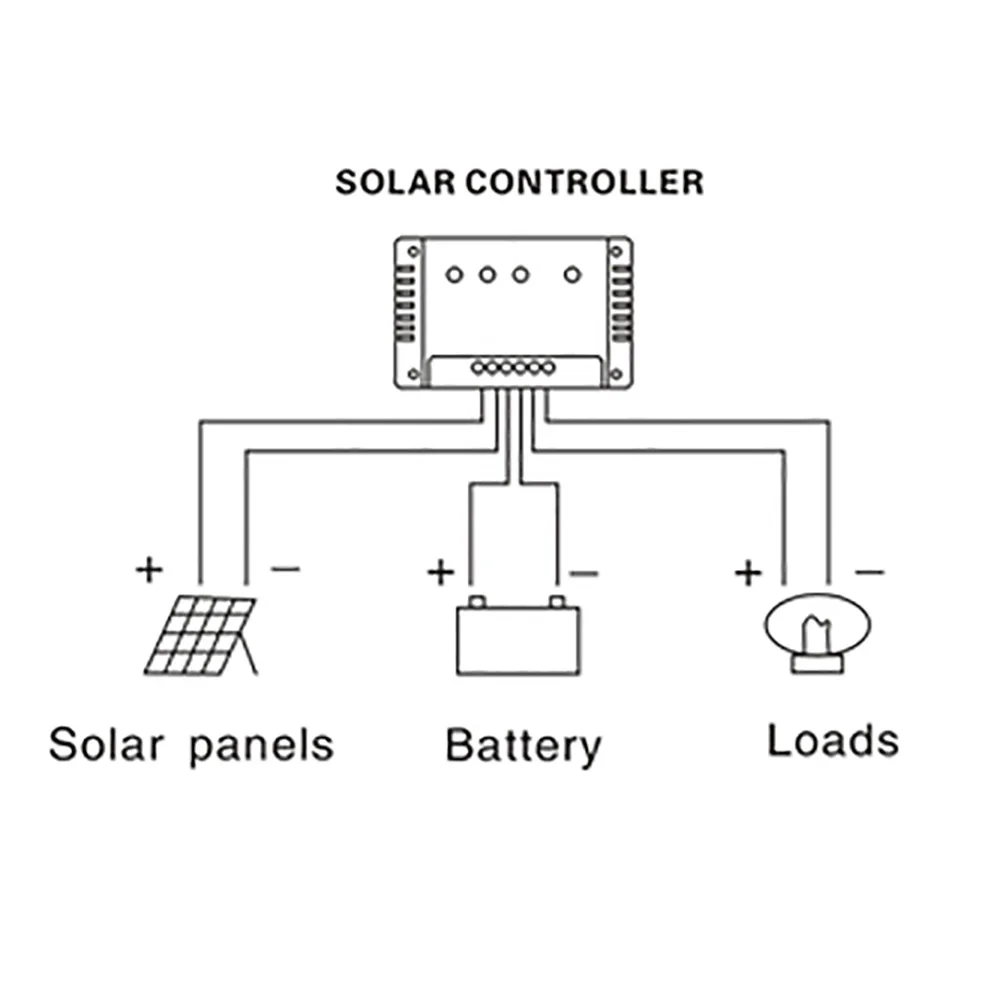

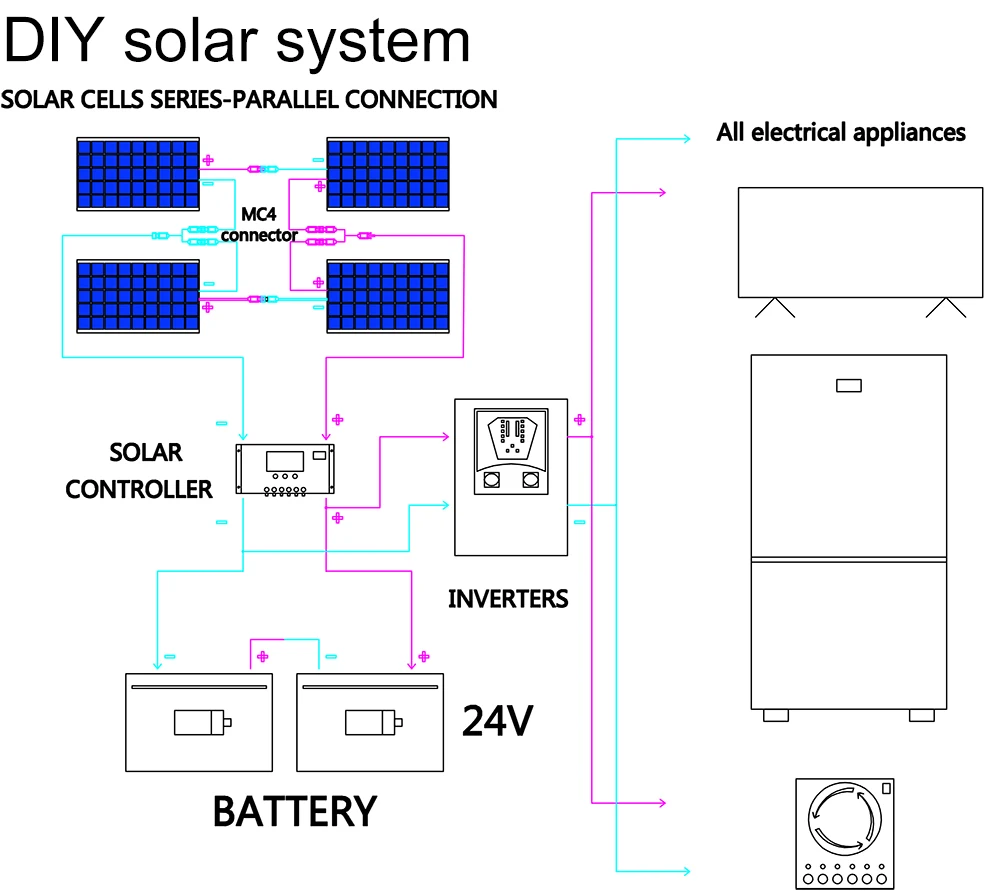

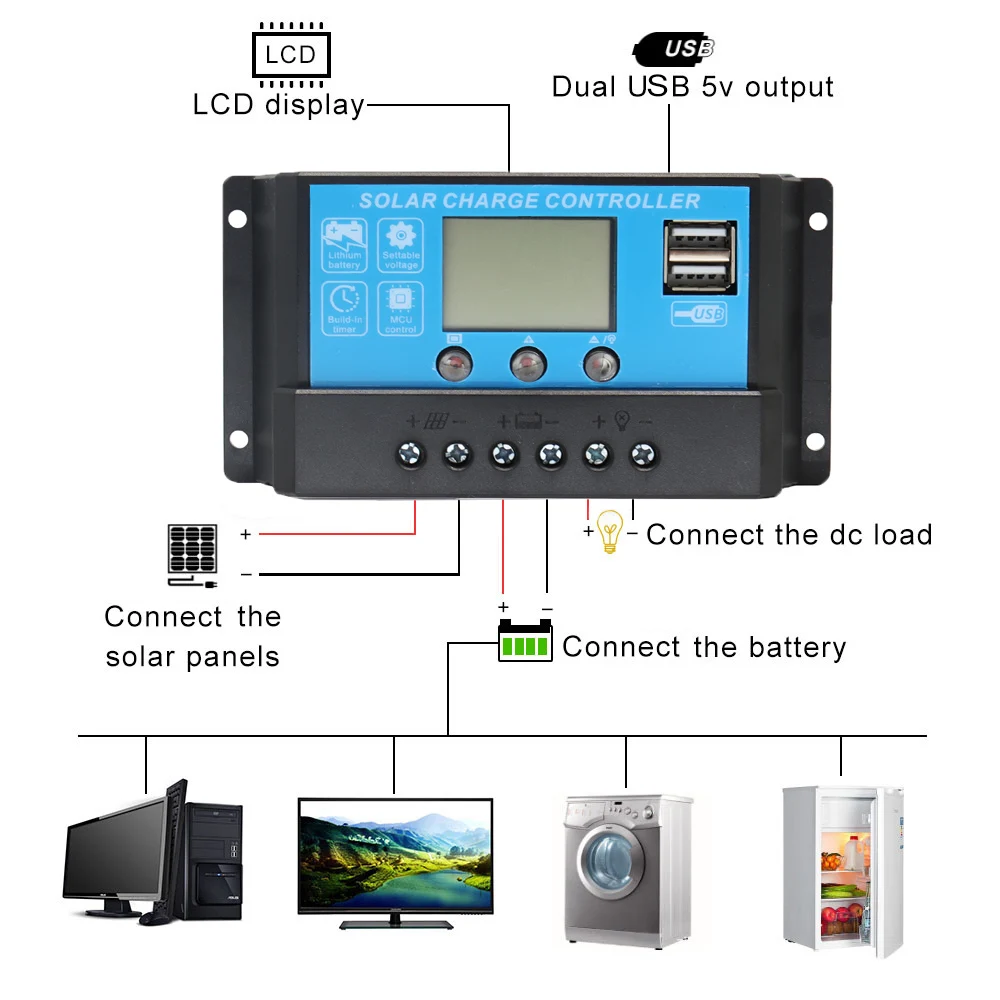

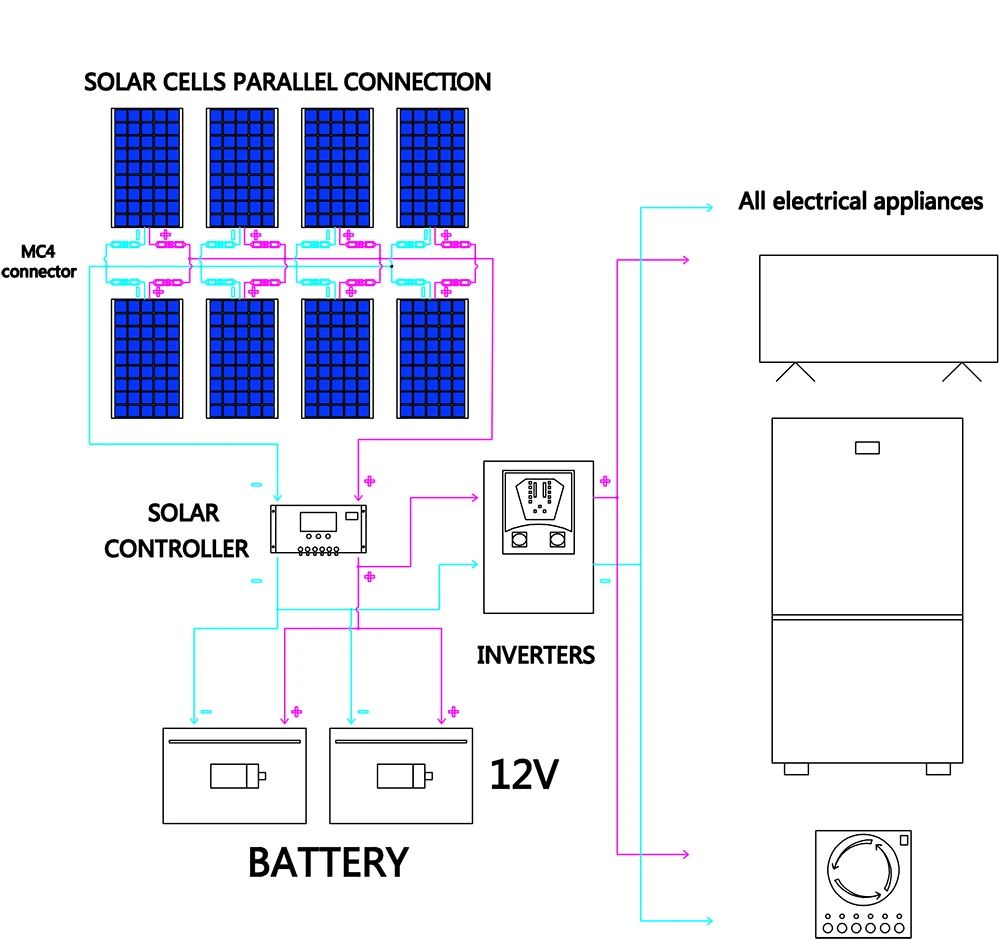

System Connection:

1.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.

2.Connect the photovoltaic module to the regulator – plus and minus.

3. Connect the consumer to the charge regulator – plus and minus.

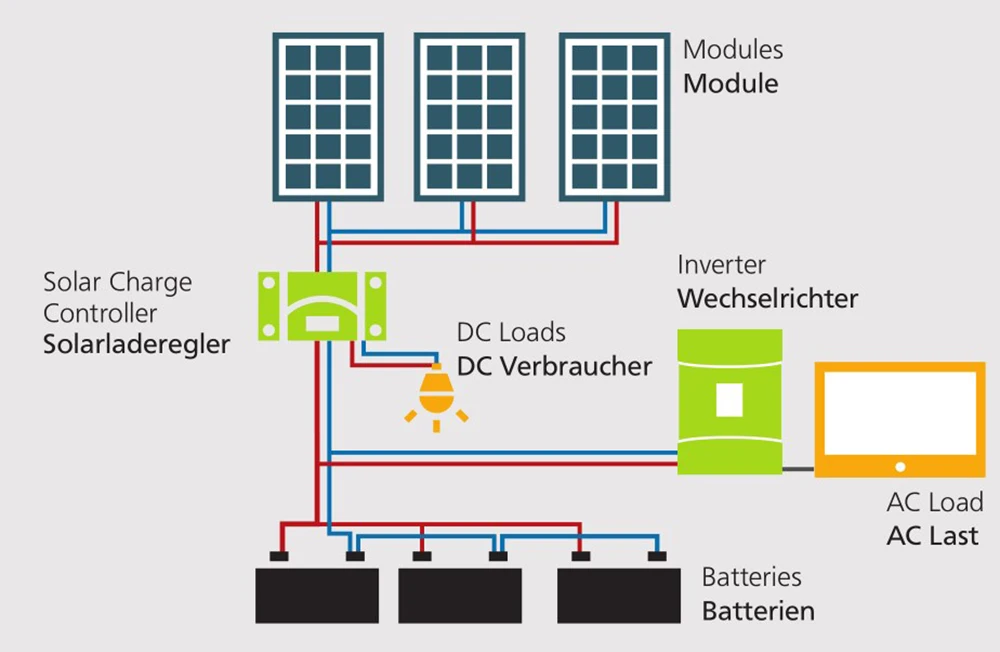

SOLAR HOME SYSTEM

• Small DC systems

• Telemetry use

• Home use

• Holiday houses

• Garage lighting

• Recreational use• Lighting of streets in regions without

reliable grid

• Billboard lighting

• Sports field lighting

• Parking space lighting

• AC and DC loads possible

• Home use

• Industrial use

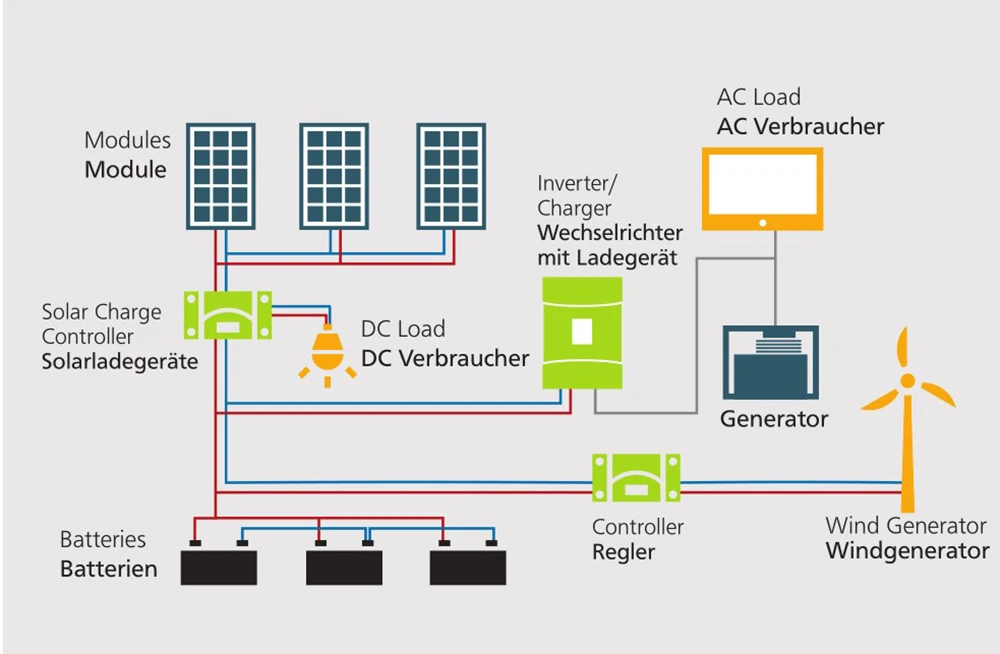

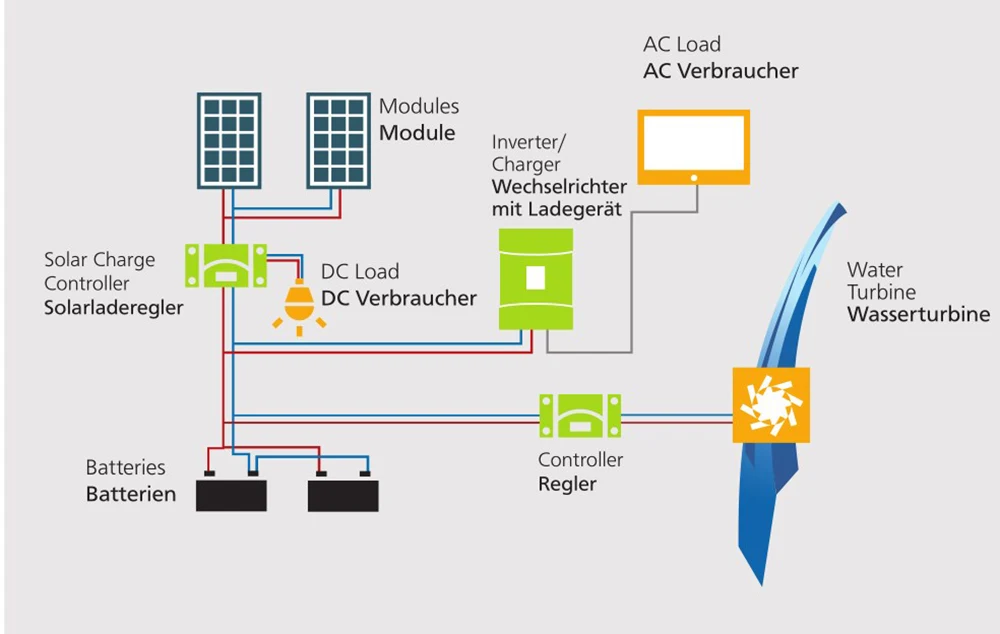

HYBRID SYSTEM

• PV and wind turbine or diesel generator

• DC and AC loads possible

• High reliability

• Small hydro generators

• Recreational use

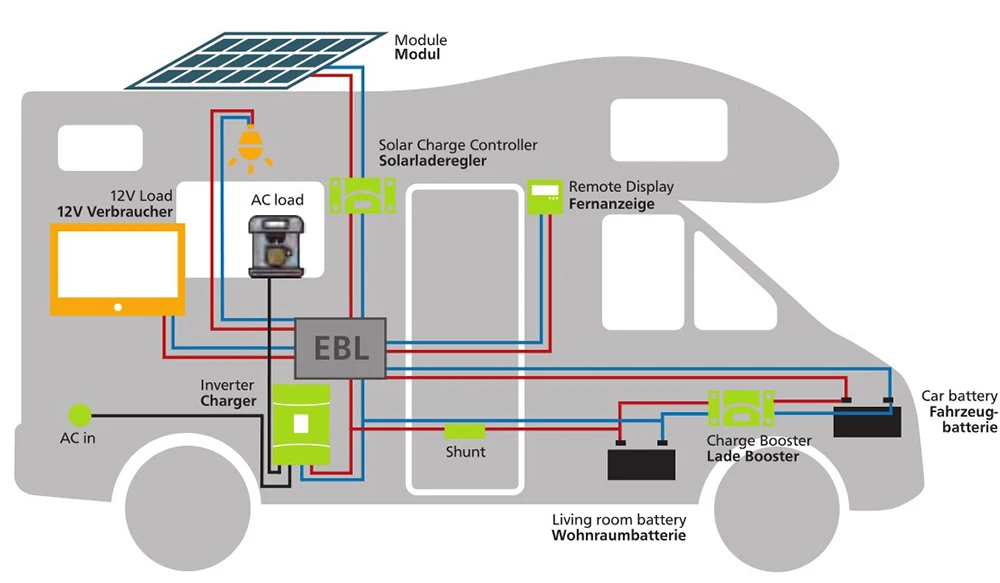

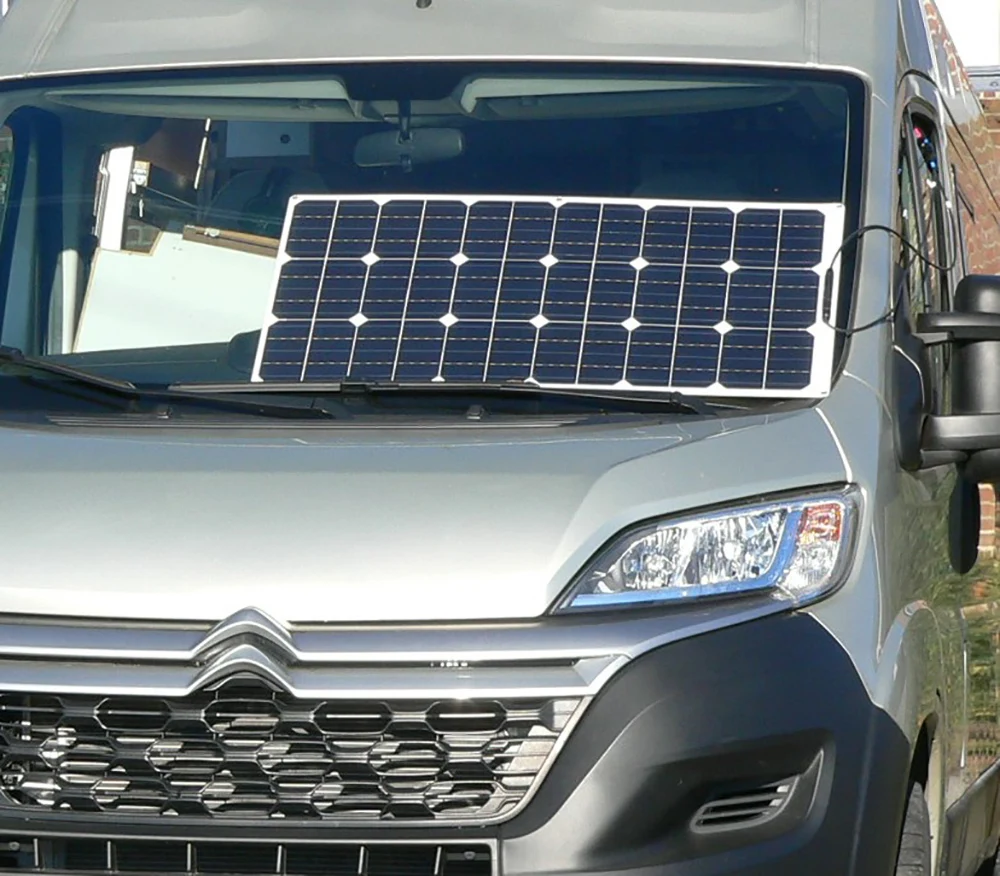

• Caravan and camping

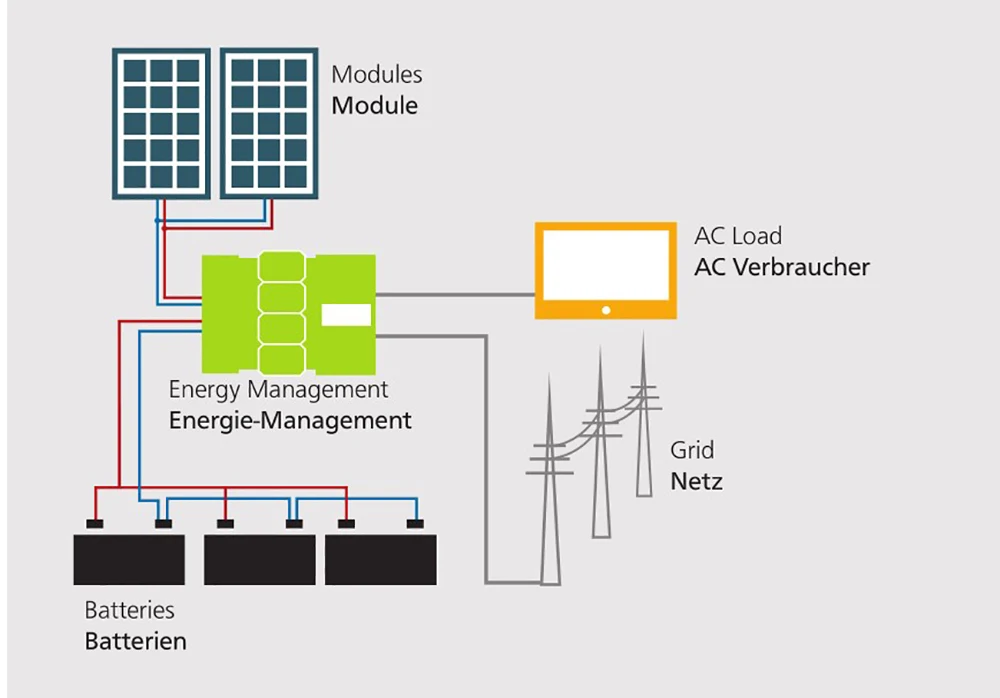

OFF-GRID CONNECT

• Covering self consumption

• Grid is used as back-up

• Reduces energy cost
