[New Upgrade Solar Hybrid Inverter]

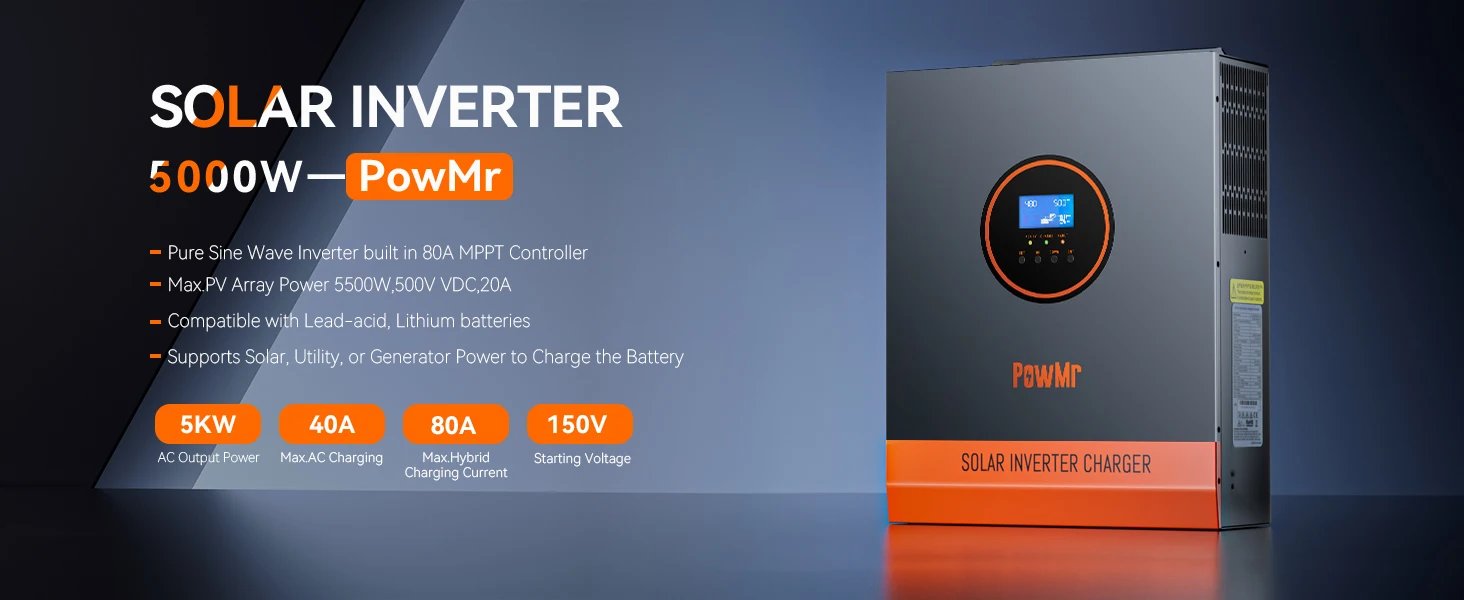

5000W pure sine wave inverter 48VDC to 110V/120VAC, built-in 80A MPPT charge controller. With full digital voltage and current double closed loop control and advanced SPWM technology, the charging efficiency is up to 99.9%. With high safety performance, it can protect your home circuit!
[Circuit & Power Security Guard]
Hybrid inverter features short-circuit protection, overload protection, reverse protection, overvoltage and undervoltage protection, which greatly ensures the safety of your circuit as well as power supply. In addition, the solar hybrid inverter adopts advanced pure sine wave technology, which can provide high quality and stable AC power to your appliances, protect your electronic products or appliances and prolong their service life.
[LCD Display & Real-Time Monitoring]
Solar hybrid inverter has an LCD display that shows the system data and operation status in real time. When you encounter a problem during use, the corresponding fault code will be displayed, which can help you solve the problem easily.In addition, this inverter has LED indicators, so you can see the operation of the inverter at a glance, which is very convenient.
[Technical Parameters]
All in One Solar Hybrid Inverter Max Input Power: 5500W, Voltage range:120-500Vdc, Max input solar current:16A and Max.Power output: 5000W, max charge current: 80A. AC input Voltage range: 90-140V, Output 100/105/110Vac ±5%.
[Diversifies Uses]
48V Inverter with Smart battery charger design for optimized battery performance; Compatible with mains voltage or generator power; Can be accessed to a variety of household and office loads.3 output modes can be set: PV priority/utility priority/Inverter mode. 4 charging modes support: solar/utility priority/solar priority/utility hybrid charging.
Model | POW-LVM5K-48V-N |
AC Mode | |
Rated input voltage | 110/120Vac |
Input voltage range | (90Vac-140Vac) |
Frequency | 50Hz/ 60Hz (auto-sensing) |
Efficiency | >95% |
AC reverse flowing protection | Available |
Maximum bypass overload current | 63A |
Inverting Mode | |
Output voltage waveform | Pure sine wave |
Rated output power (VA) | 5000 |
Rated output power (W) | 5000 |
Power factor | 1 |
Rated output voltage (Vac) | 120Vac |
Peak power | 10000VA |
Loaded motor capacity | 4HP |
Output short-circuit protection | Breaker |
Specification of bypass breaker | 63A |
Rated battery input voltage | 48V (minimum start voltage 44V) |
Power saving mode | Load ≤50W |
AC Charge | |
Battery type | Lead acid or lithium battery |
Maximum charge current | 40A |
Charge current error | ±5Adc |
Charge voltage range | 40–60Vdc |
Short-circuit protection | Breaker and blown fuse |
Breaker specification | 63A |
Overcharge protection | Turn off charge after 1min alarm |
Solar Charge | |
Maximum PV open-circuit voltage | 500Vdc |
PV operation voltage range | 120-500Vdc |
MPPT voltage range | 120-450Vdc |
Battery voltage range | 40-60Vdc |
Maximum input power | 5500W |
Charge current range of solar energy (settable) | 0-80A |
Charge short-circuit protection | Blown fuse |
Wiring protection | Inverse wiring protection |
Authentication Specification | |
Specification authentication | CE(IEC62109)/CETL(UL 1741 C22.2 NO.107.1) /FCC/SAA |
EMC authentication grade | EN61000 |
Operation temperature range | -10℃ ~ 55℃ |
Storage temperature range | -25℃ ~ 60℃ |
Thermal dissipation | Forced cooling with adjustable air speed |

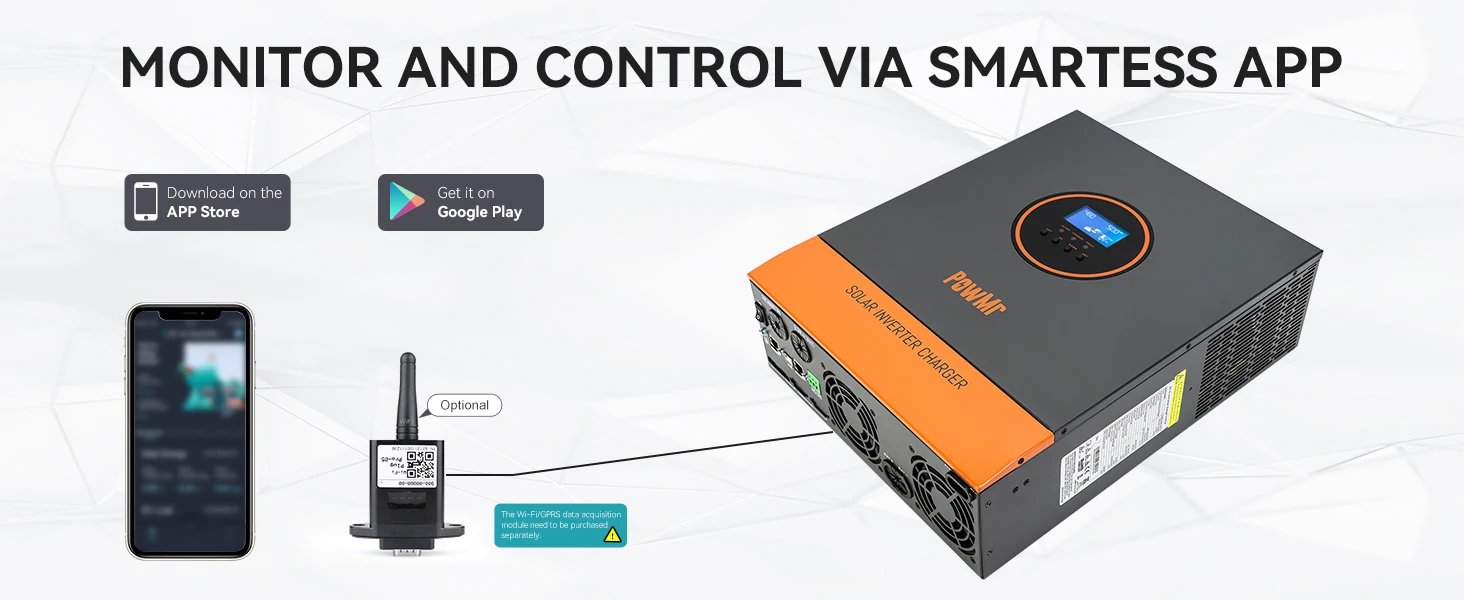

Communication interface | USB/RS485 (WiFi/GPRS)/dry node control |
