Only 1200W solar panel lightweight kit or 10 pieces 120W solar panel + inverter 110V / 220V +cable solar panel kit Off-grid

XINPUGUANG Only 1200W solar panel lightweight kit or 10 pieces 120W solar panel + inverter 110V / 220V +cable solar panel kit Off-grid solar panel system

Note: Not a glass solar panel (Flexible Solar Panel With Aluminum Frame)

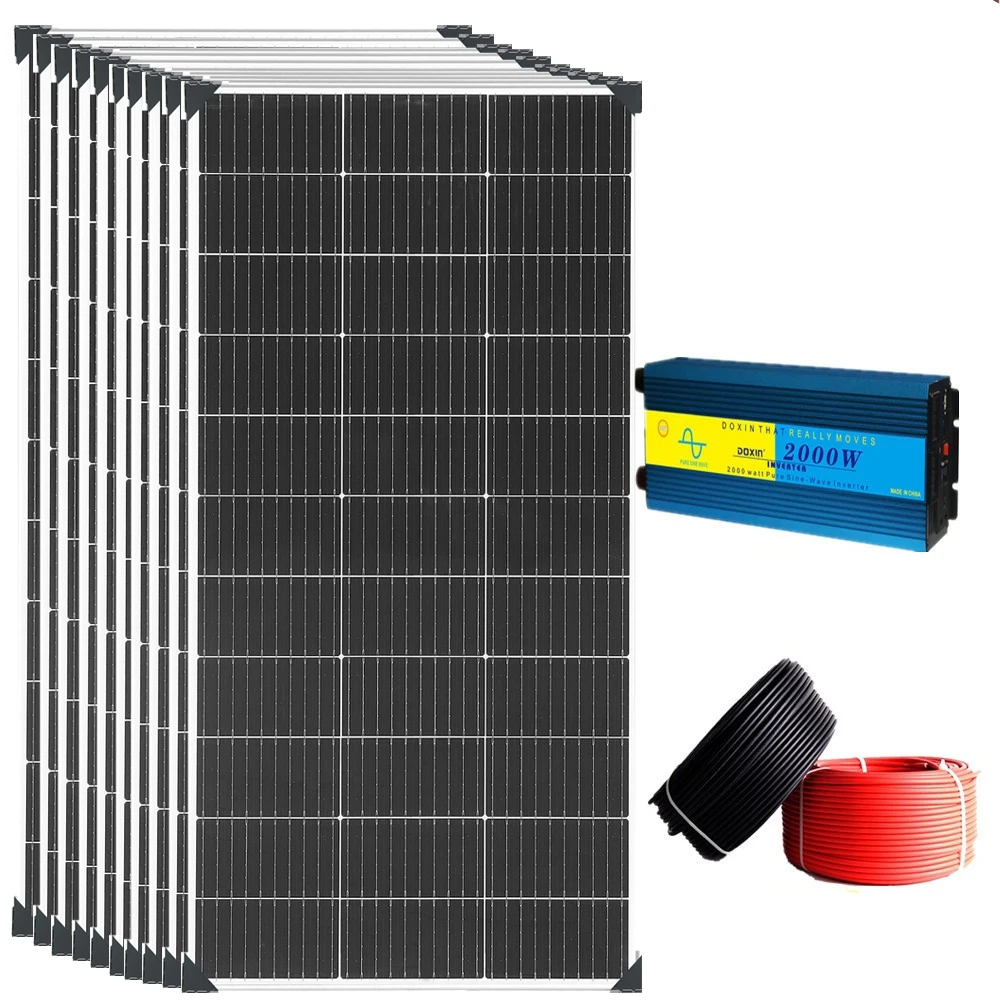

1200W Package included:

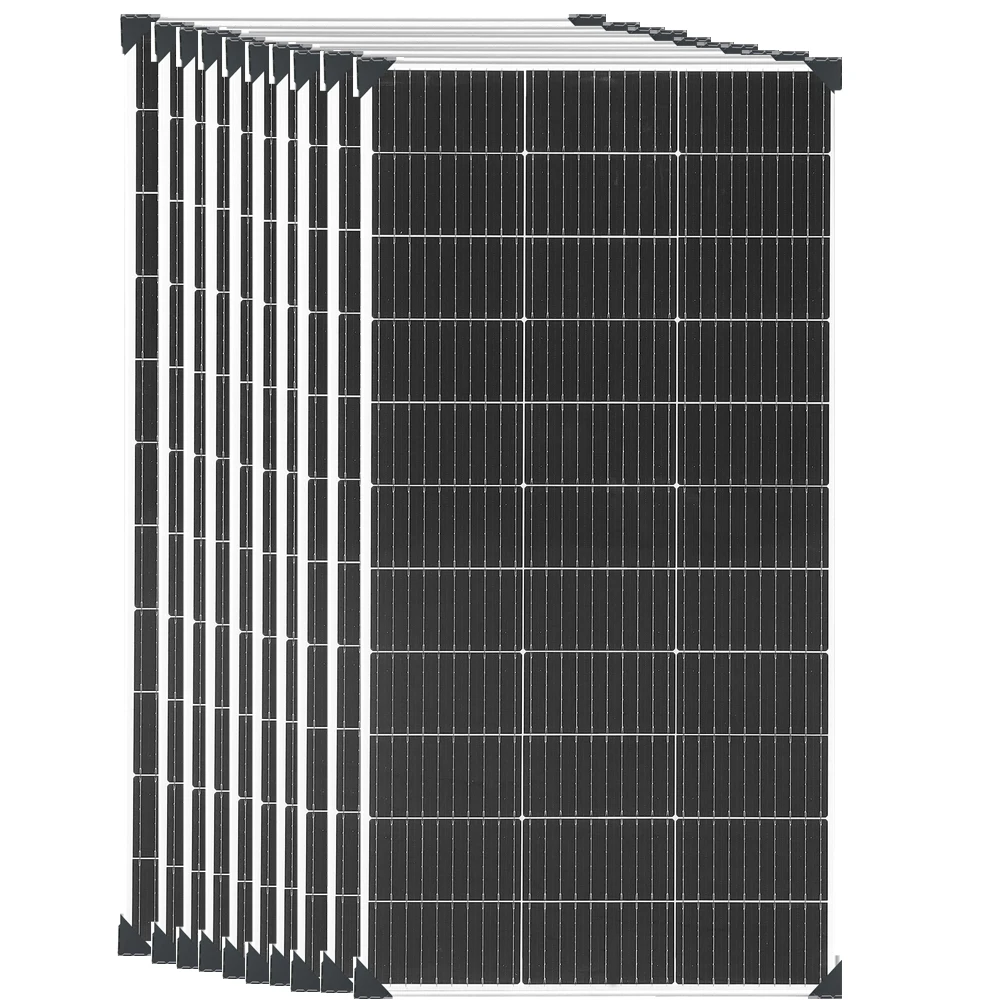

10x 120W 18.15V PET Solar Panel

1200W 110V Package included:

10x 120W 18.15V PET Solar Panel

1 set 15m cable

1x 12V to 110V 1000w inverter

1200W 220V Package included:

10x 120W 18.15V PET Solar Panel

1 set 15m cable

1x 12V to 220V 1000w inverter

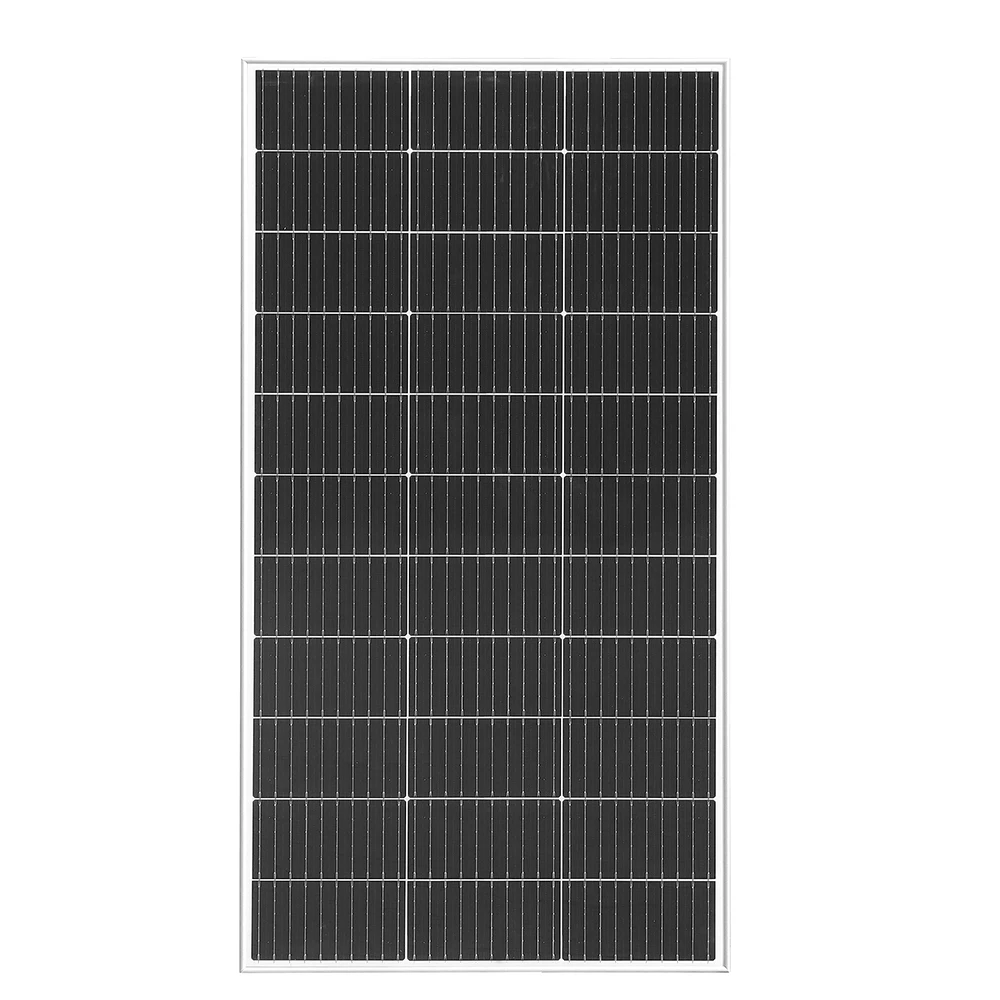

18.15V 120W Solar Panel Specification:

Maximum power(Pmax): 120W

Output tolerance: ± 5%

Maximum system voltage: 700V DC

Open circuit voltage(Voc): 21.78V

Short circuit current(Isc): 6.9 A

Maximum power voltage(Vmp): 18.15 V

Maximum power current(Imp): 6.6A

Cell efficiency: 24%

Operating temperature（NOCT）: 45±2℃

Temperature range : -40℃～+80℃

Number of cells : 33pcs

Weight : 3100g

Size : 1045*550*25 mm

Solar cell : Monocrystalline silicon

Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃, AM=1.5

Features:

1. Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.

2. Using the latest component packaging technology, thinner, lighter, softer and longer life.

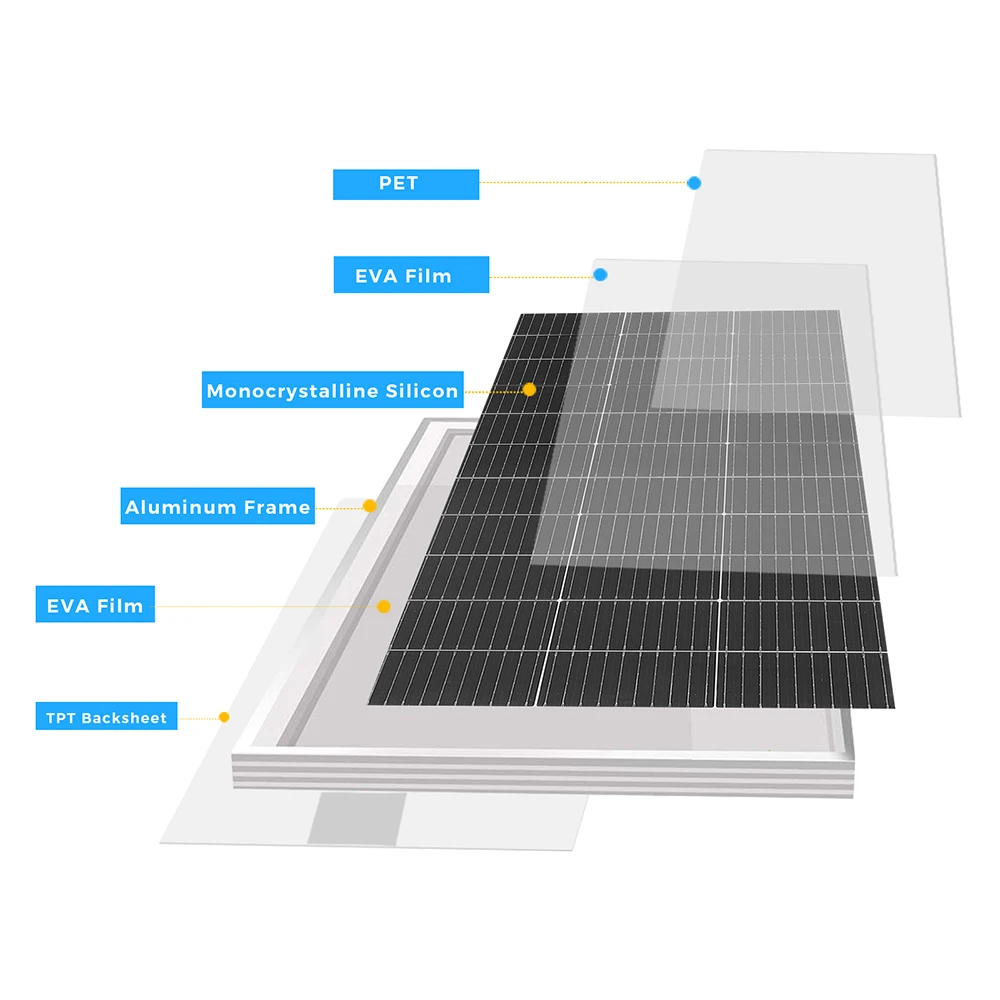

3. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.

4. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

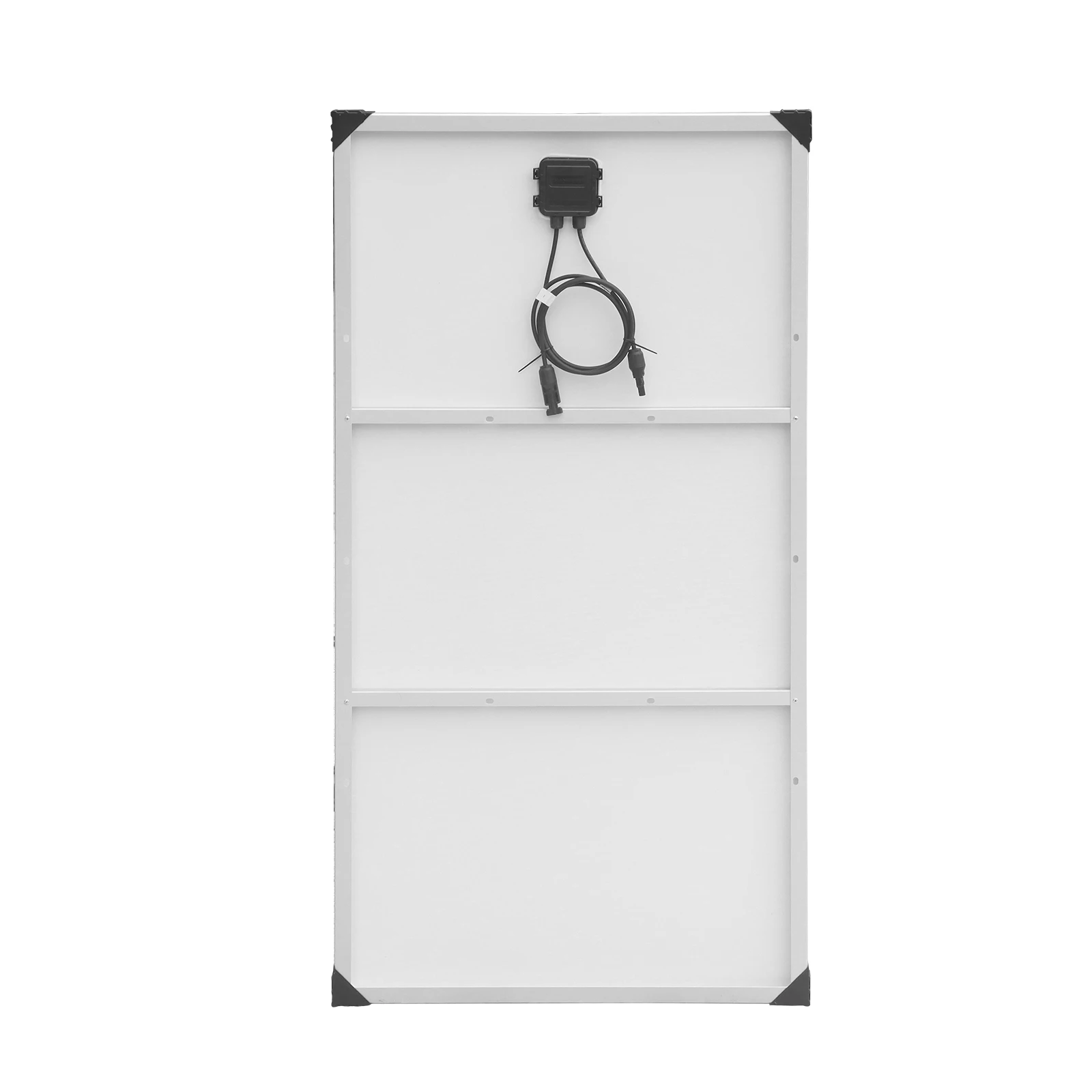

5. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.

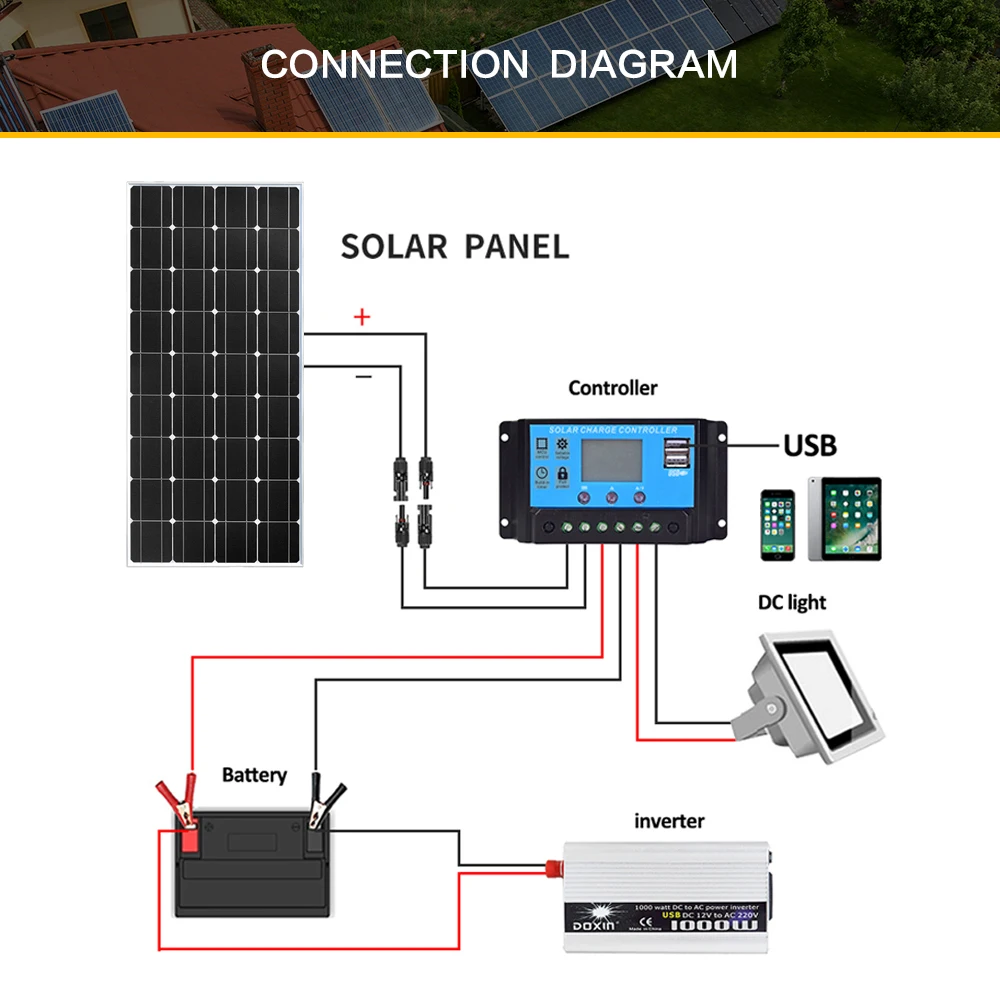

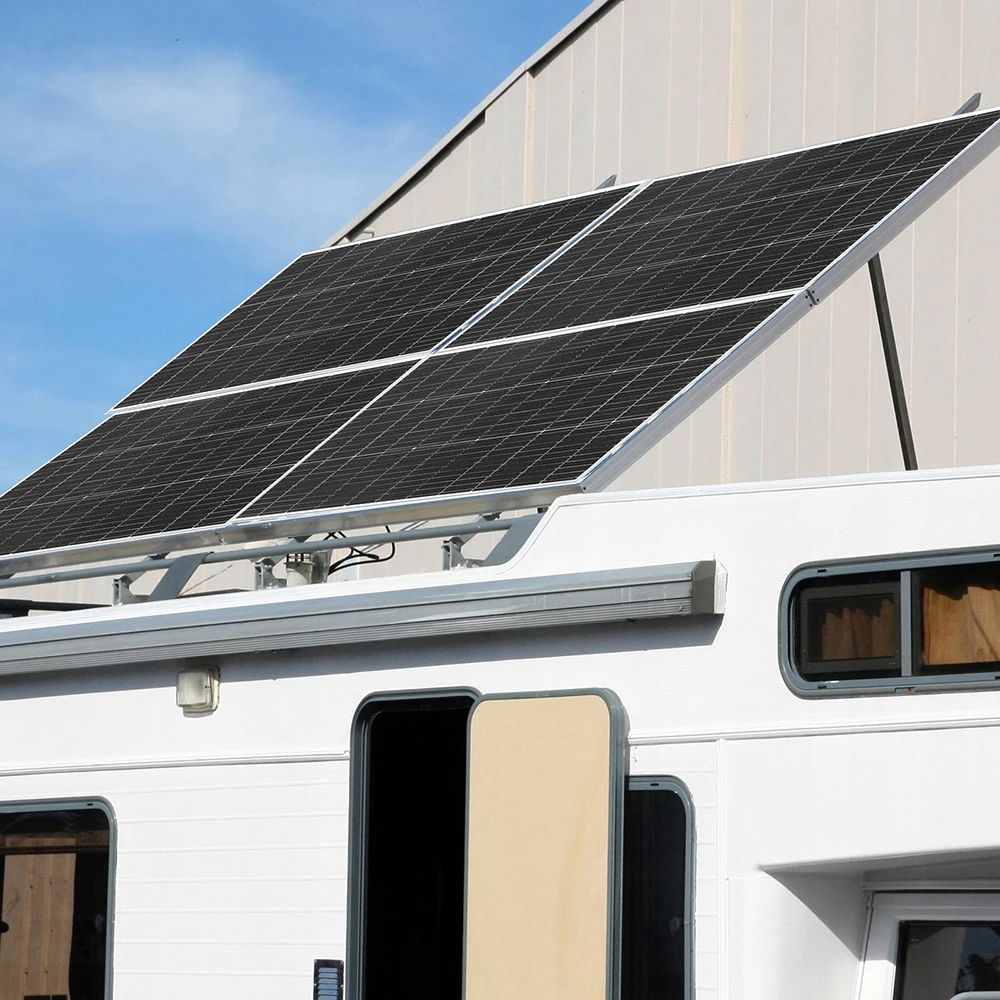

6. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.
