Description
This HQST solar panel kit will produce an average of 500 Wh of electricity per day (depending on sun availability). The HQST RV solar panel kit comes with most of the equipment required for an off-grid installation, including a 100 watt 9BB cell monocrystalline solar panel, 30A PWM solar charge controller, solar adaptor cables, tray cables, and mounting Z brackets, offering an easy one-stop purchase for you.
Built with sturdy materials, this solar kit will provide a reliable power supply system for all RVs, vans, cabins, boats, rooftops, solar power plants, and backup power systems.
Efficient and Durable RV Solar Panel Kit for 12 Volt System
• An average of 500 Wh of electricity per day (depending on sun availability)
• 9-busbar solar cells provide excellent performance and long service life
• Bypass diodes ensure better low-light performance

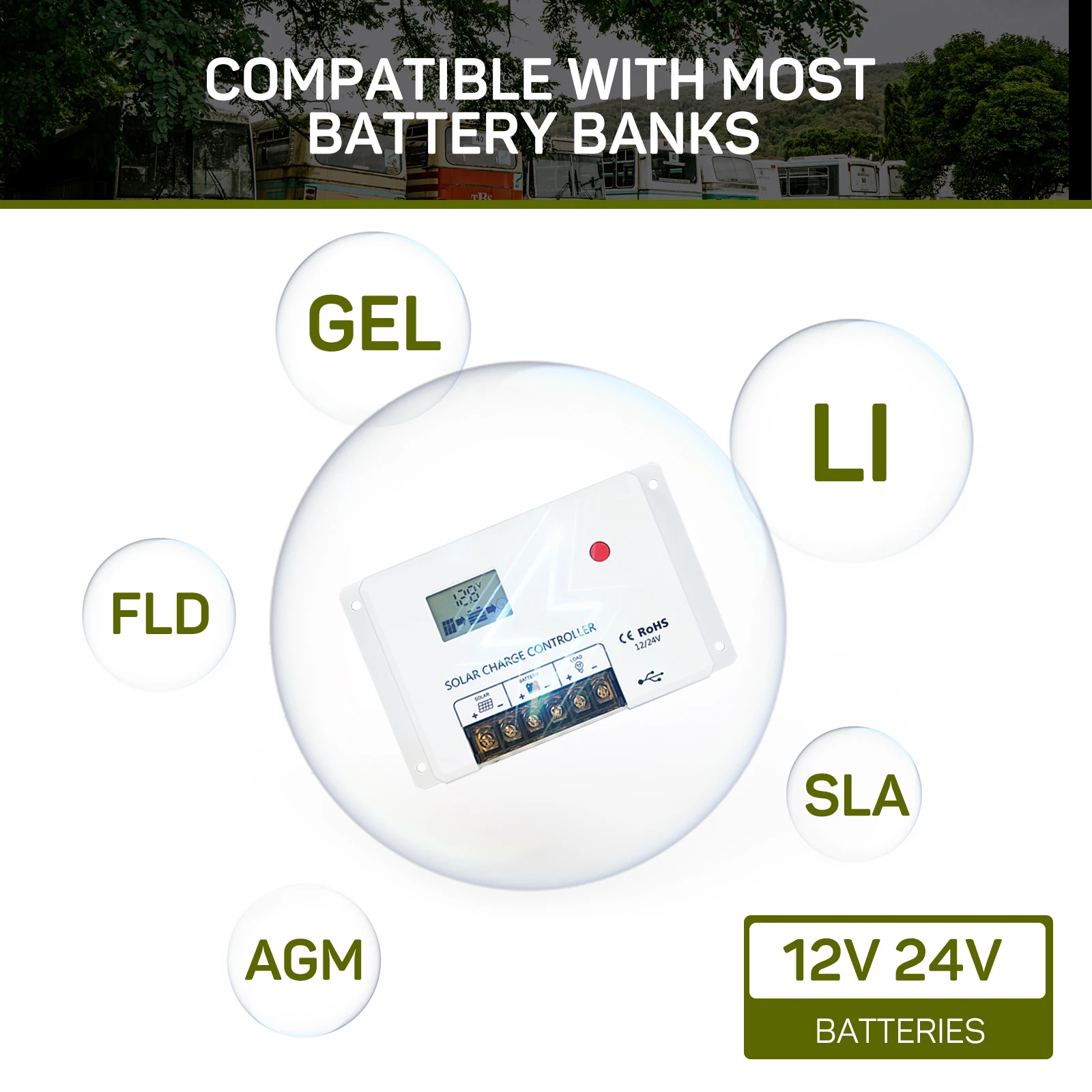

• Compatible with lithium iron phosphate and lead-acid batteries
• Ideal for RVs, camper vans, cabins, boats, and other off-grid solar systems

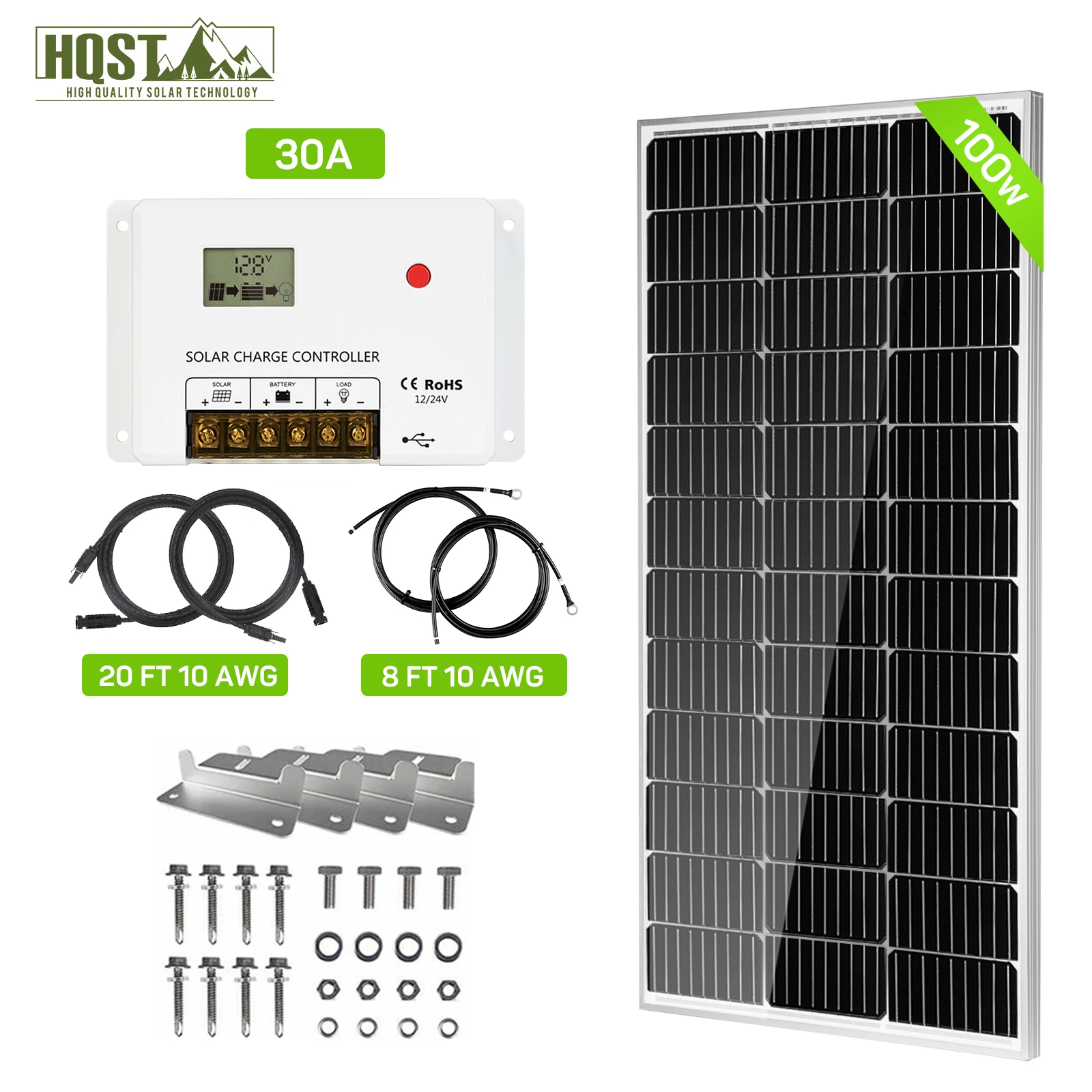

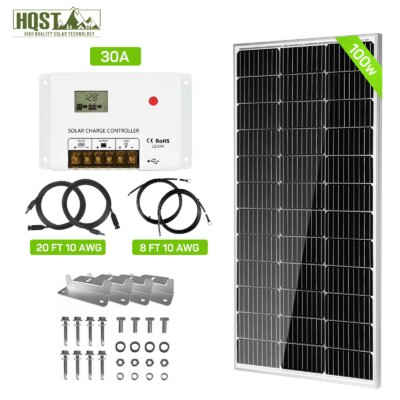

What’s in the box:
1 x 100 Watt 9BB Monocrystalline Solar Panel
1 x 30 Amp PWM Solar Charge Controller w/ LCD Display
1 Pair x 20 ft 10 AWG Solar Panel to Charge Controller Connector Cables
1 Pair x 8 ft 10 AWG Charge Controller to Battery Connector Cables
1 Set x Solar Panel Mounting Z Brackets
Specifications:
Solar Panel:
Max Power at STC: 100W
Open Circuit Voltage: 24.3 V
Short Circuit Current: 5.21 A
Optimum Operating Voltage: 20.4 V
Optimum Operating Current: 4.91 A
Charge Controller:
Rated Working Voltage: 12V/24V DC
Rated Working Current: 30 A
Max. PV System Power: 12V/450W max., 24V/900W max.
USB Output: Max. 5V/2A
More Power Output
Grade A+ 166mm large monocrystalline solar cells offer a 22-23% conversion rate, which is higher than conventional solar panels. Our HQST 100 watt solar panel produces an average of 500 Wh of electricity per day (depending on sun availability).

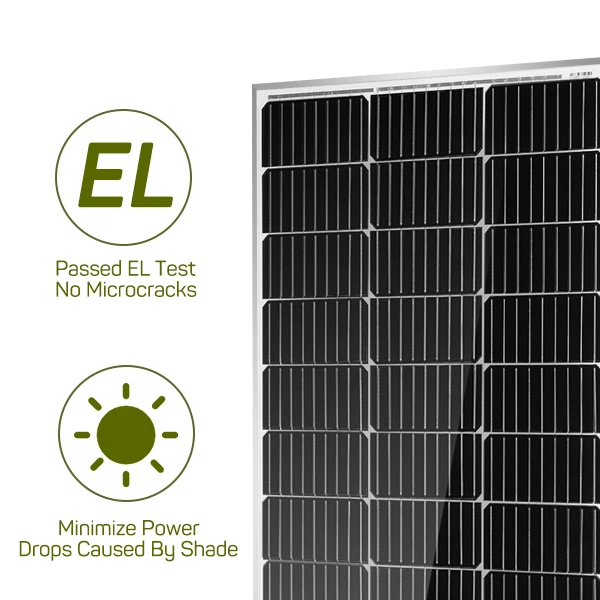

Better Low-Light Performance
By bypassing the shaded cells with poor performance, the bypass diode minimizes the power drop caused by the shadow to ensure excellent performance in a low-light environment.
Longer Service Life

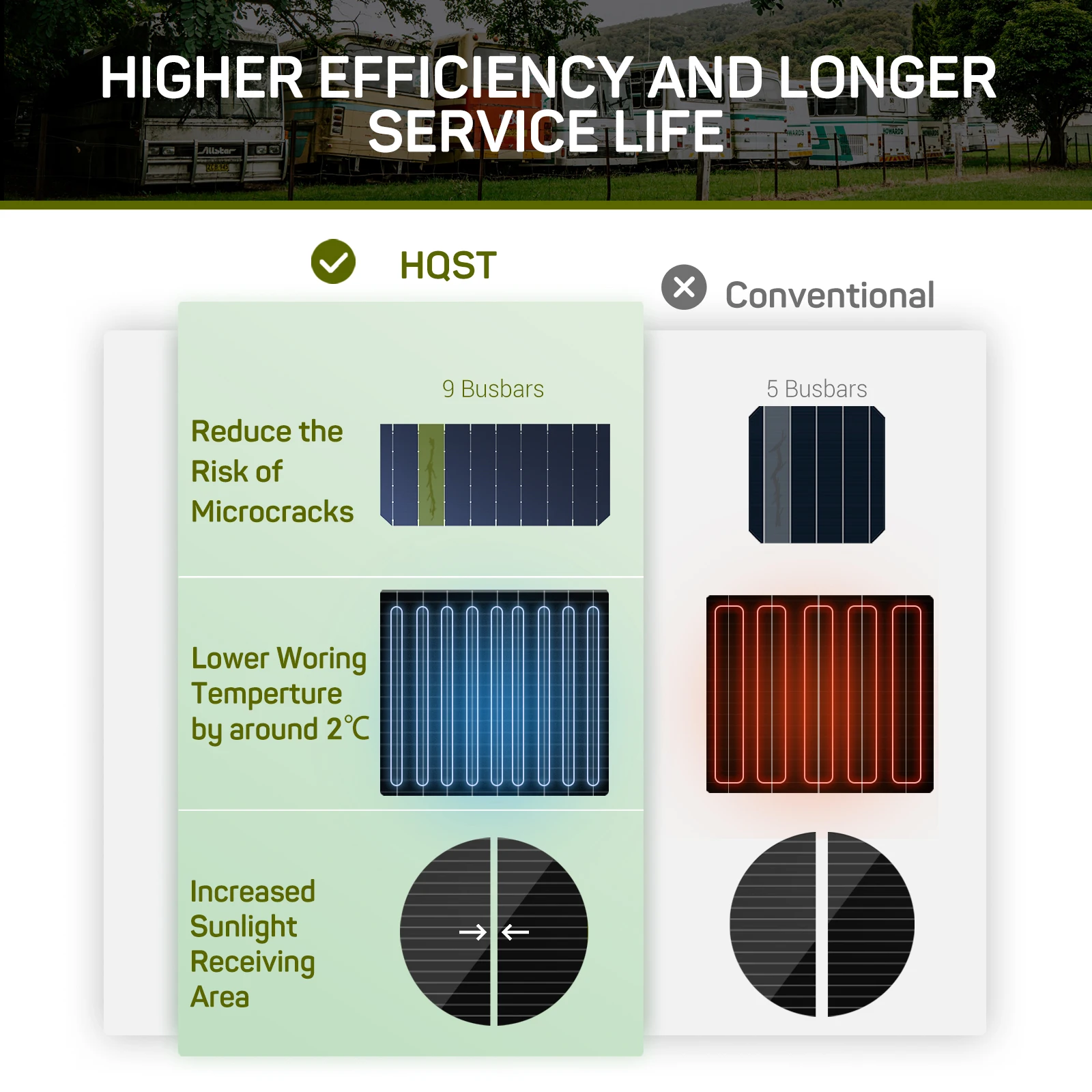

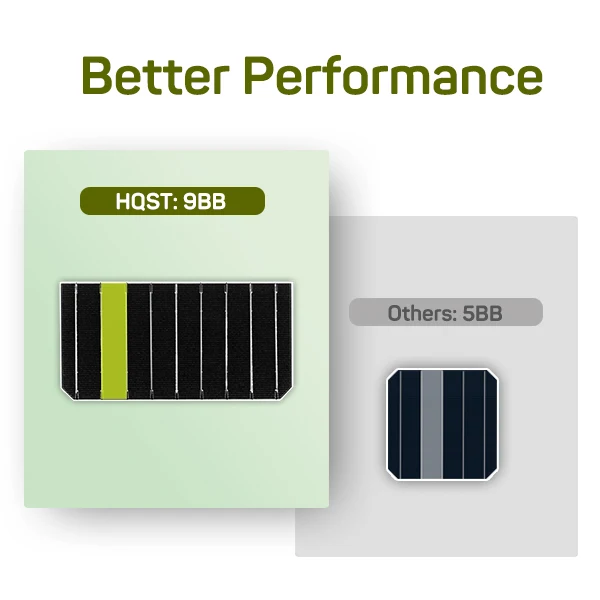

The industry-leading 9-busbar tech reduces the risk of microcracks and provides longer service life than a conventional 5-busbar design. Offers lower working temperatures for better performance.

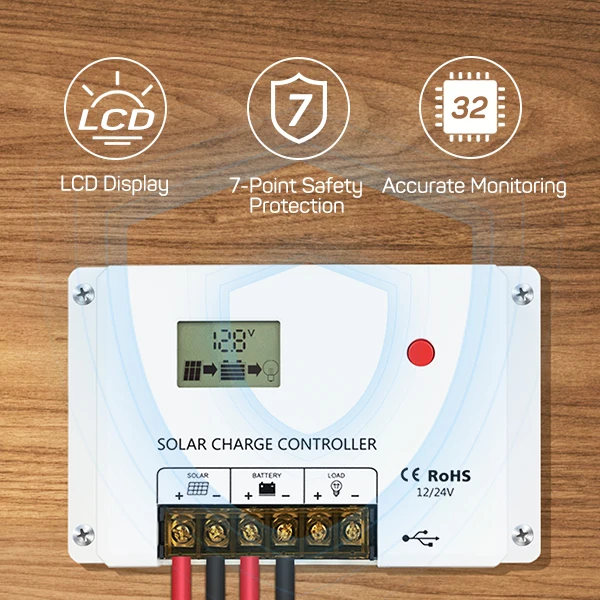

Safer Charging
Adopting an upgraded 32-bit chip and an LCD display, our HQST 30A charge controller can trace data more accurately and provide safer charging performance.

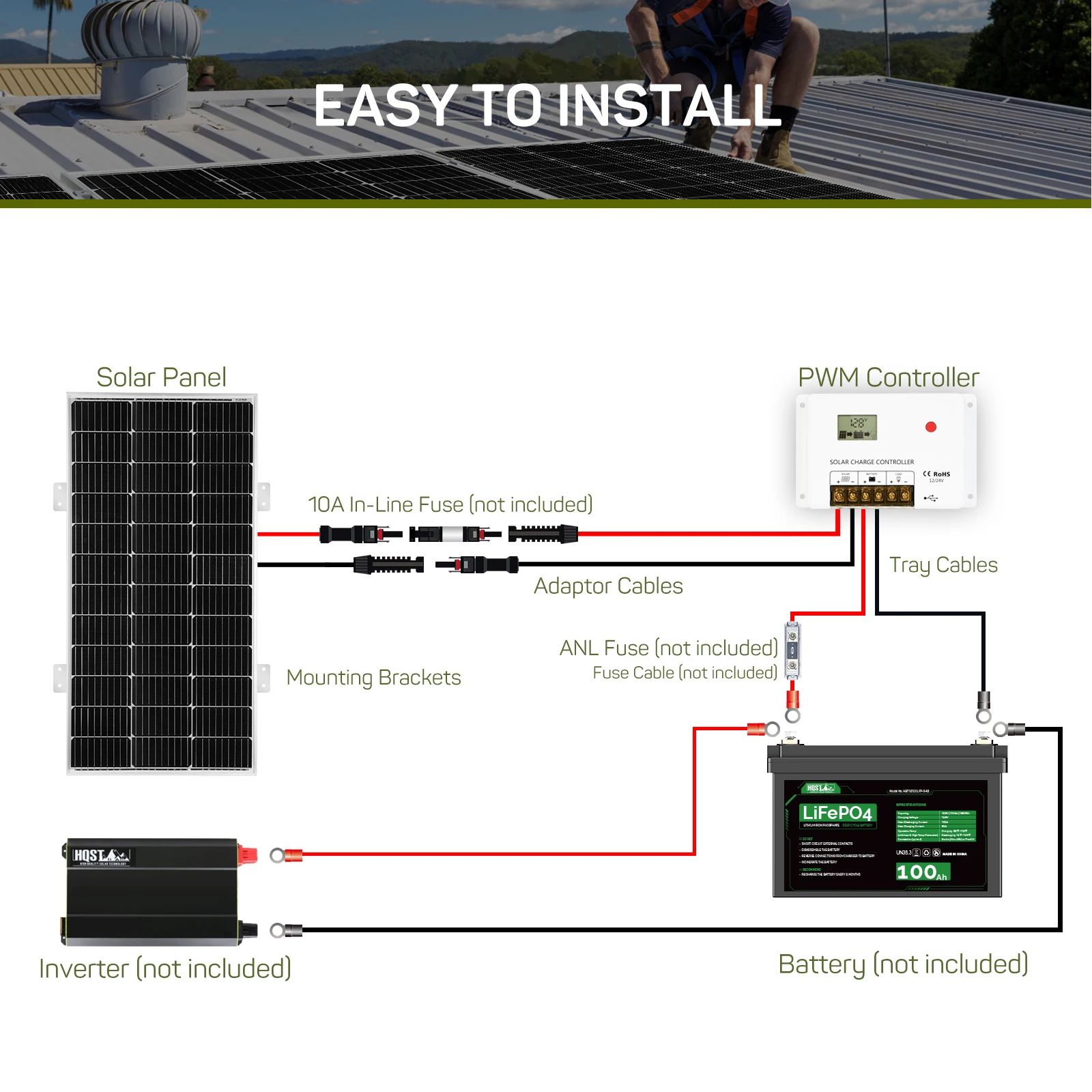

Wiring Accessories, Ready for Installation

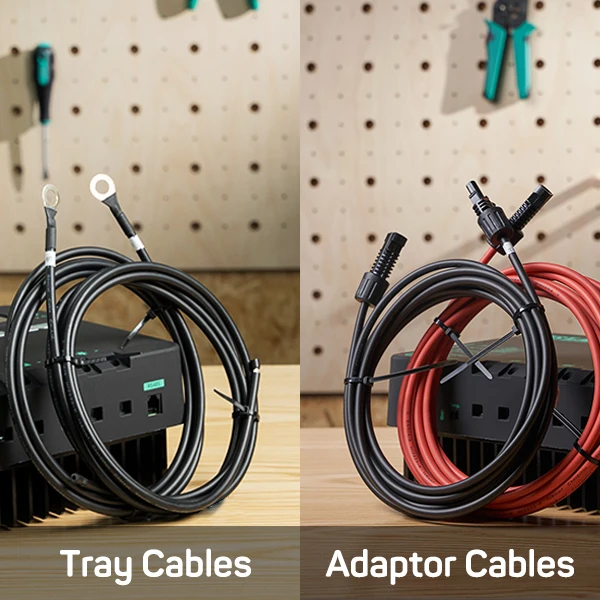

Comes with a pair of 20 ft 10 AWG solar panel to charge controller connector cables and a pair of 8 ft 10 AWG charge controller to battery connector cables. All wiring cables are IP65 rated waterproof and UV resistant for excellent outdoor durability.

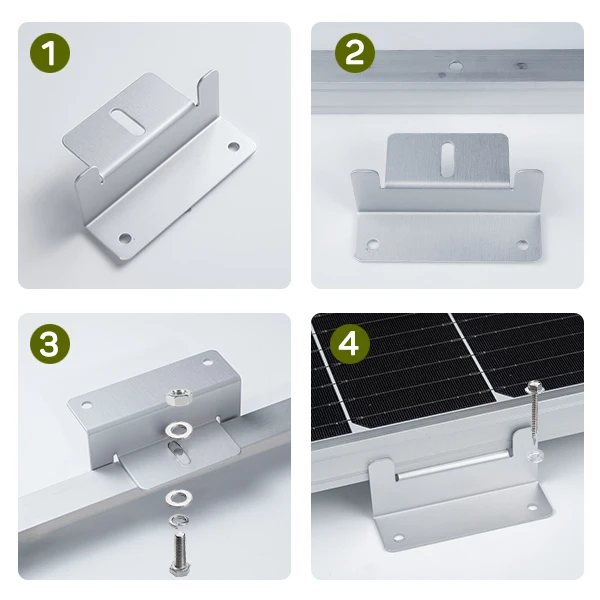

Anti-Corrosion Mounting Brackets

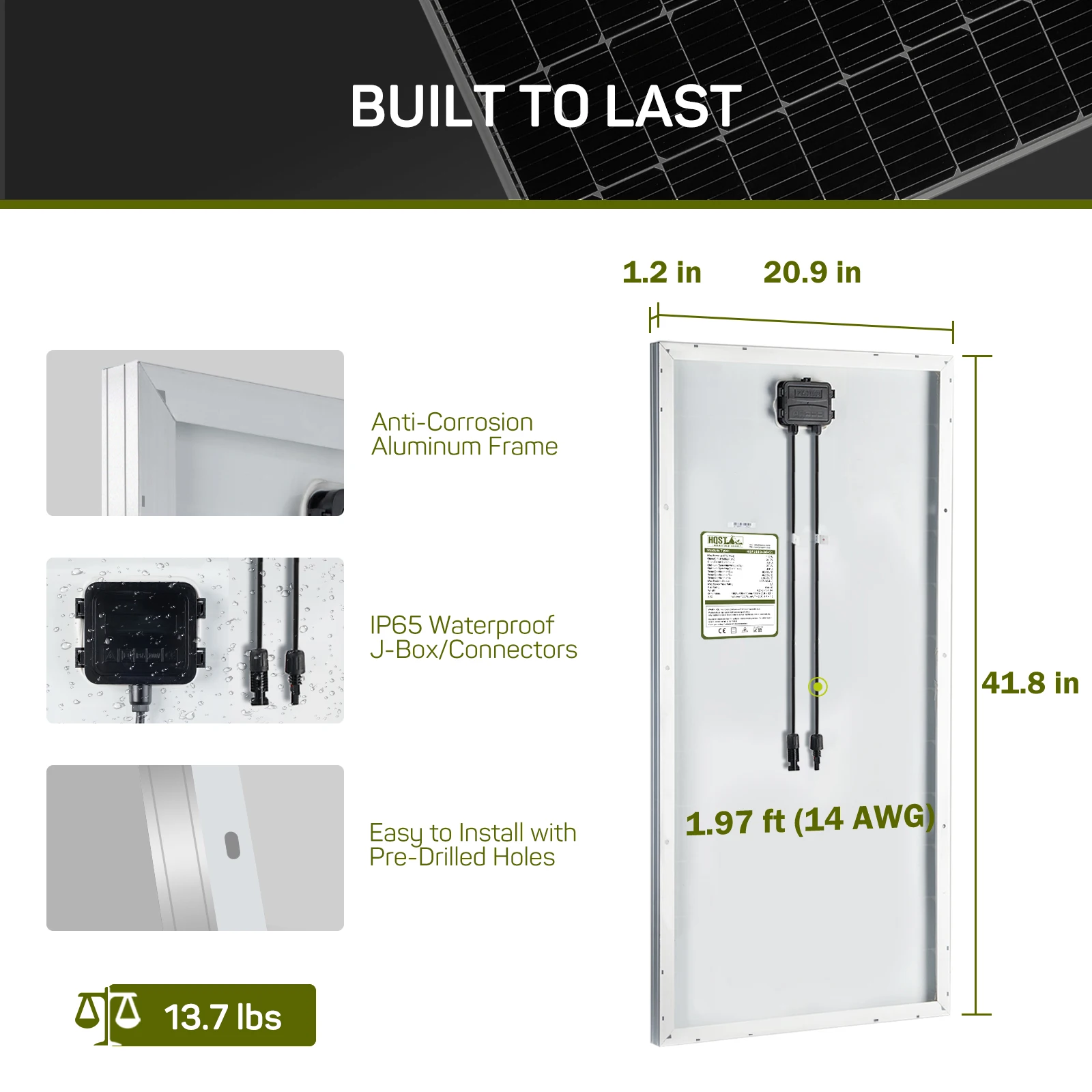

Made of lightweight and corrosion-resistant aluminium, this set of mounting Z brackets comes complete with fasteners to secure the solar panel to the installation surface. Perfect for RVs, trailers, boats, and yachts.
