Description

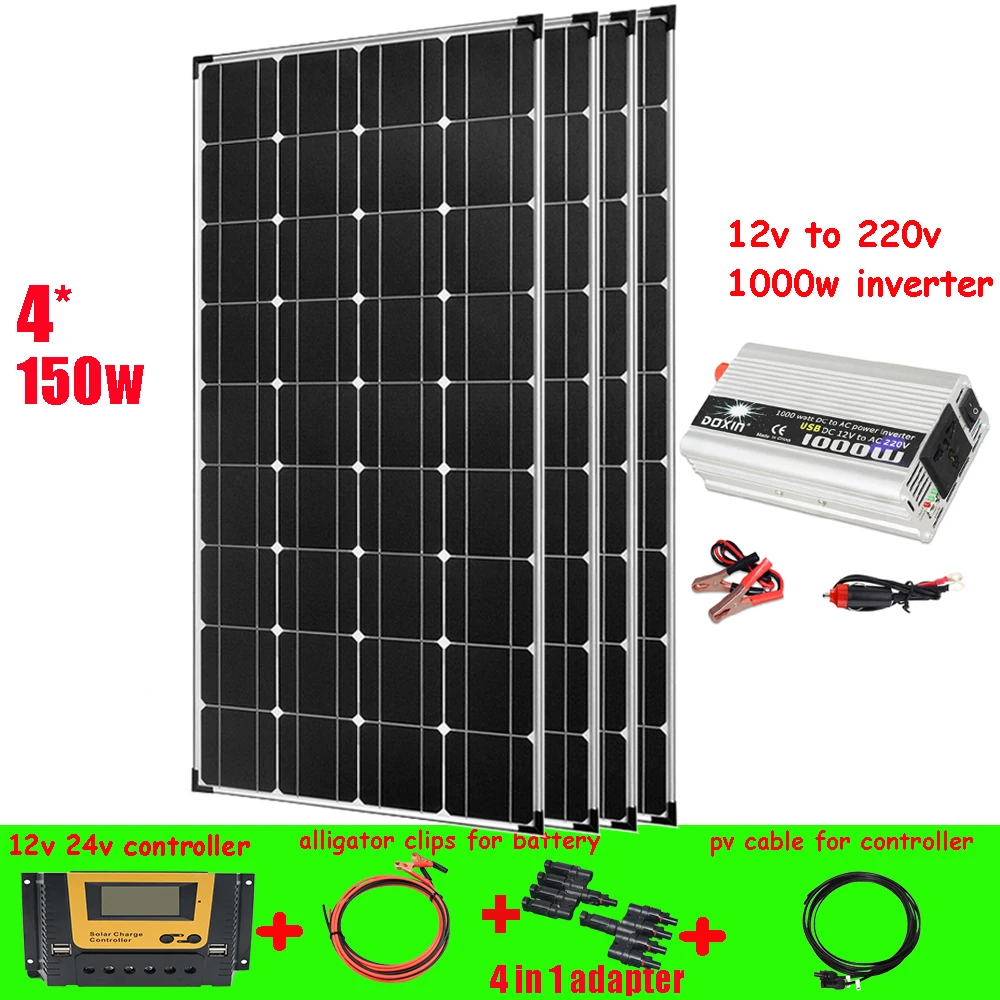

PET solar panel aluminum frame kit complete 12v 300w 150w photovoltaic panel system for home car camper RV boat outdoor waterproof
Specification

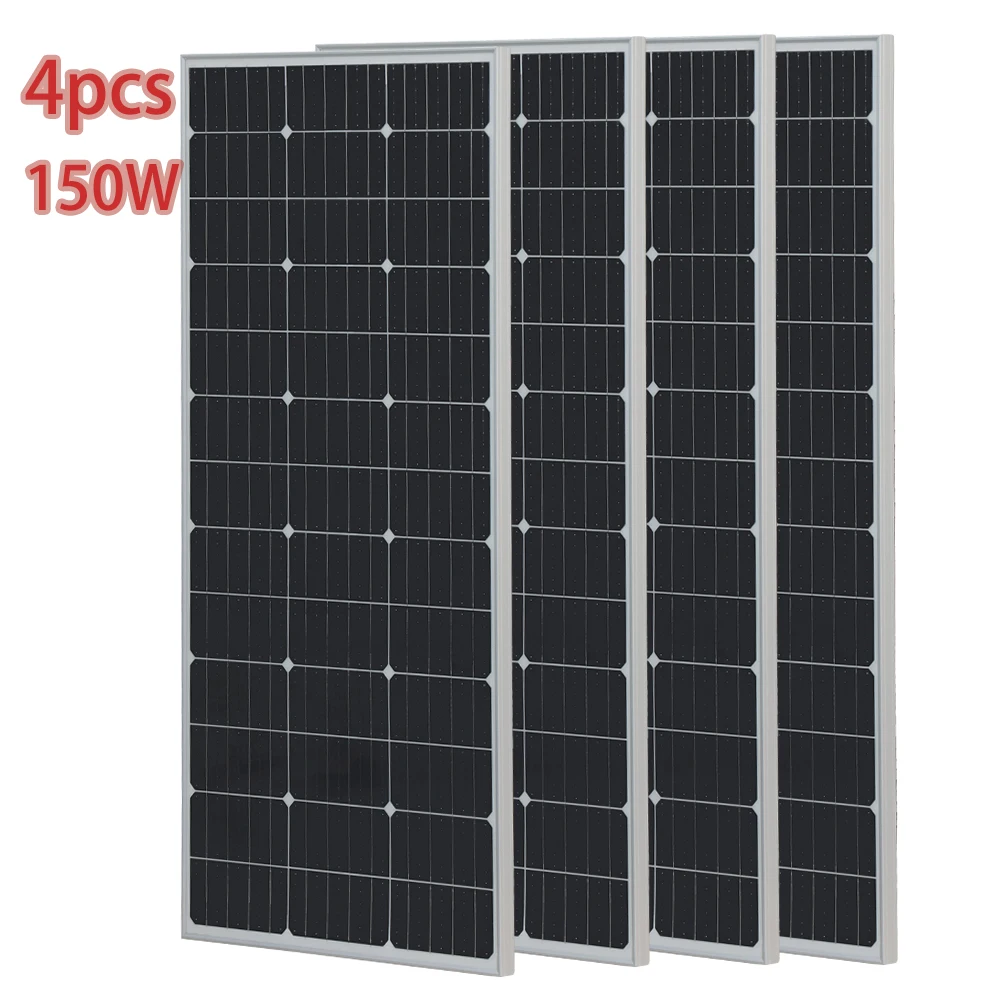

Made of monocrystalline solar cell, 1160*530*25mm,smaller size,higher power,save more space,suitable more place
Maximum power(Pmax) 150W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Maximum power voltage(Vmp) 18V
Cell efficiency 23%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Weight 3.9kg
Size 1140*530*25mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
Solar Controller

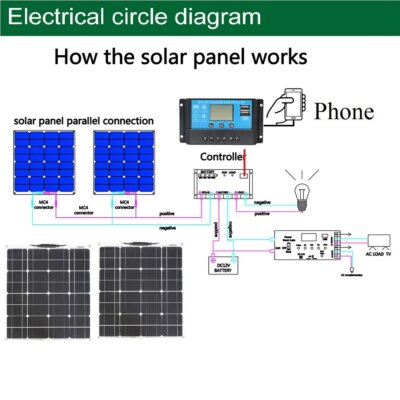

1.First,according to the diagram,connect the positive and negative electrodes of the battery to the controller,it will auto-indentify the battery voltage.
2.Then,connect the solar panles to the controller.
3.Finally, connect the positive and negative electrodes of the load to the controller. prevent reverse
4.When using lithium battery with protective panel,set the voltage level to be a fixed value.Do not
set the battery to be automatic indentification.In order to prevent the protection of the lithium battery board from the solar input after starting the controller to indentify the error voltage.
5.The open-circuit voltage of the solar panels must be smaller than the maxium allowable voltage
required by the lithium battery to prevent battery damage from excessive voltage.
6.When using the lithium battery,the short-circuit current of solar panel should be less than 0.3C
(Lithium battery capacity).
TPT surface,waterproof
Suitable for car,RV,boat,camper.etc.
Precautions for the use of solar panels
1. Installation:
During the installation process, do not press the solar panel. In the installation location, free from obstruction, and free from acid and alkali corrosion.
2. Use:
If it is not fixedly installed, be sure to handle it gently during. When wiring, the wire used must be qualified, and the wire diameter must be able to carry the output current of the solar panel. It is recommended to keep the same wire diameter on the junction box and use a standard connector. Do not use external wires with a smaller wire diameter to prevent the wires from heating up and catching fire.
3. Cleaning:
Clean up foreign objects such as dust in time. When cleaning, first place the solar panel on a flat and solid surface. When cleaning, do not squeeze the solar panel.
