120 Watt Solar Panel High Efficiency 18 Volt Solar Panels 120W Module PV Charge 12V for Boat Rooftop Caravan and Other Off-Grid

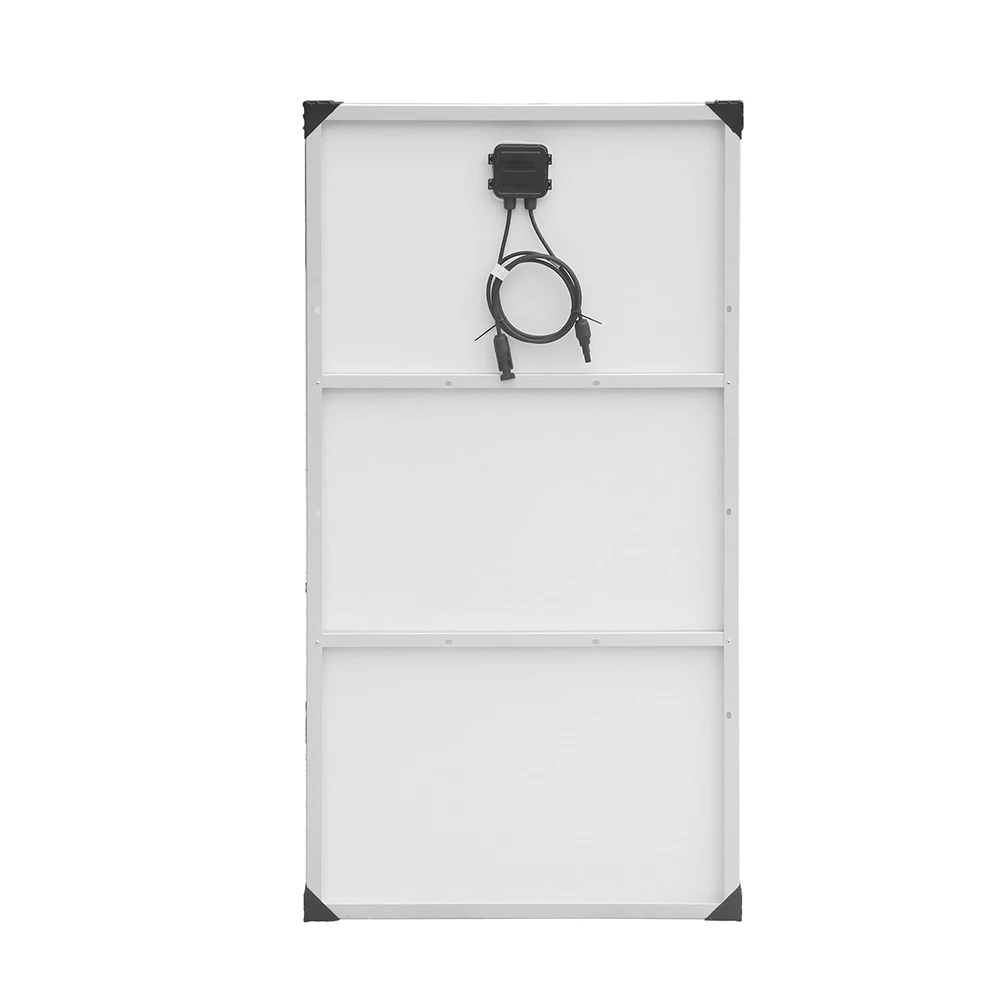

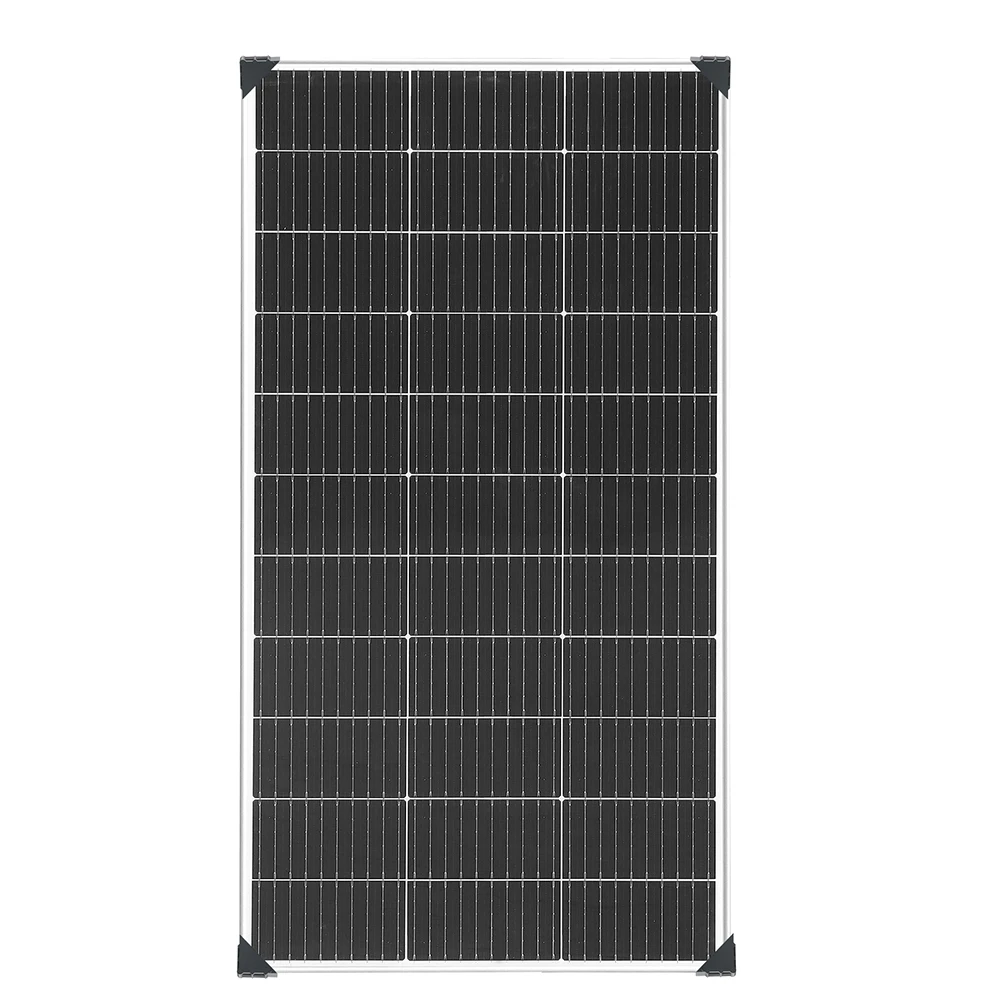

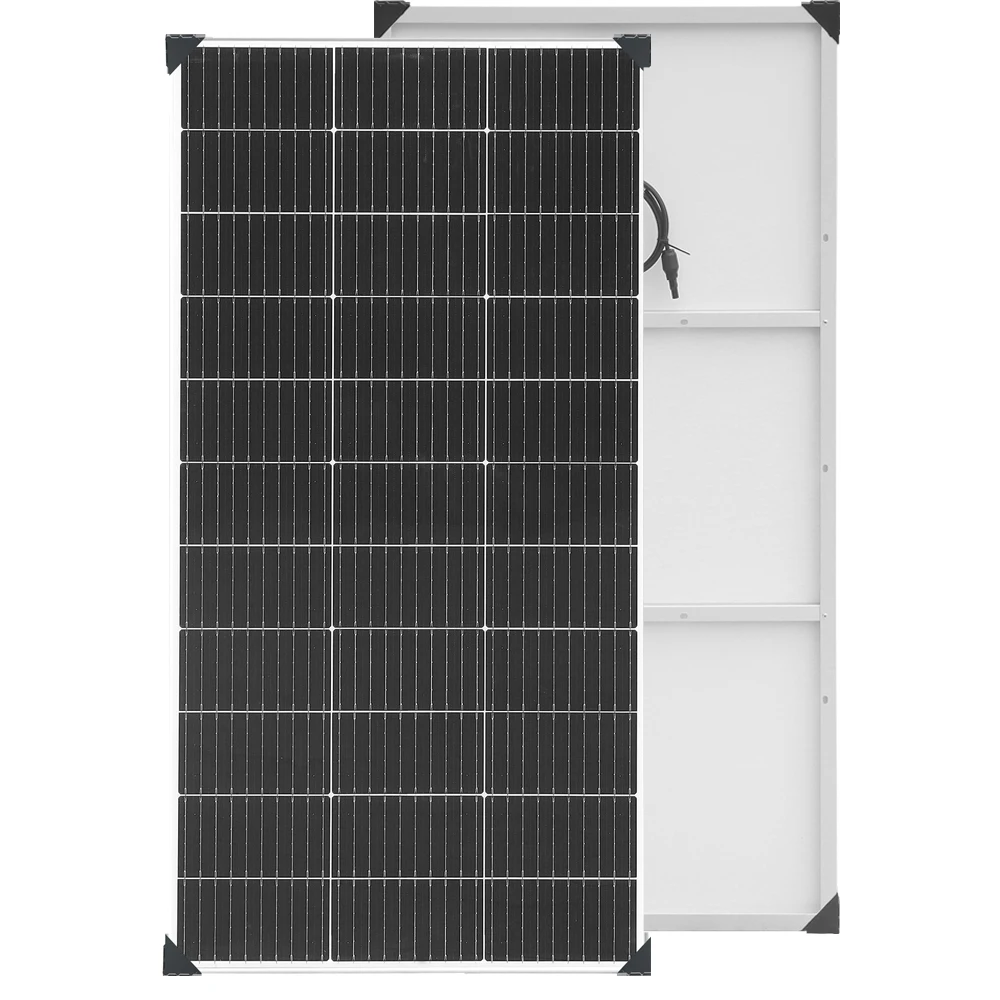

The corners of this solar panel are equipped with black corner guards, which are used to protect the solar panels.

Delivery is not supported in the following areas:

*Spanish island region. The zip code starts with “35” and “38”.

remote areas in France, and areas subject to transportation restrictions.

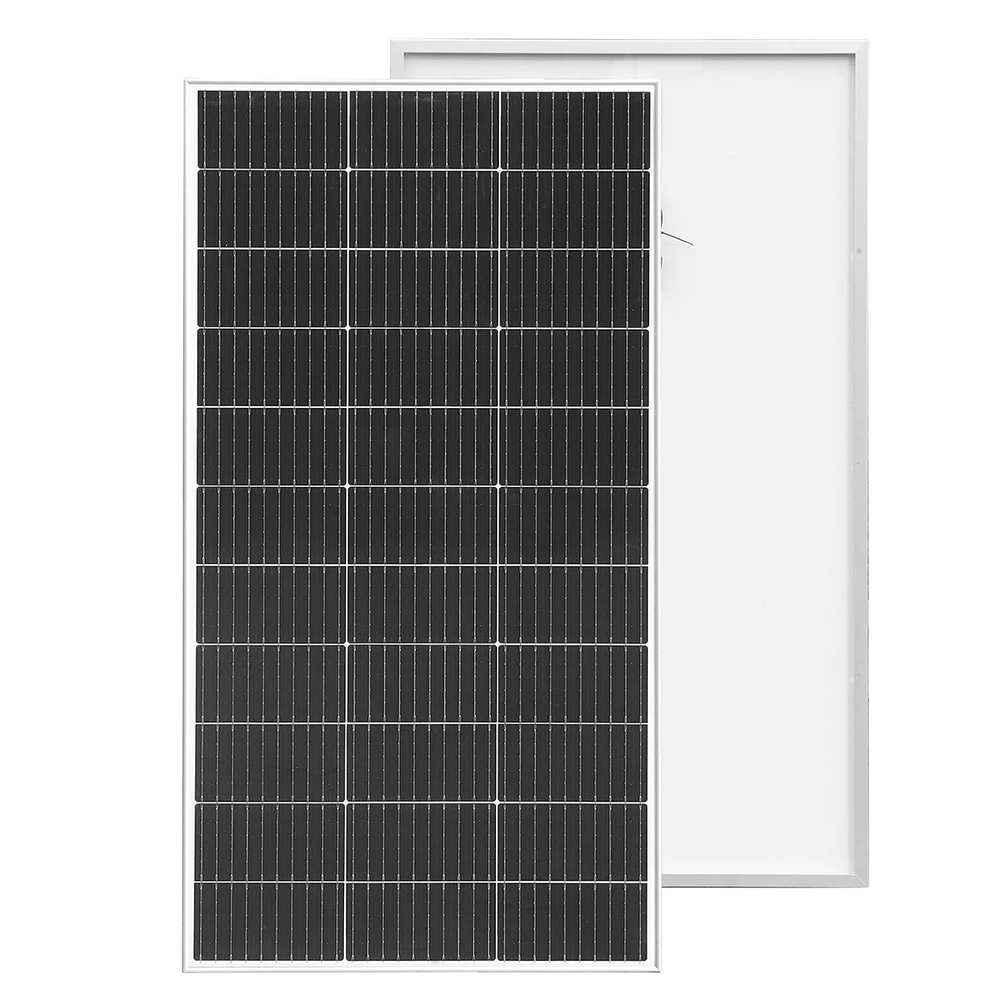

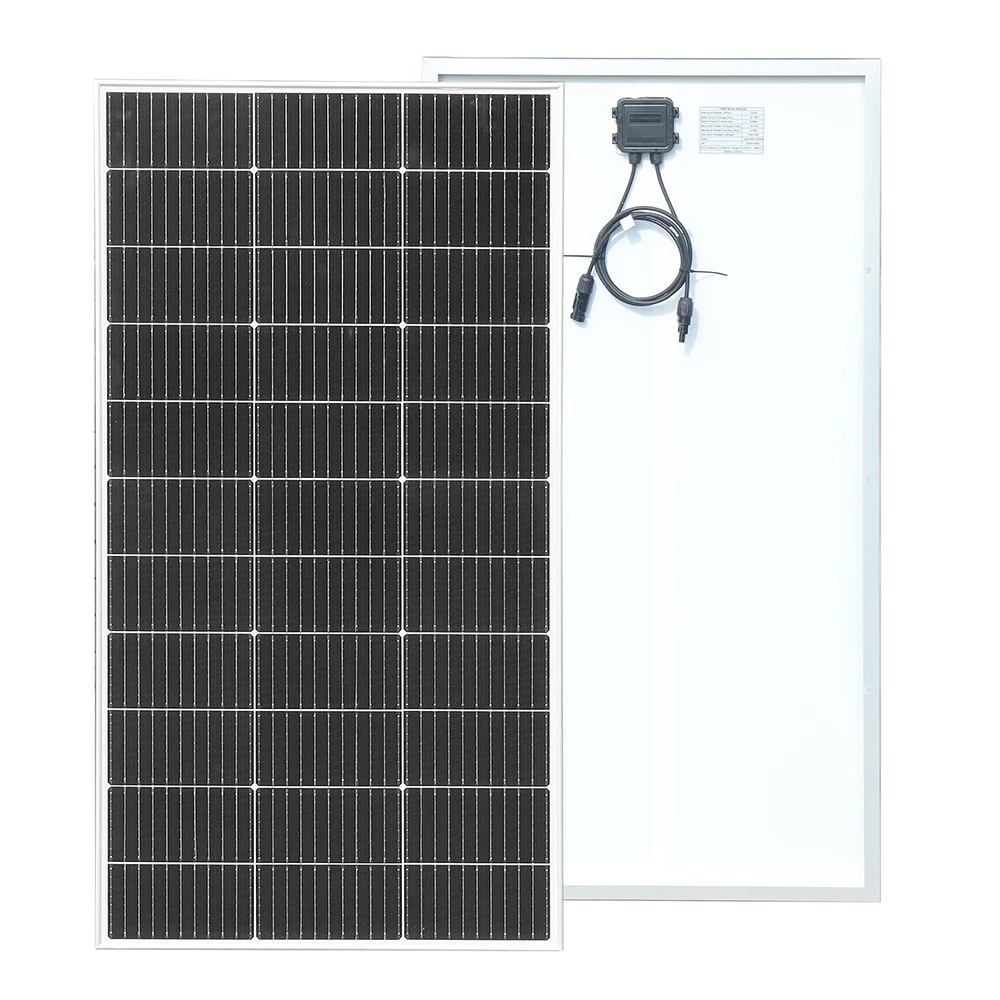

Glass Solar Panel

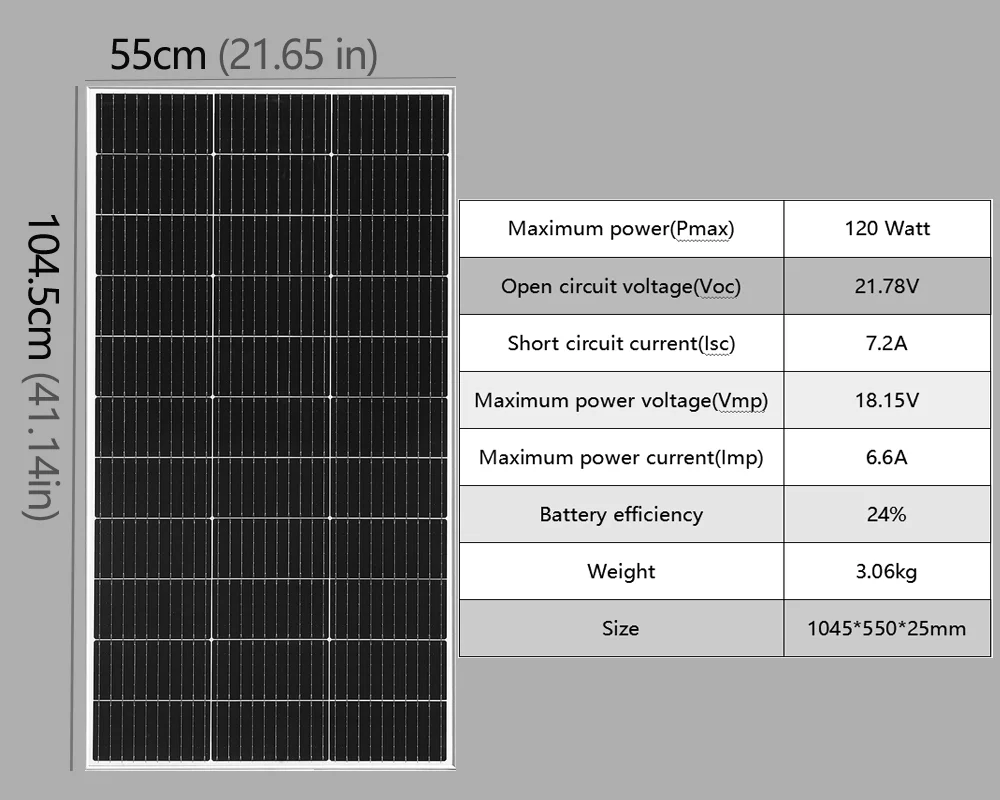

Model:120W-GB1045

Material:Monocrystalline Silicon

Maximum Power(Pmax): 120W

Maximum Power Voltage(Vmp):18.15V

Maximum Power Current (Imp):6.6A

Open-Circuit Voltage (Voc): 21.78V

Short-Circuit Current (Isc):7.2A

Maximum System Voltage: DC1000V

Maximum Series Fuse:15A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Net Weight:6.62kg

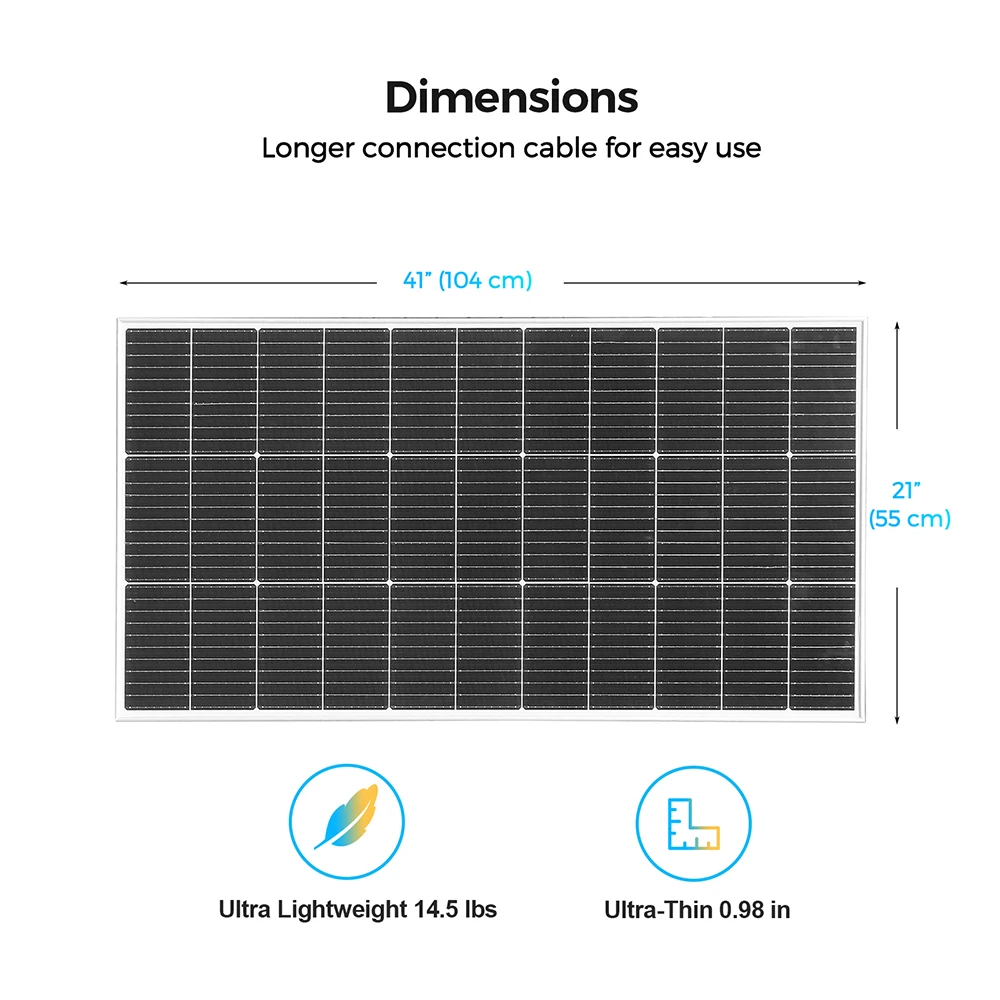

Dimension:1045*550*25mm

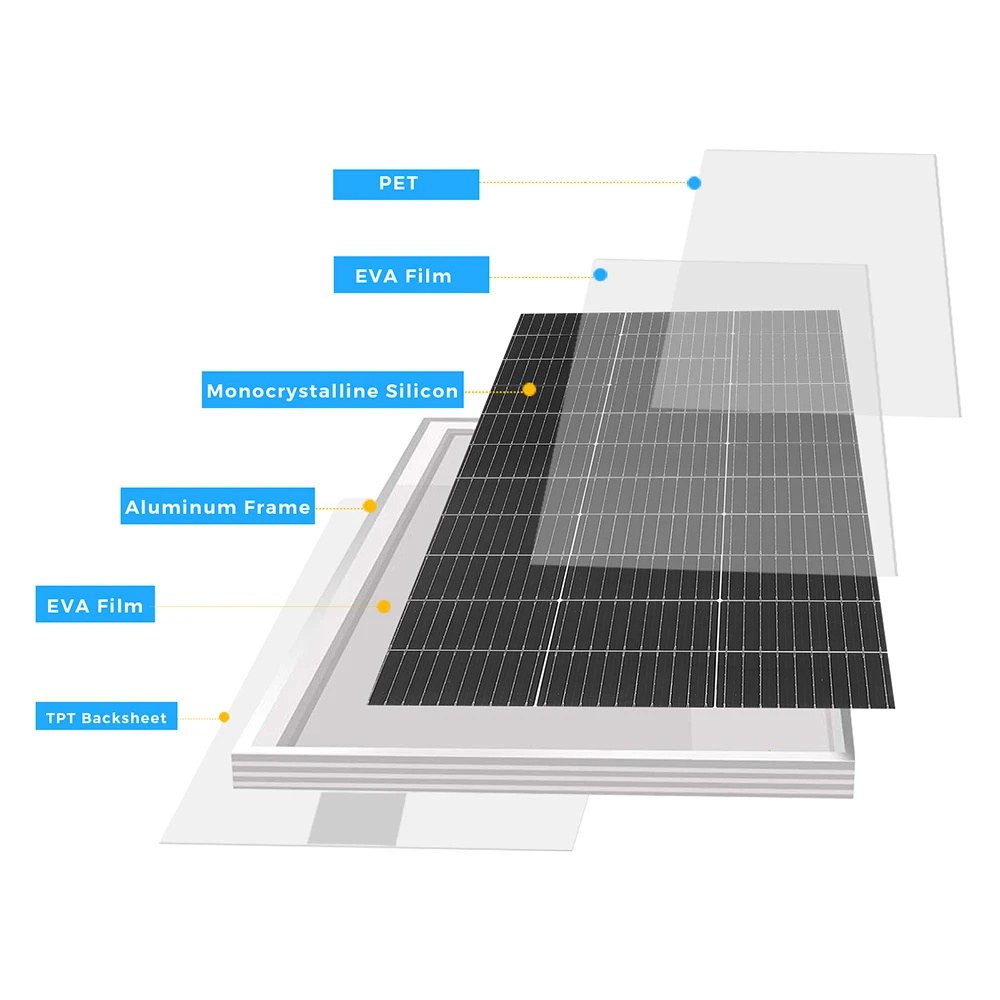

Material structure：

1 floor: Glass

2 floor: EVA Film

3 floor: High Efficiency Solar Cell

4 floor: EVA Film

5 floor: EVA Film

6 floor: TPT Backsheet

aluminium frame

waterproof level：IP67（Junction Box）

(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.14AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃

(The size is manually measured and there is a certain error. Customers who want accurate size please don’t buy，thank you）

PET Solar Panel

Glass Solar Panel

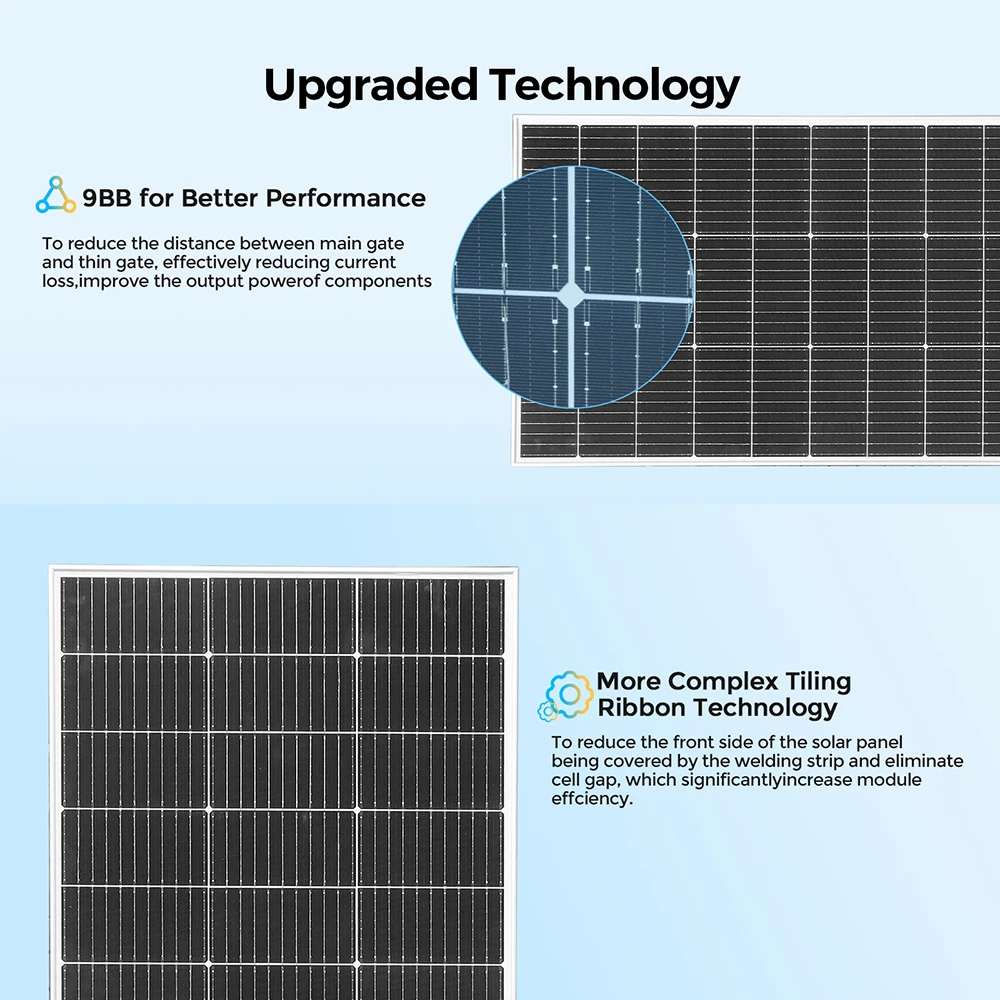

[High Efficiency N-Type Solar Cell] 120w solar panel features advanced N-type technology and 10 busbars (BB) design. This solar panels can maximize energy conversion rate, which is as high as 24%.

The difference between the two solar panels :
Glass solar panels last longer than PET solar panels.
PET solar panels are lighter in weight than glass solar panels.

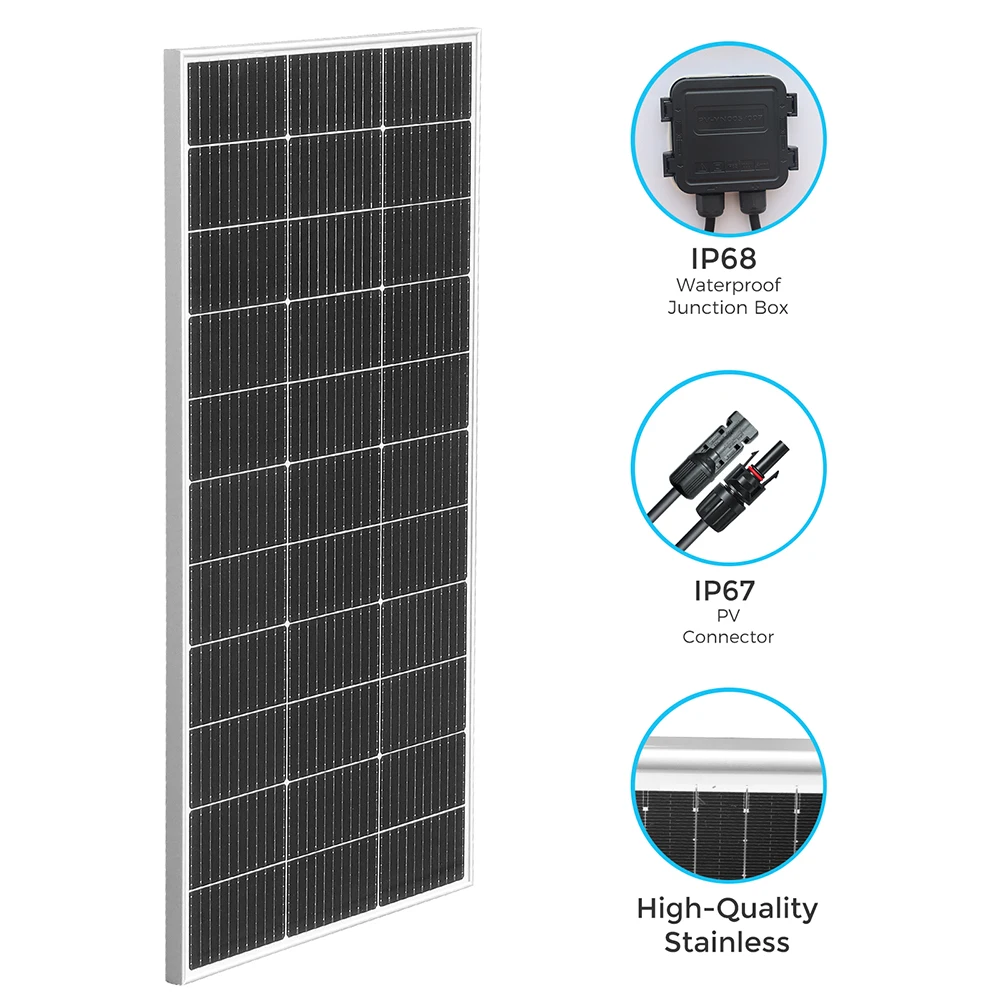

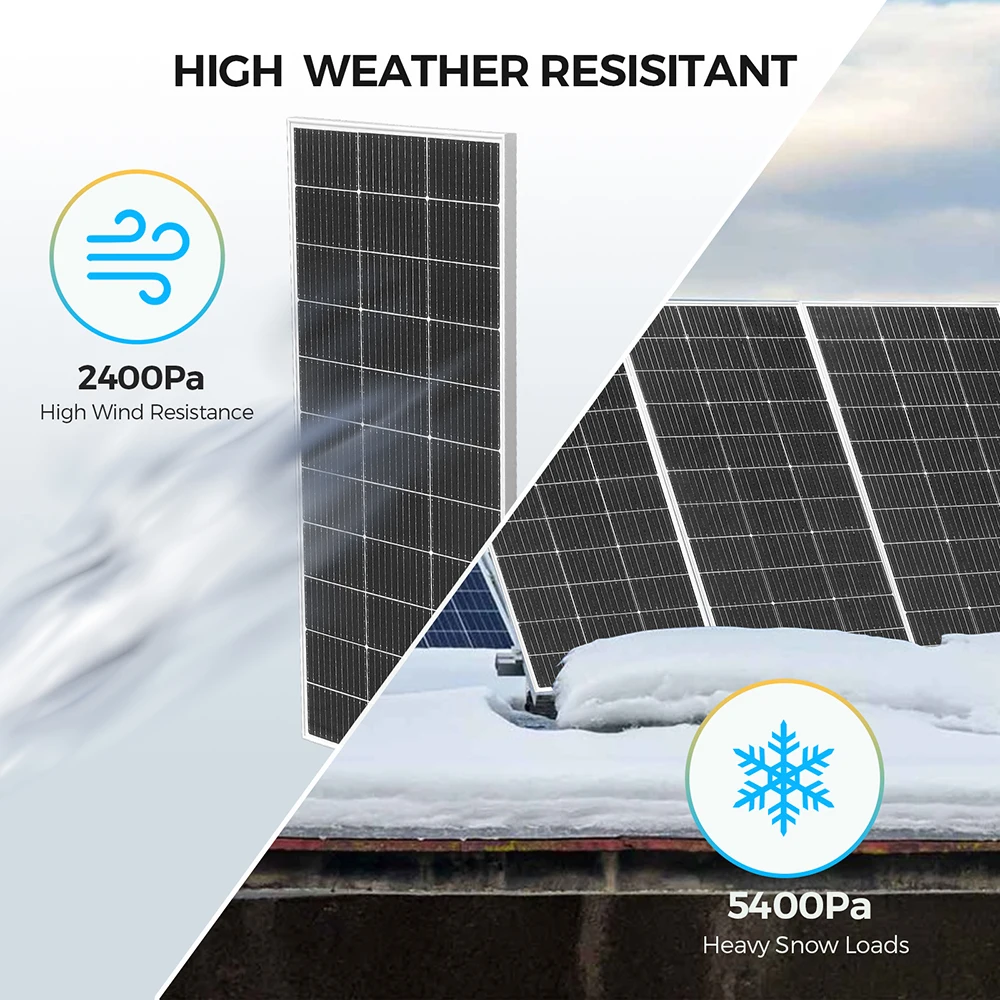

[Durable Solar Panel] Our 18.15V 120 watt solar panels feature a corrosion-resistant aluminum frame. It can also withstand strong winds of 2400Pa and Snowload of 5400Pa. Both the IP65 junction box and IP67 M C 4 connectors have excellent waterproof functions. Allows you to use it outdoors with confidence.

[Easy to Installation] Each 18.15Volt solar panel has specially designed pre-drilled holes for easy installation. It can fully meet the installation needs of various applications. It is compatible with XINPUGUANG’s ABS corner mounts, Z mounts, and adjustable tilt mounts.

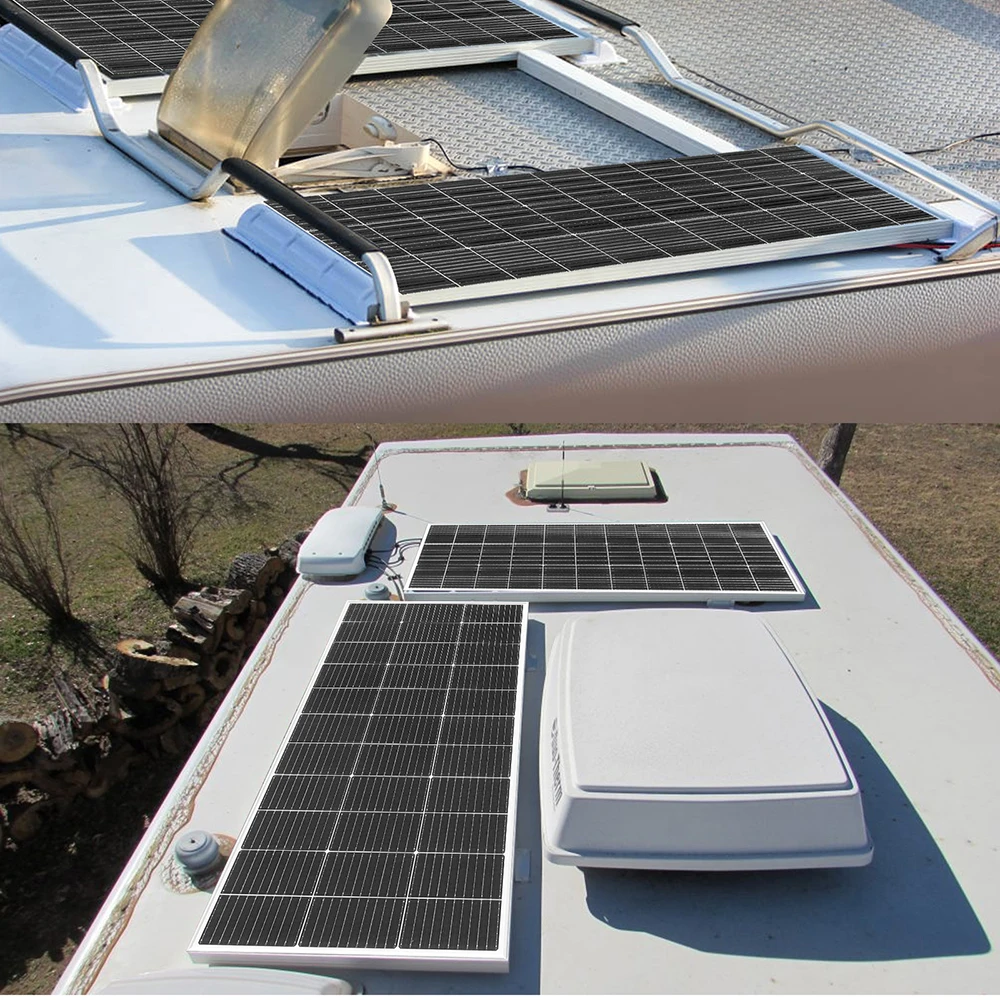

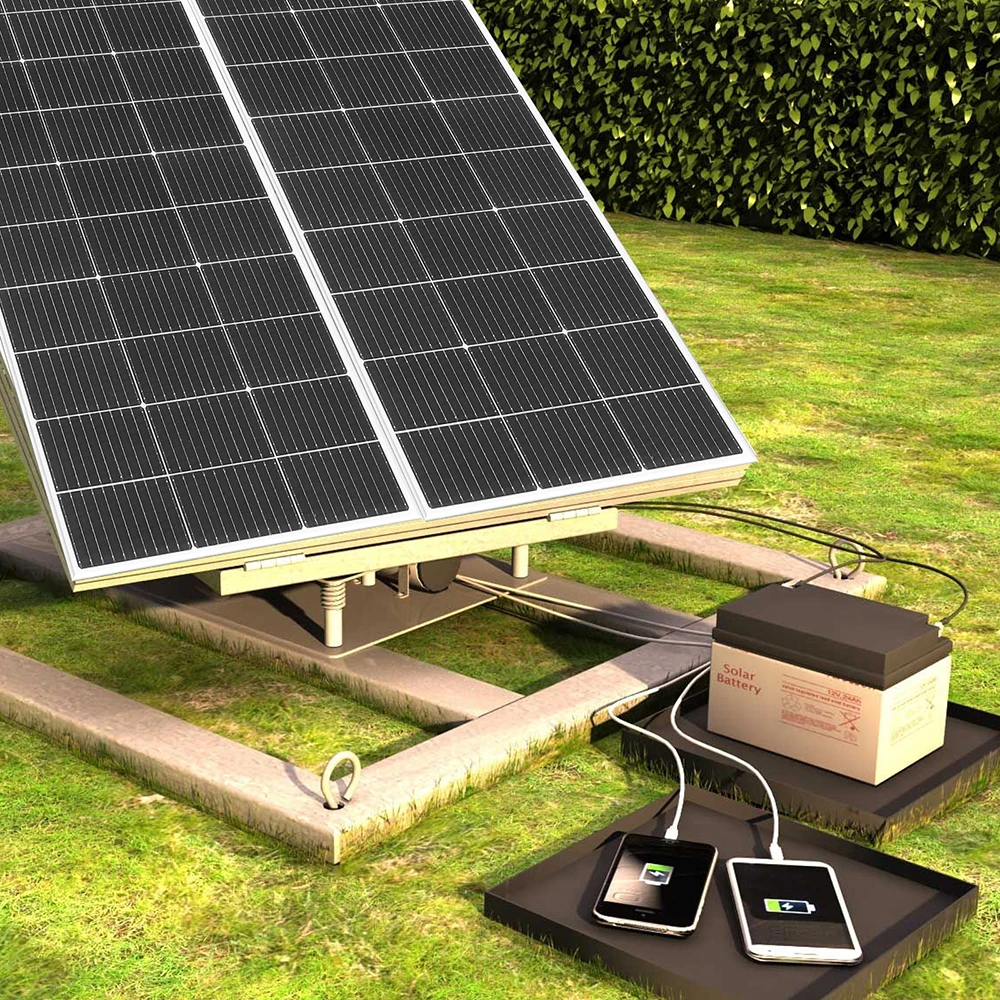

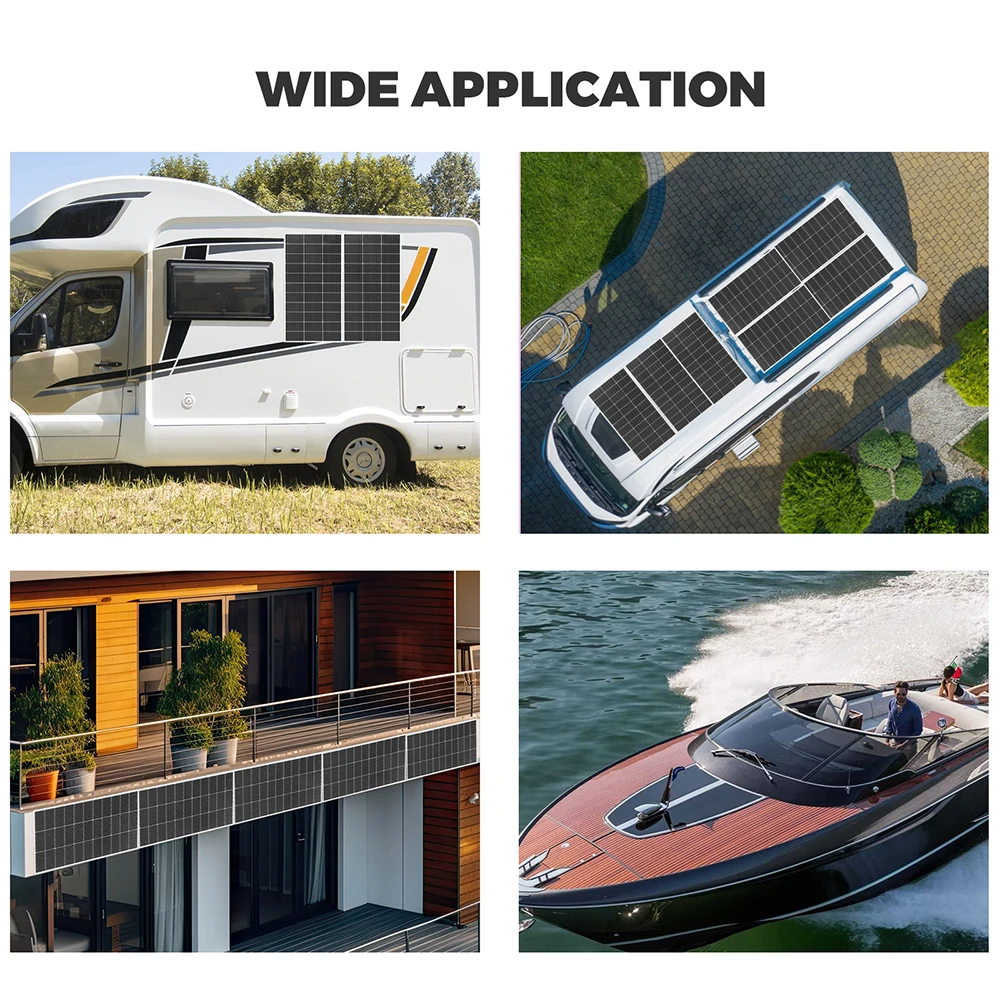

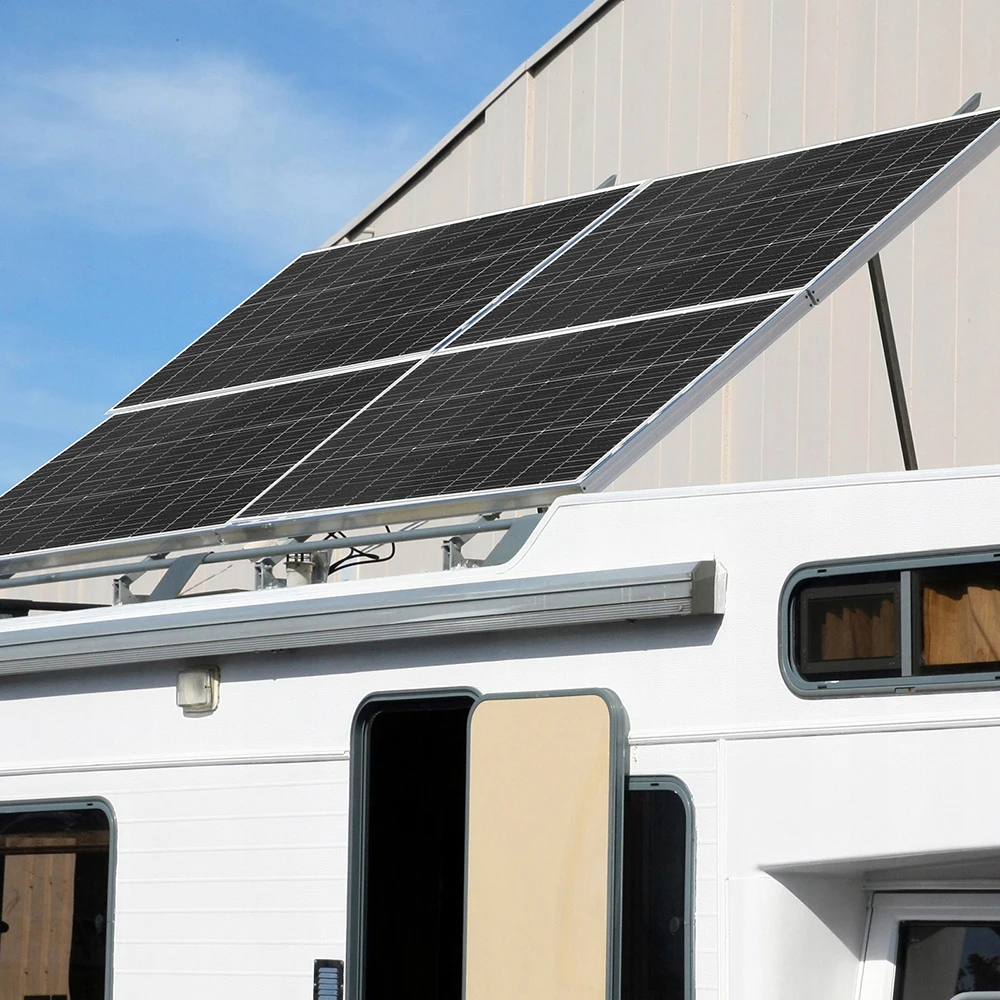

[Versatile Applications] Perfect for a variety of uses, including residential, commercial, and mobile setups, this solar panel can power everything from small devices to larger systems, enhancing your energy independence.
