Description
|
Electrical Characteristics |
Thermal Characteristics |
||
|
Max Power Pmax |
100W |
Temperature coefficient of Pmax |
-0.38%/℃ |
|
Max Power voltage Vmp |
18.18V |
Temperature coefficient of Voc |
-60.5mV/℃ |
|
Max Power Current Imp |
5.5A |
Temperature coefficient of Isc |
2.2mA/℃ |
|
Open Circuit Voltage Voc |
21.8V |
NOTC |
47℃+/-2℃ |
|
Short Circuit Current Isc |
5.83A |
Operating Temperature |
-20℃ – +65℃ |
|
Maximum System Voltage |
700V |
Mechanical Characteristics |
|
|
Number of cells in Series |
33 |
Dimension |
970X530X2.5mm |
|
Cell size |
166X166mm |
Weight |
1.7kg |
|
Max Power tolerance |
±3% |
Cable |
0.9 meter 2X2.5mm |
Advantages

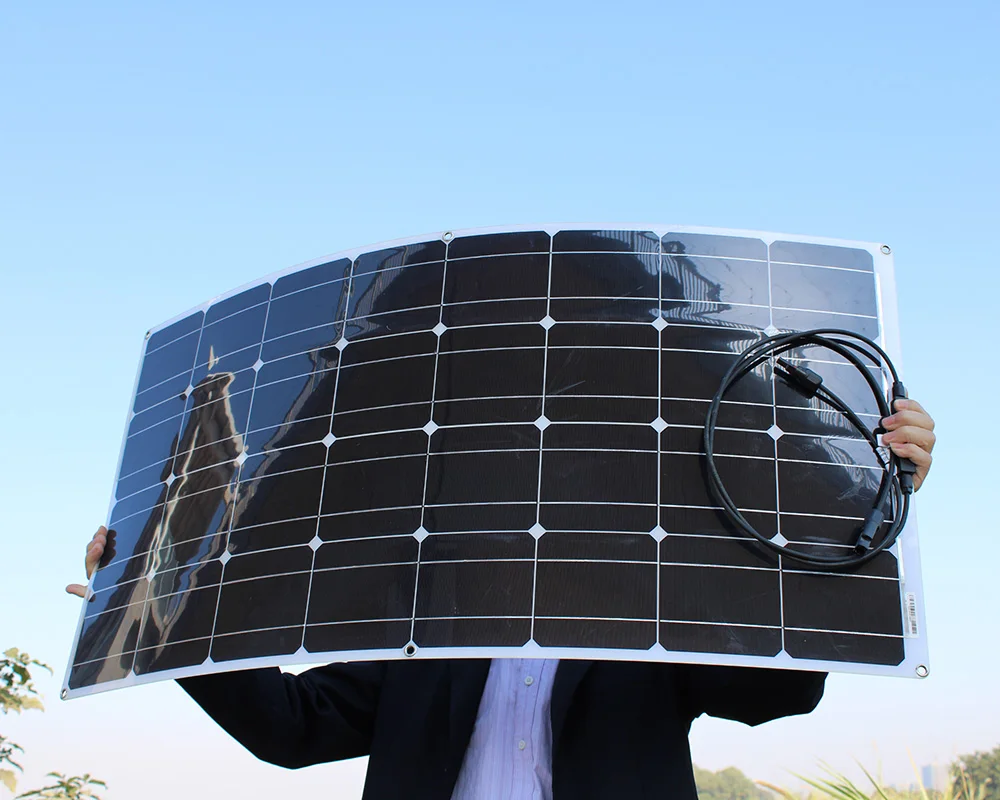

Super Lightweight: With polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze.

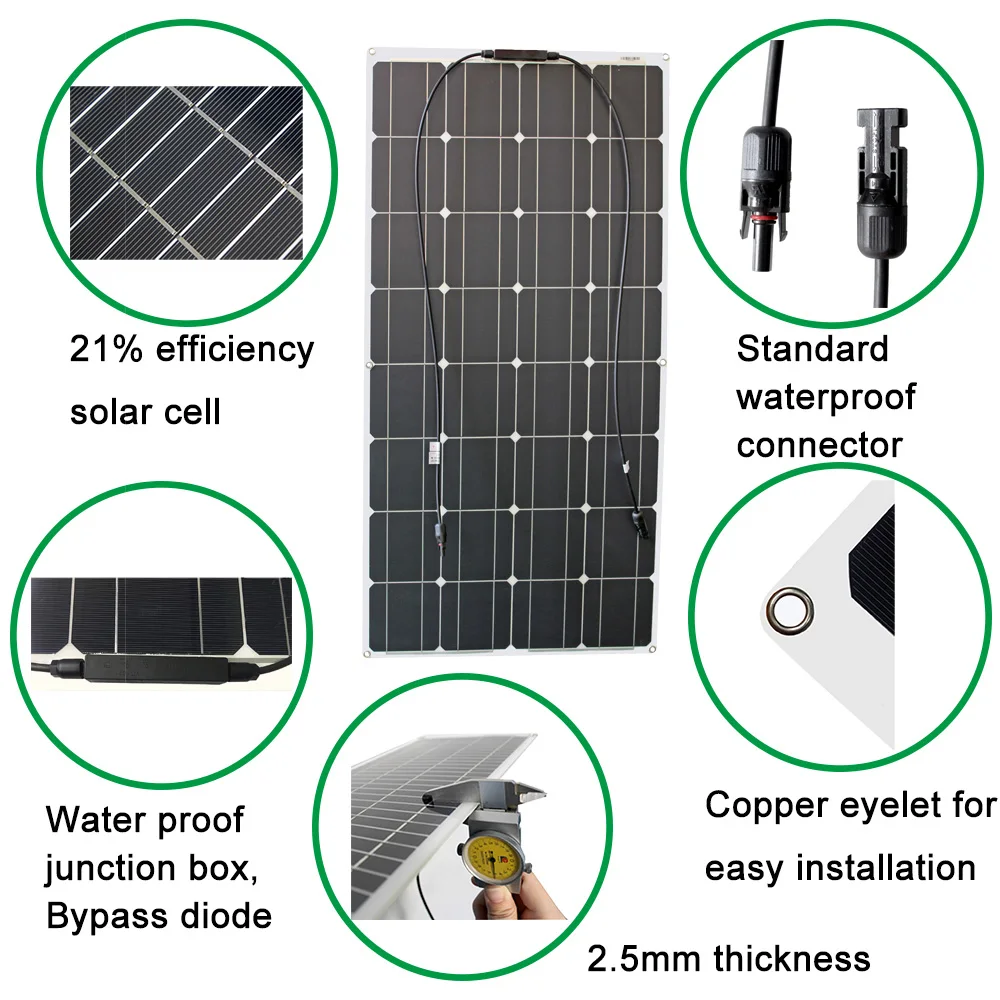

High Efficient: High efficiency solar cell: Monocrystalline 21%.

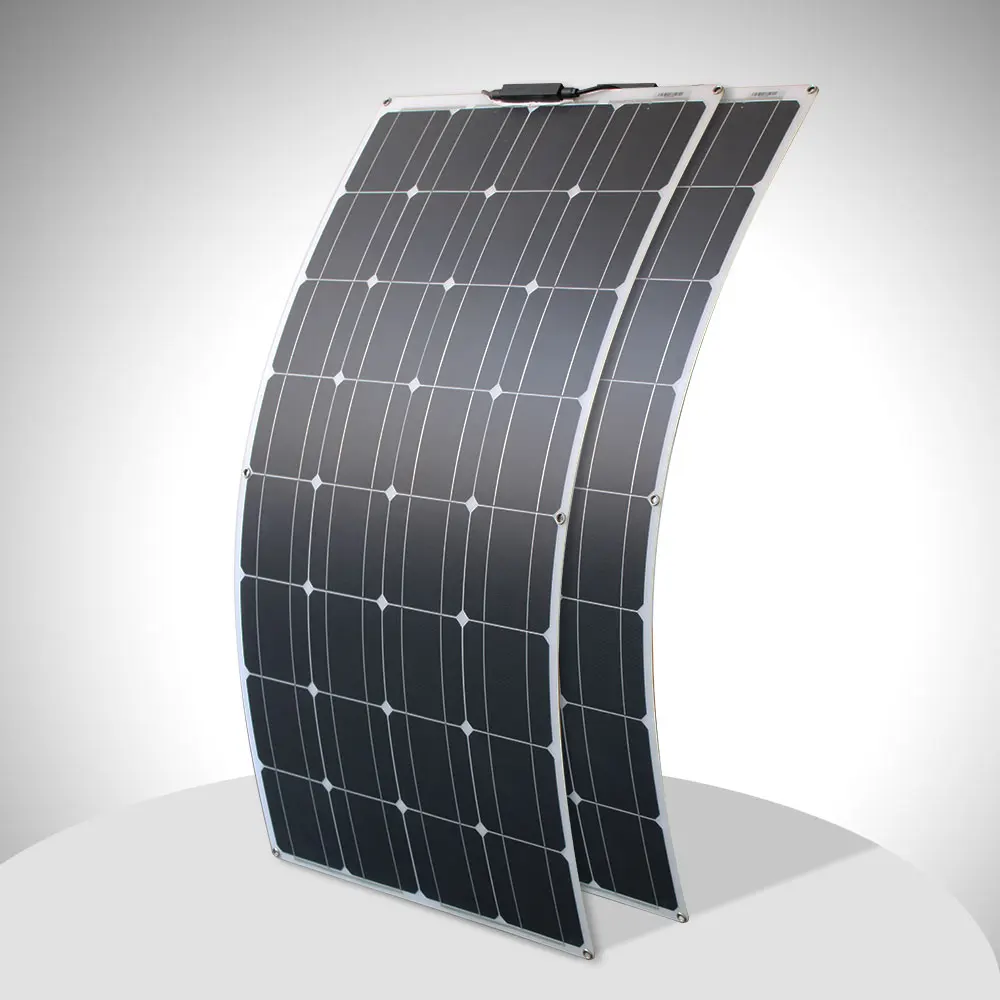

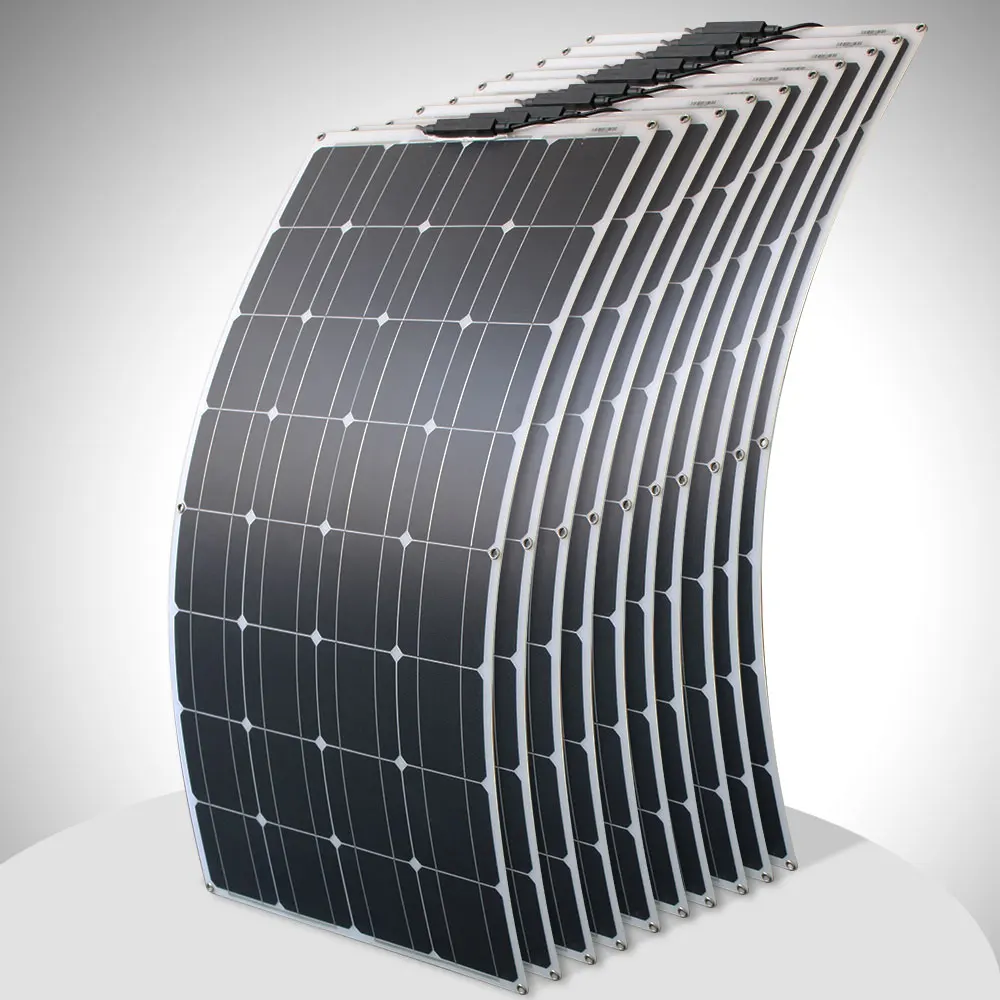

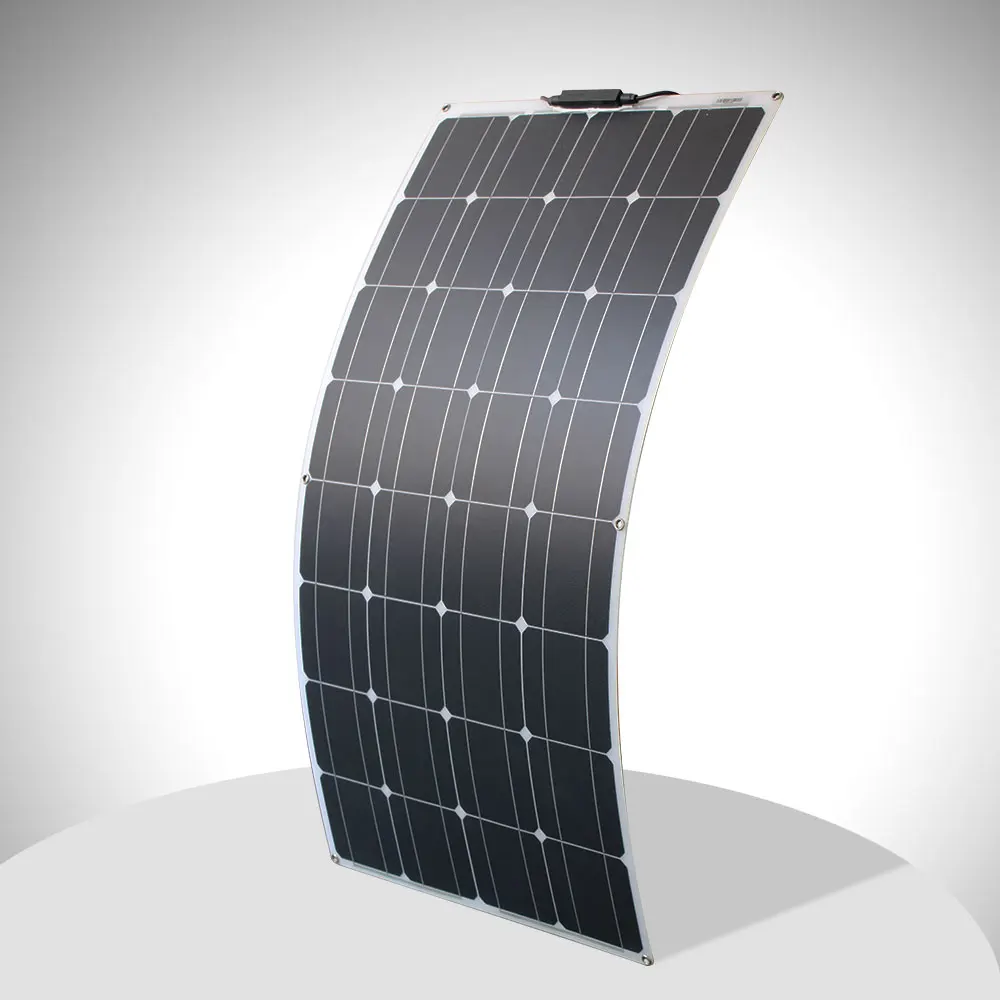

Extremely Flexible: This panel is capable of
meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream.
Super Thin: Hardly noticeable, the 100W Lightweight Panel laid flat is only a tenth of an inch tall! Approximately 95% thinner than its rigid counterpart, this panel is ideal for a stealthy solar setup.
Protection: Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments.
Highly Durable: Rigorously tested, the 100W panel was designed to withstand extreme wind and snow loads and marine environment.
Easy to install: Metal holes in the corners of the product for fixing screws and mounting.
About the parcel send from China
Sometimes the customs will charge the clearance fees. If you reject the item because of customs clearance, you will have to pay for the shipping cost of the returned item.
When the goods arrive at the destination country, please contact the local logistics service provider for customs clearance and delivery.
