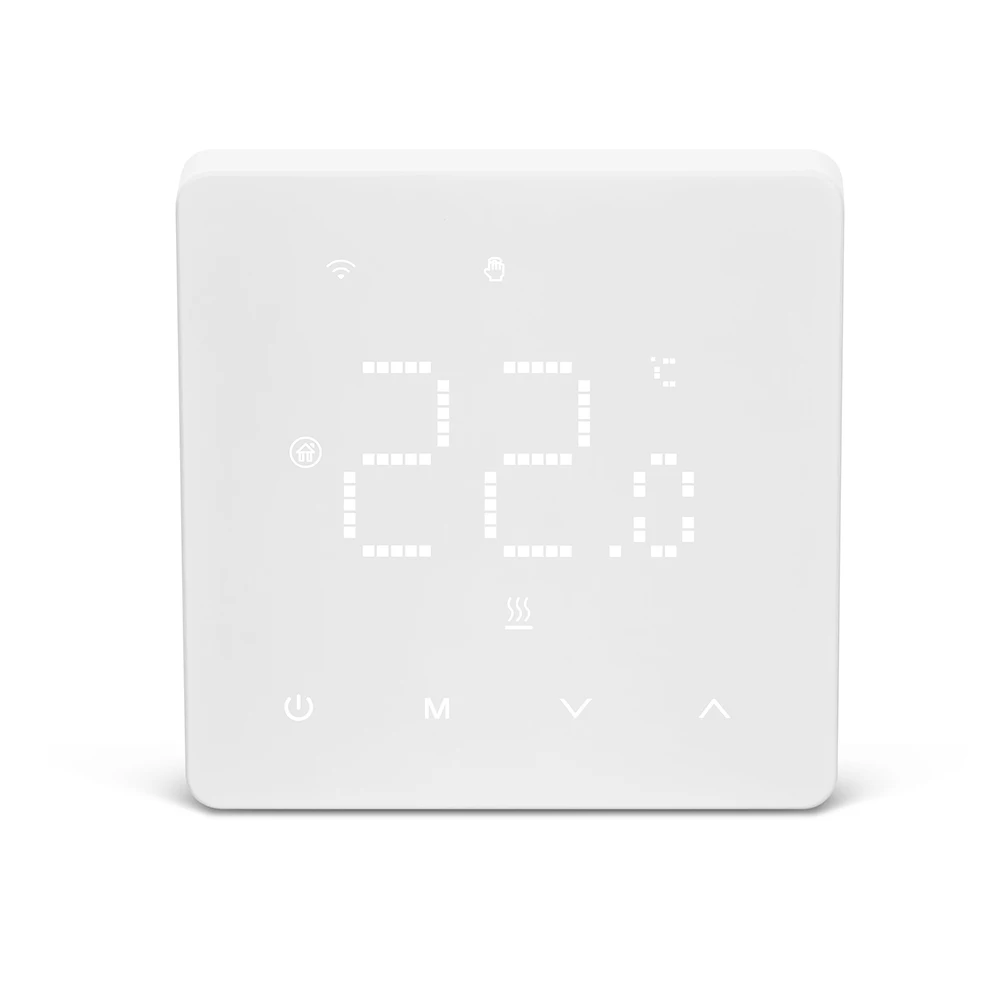

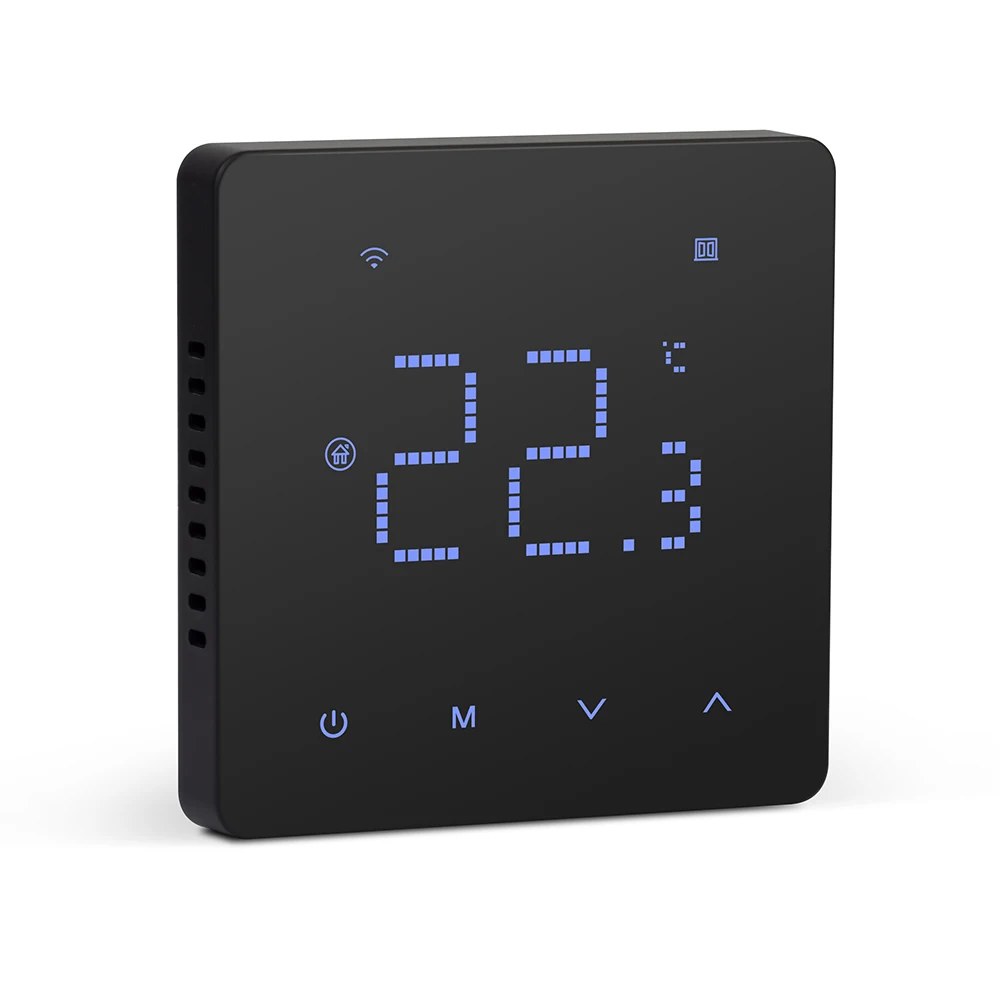

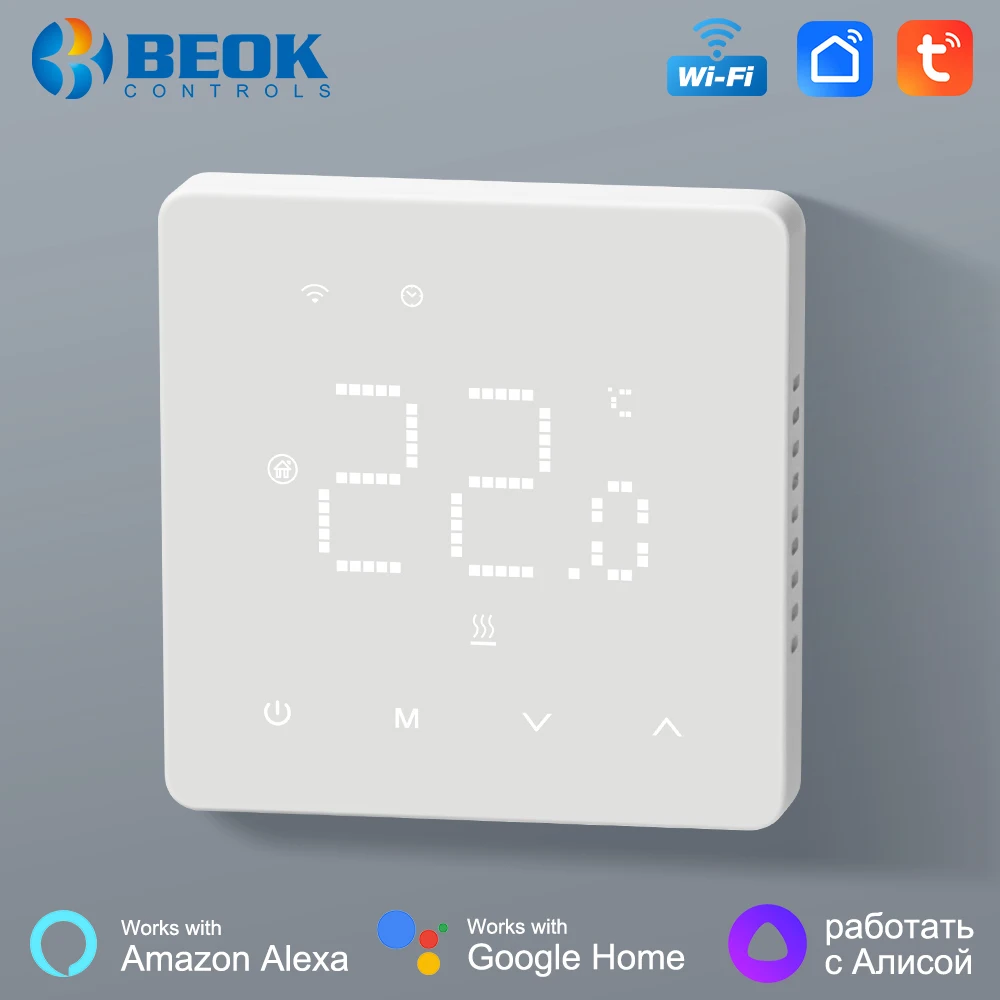

Beok Tuya Wifi Room Thermostat Underfloor Heating System Thermoregulator for Gas Boiler Electric Heating with Alexa Google Home

Function:

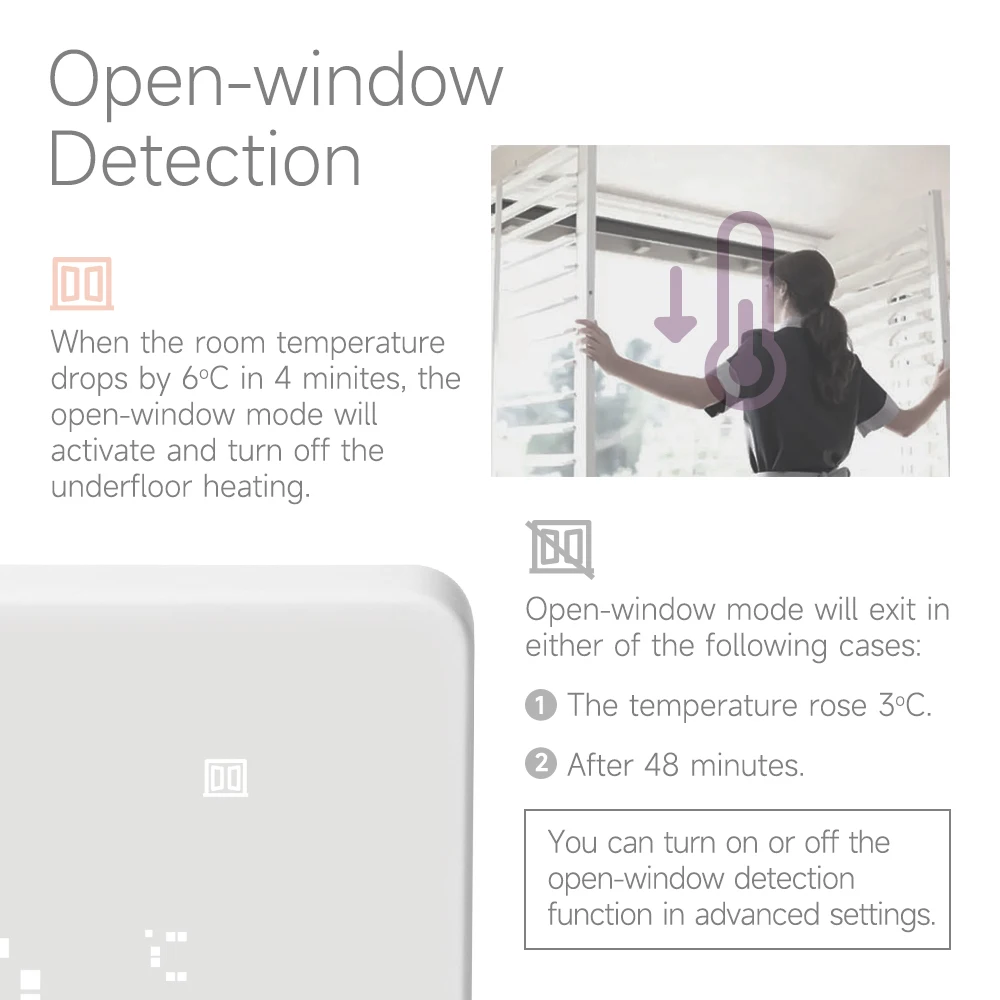

【Window opening function】When the temperature controller detects a short-term decrease in indoor temperature, it will automatically stop heating, saving heating costs for your home.

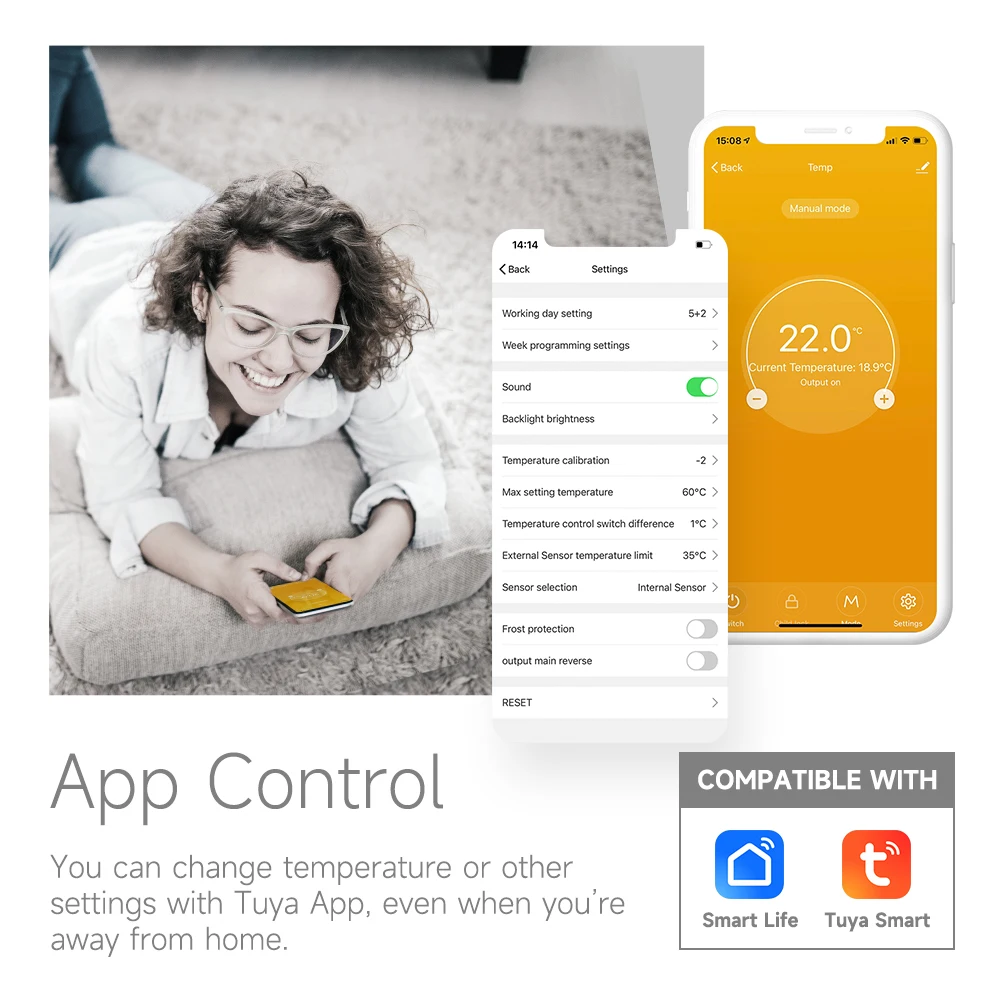

【Wifi Function】Tuya &Smart Life App.
【Voice Control】Google Home & Alexa & Alice.
【Programmable】Program different temperatures according to your lifestyle habits.
【Power off memory】After a power outage, the original settings will be automatically retained, and there is no need to reset them after an incoming call.

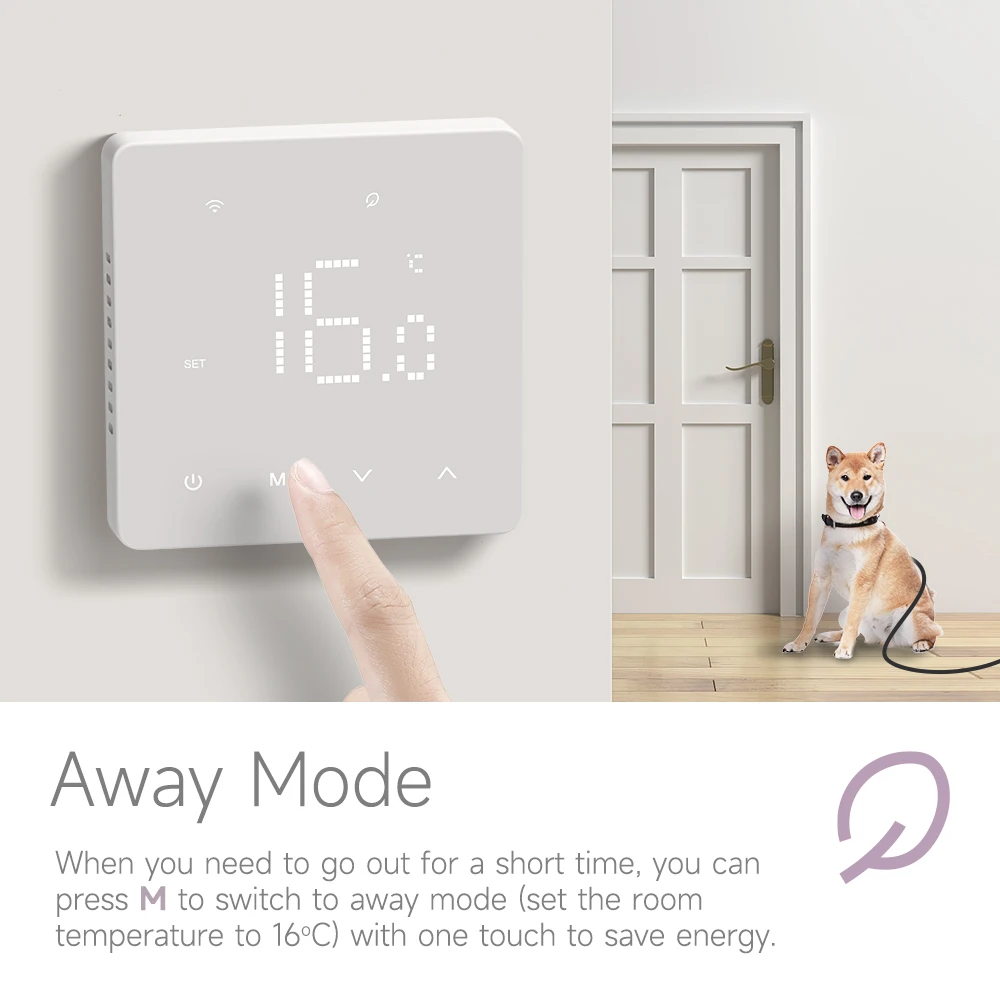

【Multiple modes】 programming mode, manual mode, and one click energy-saving mode can be selected.

Functions:

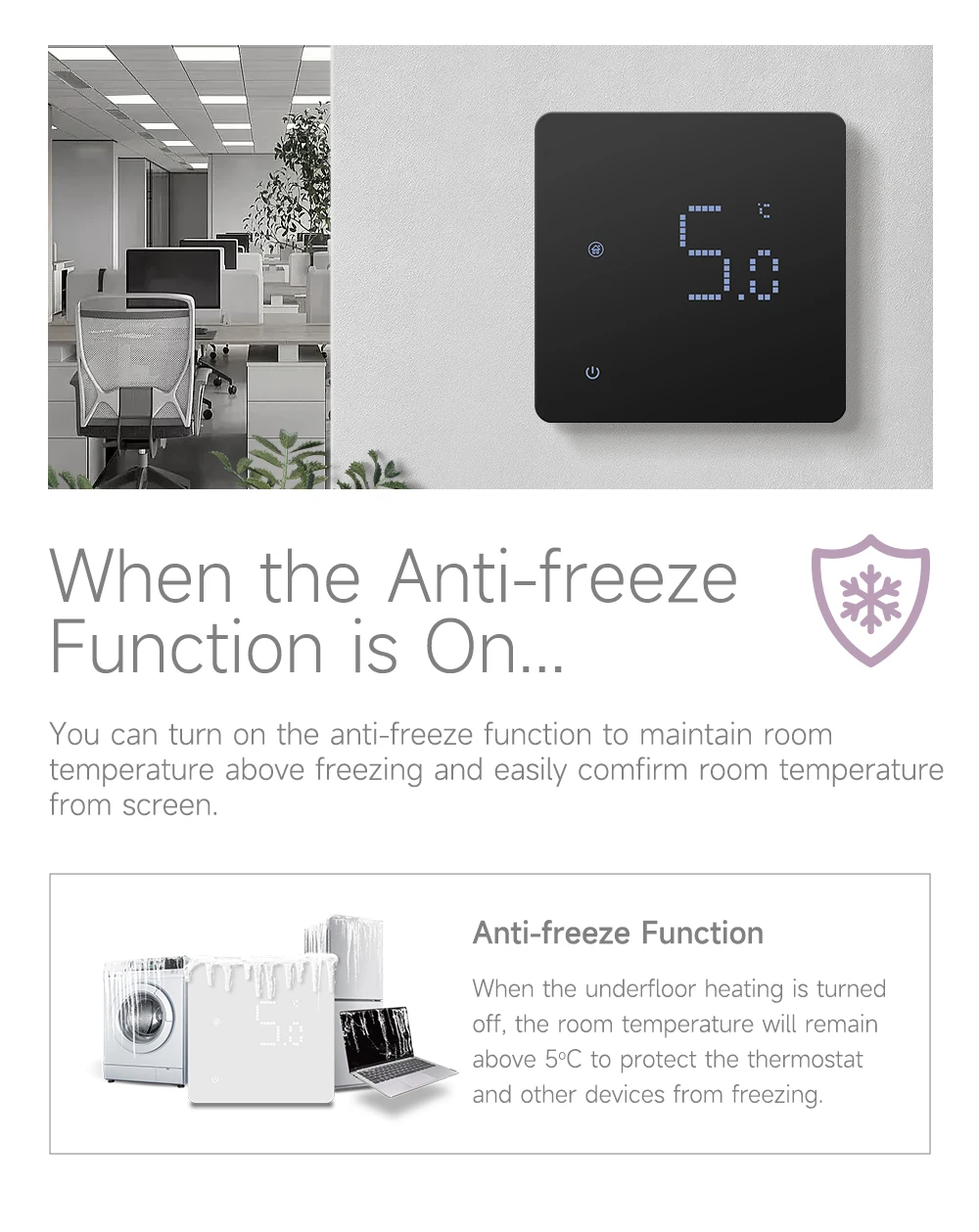

When the antifreeze function is turned on, the device also display the room temperature after shutdown, allowing you to know the indoor temperature and avoid indoor electrical damage caused by freezing. (Optional not to display temperature)

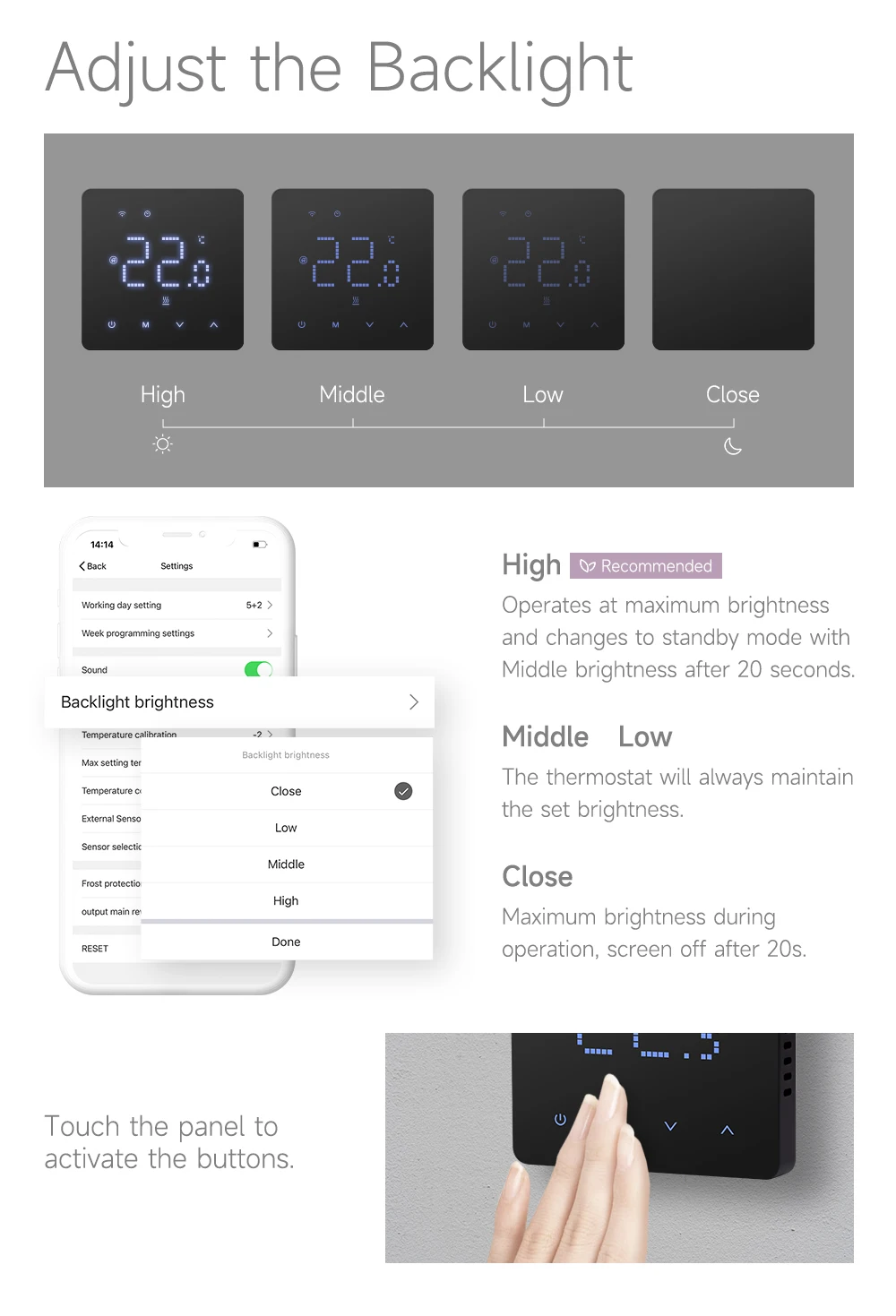

There are 4 modes to choose from for the brightness of the temperature controller, or all brightness can be turned off.

Specifications:

Current：16A(EP);3A(WP&WPB)
Voltage: AC 100-240V
Temperature accuracy: ± 0.5 ℃
Tem. Setting Range: 5-95℃

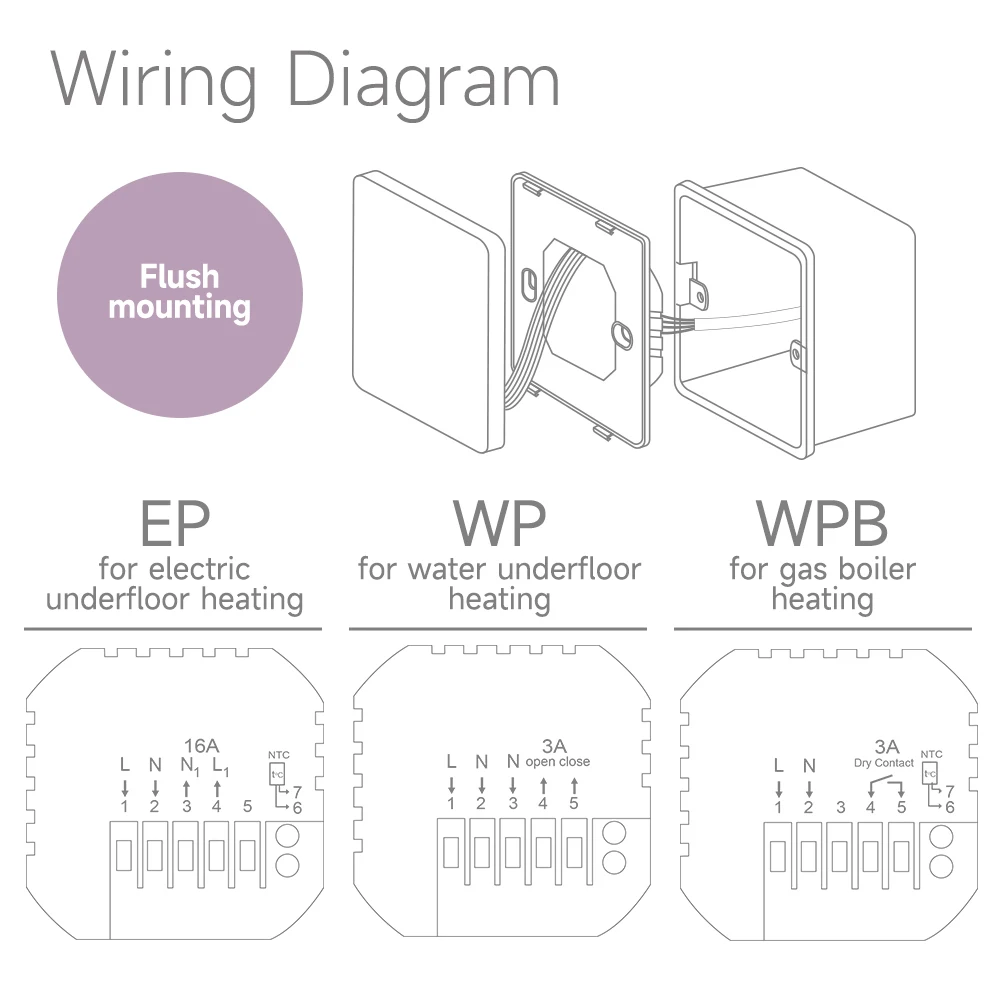

Wiring diagram:

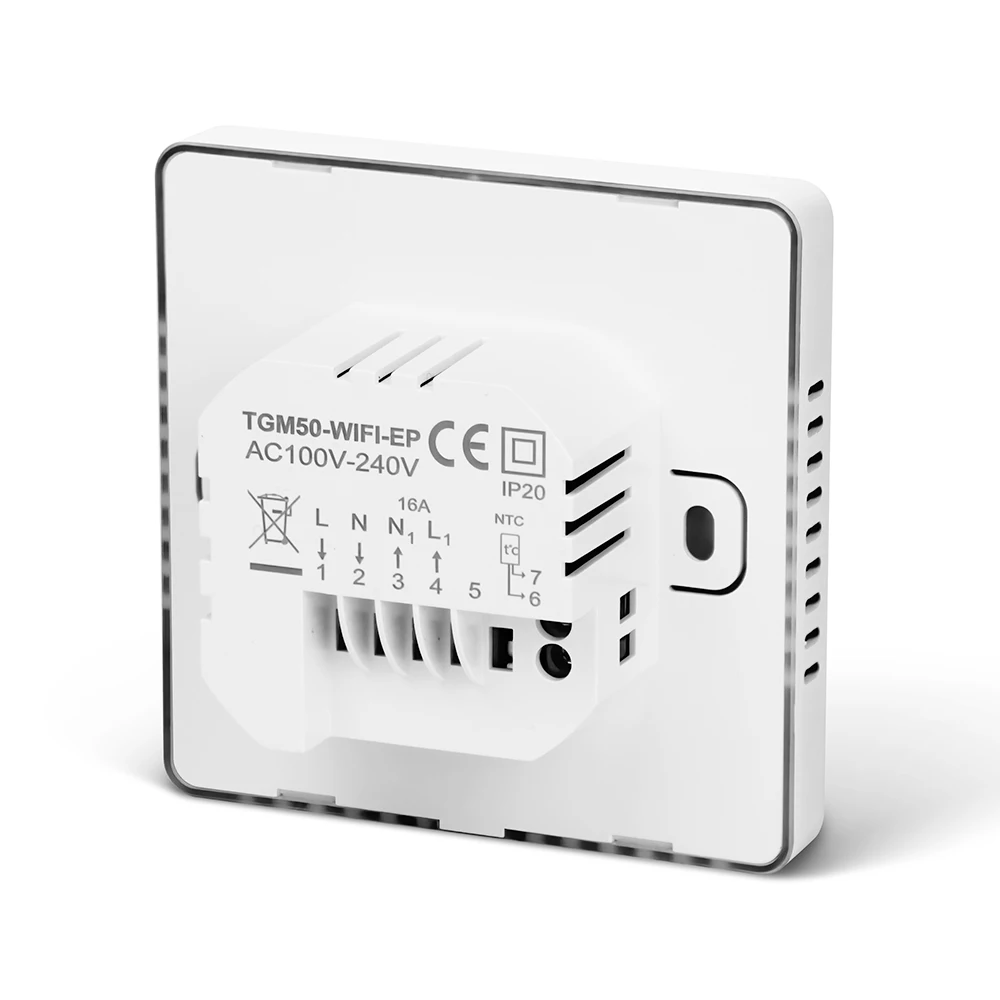

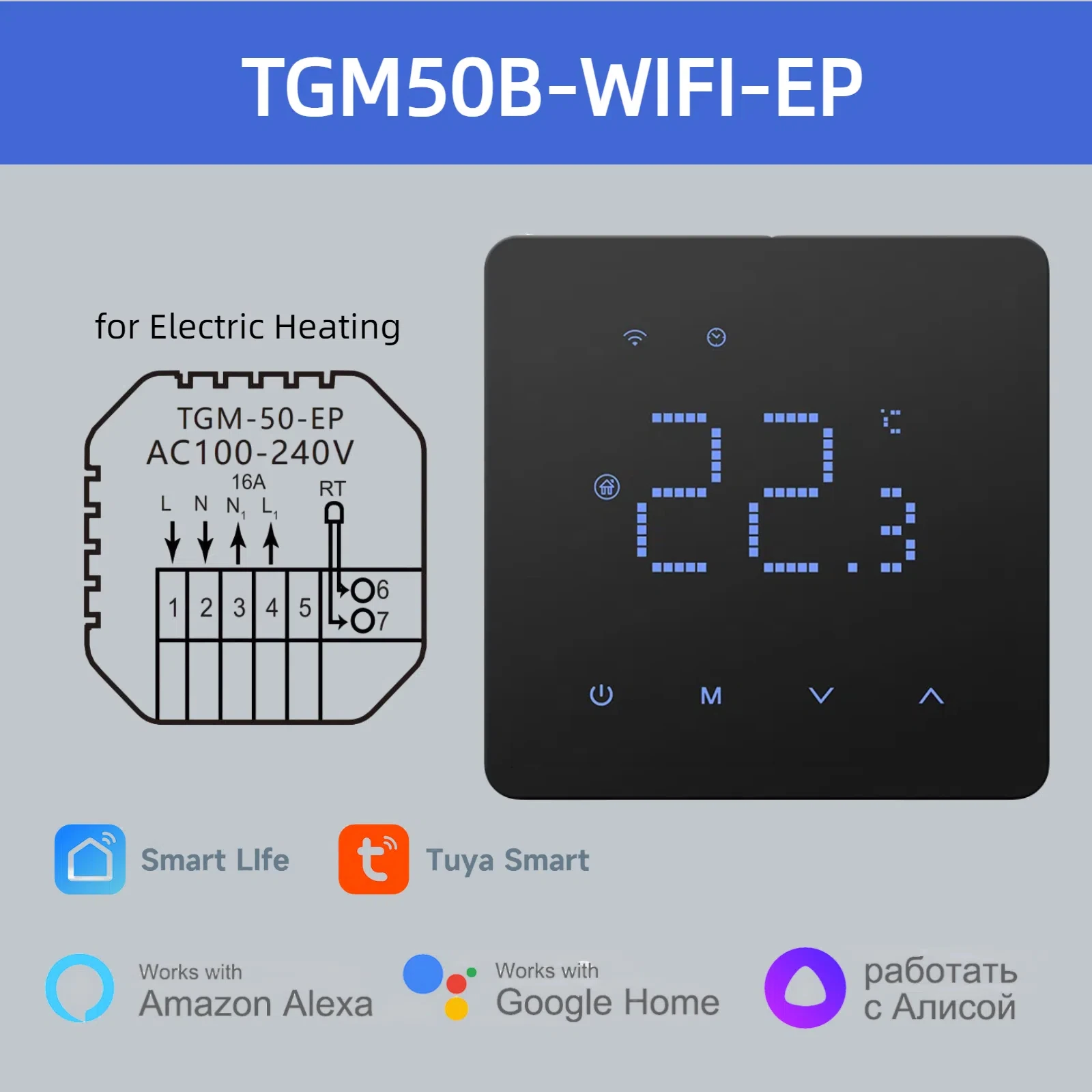

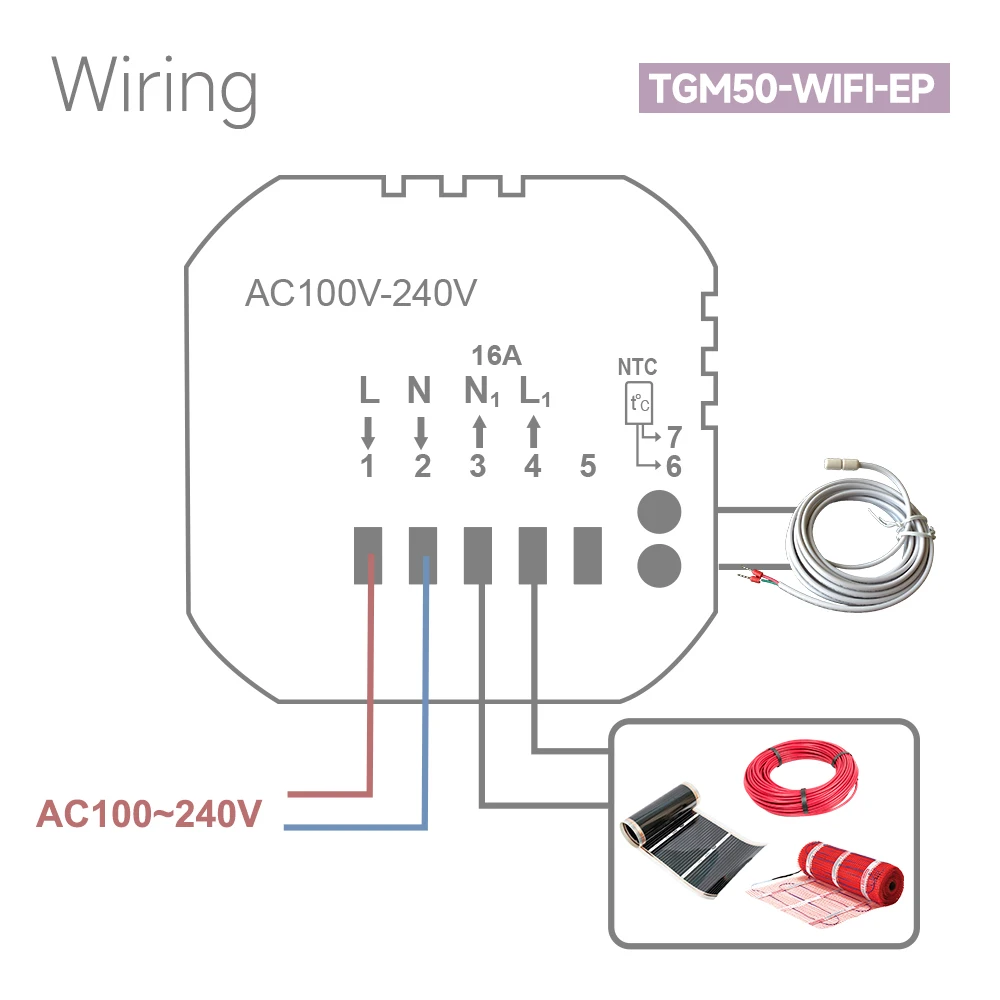

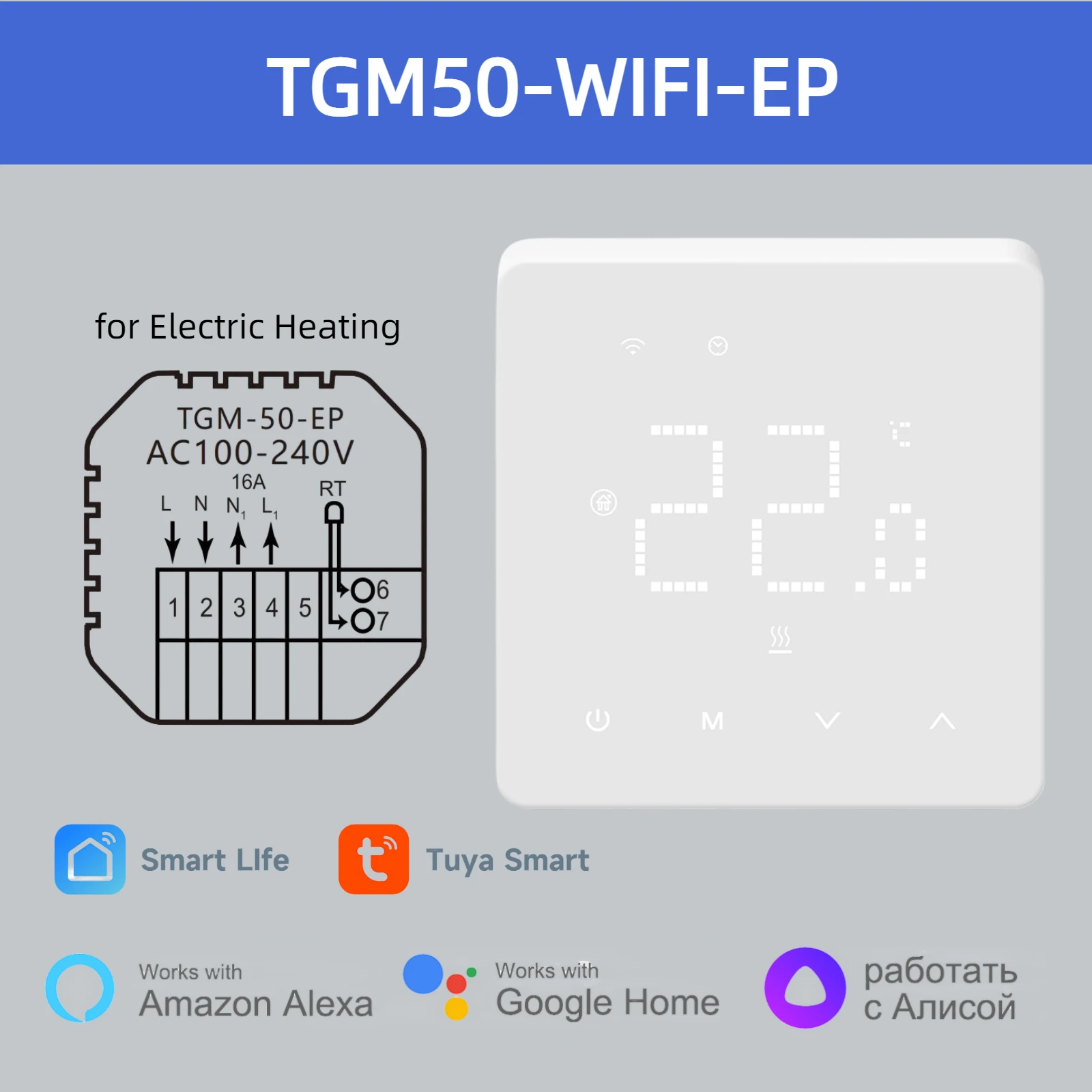

TGM50-WIFI-EP:control Heating Cable/Heating Mat/Heating Film etc. electric floor/underfloor heating system.

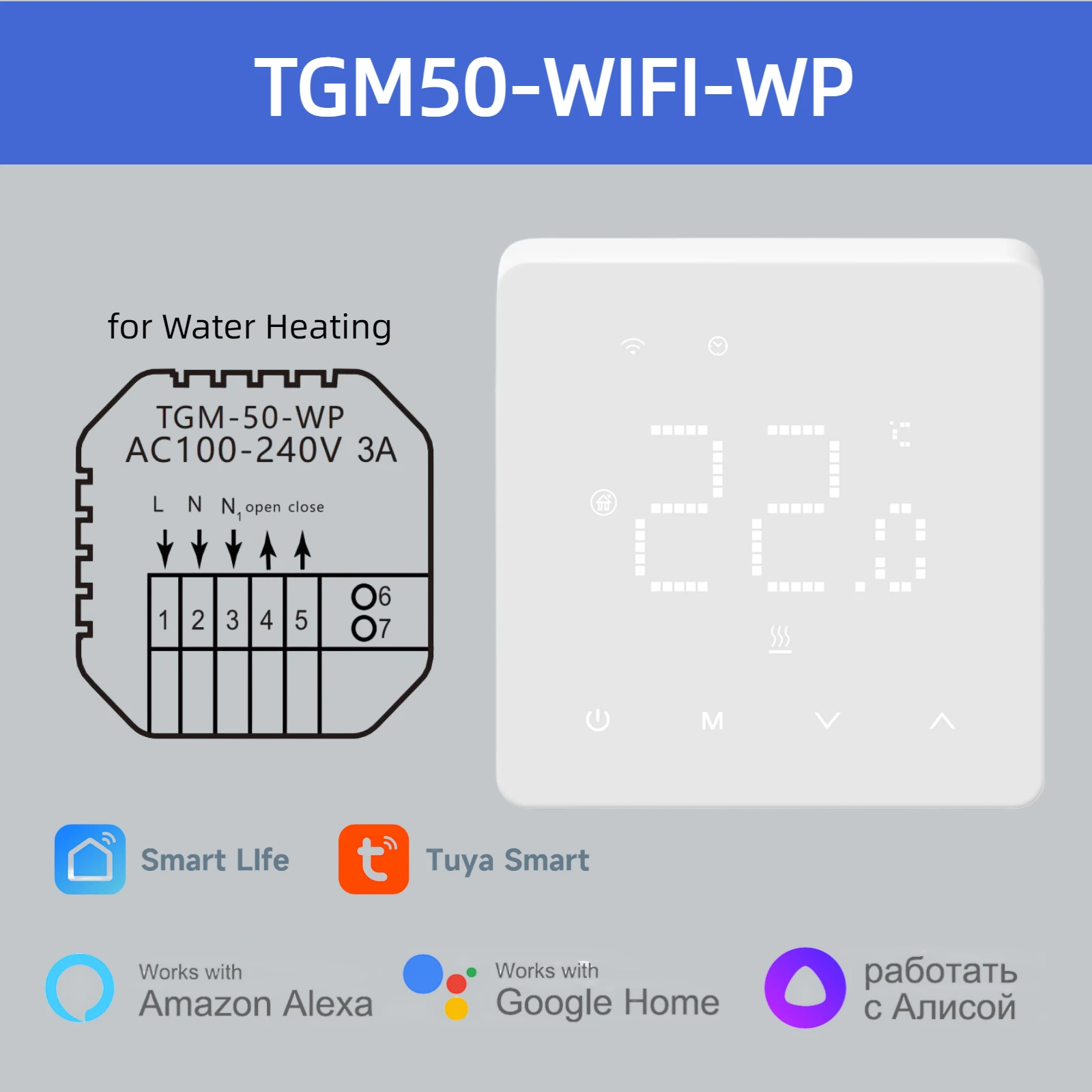

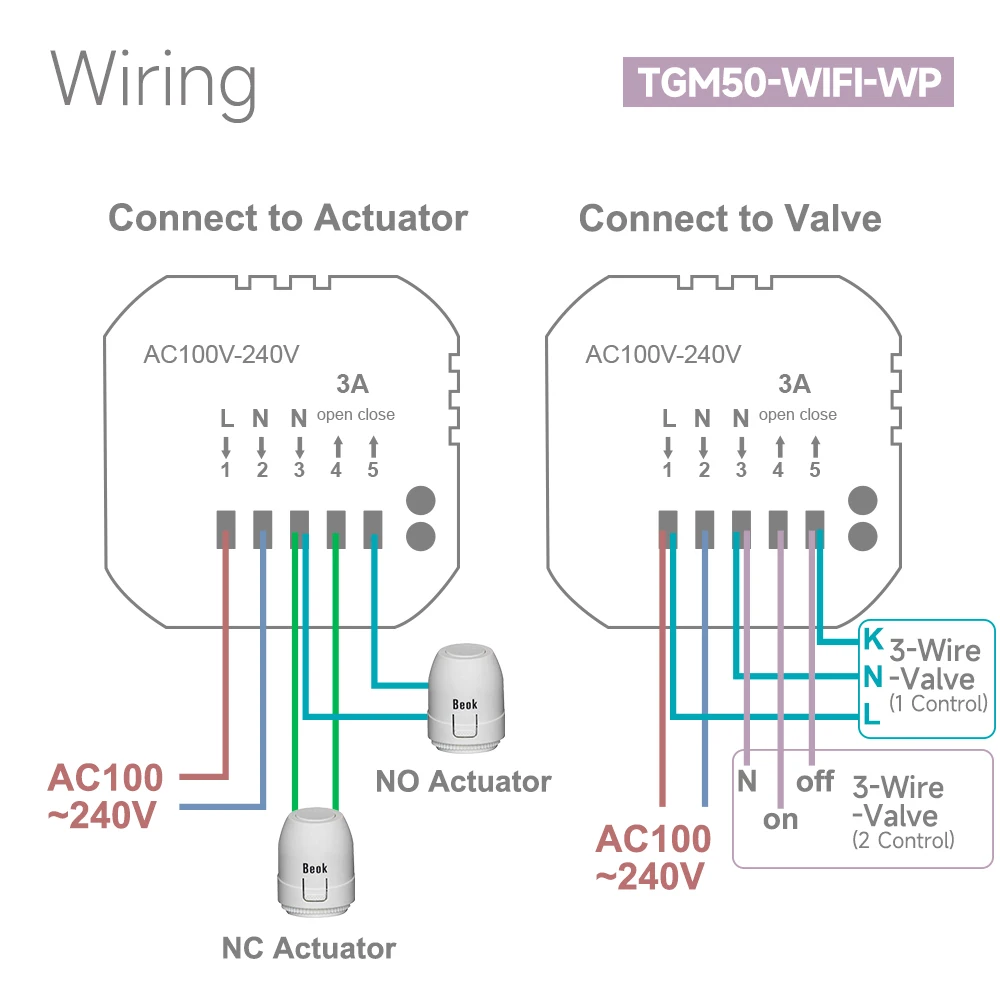

TGM50-WIFI-WP:control Valves/Normally Closed Actuators/Normally Opened Actuators etc. water floor/underfloor heating system.(WP cannot connect to external sensors)

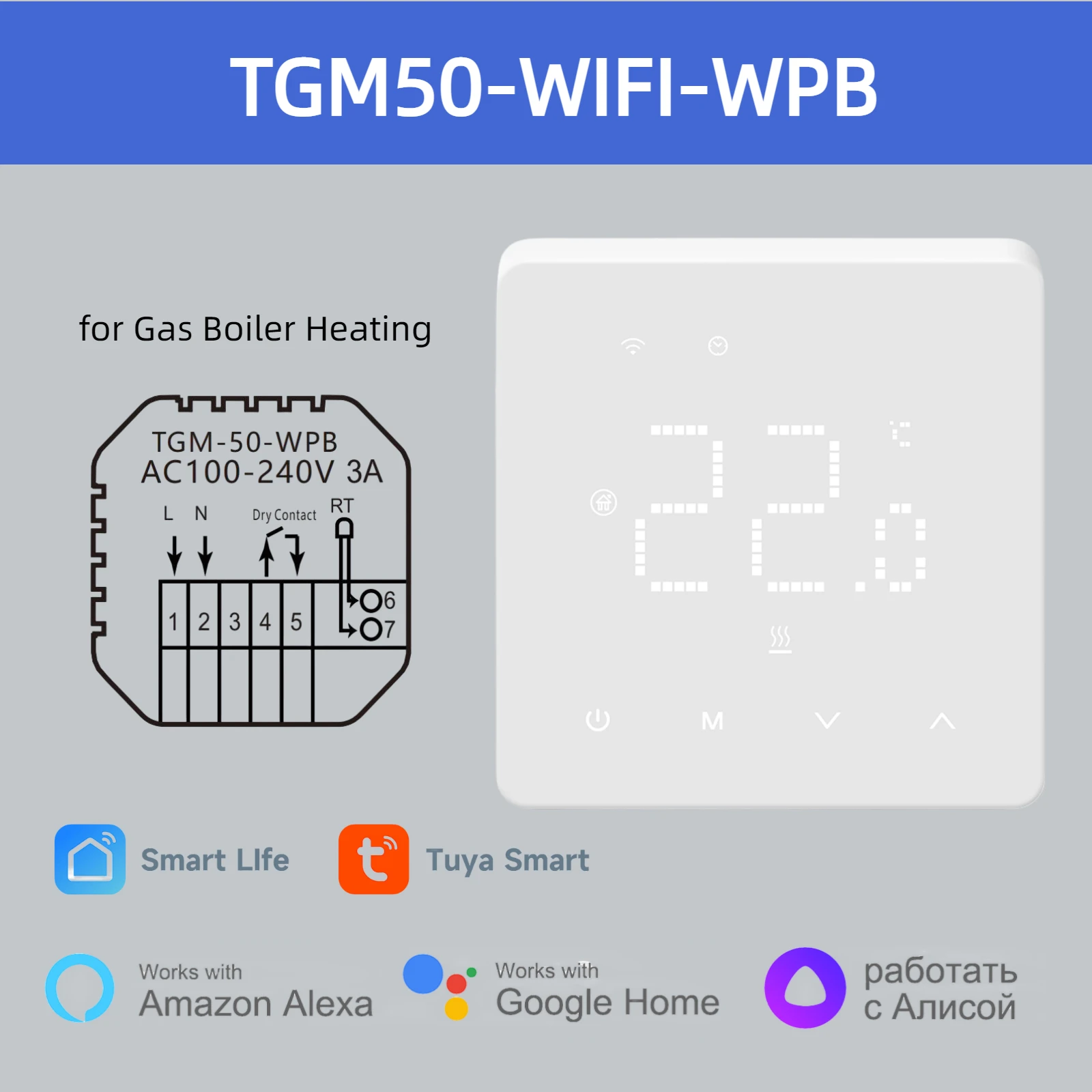

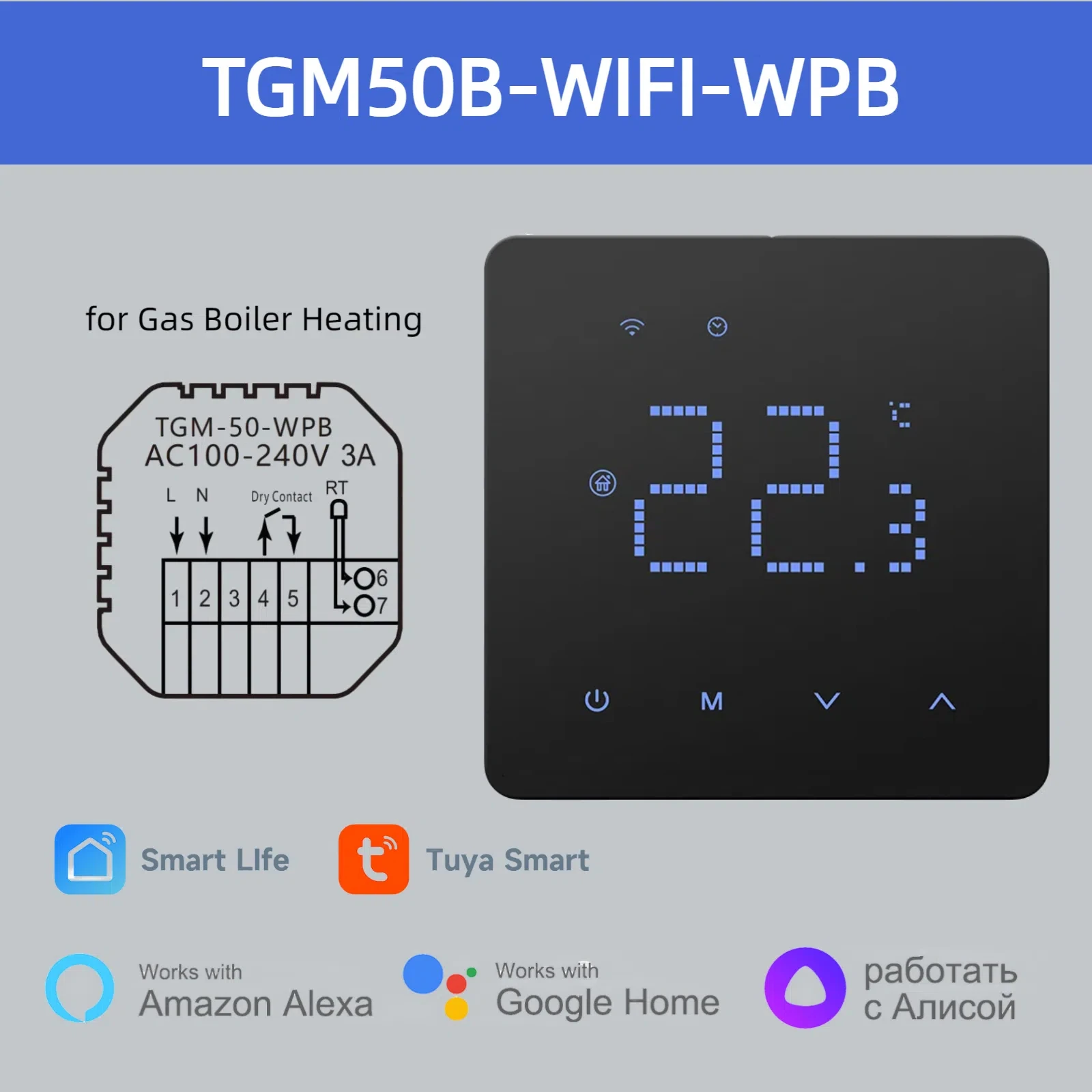

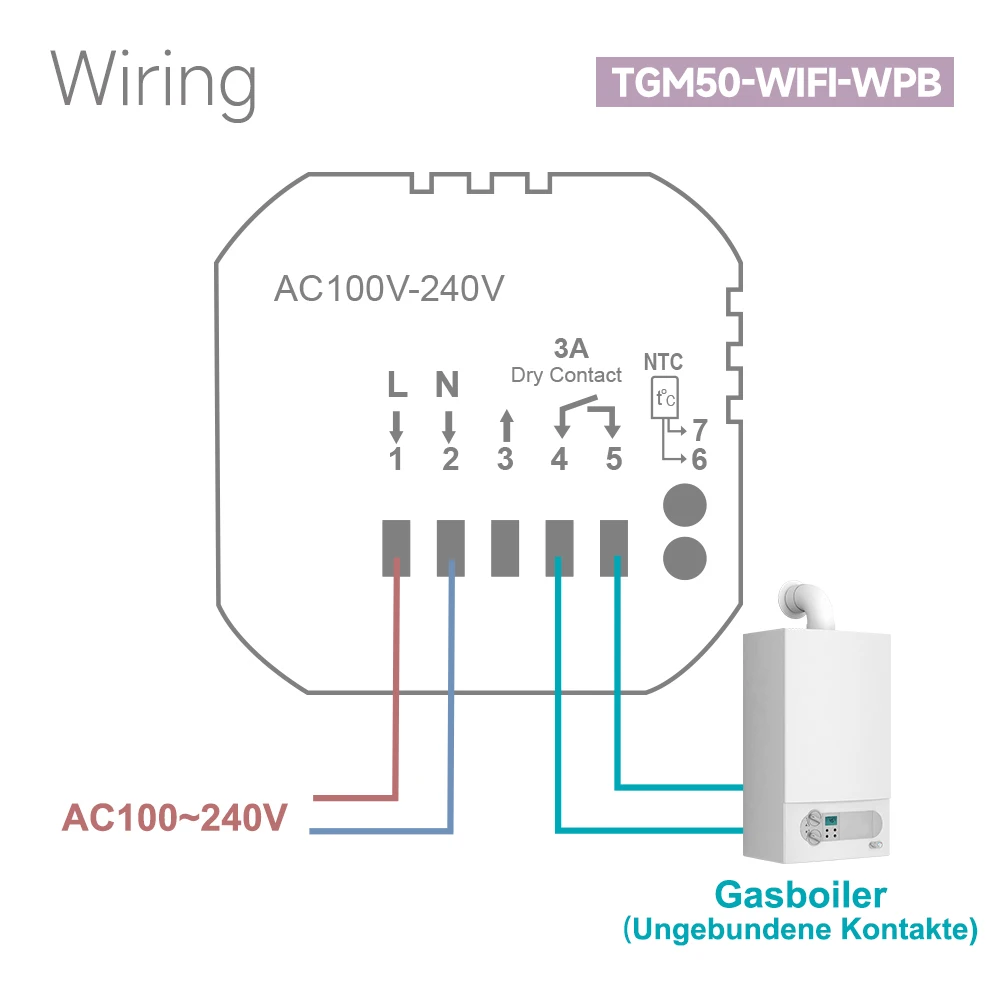

TGM50-WIFI-WPB:control gas boiler/electric boiler and other equipment which are connected via “Dry Connect”.

Pictures:

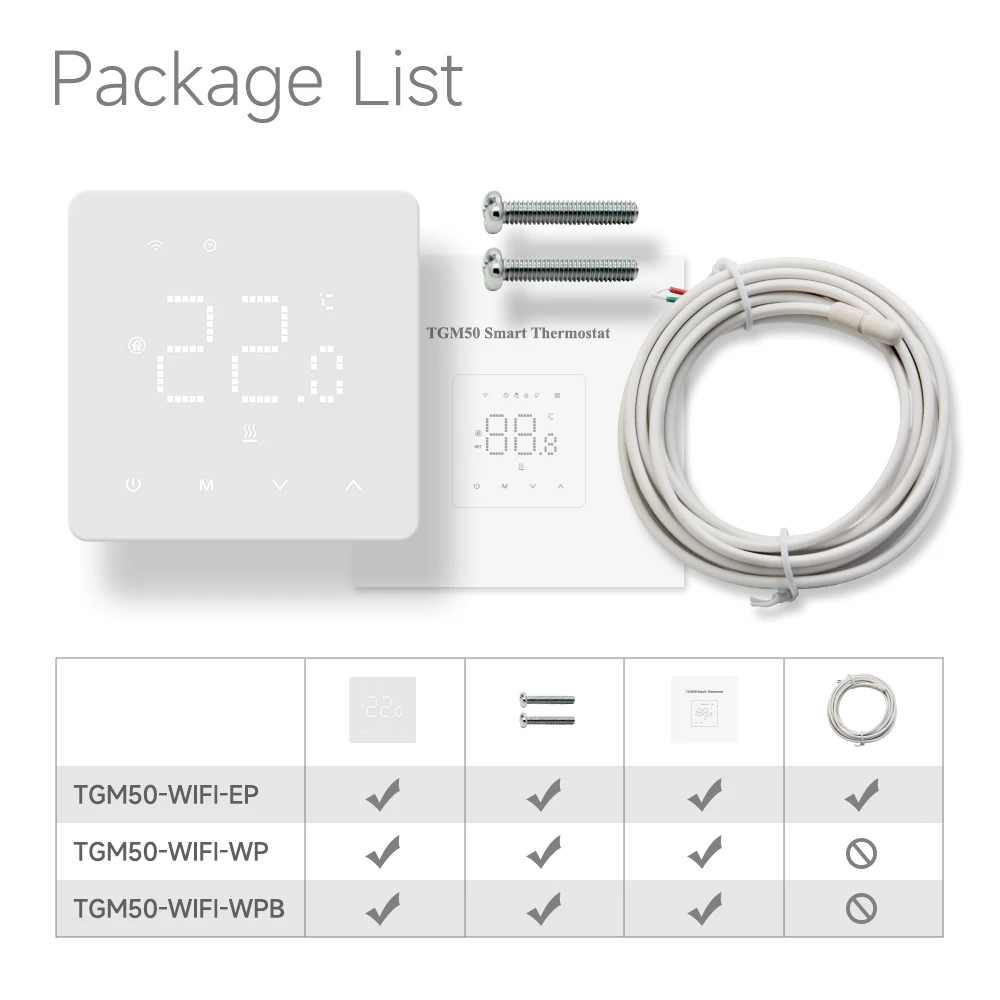

Package List:

Thermostat * 1
Screw * 2
instruction * 1
External sensor * 1（Only IN EP Model）
