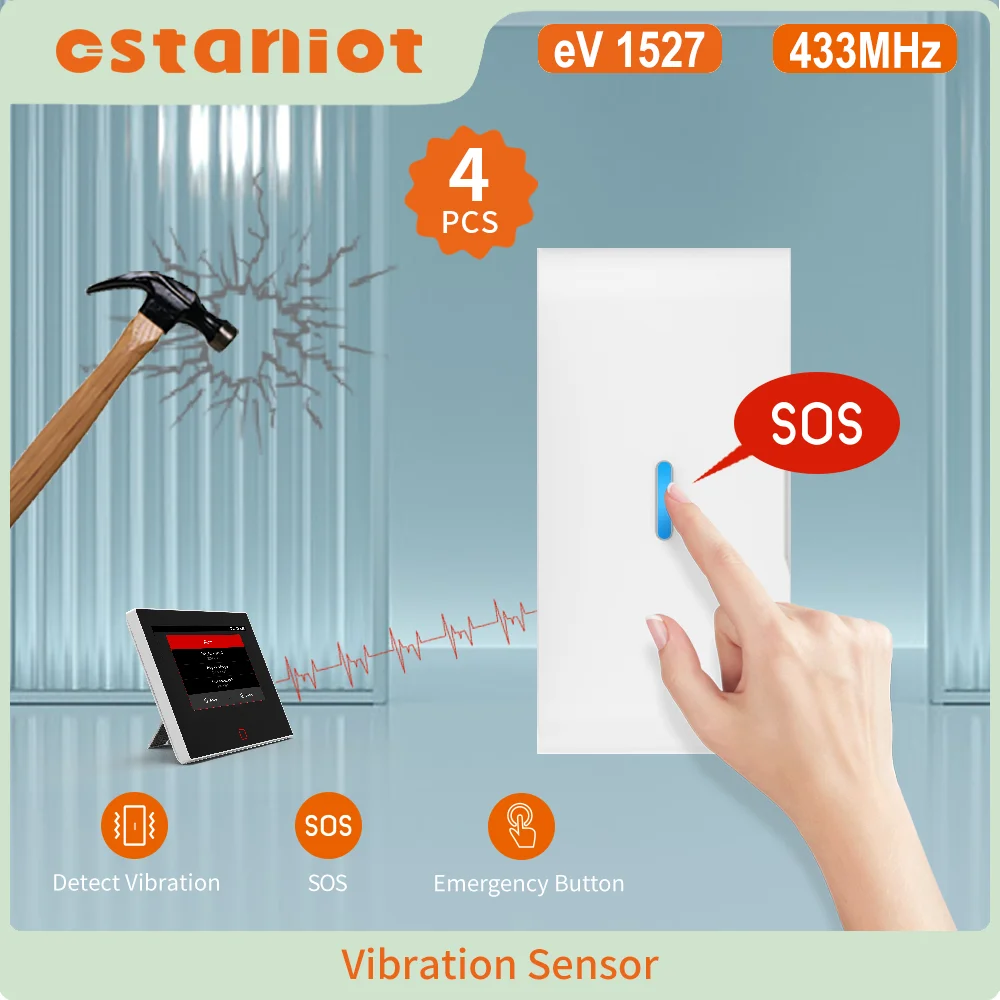

Glass Break Vibration Sensor

Notice:

1. It needs to work with alarm panel together, can’t work alone.

It adopted the detected theory of vibration,. Once it detects any vibration, it will automatically send wireless signal to the control panel for alarm.

It protects in 24 hours to prevent violence (drill, strike, saw etc.) from entering the protected door, window and ceiling and so on. Popular used for window, door, safe guard box, cash box, ATM, night safe guard box, wall, ceiling, device, file cabinet, electrical contacted door and so on. With the high quality sensitive units, it guarantees using life and performance. Long life, high performance rate ratio, low so effectively to prevent from false alarm.

It needs to work with alarm panel together, can’t work alone.

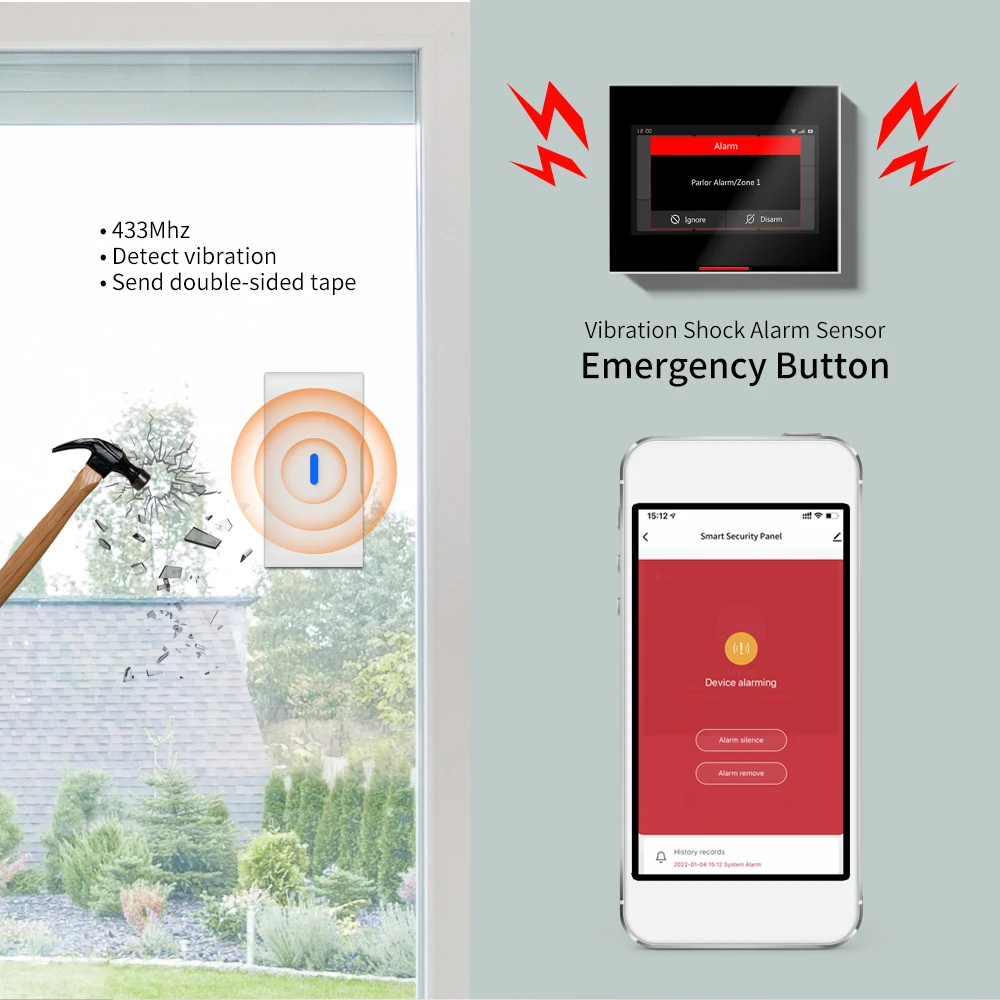

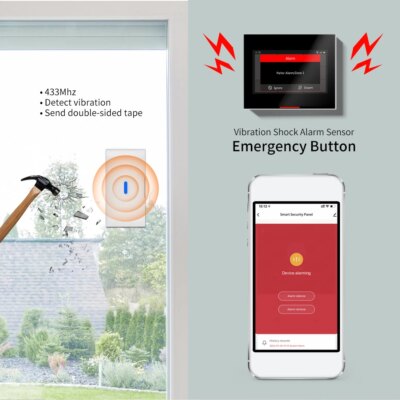

When the glass receives an external intrusion, the alarm panel will receive the information and issue an alarm.

At the same time, the mobile APP is connected to the alarm panel and can also receive information reminders.

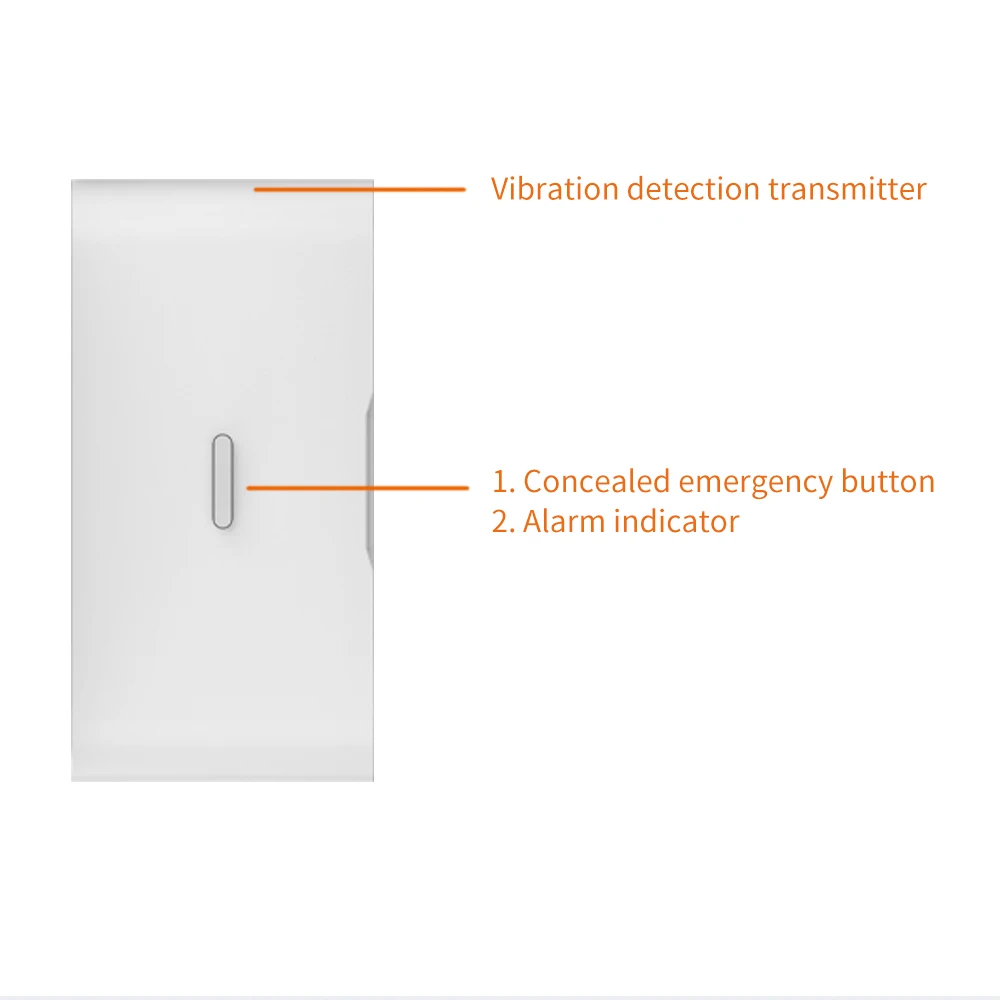

Hidden SOS button integrated with LED light:
User can add the SOS button signal to alarm panel in advance (please change the zone type to emergency zone). If they are in danger, they can press this hidden button for SOS help.

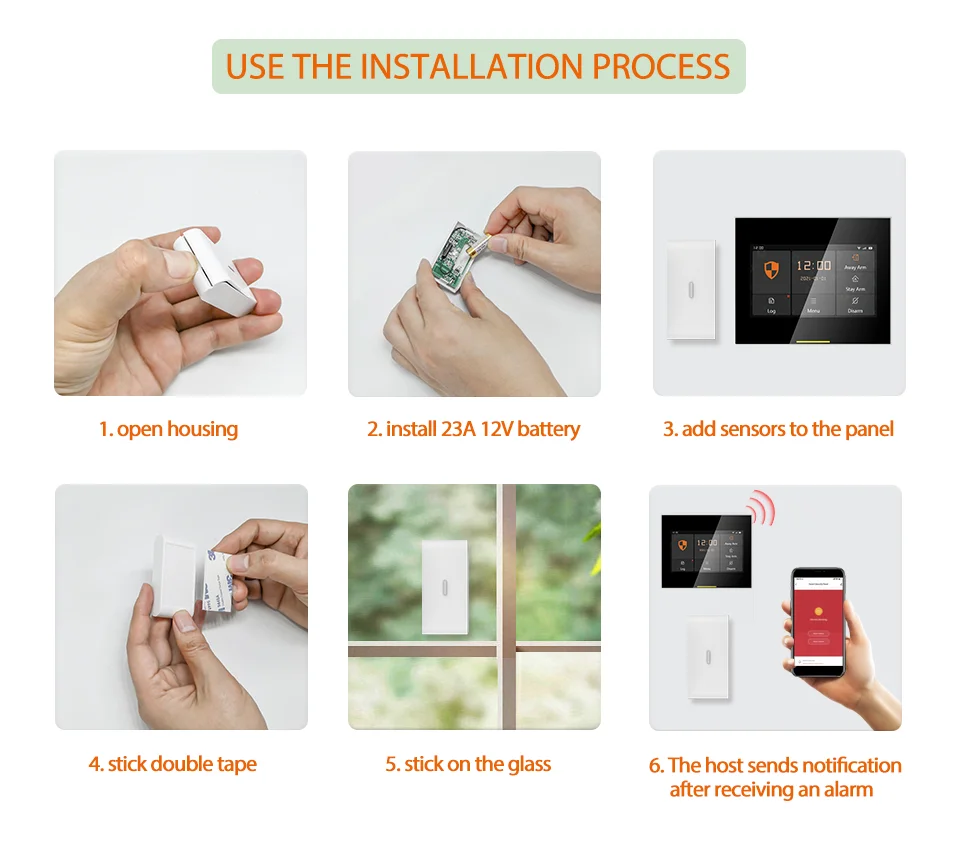

Installation procedure:

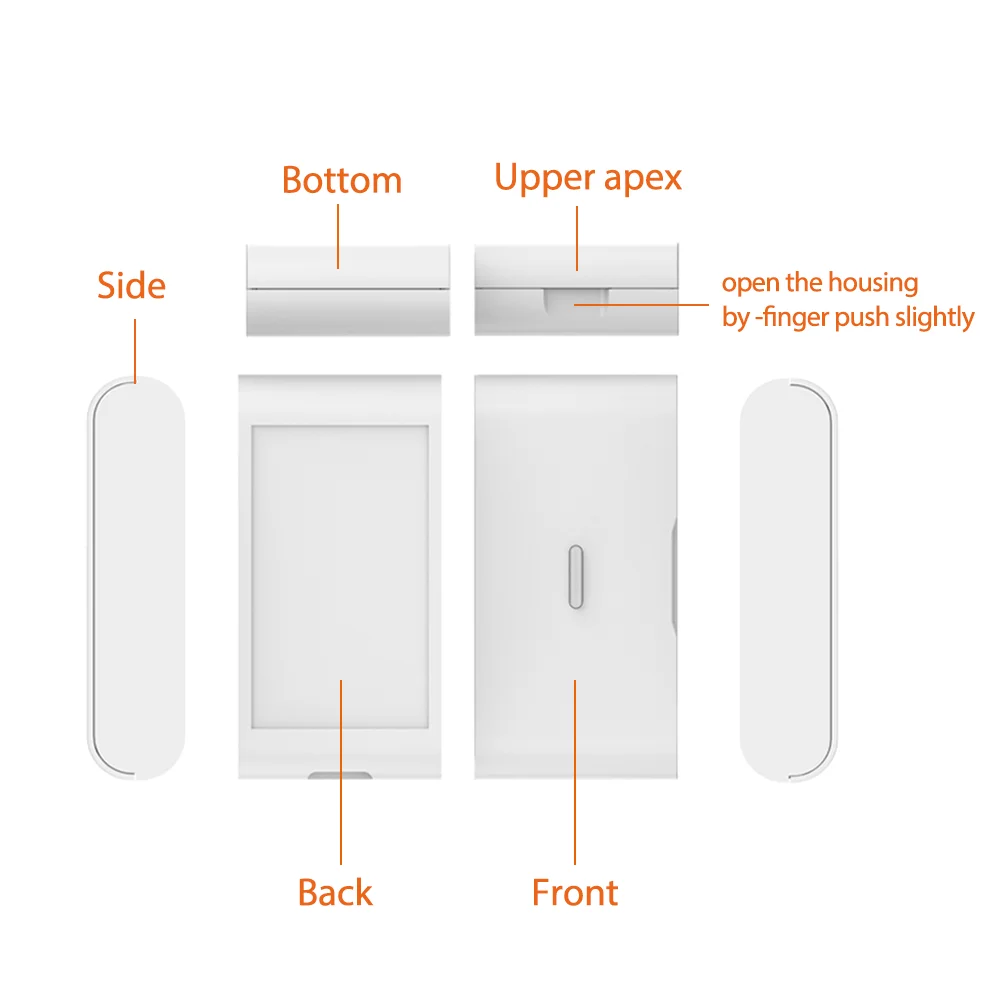

1.remove the battery insulating trip from the detector or open the housing and insert the battery when you get it.

2.add the sensor to the panel as per the menu.

3.stick the vibration sensor vertically by the double tape on the target which you want to protect . For example, window glass, door etc.

4. test with panel together before normal use.

5.led instruction:

Blue LED lights: It will flash 1 time for alarm

Red LED lights: it will be always on for low-voltage 8V

Hidden panic button: User can press it for emergency help

1. Triggered by shock or vibration

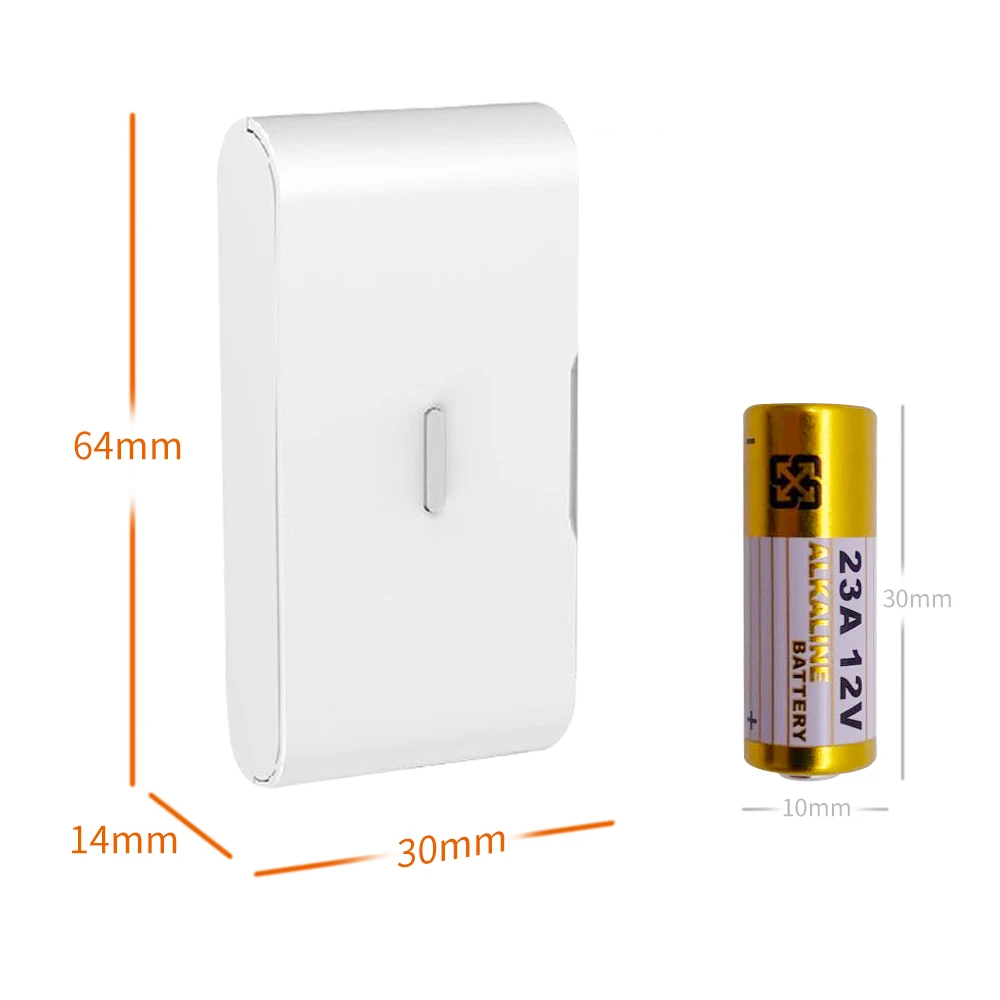

2. Working voltage:12V DC, with dry battery model:23A . Low battery voltage about 8V.
3. Working current:≤20mA Static current: ≤5μA
4. IC EV1527 Oscillator resistor:330k
5. Working frequency:433.92 MHZ
6. Transmitting istance:noninterference<100m
7. Emitting frequency:<10mw Frequency tolerance:±0.2MHz
8. Operating temperature: indoor -10 ~ 50℃, related humidity ≤ 95%
9. Net.weight:0.05kg

Package:

Vibration sensor X1 (without battery)

double tape X1
