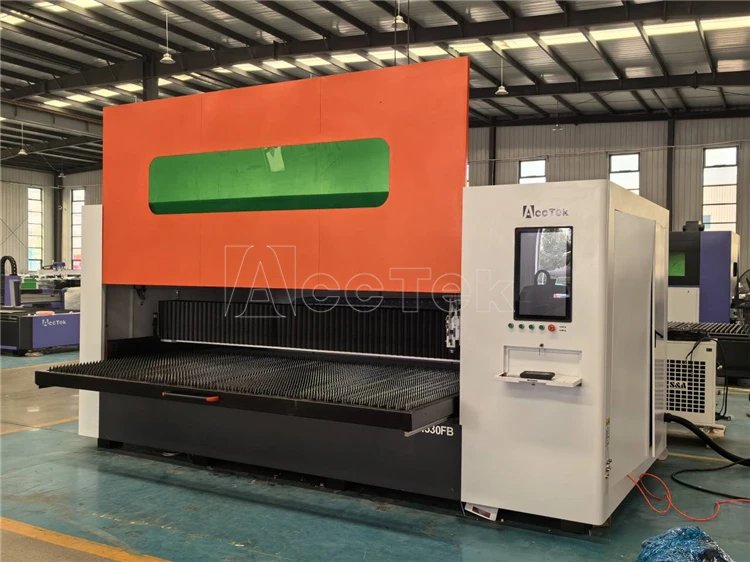

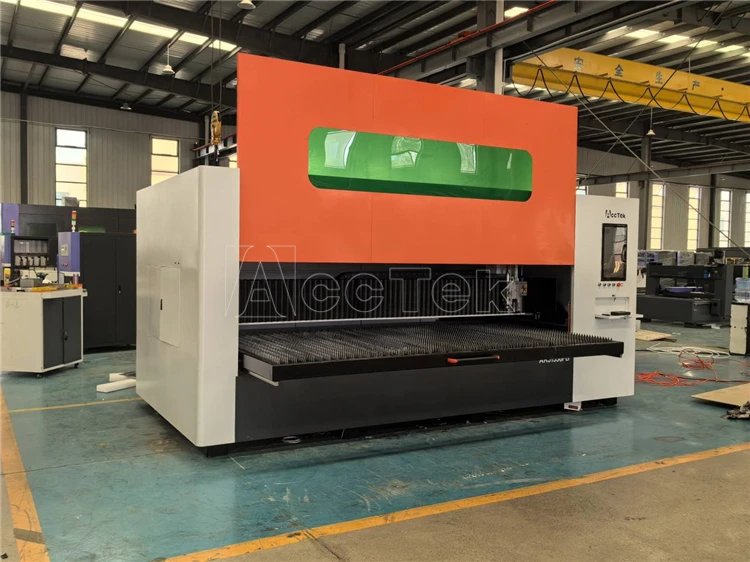

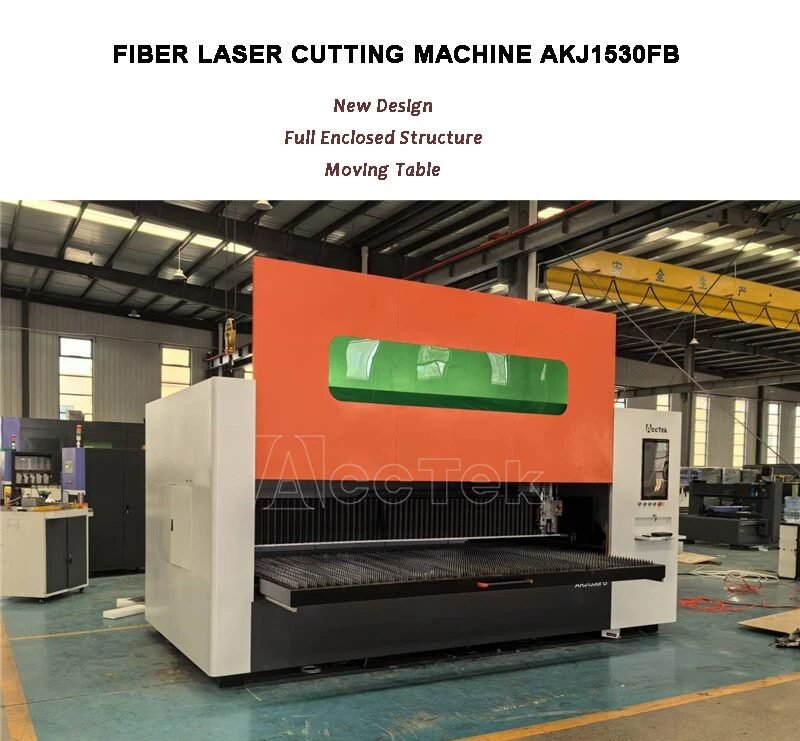

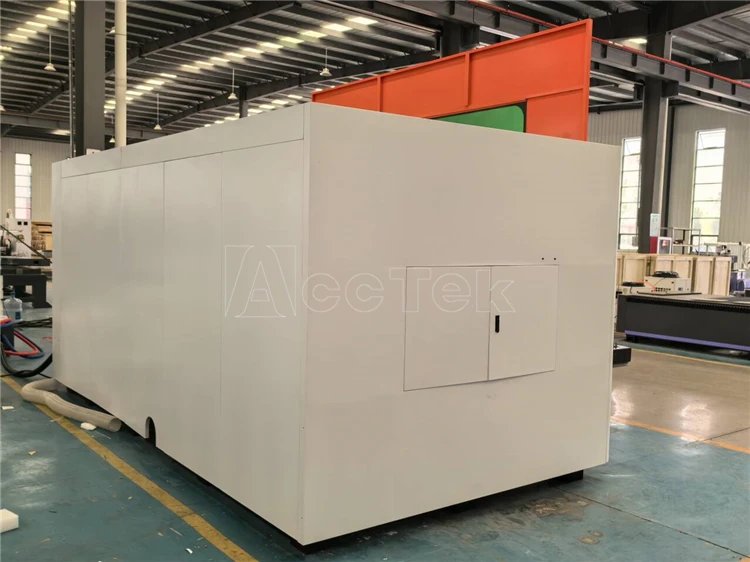

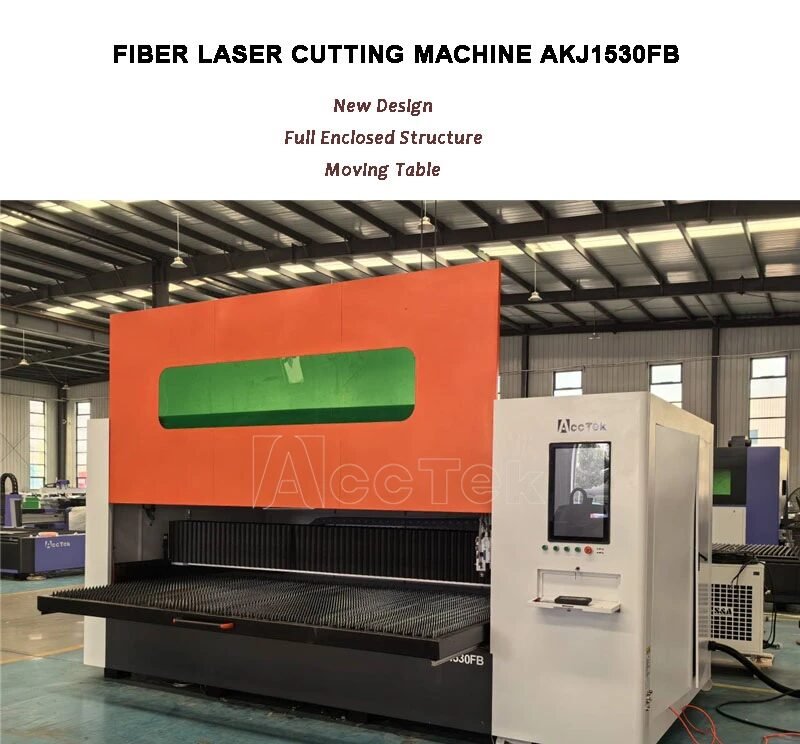

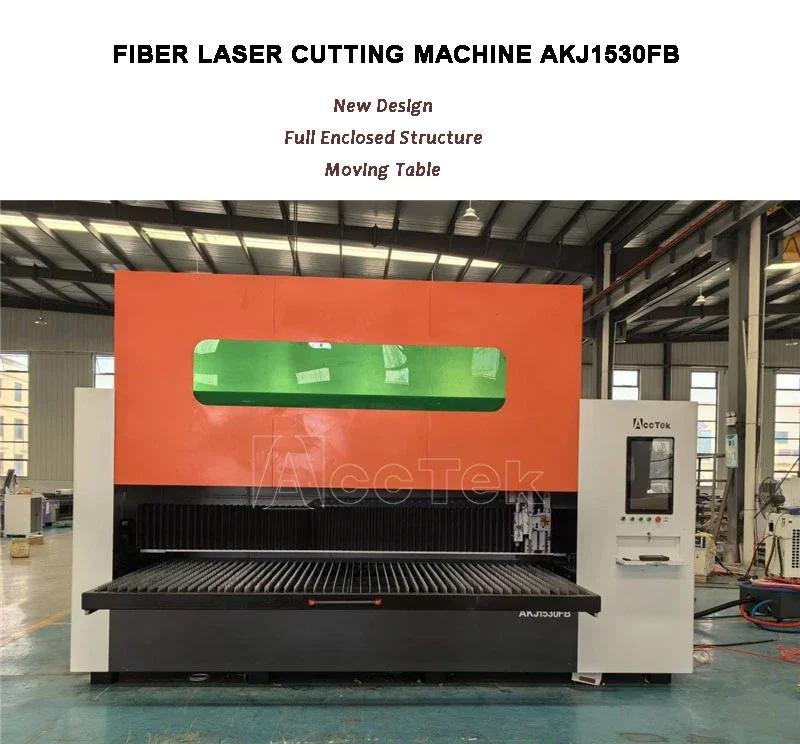

3015 1530 Metal Cnc Fiber Laser Cutting Machine 1000W 2000W 4000W 6000W Table Moving Laser Cutter Machine Price For Steel Sheet
1000W 1500W 2000W 3000W are optional.
Advantages:
1. Fast cutting speed, high efficiency, safe operation, and stable performance.
2. The spot quality is good, the deformation is small, the appearance is smooth and beautiful.
3. Adopting an imported servo motor and a guide transmission mechanism, and it has high cutting accuracy.
4. Professional software to design various graphics or text for immediate processing, flexible processing, simple and convenient operation.
Main Features
1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating Au3tech system which makes the best cutting effect.
3. The machine owns a perfect cooling system, lubrication system, and dust removal system, to ensure that it can operate stably, efficiently, and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
Item | Specification |

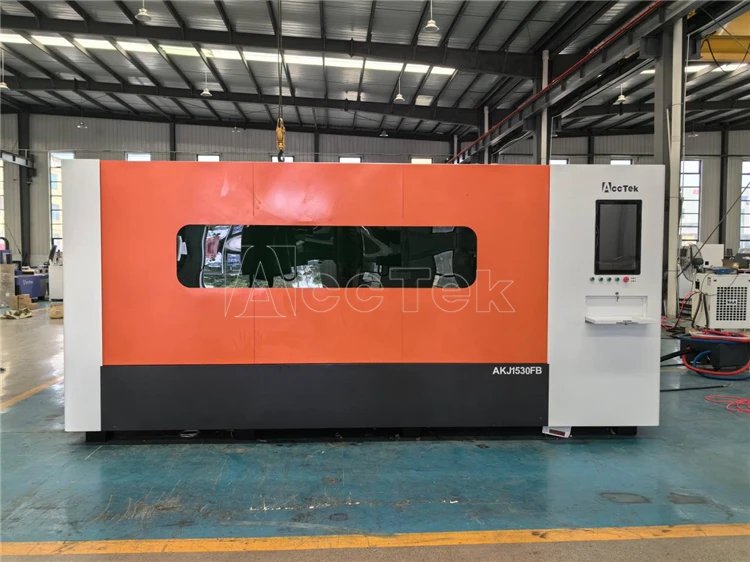

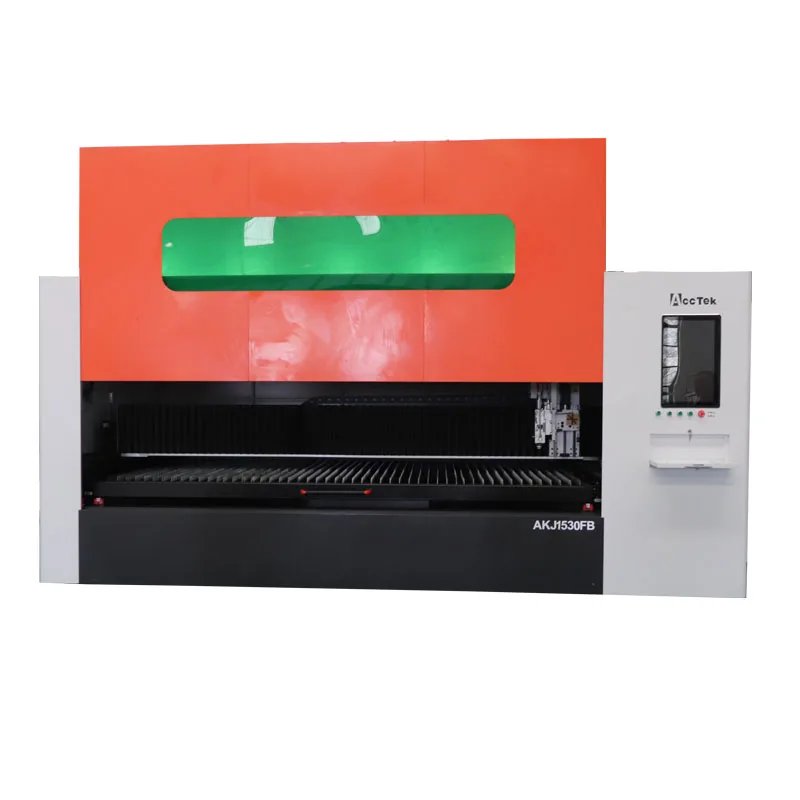

Machine Model | AKJ1530FB |
Working area | 1500*3000mm |
Laser generator brand | Raycus/ IPG/ JPT/ MAX optional |
Laser Power | 1000w/1500w/2000w/3000w optional |
Control system | Au3tech |
Cutting head | Au3tech autofocus cutting head |
Transmission | Taiwan rack and pinion |
Motor and driver | Delta servo motor and driver |
Reducer | French Motoreducer reducer |
Cooling way | Water cooling |
Voltage | 220V 1P/380V 3P, 50/60Hz |
Laser Head
Au3tech auto focus head
1. High stability and good cutting quality, fast piercing and cutting.
2. Different laser head for choose.
Laser source.
1. High Power and High Quality Laser Output.
2. Reci, Raycus, MAX, JPT or Germany IPG Fiber Source for Choose.
Water chiller.
1. Automatically adjust the temperature according to different working environment, no need to change settings parameters. Reduce the temperature of the laser source and the laser head through water circulation, thereby protecting these two main parts.
2.The chiller has functions such as water flow protection and water temperature protection. If the chiller is not opened or the water flow is insufficient, the laser will not be generated when the water temperature is too high, so as to protect the laser.
Guide Rail.
1. The installation accuracy of the guide rail and the rack is controlled at 0.03mm to ensure the smooth operation of the gantry,
thereby ensuring the cutting accuracy.
2. Taiwan APEX/YYC/VASTUN for choose.

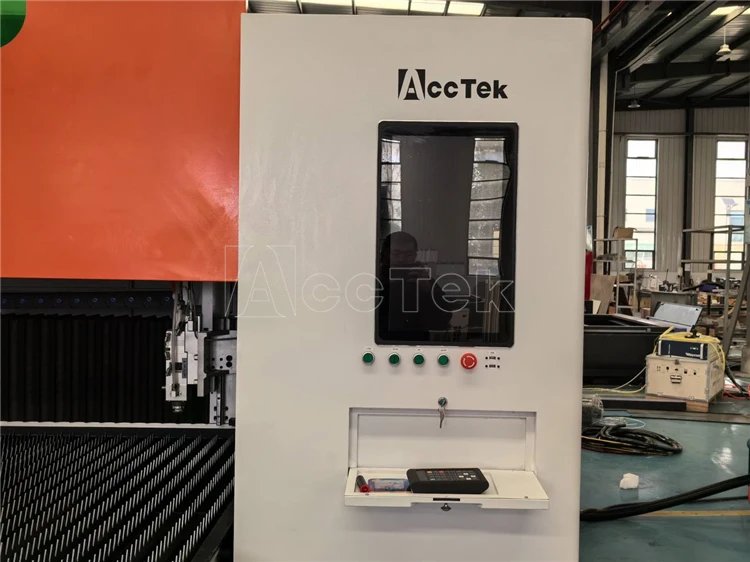

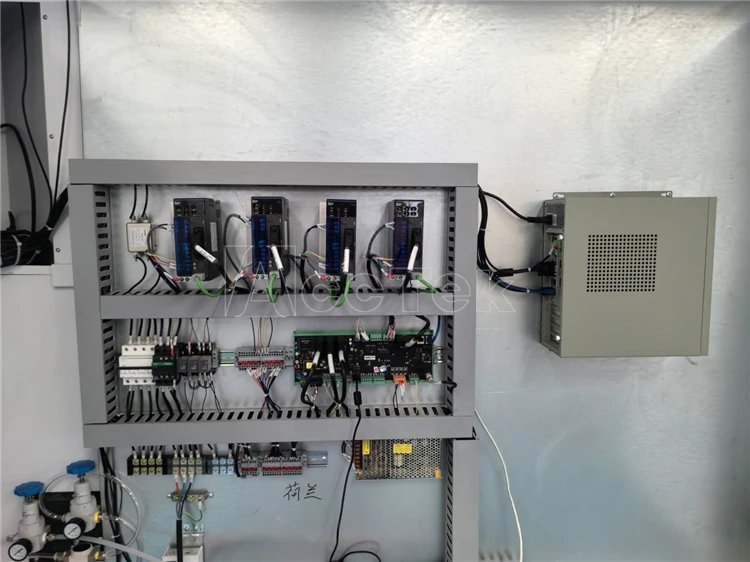

Control Cabinet.
All the electrical components are housed and wired in a doubled-doored electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet.

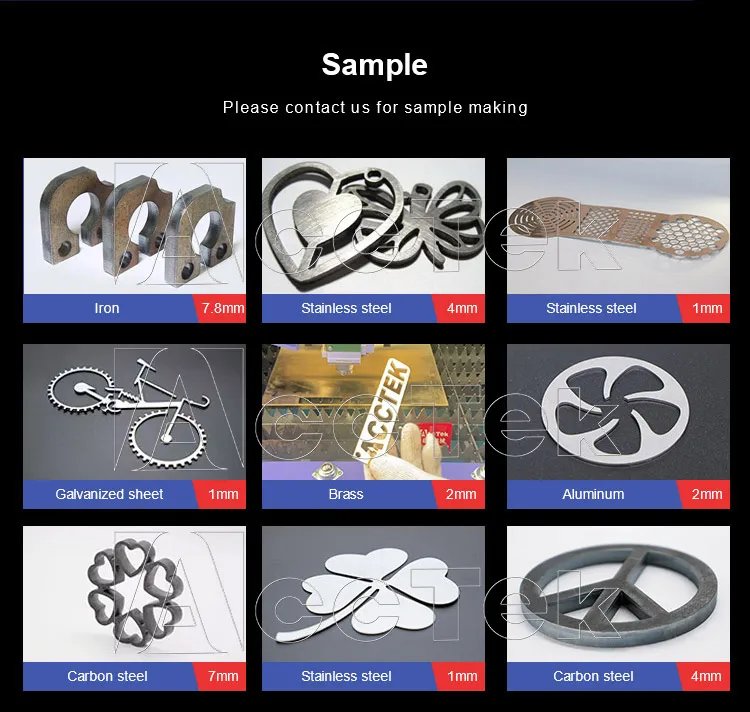

Material

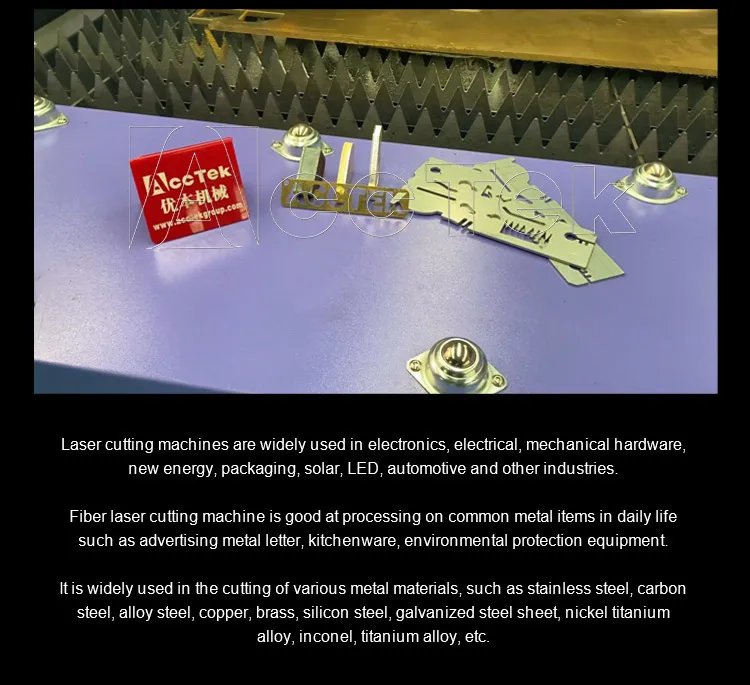

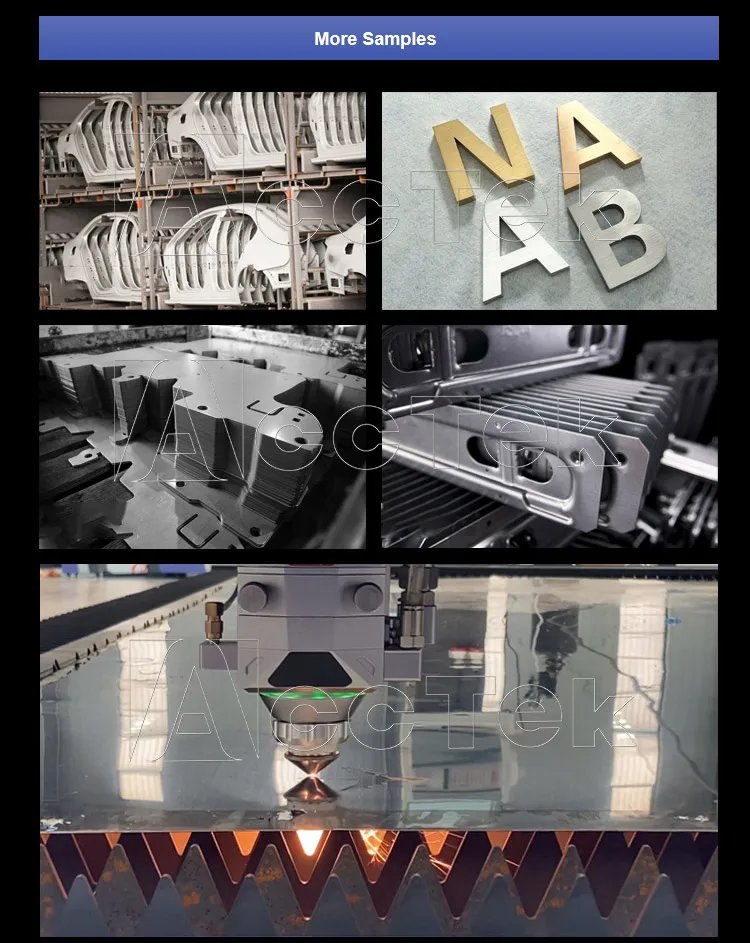

The fiber laser cutting machine is suitable for metal cutting like stainless steel sheet, mild steel plate, carbon steel sheet, alloy steel plate, spring steel sheet, iron plate, galvanized iron, galvanized sheet, aluminum plate, copper sheet, brass sheet, bronze plate, old plate, silver plate, titanium plate, metal sheet, metal plate, etc.
Industry
This fiber laser cutting machine is widely used in manufacture billboard, advertising, signs, signage, metal letters, led letters, kitchen ware, advertising letters, sheet metal processing, metals components and parts, ironware, chassis, racks & cabinets processing, metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, glasses frame, electronic parts, nameplates, etc.
1. 3 years quality guaranty (2 years for laser generator), the machine with main parts(excluding the consumables) shall be changed free of charge when if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 18 hours of online service each day, free technical support.
6. Machine has been adjusted before delivery, operation disk and manual was included. If there is also any questions, please kindly tell me.
1) I know little about this machine, what’s the laser power I should choose?
It is easy to choose. Just tell us what’s material do you want to cut with the machine, and the thickness of materials, then let us give you perfect solutions and suggestions.
2) When I got this machine, but I did not know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk online with WhatsApp, Wechat etc .
3) If some problems happened during warranty period, what should I do?
We will supply free parts in machine warranty period after talking with our service team. We also supply free after-service forever, so any doubts, just us know, we will give you solutions as soon as possible.
4) What is the MOQ?
MOQ for our products is 1 set machine.
If you buy 3 sets one time, you will have the agent price, enjoy better price.
5) I am the first time to import the goods, how to do it?
We are experienced with many years, this work is not complex, we can help you.
WARM TIPS:
- 1- The price is just deposit, not full price of machine, it is just 30% of the total price.
- The mode of transportation here is only by air, shipping cost is very higher. We also provide shipping services by sea/train/truck, it will be much cheaper, please contact us for double confirmation before you pay.
