Description
Clock Speed:16 MHz

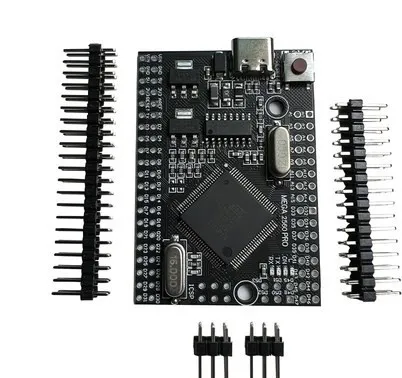

MEGA2560 PRO
Embed version of Mega 2560 CH340G/ATmega2560 – compatible with Mega 2560 board. Built on the Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G.
Board have compact size 38x55mm. It is good solution, to make your final project on solder proto-board.
Board for functionality similar to the Mega 2560. It is embed board, but the same stable, and uses the original chips ATmega2560 (16 MHz).
The board used the chip CH340G as converter UART-USB. When you work in the frequency 12Mhz, giving a stable result of data exchange (need install drivers to computer).
Mega PRO (Embed) 2560 CH340G / ATmega2560 – connects to the computer via microUSB cable (used for almost all Android smartphones).
You can supply power to board through the MicroUSB connector or to power pinheaders. The voltage regulator (LDO) can deal with incoming voltage from 6V to 9V (peack 18V) DC. Output current for 5V – about 800mA, for 3.3V – about 800mA (Please note that the higher the input voltage the lower the outgoing current). That will provide a reliable power most of your initial projects.
Expansion Board DIY Kit Compatible With MEGA2560

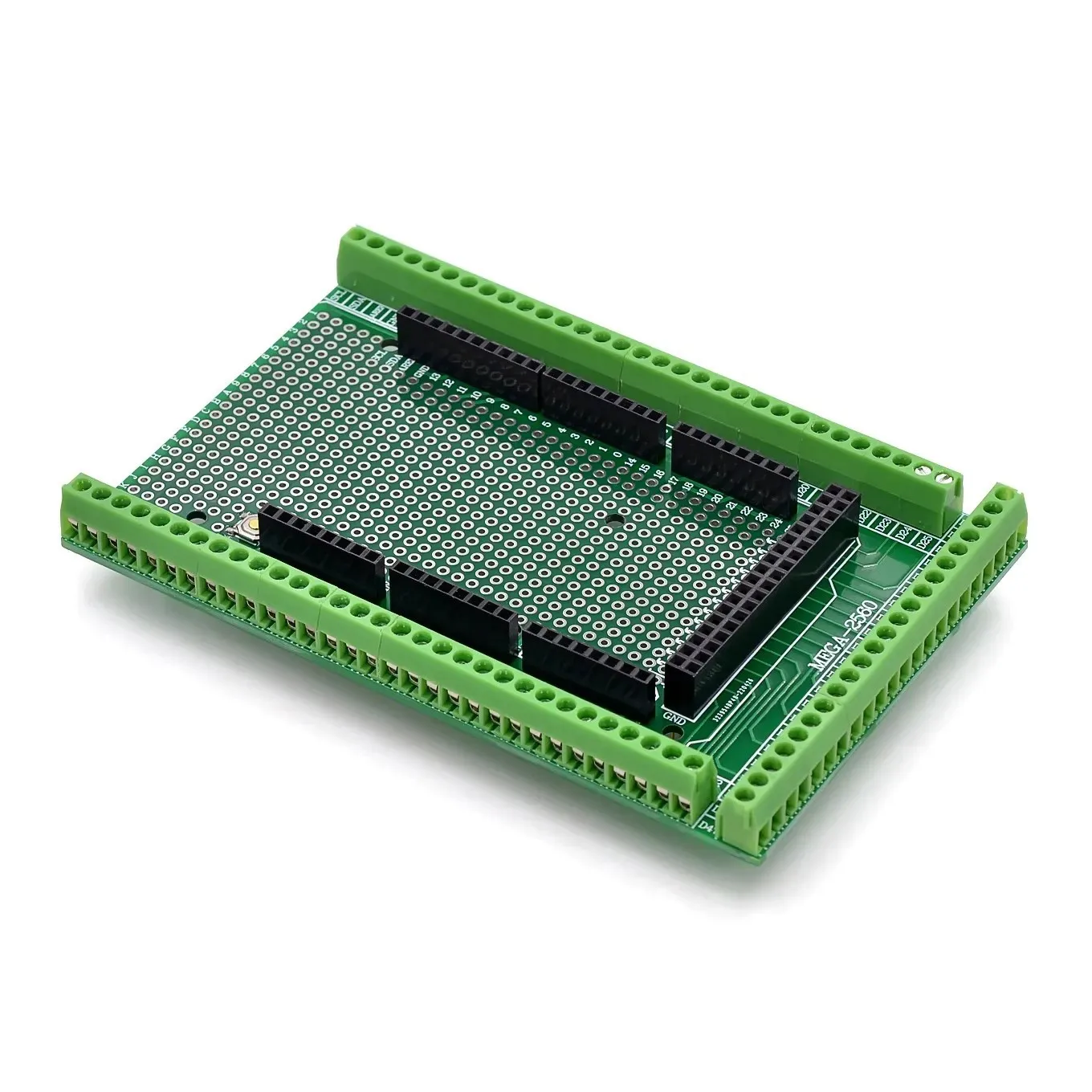

Prototype Screw/Terminal Block Shield Board Kit MEGA-2560 R3.
The Kit includePrototype PCB, Terminal Blocks, Female Header Sockets.
Unassembled, variety mount methods, you can make flexible use.
PCB:
FR-4 fiber glass PCB, dual copper layers, size 120mm x 78mm.
Pads grid / pitch 2.54mm / 0.1″, hole diameter 0.8mm.
Terminal block pitch 3.5mm / 0.138″, hole diameter 1.2mm.
Terminal Block:
Pitch 3.5mm / 0.138″ mini terminal blocks, total 84 pins(3pole x24pcs, 2pole x6pcs ).
Wire range 26~16AWG, strip length 5mm, screws M2 steel, pin header and cage brass.
Female Header Socket:
Pitch 0.1″/2.54mm, pin length 15mm / 0.59″
Single row 10pin x1pcs, singal row 8pin x 5pcs, dual row 18pin x1pcs.
