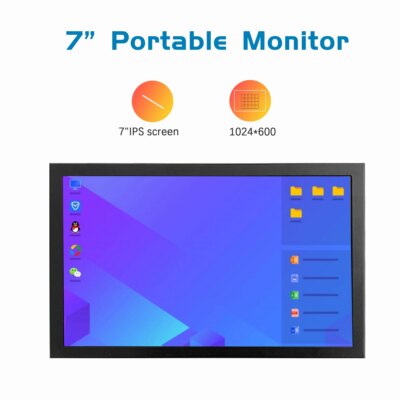

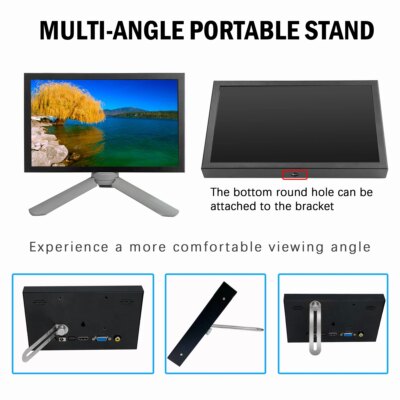

laptop 7 Inch Mini TFT Monitor 1024×600 high pixel LCD Screen Display With HD/VGA/AV Video Input For Home Security Camera

Description

Specification

• 1. Screen size: 7 inch Displ

  2. Brightness: 500cd/㎡

  3. Display Component: Color TFT-LCD

  4. Resolution: 1024*600 Pixel

  5. Input Signal: DC//HD/VGA/AV/Type-C

  6. Power: DC 12V , Type-C：5V1A

  7. Built-in 1.5W hi-fi loudspeaker

  8. Product Dimensions: 170*105*17.5mm

  9. support adjust the brightness, volume

How to use with Raspbian/Ubuntu Mate/Win10 IoT Core System

Step 1, Install Raspbian official image

1. Download the latest image from the official download.

2. Install the system according to the official tutorial steps.

Step 2, modify the “config.txt”

After the programming of Step1 is completed, open the config.txt file of TF card root directory and
add the following code at the end of the file, save and eject Micro SD Card safely:max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=87
hdmi_drive=1
display_rotate=0
hdmi_cvt 1024 600 60 6 0 0 0

Step 3, Drive the 7inch HDMI EM713 with the Raspberry Pi

Insert the TF Card to Raspberry Pi, connect the Raspberry Pi and LCD by HDMI cable;

connect USB cable to one of the four USB ports of Raspberry Pi,and connect the other end of the USB cable to the USB port of the LCD;

then supply power to Raspberry Pi; after that if the display and touch both are OK,it means drive successfully (please use the full 2A for power supply).

How to use as PC monitor

• Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable

• Connect the LCD’s USB Touch interface (Either of the two MicroUSB) to the USB port of the device

• If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
