8MP CCTV Tester 5 inch Camera Monitor 4K AHD/CVI/TVI CVBS Analog Cameras Tester with HDMI VGA Input CFTV CCTV Mini Monitor

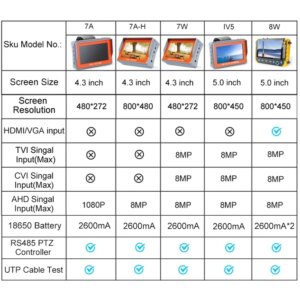

Parameter comparison table

Key Feature comparison

IV8W Application

The new HD Coaxial tester is developed for the on-site installation and maintenance of Analog Camera (CVBS) and HD Coaxial Camera, having AHD. (NOT Support IP Camera). It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc.

HDMI &VGA Input

VGA/HDMI Input,it support VGA/HDMI 1:1 compliant digital input,once connect VGA/HDMI video,please switch selector to select VGA/HDMI Mode,The maximum resolution is 1920*1440. Video monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality. Support PAL/NTSC standard video signal.

PTZ controller

Video monitor tester built-in Pelco-D / P PTZ control protocol,etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus,aperture size.

DC12V 1A output power for camera

The tester support DC12V (1A) power output for camera. It is helpful for demo and testing when the power supply is not available.

LCD Screen

Vedio monitor tester support High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.

PTZ controller

Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

Image generator

Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

Enhanced network cable testing

By UTP CABLE TEST port on the meter, you can test the connection of network cable.

TVI input

1 channel TVI input(BNC interface), support 720P25/30/50/60,1080P3MP/4MPand 5MP 25/30,8MP

AHD camera test

support 1 channel AHD input (BNC interface）, 720P25/30/50/60,1080P3MP/4MP and 5MP 25/30，8MP When AHD signal input, the tester will display the AHD camera image.

CVI camera test

1 channel CVI input(BNC interface), support 720P25/30/50/60,1080P25/30,3MP and 4MP12.5/20,5MP, 8MP CVI camera input
