Description
Description
Are you still bothered by the constant lack of hot water in the shower? Or still annoyed that your water heater is too slow to get hot water? If you buy this instant water heater from us, then all these worries will be solved, and it can also bring you a comfortable bathing experience.

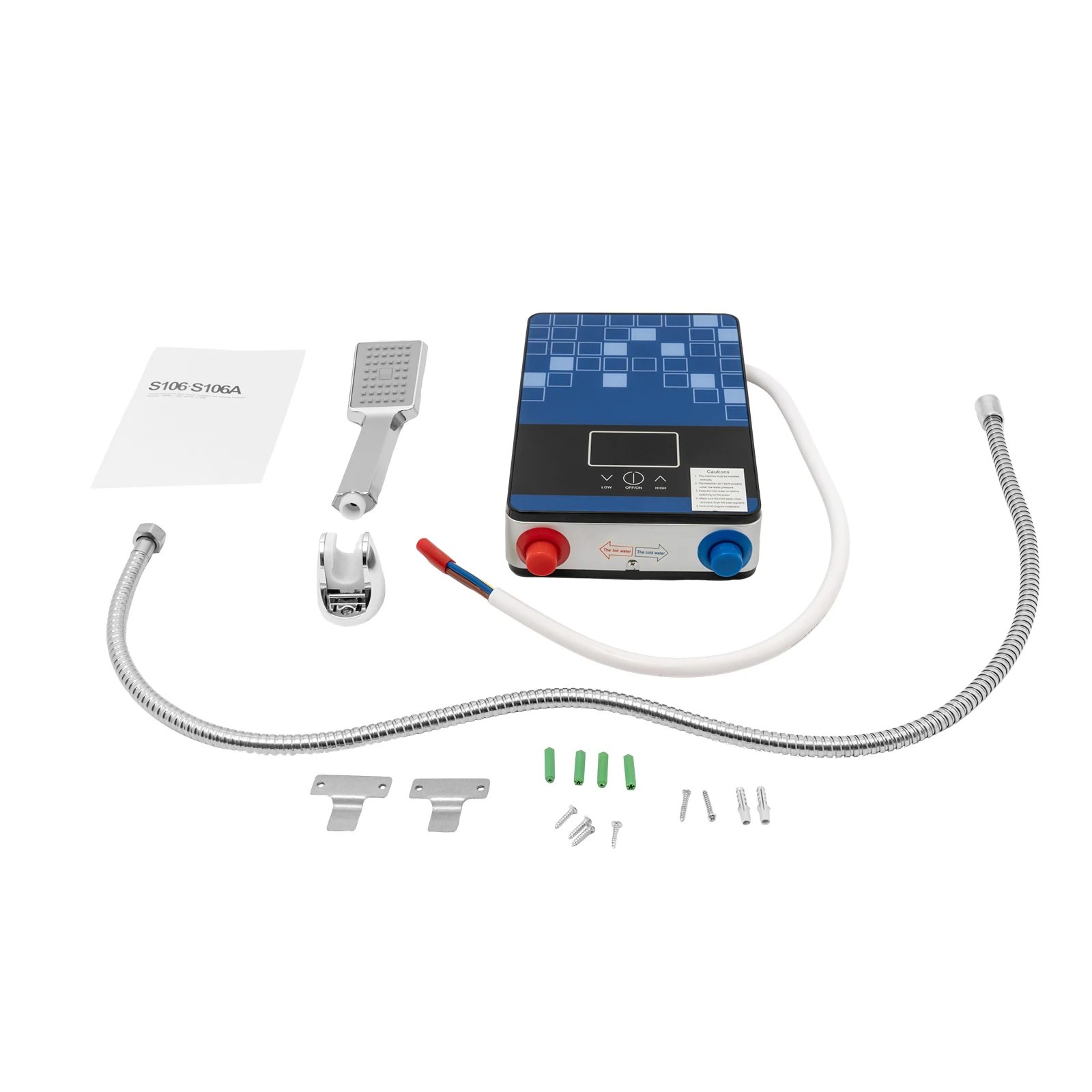

Package Included
1 x Instant Water Heater
1 x Shower Head
1 x Outlet Pipe
1 x Shower Bracket
1 x English Manual
Other Accessories for Installation
Specifications
Condition: 100% Brand New
Material: Tempered Glass Panel, Stainless Steel
Color: Blue
Style: Vertical
Product Type: All-in-one
Installation Method: Wall-mounted
Control Mode: Touch Control
Support Thermostat: Yes
Display Screen: LED
Rated Voltage: 220V(EU) / 110V(US)
Rated Power: 6500W(EU) / 4500W(US)
Rated Current: 29.5A
Rated Water Pressure: 0.6Mpa
Waterproof Level: IPX4
Temperature: 30-55℃/86-131°F(Water Flow Adjustable)
Maximum Temperature: 55°C/131°F
Water Heater Lift: Unlimited
Over Temperature Protection: Yes, Over Temperature and Automatic Shutdown
Power Protection: Yes, Automatic Shutdown when Water is Turned Off
Wire Diameter: ≥4mm/0.157inch
Magnetic Card Table: 10 (40) A
Mechanical Watch: ≥5(20)A
Air Switch: ≥40A
Suitable Water Pressure: 0.02-0.6Mpa
Wire Requirements ≥ 4 Square Copper Core Wire
Hot Outlet Pipe Connector Diameter: Inner 0.7cm / 0.3inch; Outer 2cm / 0.8inch
Cold Inlet Pipe Connector Diameter: Inner 1.2cm / 0.5inch ; Outer 2cm / 0.8inch
Package Size: 43*13*28cm/16.93*5.12*11.02inch

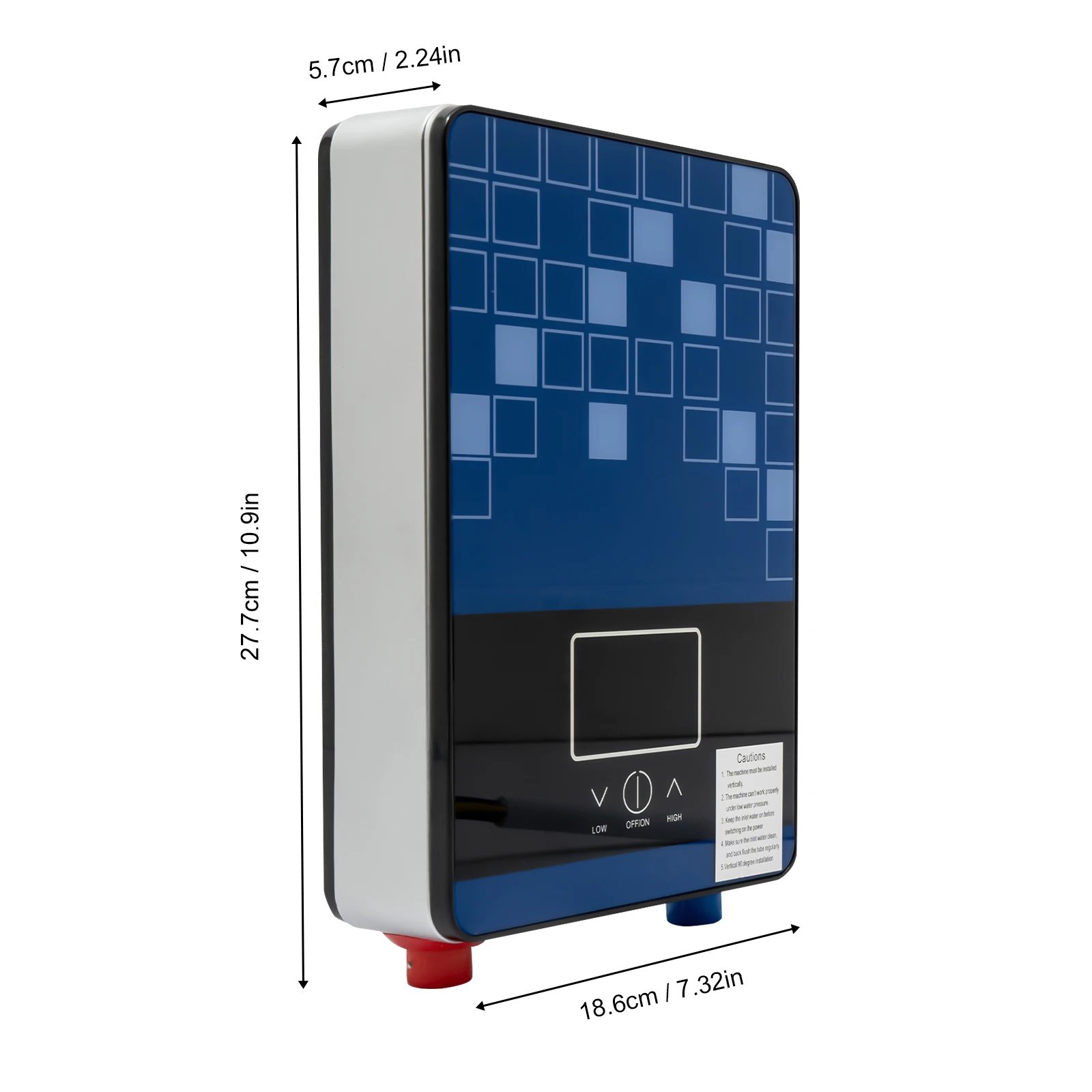

Product Size: 18.6*5.7*27.7cm /7.32*2.24*10.91inch
Gross Weight: 2.1kg/4.63lb
Net Weight: 2kg/4.41lb
How to Install
1.Drill into the wall with an electric drill(not included).
2.Fixing the water heater with screws.
3.Connecting hot water outlet & cold water inlet, and let cold water go through the water heater.
4.Connecting water heater to electricity.
5.Testing water heater and finished.
Key Features
High-quality Material: It uses tempered glass panels and stainless steel heating materials with a built-in anti-electricity wall, which has the advantages of durability, corrosion resistance, high-temperature resistance, power isolation, and long service life.
Constant Hot Water: It is equipped with a high precision thermostat, which can continuously lock the water temperature and the water temperature can be adjusted (86-131°F) to bring you stable and comfortable hot water even in the case of water pressure fluctuations. And the machine with power-off memory function for your convenient use.
Efficient: It has an instant heating function, even in winter you can get hot water in three seconds and it is especially suitable for big families.
Low Rated Pressure: The starting water pressure is from 0.02Mpa to 0.6Mpa, so it can provide you with hot water continuously and steadily no matter whether you live in a high-rise or old neighborhood or use it during peak water consumption.
High Safety: It has automatic power-off and over-temperature protection to give you a safe user experience.
Energy-saving: It uses live water that doesn’t need to be stored, so it’s less likely to harbor bacteria and healthier. And the instant-on design allows you to precisely control the amount of water used, saving electricity and water.
Waterproof: It has a waterproof rating of IPX4, which can effectively protect the product from water. You can install it in wet places such as bathrooms, and kitchens with confidence.
Hot and Cold: This product provides you with a hot and cold design, which is very thoughtful and practical. Hot water can effectively remove grease and stains from your dishes. Warm water will not only take care of your mouth and skin but also make you feel warm when washing your hands in winter.
Instant Temperature Display: This product provides you with a real-time display of the water temperature, so you can stop measuring the temperature by hand. And the large LED display makes the temperature clear and easy to read, so even the elderly can easily identify it.
Space Saving: Our product is like an 11.02*7.48*2.56-inch small box and wall-mounted design can save space in your home.
Easy Installation: The domestic water heater has a mini body for easy vertical installation in bathrooms, kitchens and under sinks. A standard 1/2 connection (inlet or outlet) allows direct connection to a conventional domestic hose fitting.
Details

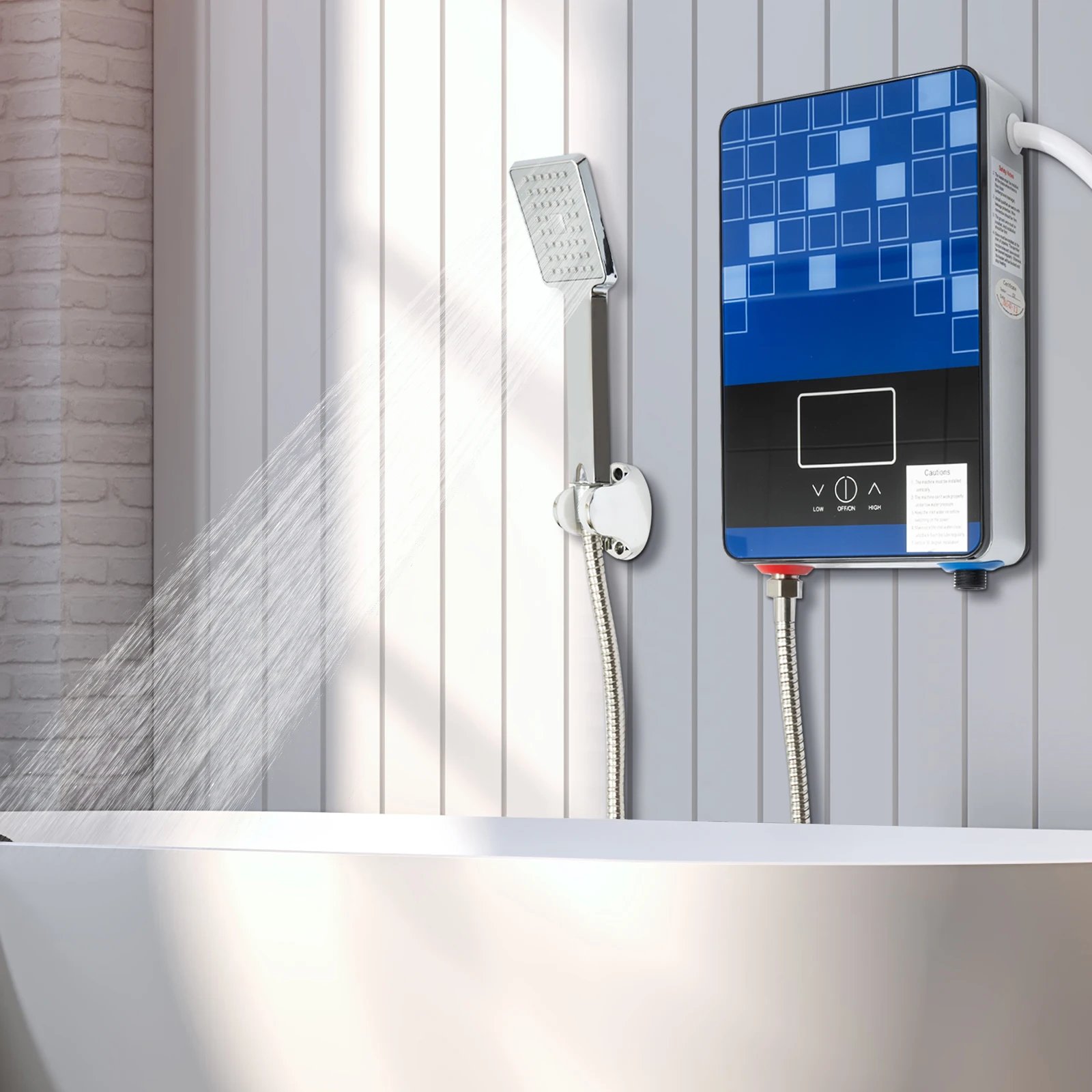

Shower and Bracket: Our product is equipped with a shower and bracket, so you do not have to buy another, more economical.
Touch Botton: You can start it with a single button, which makes it easier to operate when you showering.
Water Labeling: At the bottom of the product there are two hot and cold sockets labeled with red and blue to indicate hot and cold water respectively, very convenient for you to distinguish and install.
Notes
1.Please note that the water heater must be installed ground electrode, and it needs to be connected to the water before powering on. It is forbidden to heat the water heater without water or on frozen weather. Before use, please use your hand to test the water temperature to avoid scalding.
2.Before sales, in order to ensure product quality, the product will undergo water and electricity testing. If a small amount of water stains are found on the packaging bags and machine inlet and outlet, it is a normal phenomenon.
3.This product must be connected with an air circuit-breaker(not included), not a plug-in socket.
4.After a period of use, there will be water quality in the water heater, which will cause uneven heating, and it is easy to burn out the main board. If the customer does not use it for a long time, it is recommended to recoil it if it is used again. There is a good suggestion, that is, customers can purchase and install a filter at the place where the water enters, just like the tap water we use to filter out the scale and miscellaneous juice, which is conducive to the long-term normal use of the water heater.
5.Please combine the length of the cold water pipe, shower location, and height as well as the location of the power cord to determine the installation location in advance.
6. Water pressure requirements: municipal tap water can generally, such as slow water flow at home, the water flow is small, or the roof water tower water supply generally not have enough water pressure, the need to add a booster pump(not included).
7. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
