Description
Specifications
Model: Rccom 125A
Style: Modern
Color: Black
Assembly Required: Yes
Material: Aluminum, Iron, Plastic, Rubber, Cast Iron
Max. Power: 1900W
Max. Speed: 6500r/min
Max. Torque and Speed: 3.5N.m, 5000r/min
Fuel Tank Capacity: 1.3L/43.96oz
Displacement: 52CC
Noise: ＜120dB
Fuel Consumption Rate: ≤0.6L/20.29oz/H
Impact Frequency: 1500Times/min
Engine Model: 44-5
Engine Type: Single Cylinder, Air-cooled, 2-Stroke
Power Source: Gas Powered
Fuel Type: Mixed Oil (Gasoline: Two-stroke Oil = 25:1)
Impact Energy: 20-55J
Carburetor Type: H119-6A-00-210
Sparker Type: BM6A
Starter System: Hand Pull Start
Handle Length: 27cm/ 10.62in
Length from Collet to Pointed Pickaxe Bottom: 31cm/ 12.2in
Overall Product Length With Shovel: 1.08m/3.54ft
Overall Product Length With Pointed Pickaxe: 95cm/ 37.4in
Overall Product Width: 40cm/ 15.74in
Package Size: 76*39*35.5cm/ 29.92*15.35*13.98in
Net Weight: 20kg/ 44.09 lbs
Gross Weight: 24kg/ 52.91lbs

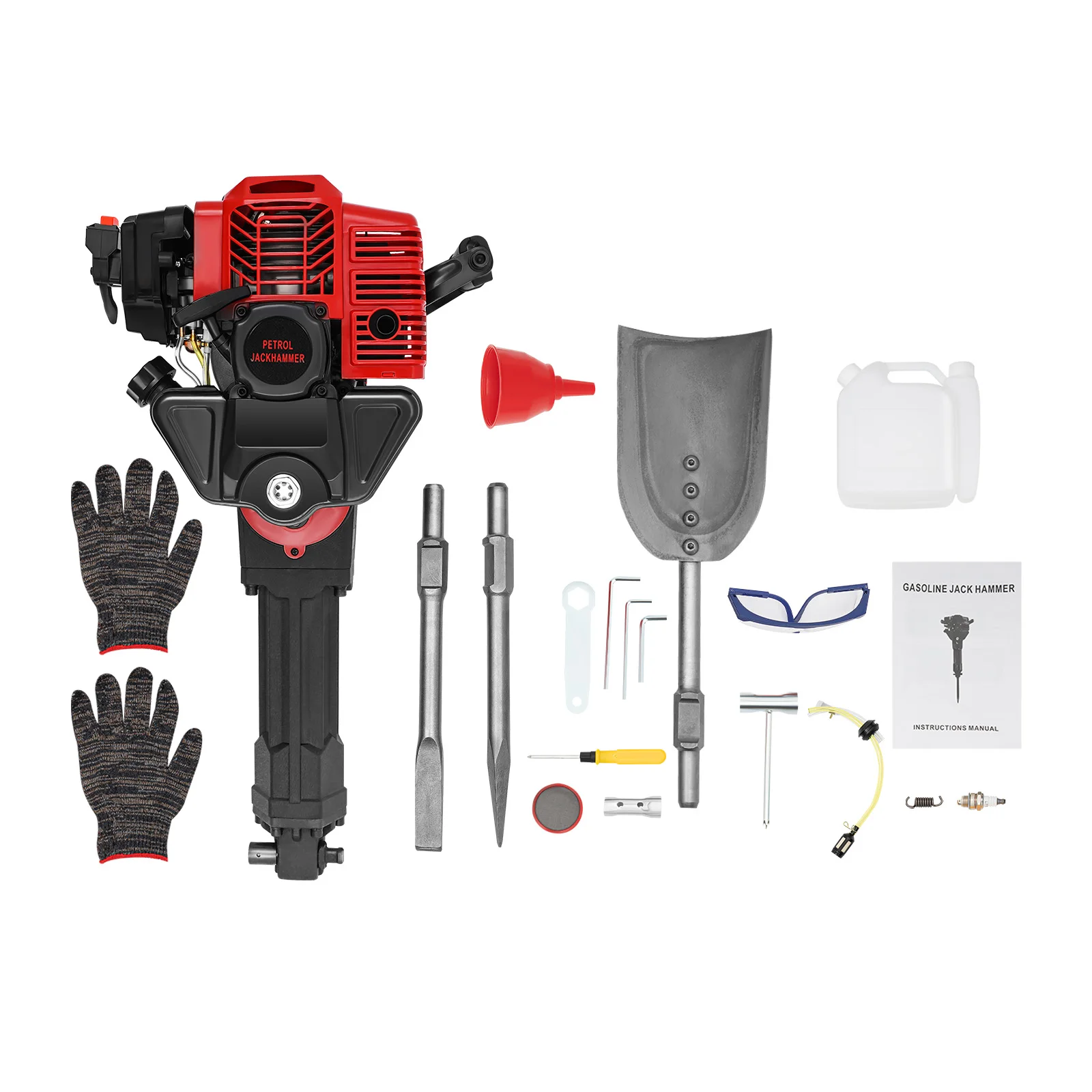

Package Included
1* Main Body
1* Fuel Oil Mixing Bottle
1* Shovel
1* Pointed Pickaxe
1* Flat Pickaxe
1 Pair* Goggles
1 Pair* Gloves
1* Funnel
1* English Manual
Other Accessories for Use
Description
With this portable garden tree digger, tree transplanting is no longer a trouble! Its strong power and different types of head can make you do your job easily and meet your different needs. Efficient fuel utilization will not waste your money, it is a practical and worthwhile product!
Key Features
Sturdy and Durable: The product is made of high-quality aluminum, iron, and plastic, with high strength, heat resistance, wear resistance, excellent insulation properties, and long service life.
Multi-functional: It is equipped with three kinds of heads: wide shovel, pointed pickaxe, and flat pickaxe, which can not only dig trees and cut roots, but also carry out operations such as land trenching, and tamping.
High Efficiency: With strong power (1900W), it has high speed (6500rpm), impact frequency (1500times/min), and impact energy (20-55J), which can provide it with powerful strength and make your excavation work easier.
Easy to Use: The convenient hand-pull starter and thickened rope pulley allow you to quickly start the product. The flameout switch and throttle switch are convenient for you to operate and control this machine.
Good Heat Dissipation: Multiple heat dissipation holes around the machine ensure timely heat dissipation of the engine and prolong its service life.
Energy and Money-saving: It is equipped with a diaphragm carburetor that can fully burn gasoline, consuming less than 20.29oz of fuel per hour, so it can save you costs and bring you more convenience.
Low Noise: Compared with other excavators, it generates less friction during operation and has low working noise (＜120dB), so it will not affect your working mood.
User-friendly Design: Two ergonomic handles wrapped with anti-slip rubber give you a comfortable grip without slipping, absorb shock and reduce hand fatigue even in long-term use for better balance and excellent drilling performance.
Protective Packaging: To prevent the product from being damaged during transportation as much as possible, this product uses foam that can effectively resist normal compression and drops.
Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Details
Gloves and Goggles: They make it safer for you to carry out digging operations.
Cast Iron Collet: It can firmly fix the shovel and prevent it from falling, ensuring your safety.
Toolkit Bag: You can pack all the tools inside to prevent loss or omission.
Large Fuel Tank: Its large capacity (43.96oz) allows you to get rid of the trouble of frequent refueling and ensures long working time.
Visual Fuel Tank Window: It allows you to easily observe the remaining fuel, so you can add fuel in time.
Aluminum Gearbox: It ensures strong power and good performance so that the machine can run smoothly.
Application
It is widely used in gardens, such as tree ball lifting and tree root cutting. It is suitable for a series of piling projects such as highway guardrails, farm fences, forestry seedlings, vineyard supports, vegetable planting, orchard supports, and fence protection.
Installation of Shovel
1.Put in the shovel.
2.Pull out the latch outwards.
3.Rotary the latch to lock the shovel head.
4.After installation, check whether it is installed in place.
Notes
1.Please read the operating manual and label completely before use, and pay particular attention to the safety instructions included.
2.Please note that when starting the cold machine, close the damper, and open the damper when the machine is hot. After the machine is running normally, keep the damper open.
3.Please always wear gloves and goggles to protect your hands and eyes. Please note that the product does not include any fuel.
4.Please do not use the shovel part toward people and keep a distance from the operating machine.
5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
