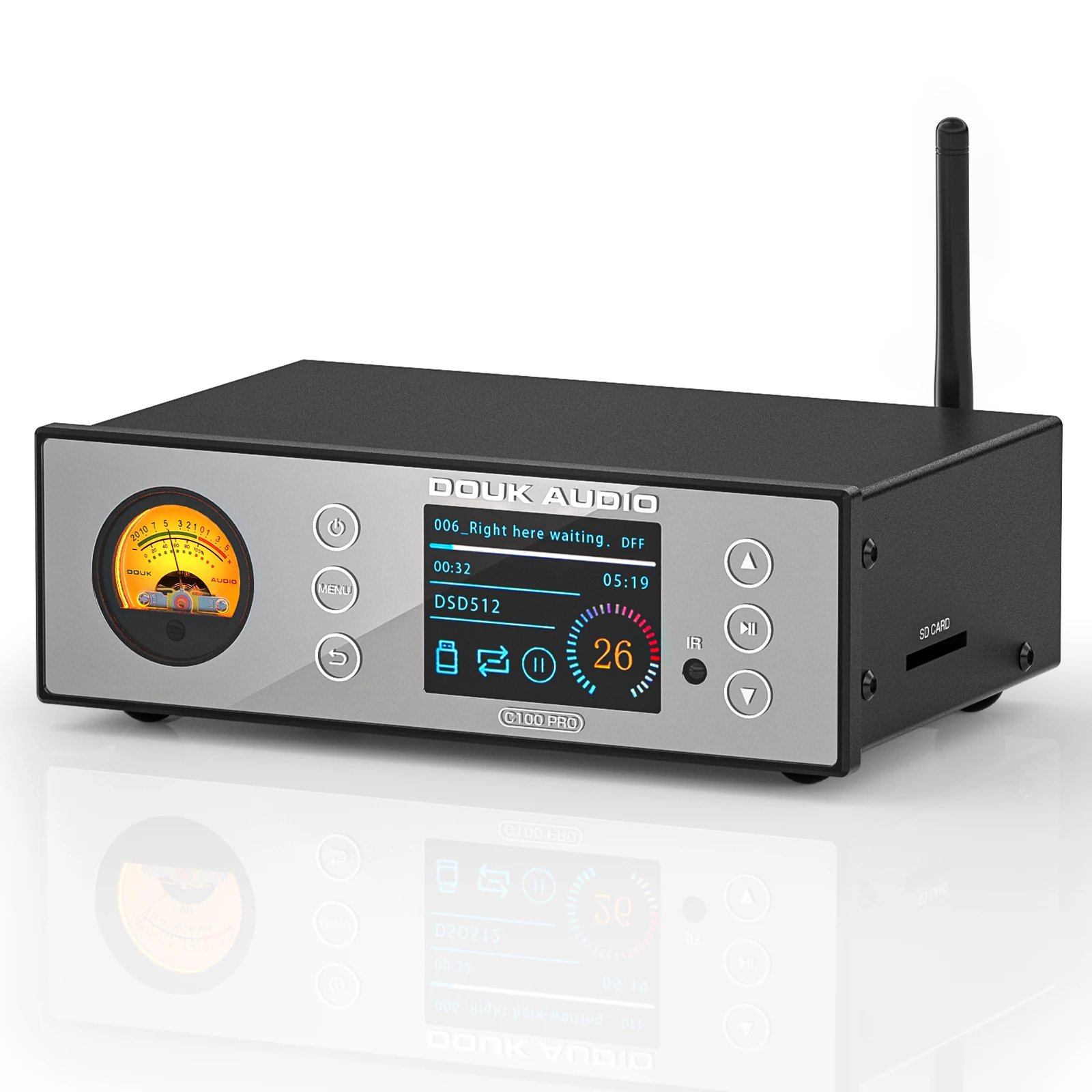

Douk Audio C100 PRO Hi-res ESS9038 Preamp Digital Bluetooth 5.0 Receiver S/PDIF COAC/OPT Adapter Streamer Player DSD512

Features

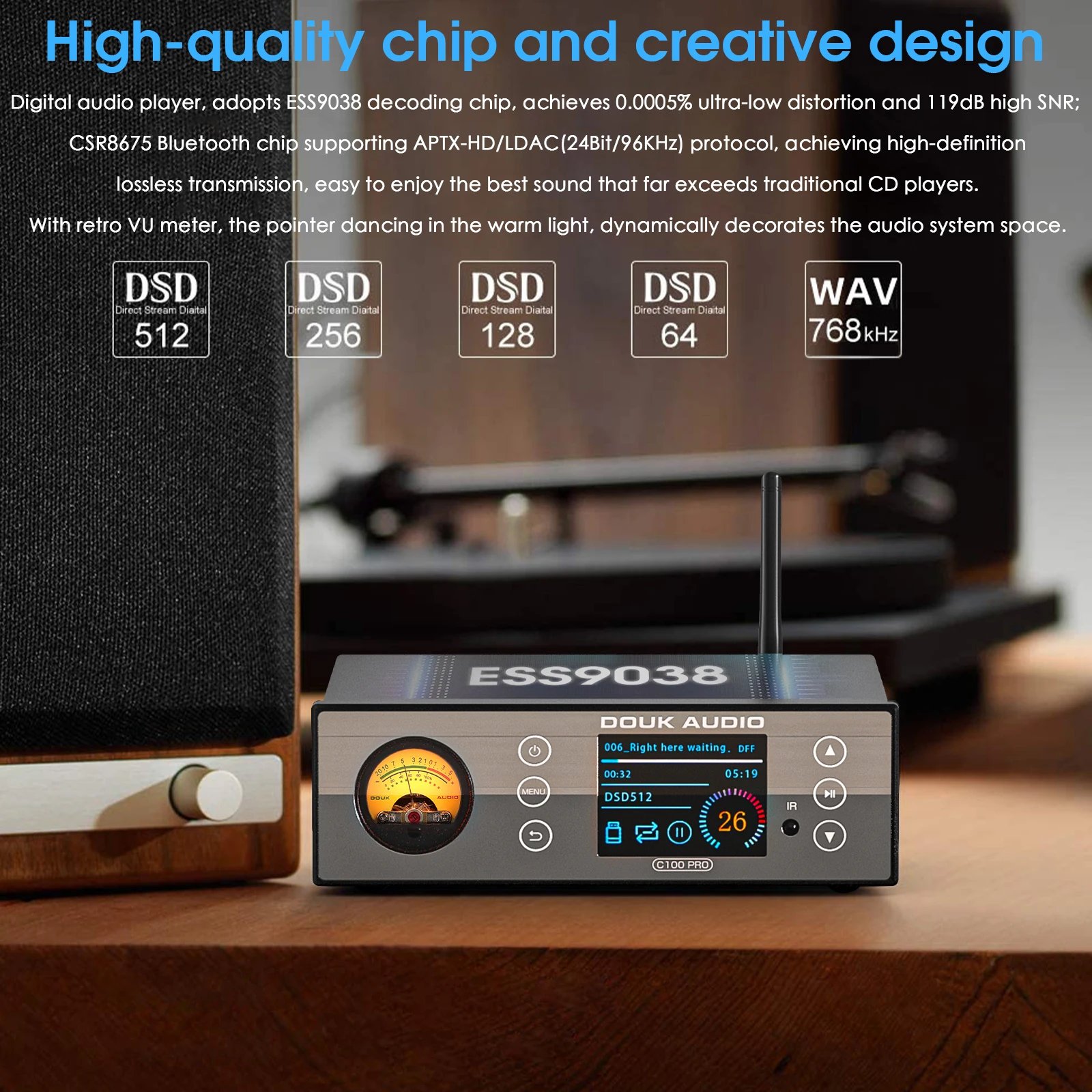

• High-quality chip and creative design: digital audio player, adopts ESS9038 decoding chip, achieves 0.0005% ultra-low distortion and 119dB high SNR; CSR8675 Bluetooth chip supporting APTX-HD/LDAC(24Bit/96KHz) protocol, achieving high-definition lossless transmission, easy to enjoy the best sound that far exceeds traditional CD players. With retro VU meter, the pointer dancing in the warm light, dynamically decorates the audio system space.

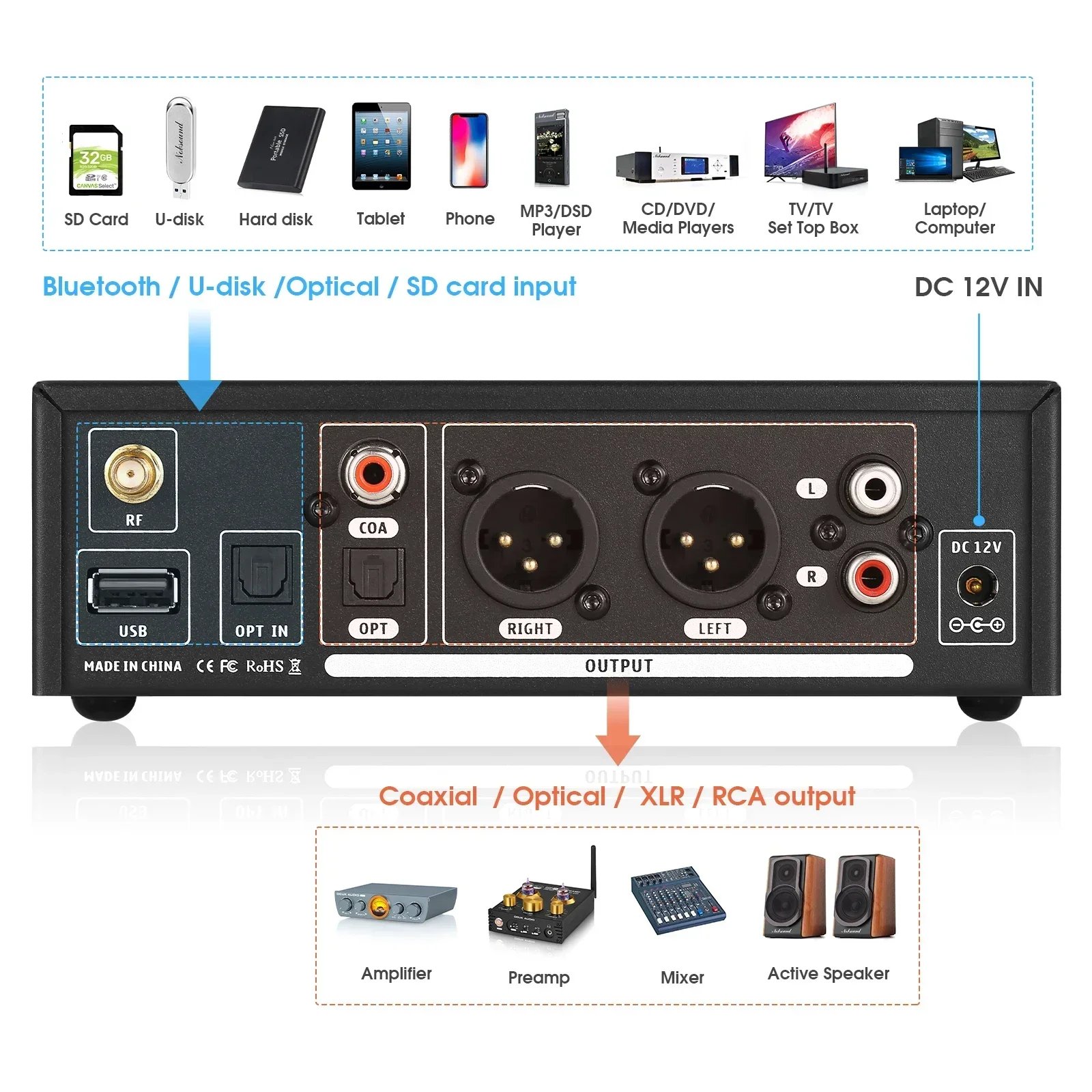

• Wireless&Wired inputs: With Bluetooth 5.0/Optical/U-disk/hard-disk/SD card inputs, compatible with audio devices such as mobile phones, MP3 players, computers, tablets, etc; Bluetooth input supports displaying lyrics in the screen synchronously; U-disk/hard drive and SD card input, plug and play, easy to read various digital signals.

• Multiple audio outputs and ultra-high sound quality: with S/PDIF coaxial and optical digital outputs (up to 24bit/192Khz/dop64), RCA and balanced XLR outputs. Support 32Bit/768kHz high bit rate WAV digital audio stream, ISO /  DFF / DSF (up to DSD512) and DTS various music formats, enjoy HIFI music even without wired audio source.

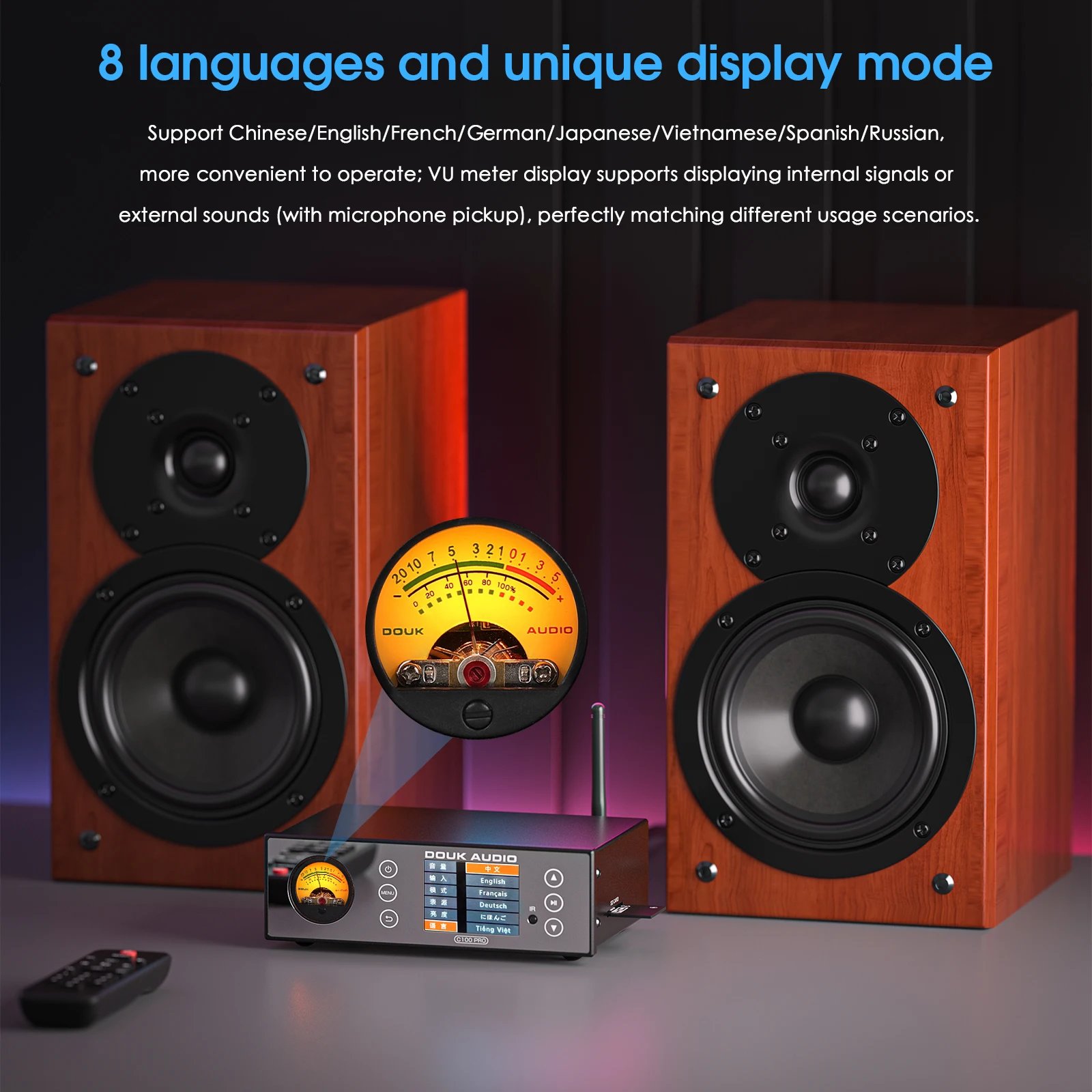

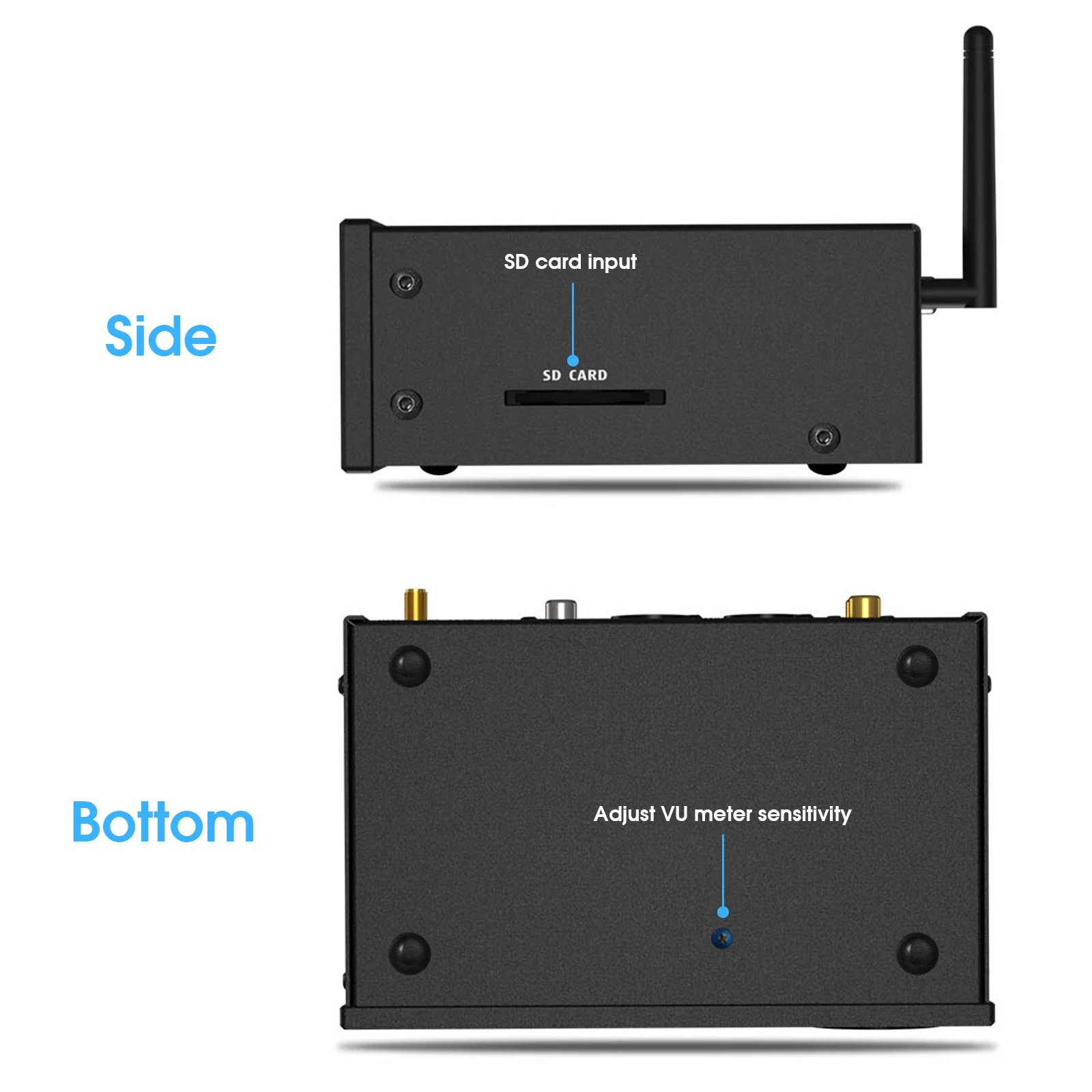

• 8 languages and unique display mode: support Chinese / English / French / German / Japanese / Vietnamese / Spanish / Russian, more convenient to operate; VU meter display supports displaying internal signals or external sounds (with microphone pickup), perfectly matching different usage scenarios.

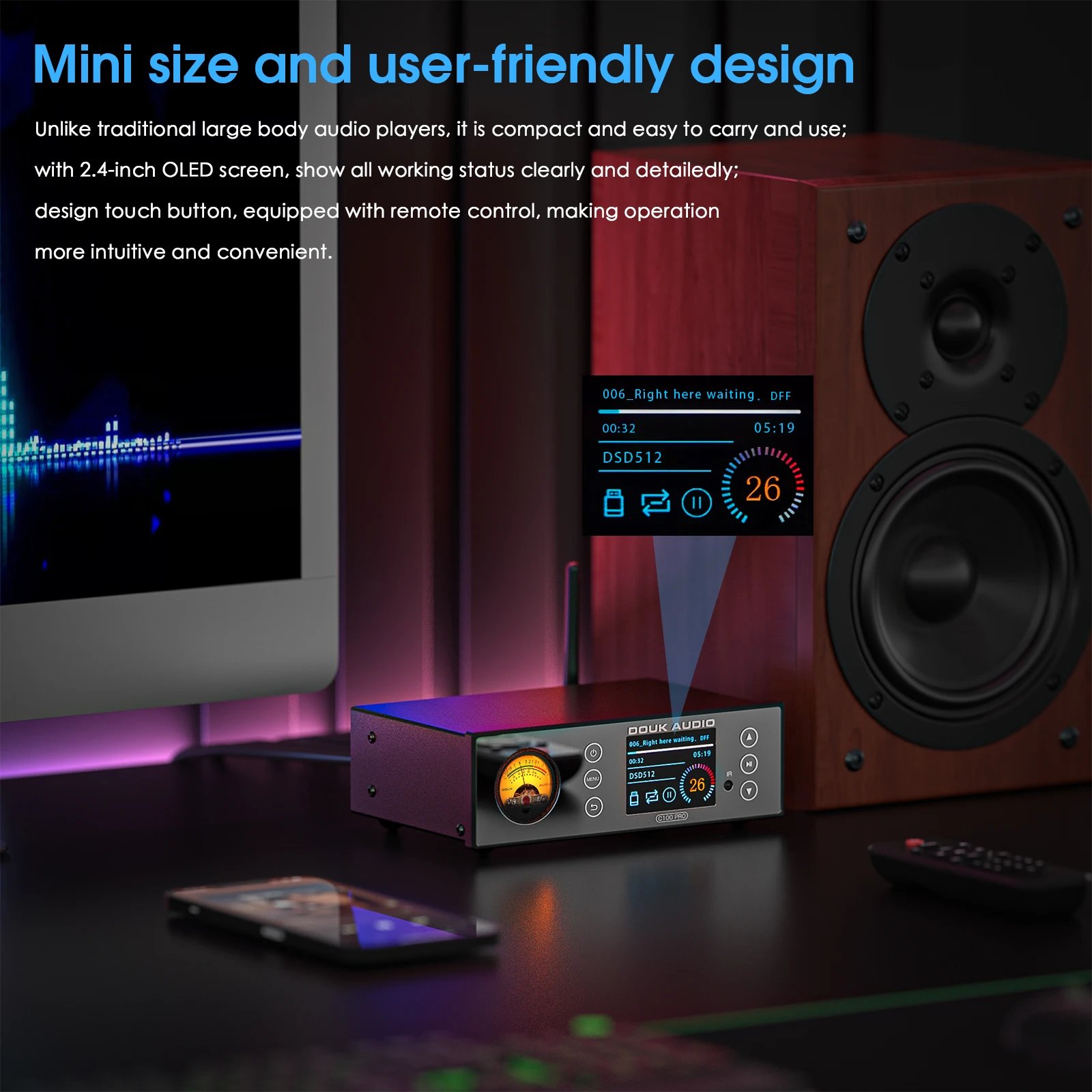

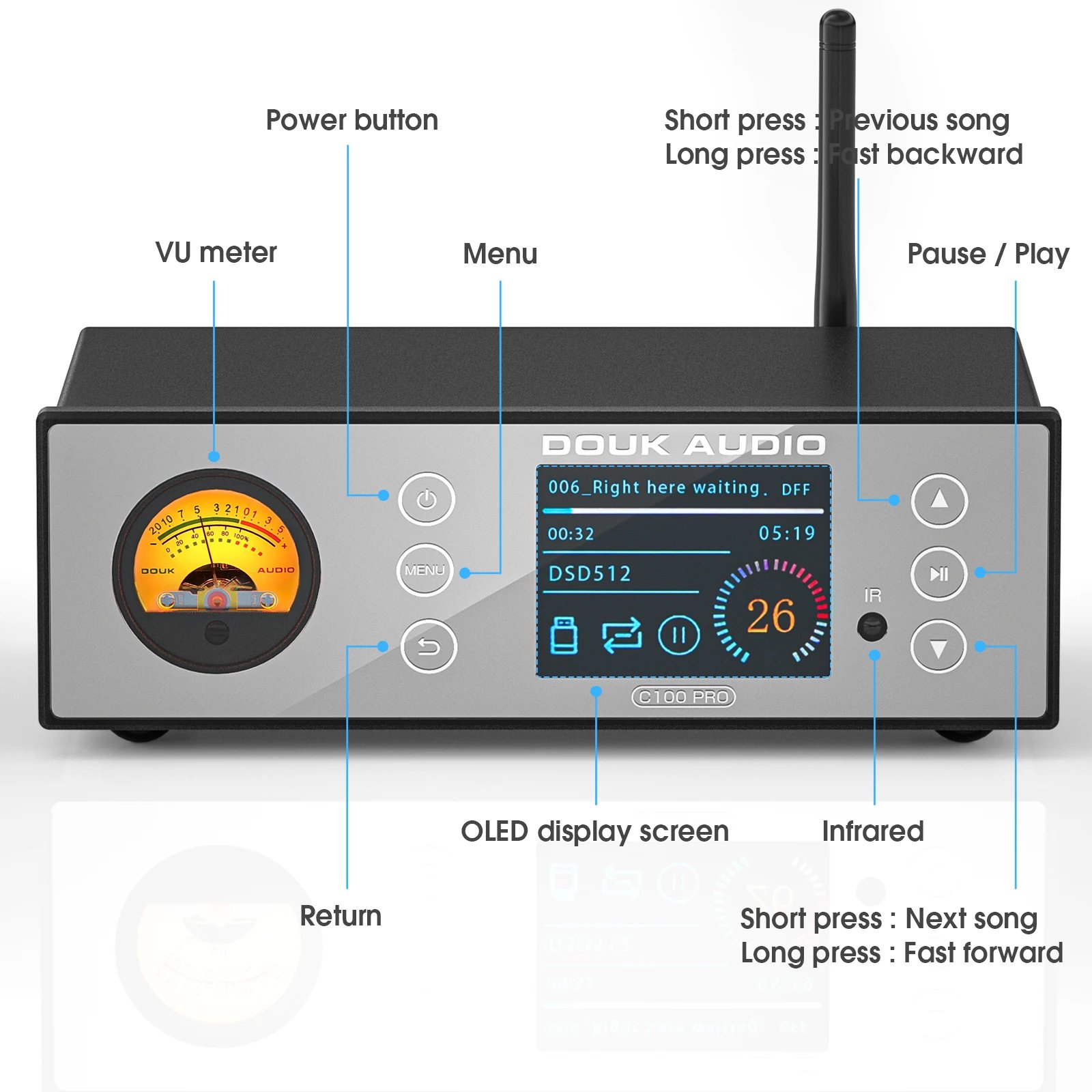

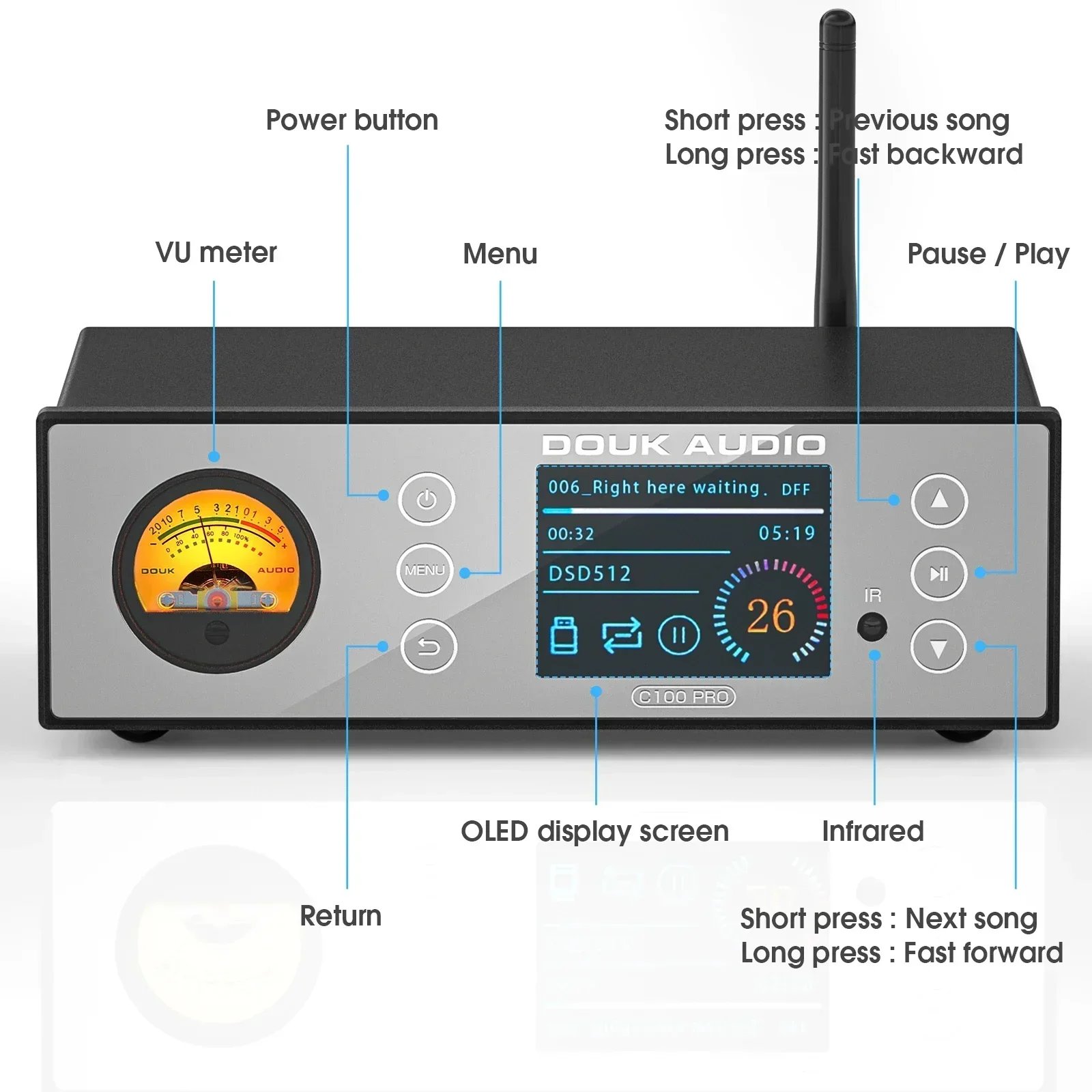

• Mini size and user-friendly design: Unlike traditional large body audio players, it is compact and easy to carry and use; with 2.4-inch OLED screen, show all working status clearly and detailedly; design touch button, equipped with remote control, making operation more intuitive and convenient.

Parameters

• Brand: Douk Audio

• Model: C100 PRO

• Audio input: SD card / U-disk / Hard-disk / Bluetooth 5.0 / Optical

• Audio output: Coaxial / Optical / Stereo RCA / Balance XLR

• Music files supported and max. Sampling rate support

• Firmware upgrade: support U-disk update

• USB interface: support USB 3.0 and below

• SD interface: support CLASS10 and above

• CUE playback: support WAV / APE / FLAC

• SPDIF output: max. 192KHz 24Bit / DOP64

• Hard-disk format supported: FAT32 / exFAT

• Max capacity of hard-disk: 2TB

• Max capacity of U-disk / SD card: 512G

• Max output level: 2.2Vrms

• File system: Multi partition not supported

• Input sensitivity: 0dBFS

• Frequency response:
  RCA 20Hz-20KHz(±0.3dB)
  BAL 20Hz-20KHz(±0.2dB)
• Background noise:
  RCA output -135dBV
  BAL output -138dBV
• SNR:
  RCA≥118dB
  BAL≥119dB

• Distortion: 0.0005%

• Working voltage: DC 12V/ ≥1.5A

• Dimensions(W*D*H): 168*106*53mm / 6.61*4.17*2.09in

• Package dimensions(W*D*H): 280*210*80mm / 11.02*8.27*3.15in

• Net weight: 686g / 1.52lb

• Package weight: 900g / 1.98lb

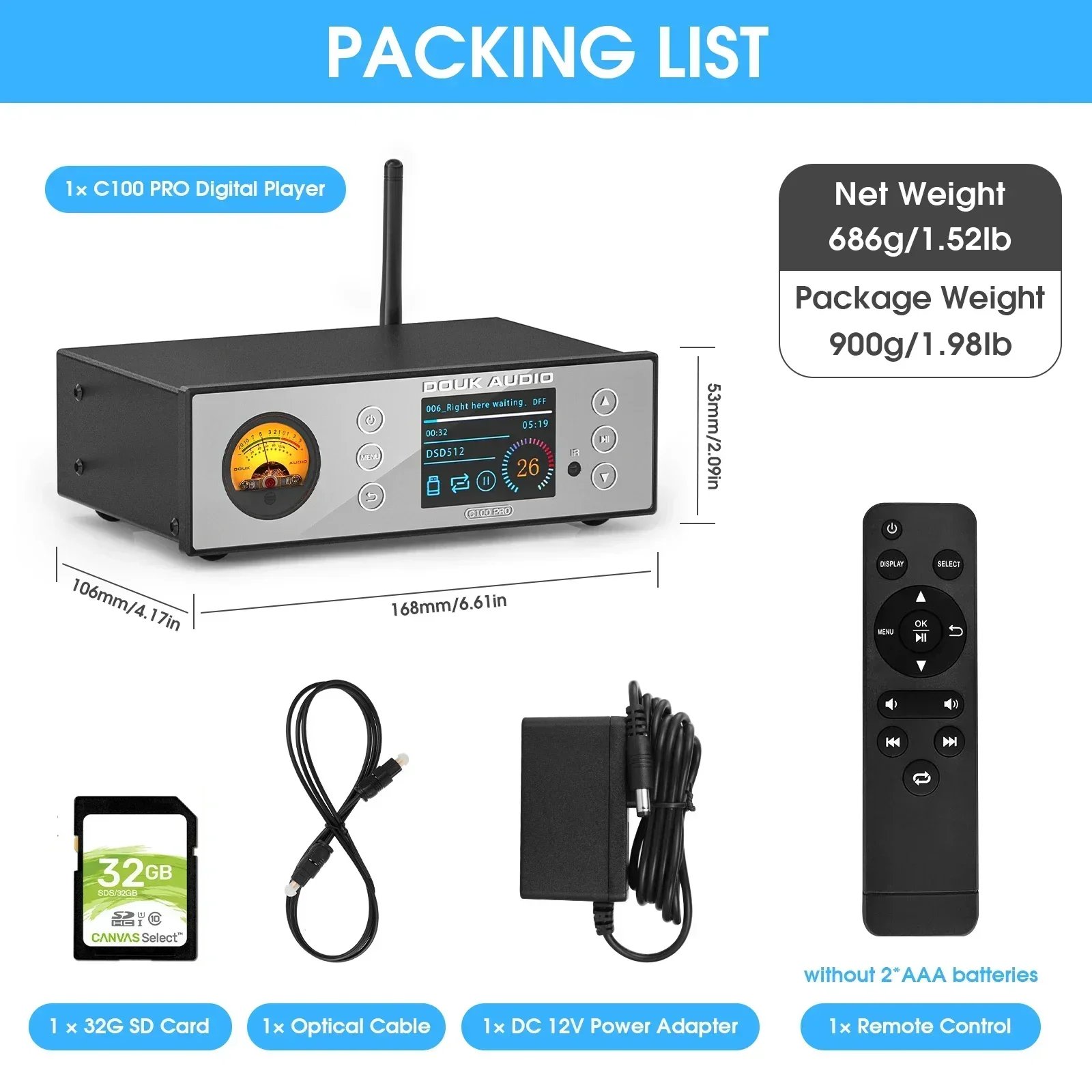

• 1 × C100 PRO Digital Player

• 1 × DC 12V Power Adapter

• 1 × 32G SD Card

• 1 × Optical Cable

• 1 × Remote Control
