Description

Feature

1: Support one HDMI-compatible input,one Coaxial input,one Optical input,one PC-USB input,one USB 2.0input.You can switch different signal sources randomly by Button or Remote.

2: Support one HDMI-compatible(ARC) output,one 5.1ch analog audio output of RCA.

3: HDMI-compatible resolution upto 4Kx2K@60hz,support 3D and HDR.

4: Support HDMI 2.0b,compatible with HDMI 1.4.

5: Support HDCP 2.3,compatible with HDCP 2.2.HDCP 1.4.

6: Supported audio farmat:FLAC/APE/DTS/DTS-ES/AC3/WAV/AAC/WMV/MP3/M4A etc.

7: Support 5.1ch/2.0ch output mode,FL/FR active when 2.0ch output mode.

8: Support IR or Button switch input source,turn on corresponding LED.

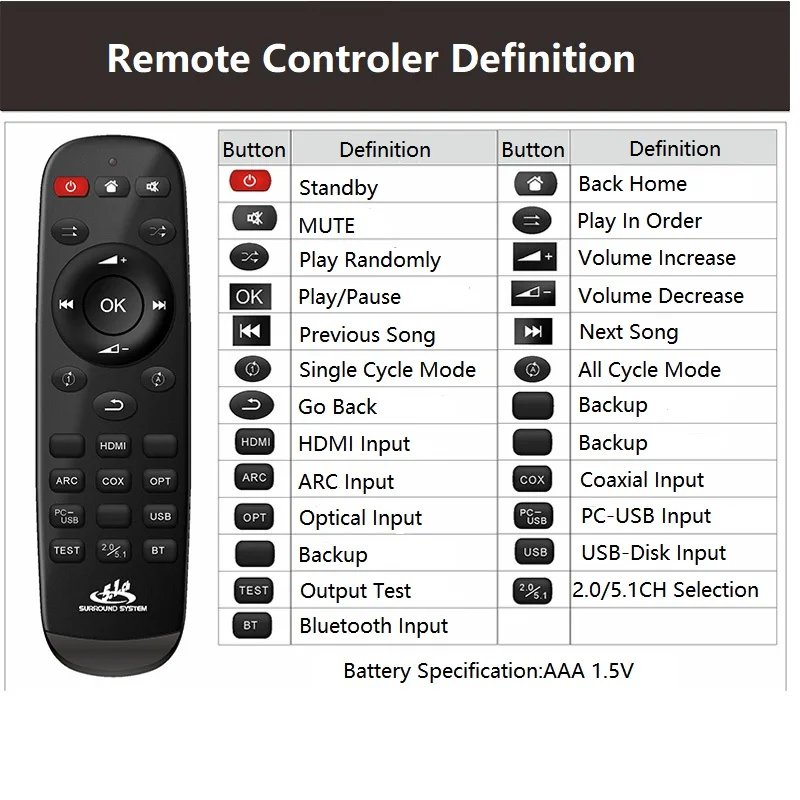

9: Support IR or Button to turn the Volume and select songs

10: Support individual volume adjustment via remote.

11: The power-off memory function, automatically switch to the last used signal channel, USB player memory before the power-off.

12: Users can upgrade firmware via U-Disk when manufacturers have updated.

13: The use of DC 12V/1A external power adapter power supply, wide voltage can use DC (7-24V) power supply.

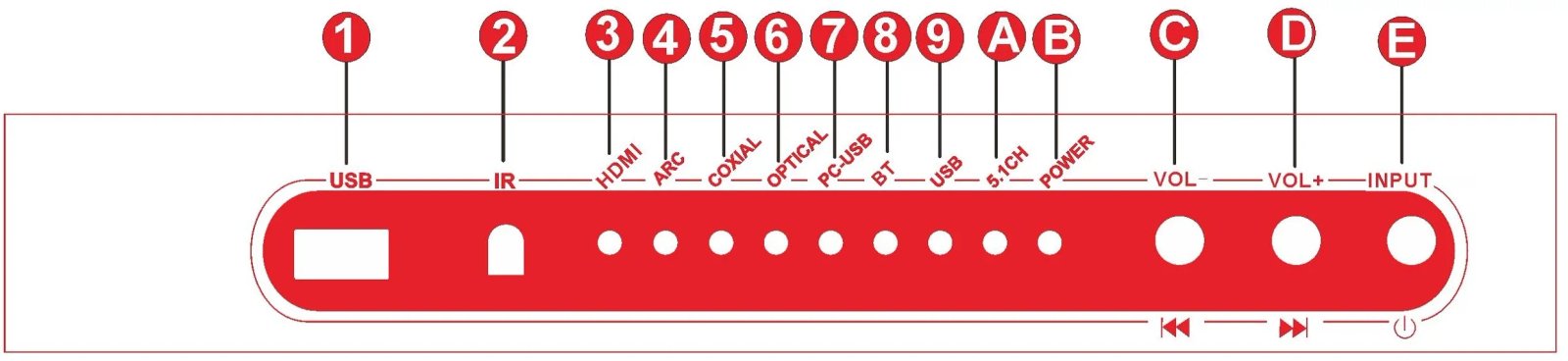

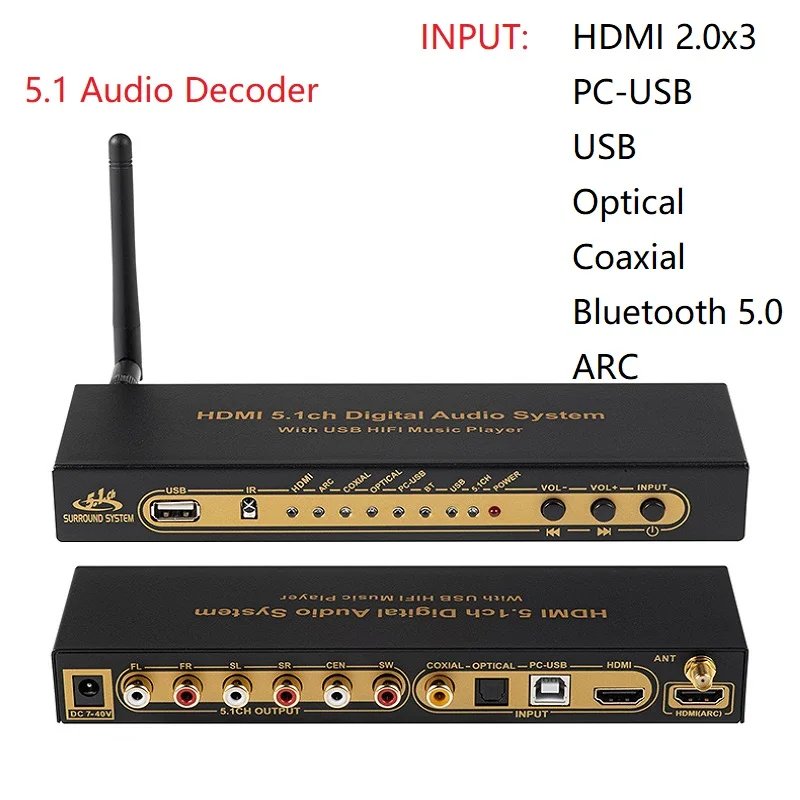

Front Panel Definition :

1.USB 2.0 port HDMI-compatible mode LED    2: IR receive port

3:Coxial mode LED    4 : ARC mode LED

5:Coxial mode LED    6: Optical mode LED

7:PC-USB mode LED    8 : USB player mode LED

9:Bluetooth mode LED    A:5.1ch/2.0ch mode LED

B:Power LED

C:Volume decrease/Previous song

D:Volume increase / Next song

E:Input source switch button/Standby mode

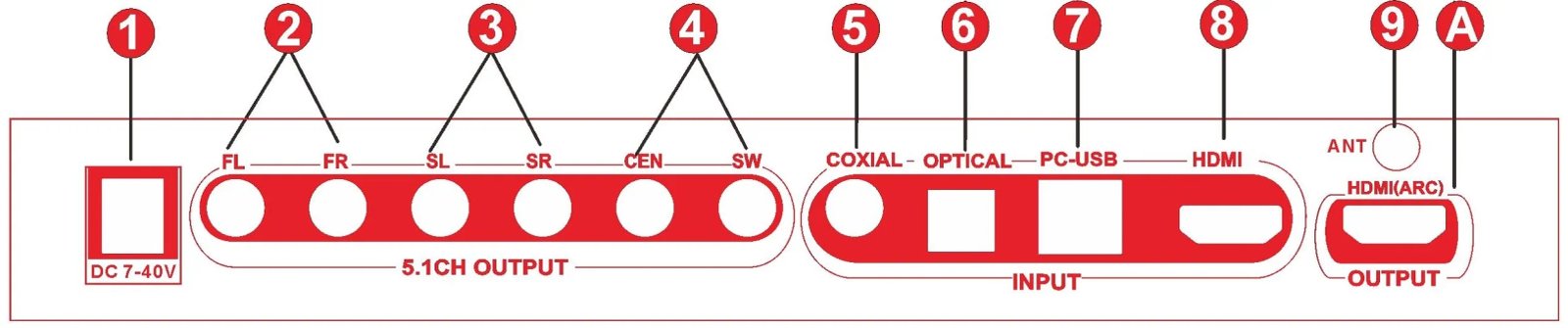

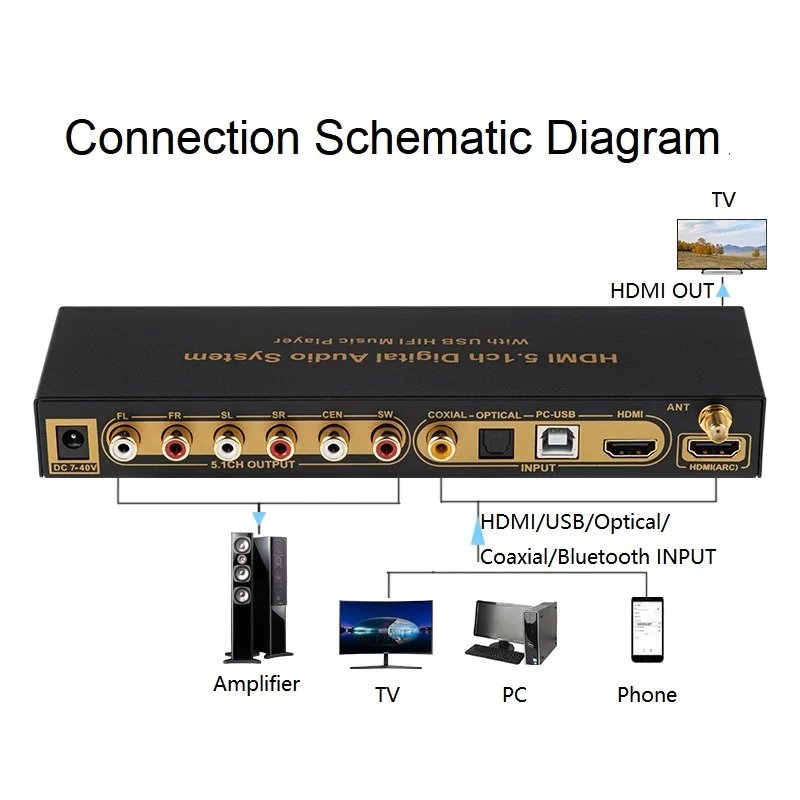

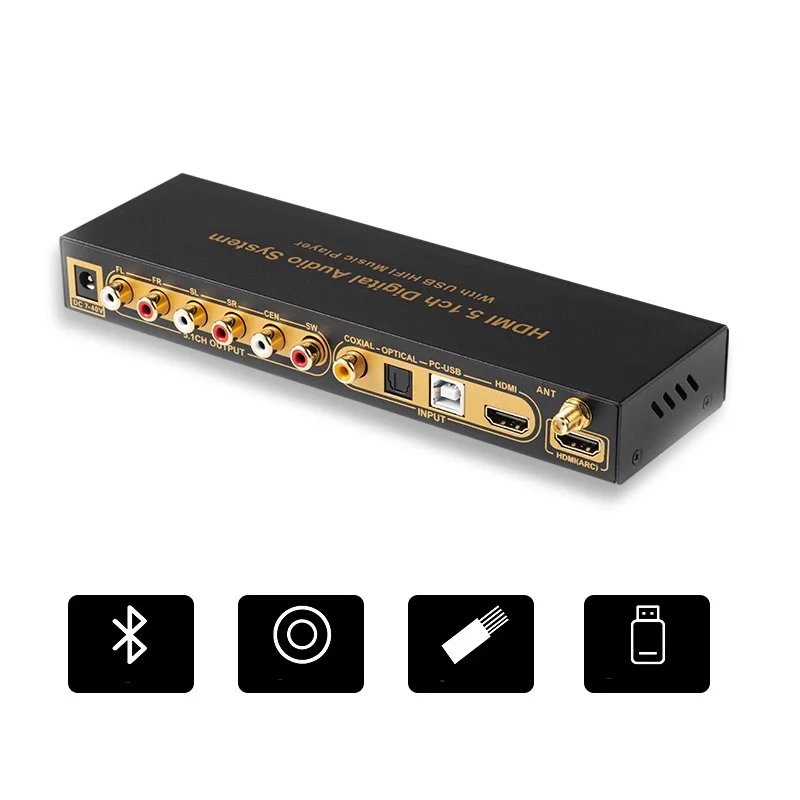

Rear Panel Definition

1 : DC-12V Power input port    2 : Front channel(FL/ FR)

3: Surround channel(SL/SR)

4: Center channel(CEN)/Subwoofer channel(SW)

5: Coaxial input port    6: Optical input port

7: PC-USB Soundcard input port

8: HDMI-compatible input port    9 : Bluetooth antenna

A: HDMI-compatible output port (ARC)

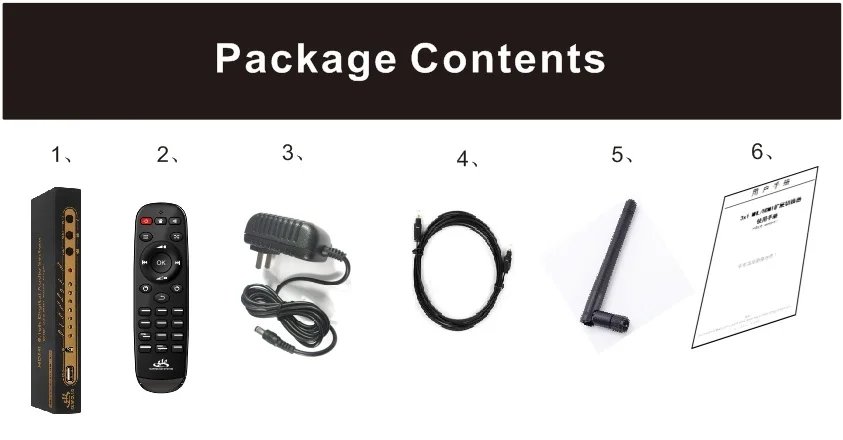

1 : Decoder machine x1                  2 : Infrared remote controller x1

3 : DC-12V/1A power adapter x1    4 : Digital optical fiber cable x1

5 : Bluetooth Antenna x1                 6 : User manual x1

If you use PC-USBlease install the CM-108 driver, or contact us to sent you the driver.

Specification

※ HDMI-compatible version: HDMI 2.0b&HDCP2.3

※ HDMI-compatible resolution:4Kx2K@60fs,1080p/1080i/720p/576p/576i/480p/480i@24/50/60fs

※ HDMI-compatible MAX data rate: 6Gbps

※ HDMI-compatible input&output TMDS signal:0.5~1.5Volts p-p(TTL)

※ HDMI-compatible input&output DDC signal:5Volts p-p (TTL)

※ HDMI-compatible input&output transfer distance:<20m AWG26 HDMI standard cable

※ Support Audio format:dts,dts-es,dts-wav,ac3,flac,ape,hdcd,aac,mp3,m4a etc

※ DSP sample frequency range:24~192 KHz DSP Bit rate range:16-24 Bit Digital input level:0.1~1 Volts p-p Analog output level(1kHz@0dB): >1.5V RMS

※ SNR @ OdB(CCIRZARM):>90dB Bluetooth distance:<15m

※ IR distance:<10m

※ Frequency response:20Hz-20KHz

※ Power adapter format Input:AC100V-240V 50HZ/60HZ, DC12V/500mA

※ Product/Package Dimension: (Lx Wx H) 209*70*27/228*150*46 (mm)

※ Product/Package Weight:370/600(g)

Note:USB flash need change to fat32 format when you use USB port

Opration Guide

1.Connecting all signal cable before power on. Blue LED will turn on about 12s;

2.Button operating functions:

INPUT : Short press switch input source(HDMI->ARC->COX->OPT->PC-USB-> BT->USB). (!) Long press(at least3s) to enter Standby mode.

VOL- :   Long press(at least 3s) to turn the volume down;Short press to select previous song.

VOL+ : Long press(at least 3s) to turn the volume up;Short press to select next song.

3.The LED of Front Panel Definitions:

POWER : Red.Power On indicator,normal ON;

5.1CH : Blue,ON for 5.1 ch output mode,OFF for 2.0ch output mode;

HDMI: Blue,ON for HDMI input mode;

ARC : Blue,ON for ARC input mode;

COX : Blue.ON for COX input mode;

OPT : Blue.ON for OPTI input mode;

PC-USB : Blue.ON for PC-USB input mode;

BT : Blue.ON for Bluetooth input mode;

USB 2.0 : Blue.ON for USB player mode;

4.HDMI output corresponding to HDMI inputs. USB-disc player can not display to HDMI output.

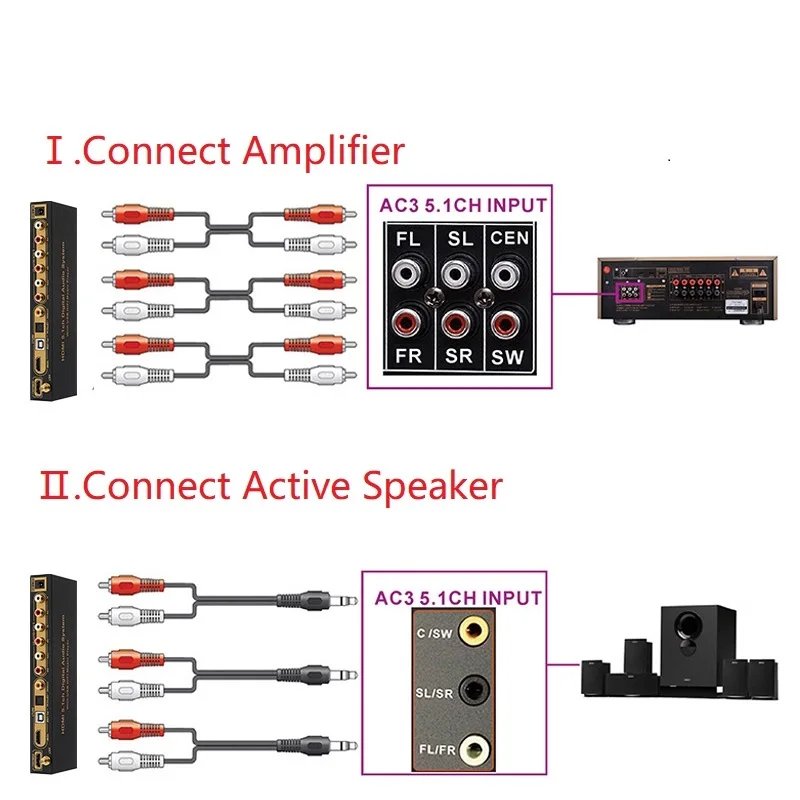

5.5.1ch and 2.0ch selection:

5.1ch mode: The LED of 5.1ch/2.0ch will ON.

2.0ch mode: The LED of 5.1ch/2.0ch will OFF. FL FR active only when 2.0 mode.

6.ARC function skill:

A. Set the HDTV or Projector to an external speaker.and audio output format select “RAW.

B. HDMI-compatible cable must be 19+1 pins.

C. The UD851B machine select ARC mode.

7.Bluetooth device name is :BT-5.1CH.

8.TEST function:Only used to test sound output of FL/FR/SL/SR/CEN,it is not 5. 1ch test.

9.Firmware update:

Users can update firmware by USB Disk.

Firstly copy firmware to USB Disk and insert to decoder,then power on or reboot, wait about 1 minutes until blue LED ON.
