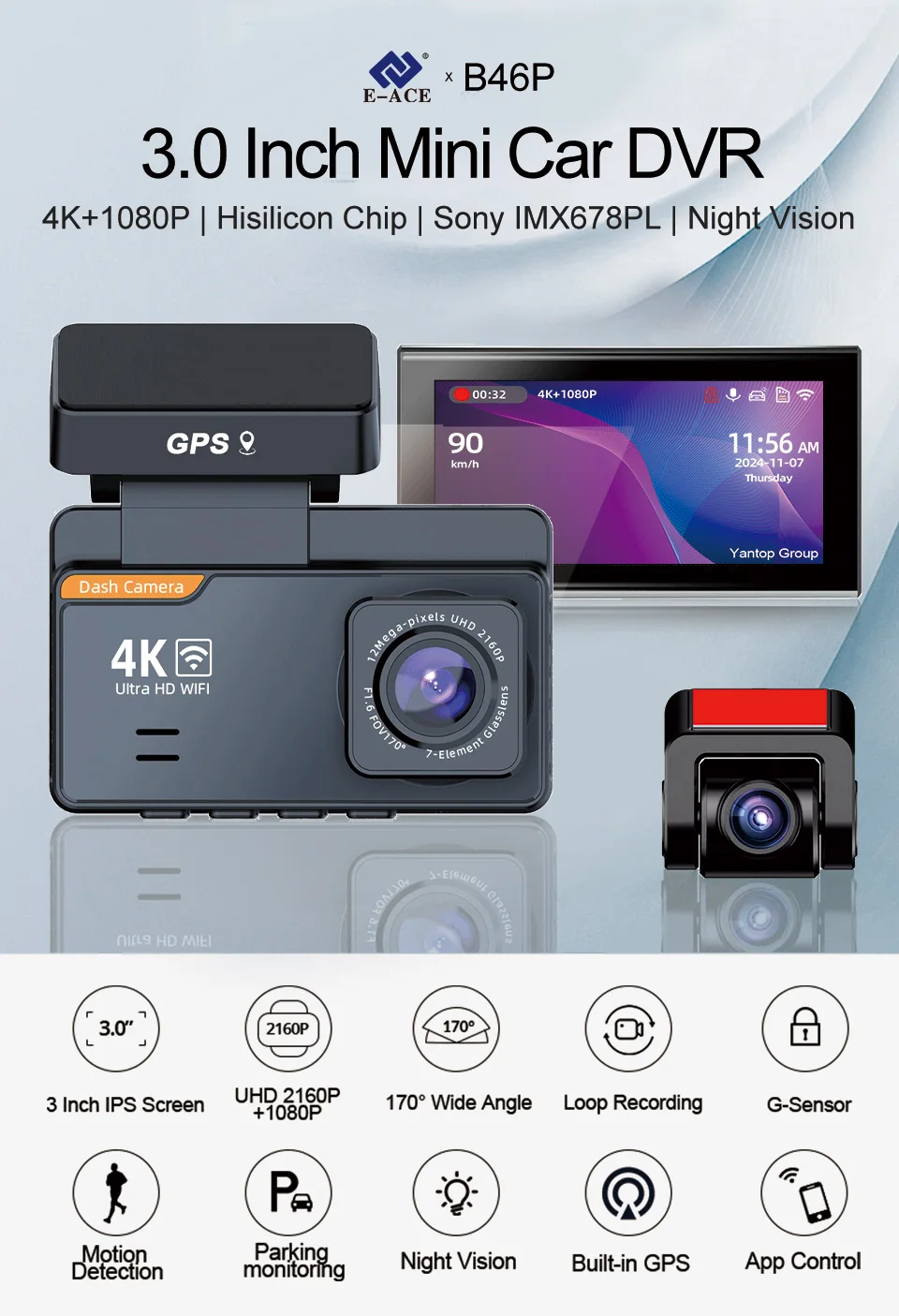

Description
➤Installation Type: Portable Dashcam suitable for all vehicles
➤Camera Sensor: Front 12MP + Rear 2MP
➤Camera Lens(Front): 6 Glass + 170 Degree Angle + F1.6 Aperture
➤Camera Lens(Rear): 4 Glass + 140 Degree Angle + F2.0 Aperture
➤Video Resolution(Front): 3840*2160P@25FPS
➤Video Resolution(Rear): 1920*1080P@25FPS
➤Photo Resolution: 12M
➤Video Code: H.264
➤Battery: Built-In supercapacitor and coin cell (Battery is very small, can not support working, only for save time&setting, please use original power charger when working)
➤OSD Languages: Support all languages at App.
➤Basic Features: G-Sensor, Cycle Recording, Parking Monitor, Time&Data Display, Wide Dynamic Range, ON/OFF Automatically
➤Memory Card: Micro SD Card, class 10 and 16GB to 512GB (Not included)
➤Rear Camera Upgrade: Support max 10 meters cable Rear Camera ➤Add Features: Night Vision, 3840x2160P front Camera, 4K video resolution, WiFi, Built-in GPS tracking

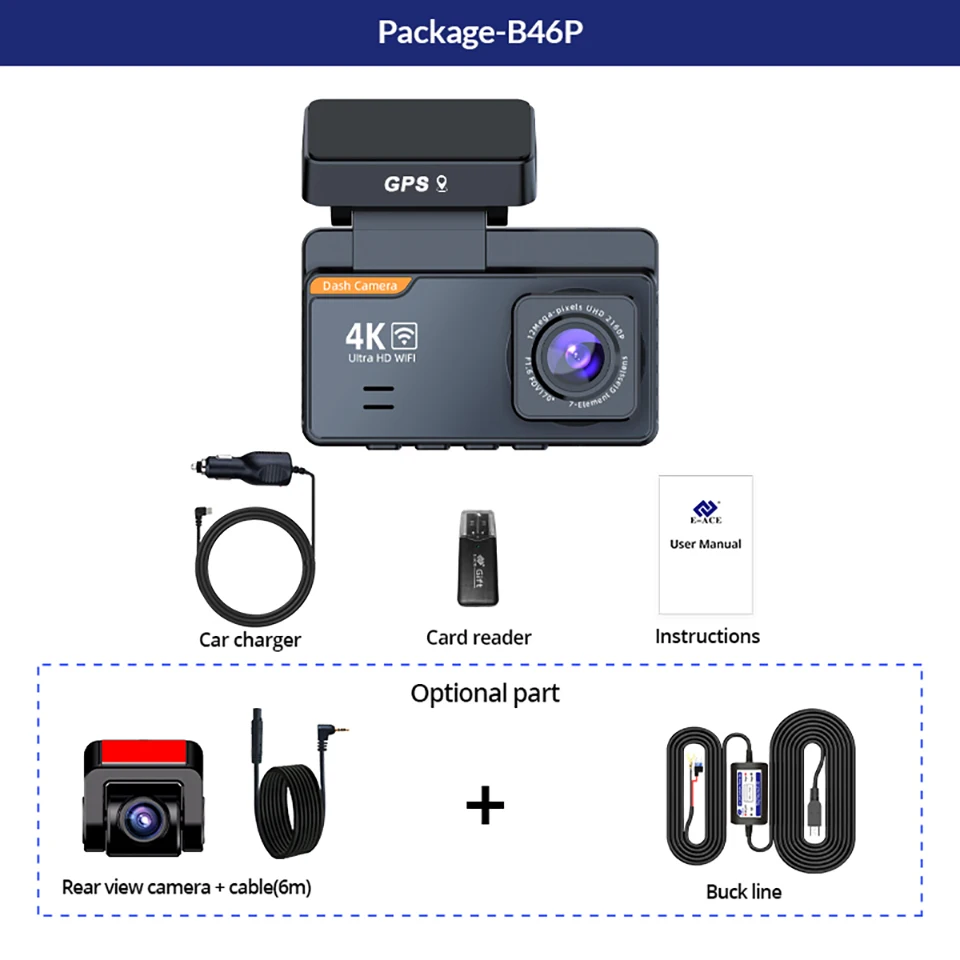

Packing List
-1 x Packaging box
-1 x 4K Dashcam with build-in GPS
-1 x Original Car charger
-1 x User manual
-1 x Gift
-1 x 1080P Night Vision Rearview Camera With 6 Meters Cable(Optional)
-1 x Buck Line For 24H Parking Monitoring(Optional)
Pay Attention
➤About 24h Monitoring:
The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
➤About Video:
Our Car DVR is 4K Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can’t support our DVRs work normally, if you can’t make sure you have good TF Card, please buy our Original TF Card together.
➤About Rear Camera:
Because the Chipset and Camera Sensor are different with other seller, we only guarantee that our Original rear Camera can work well with our Dashcam.
Main Features

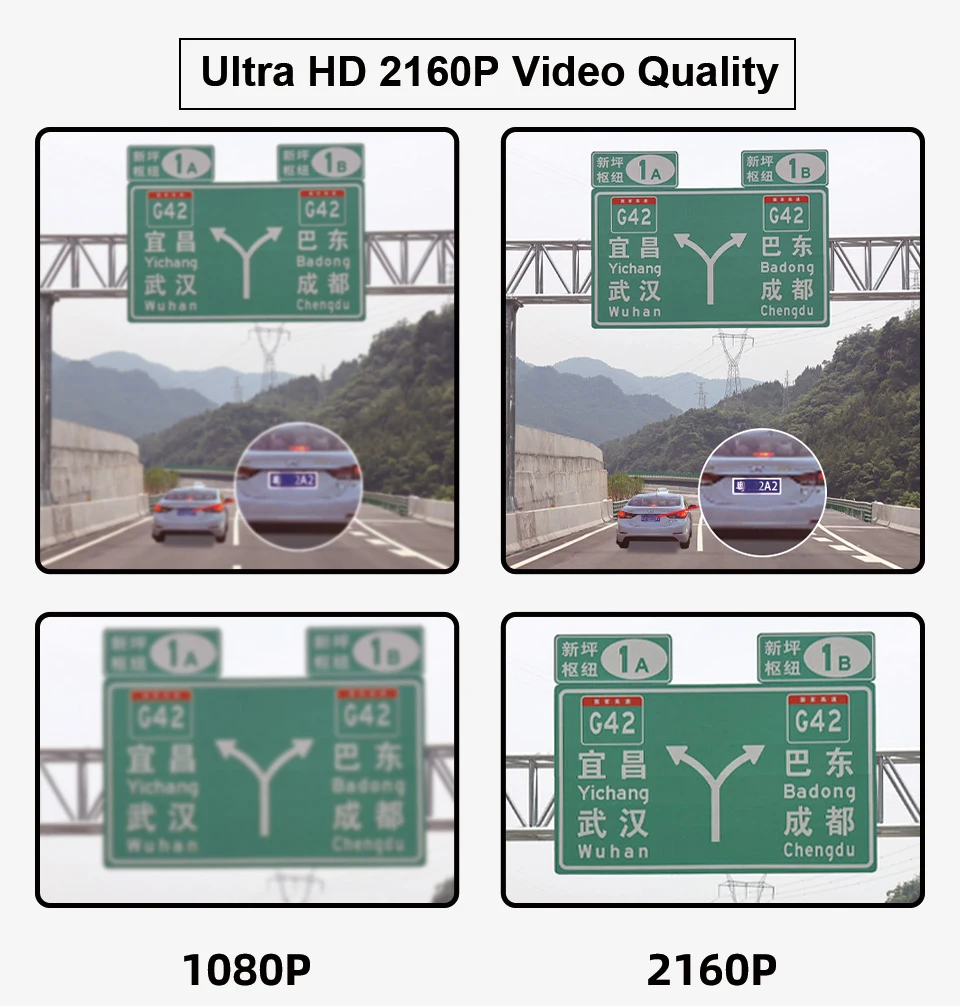

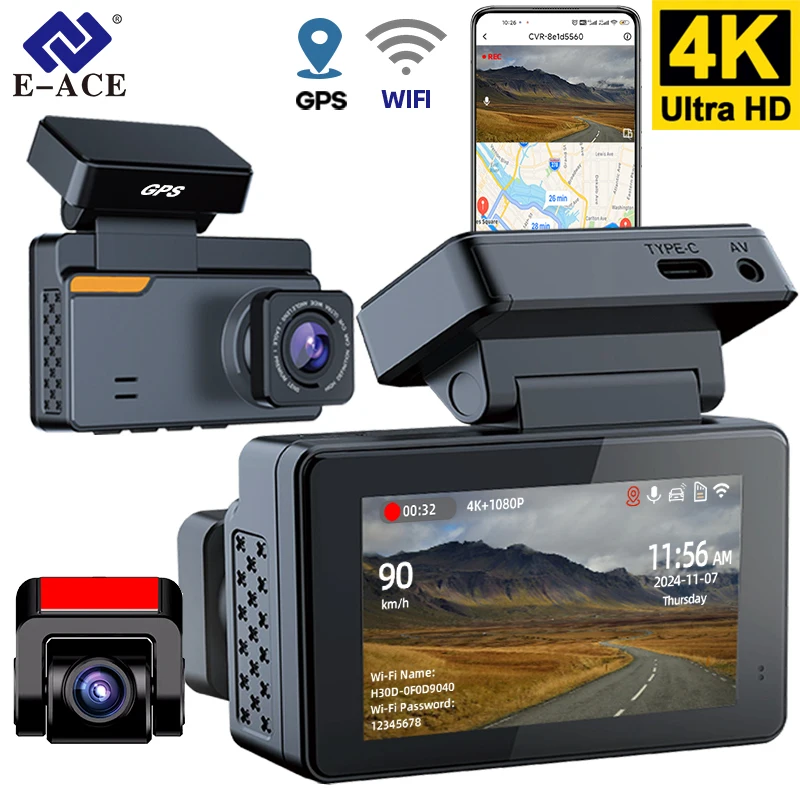

4K Ultra High Definition Video

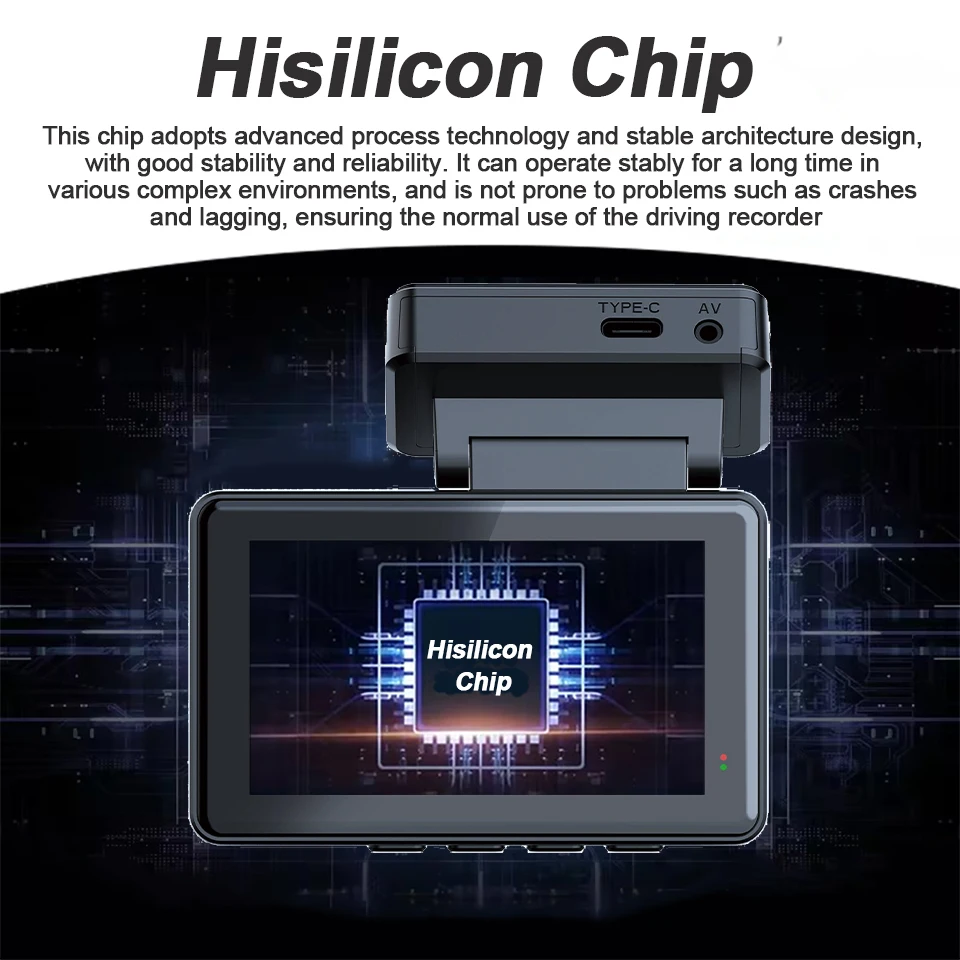

The B46P adopts HiSilicon Chip main processor and Sony IMX678PL image sensor. The front camera can achieve ultra-high-definition 3840x2160P shooting effect, and the rear camera can also achieve 1080P high-definition quality.
Whether it is in front of or behind the car, it can record detailed and clear road conditions for you, provide you with safe driving guarantees, or record interesting driving experiences for you.
High definition picture quality, Low-power design, uper strong system stability

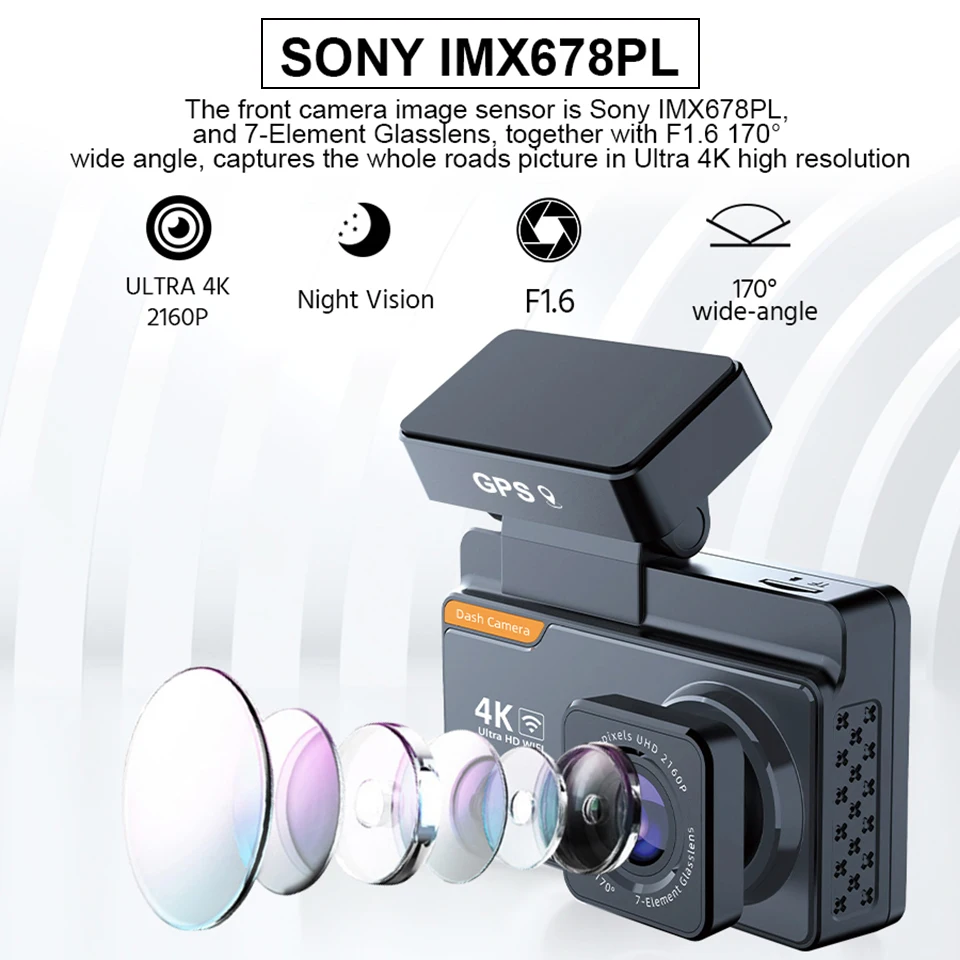

Sony IMX 678PL
The B46P delivers improved front 4K, thanks to Sony’s latest IMX678PL CMOS sensor which demonstrates sensitivity beyond the human eye as well as outstanding low noise characteristics. The 1/1.8″ sensor features a 68% increase in chip size, 90% increase in pixel size and doubles the low light performance.

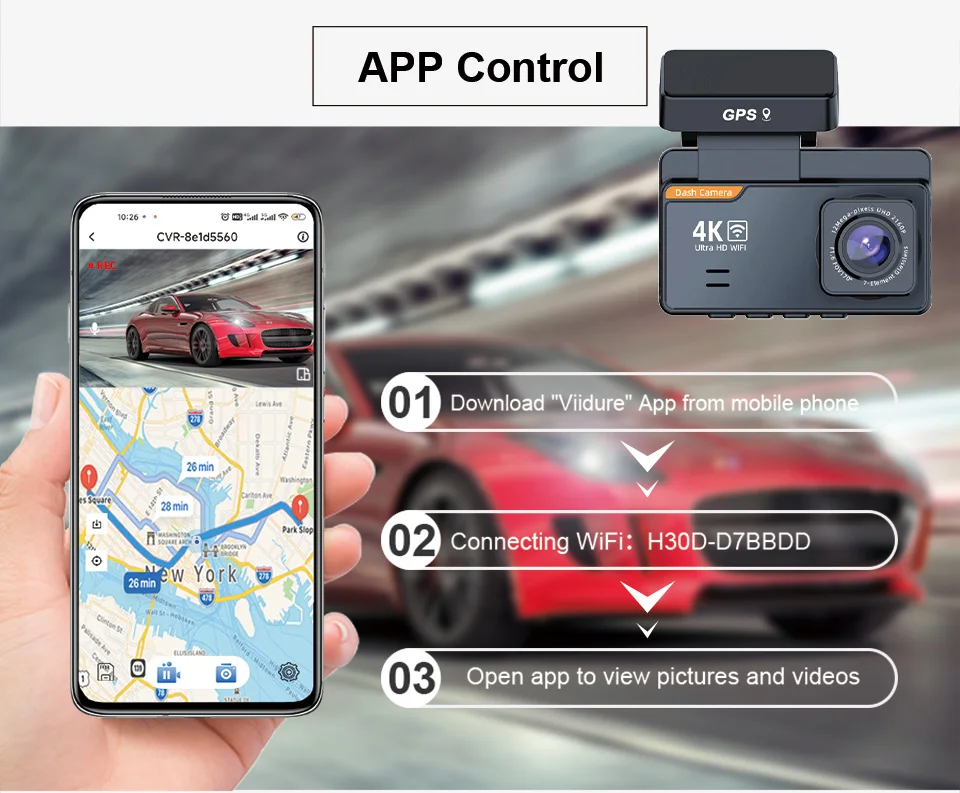

Wi-Fi and App Control
Use the app to view, play, and manage dashcam videos in real time on your iOS and Android devices. Through the app, you can download the recorded 4K videos directly to your phone, or share your travel scenery and highlight moments to your social media with one click.
GPS Recording(Reliable Witness for Accident)
Built-in GPS tells how fast you’re going, what direction and your coordinates at all times. which was a very cool feature. If a cop pulls you over and says you’re doing 65 in a 55 zone, you have video to watch and view a moving marker on the route using Google Maps proof of exactly how fast you were going.

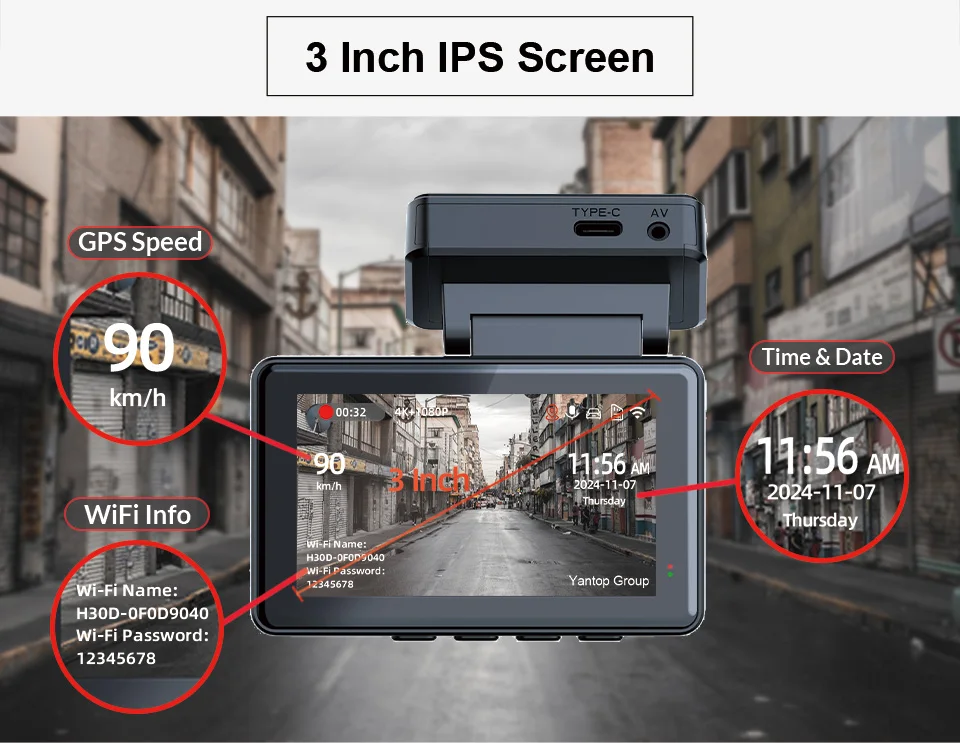

3 Inch IPS Screen
The 3-Inch dash cam is designed to be compact and small, with powerful recording capabilities contained in a square inch body. Whether placed in the car center console or stored in a glove box, it will not take up too much space, easily adapting to various vehicle layouts, convenient for travel, and available for use at any time.

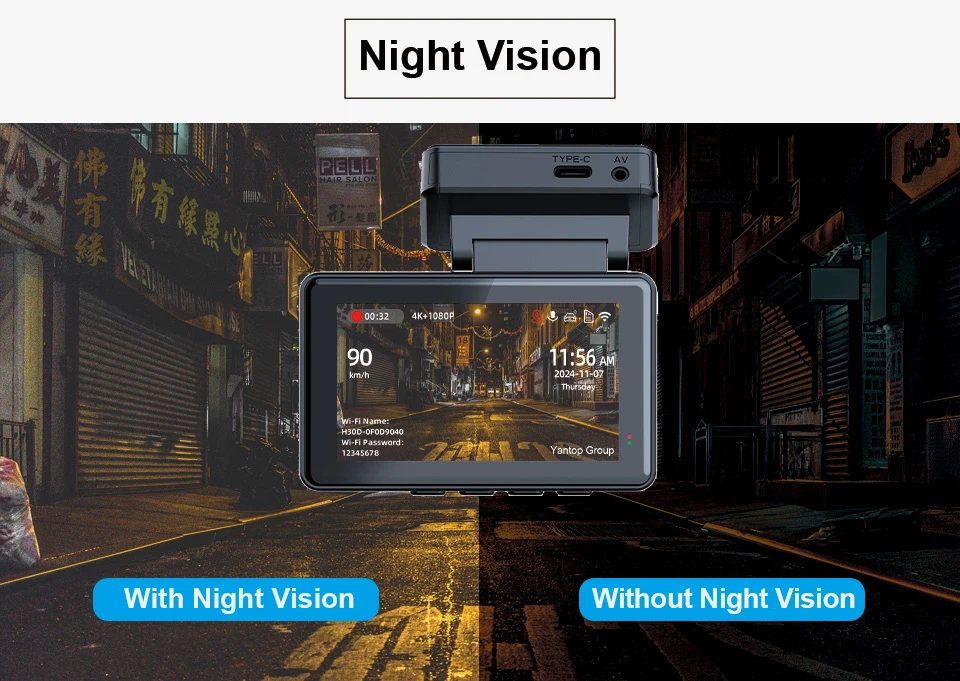

E-ACE Night Owl Vision
F1.6 large aperture pulls in more light to ensure well-illuminated recordings in the dark.
Exclusive E-ACE Night Owl Vision improves night footage, achieving better clarity, exposure balance, color saturation and light glare control.
Ultra-Wide Cameras for Safer Driving
The front 170° camera offers a broad view, eliminating blind spots. It captures clear images day and night, enhancing driving safety. With advanced functions like distance warning and traffic sign recognition, it’s a reliable driving assistant. The rear 140° camera ensures precise reversing and real-time monitoring of the rear. Its high-definition imaging shows details clearly, even in adverse weather. This mirror with such camera angles is a must-have for safe and convenient driving.

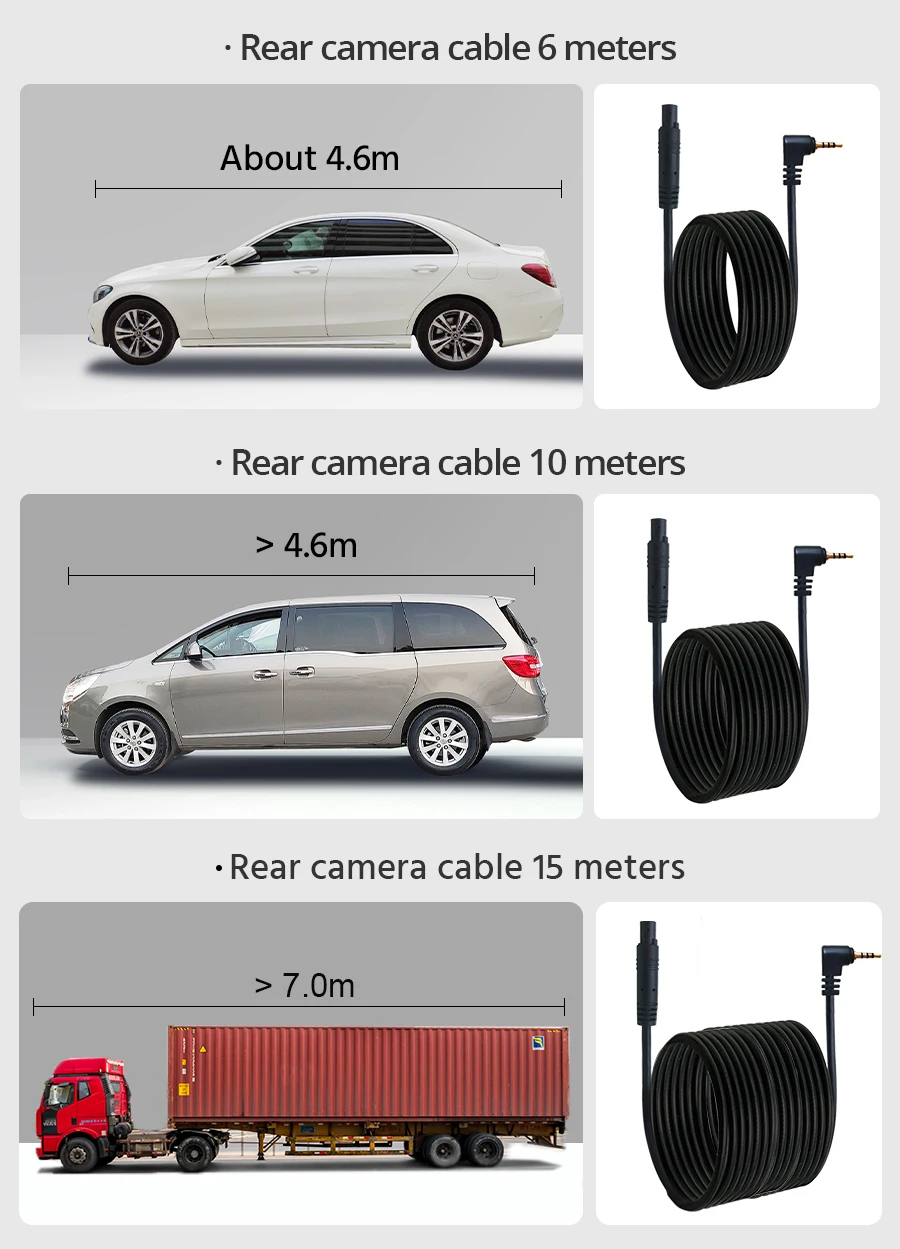

About choosing the length of Rear Camera Cable
There are 3 lengths of rear camera (up to about 15 meters) can be chosen,suitable for cars of different lengths. Please choose the rear camera according to the length of your car. If you want to buy rearview camera with 10 meters or 15 meters, please contact us.

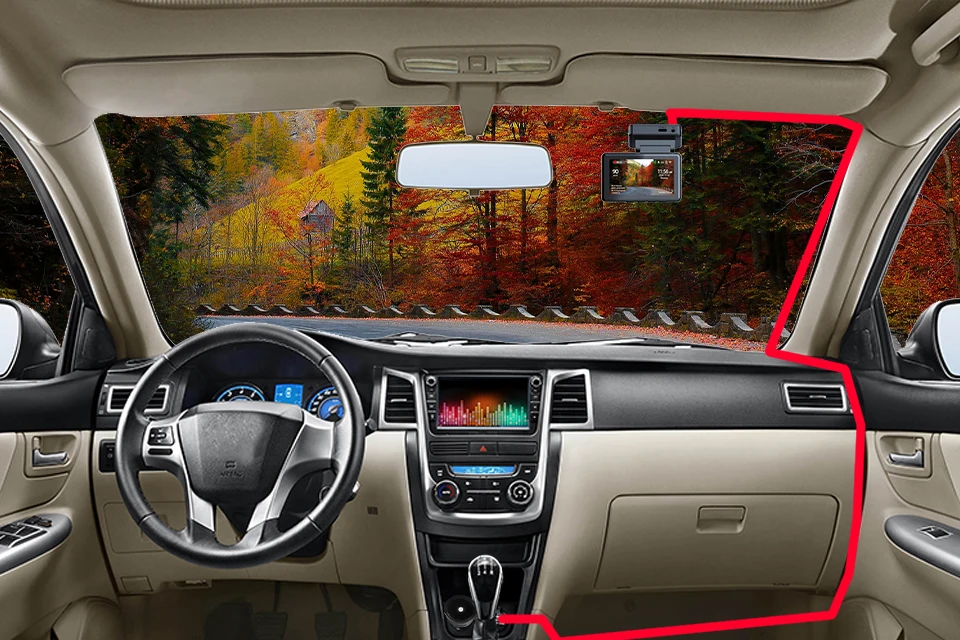

Installation effect display

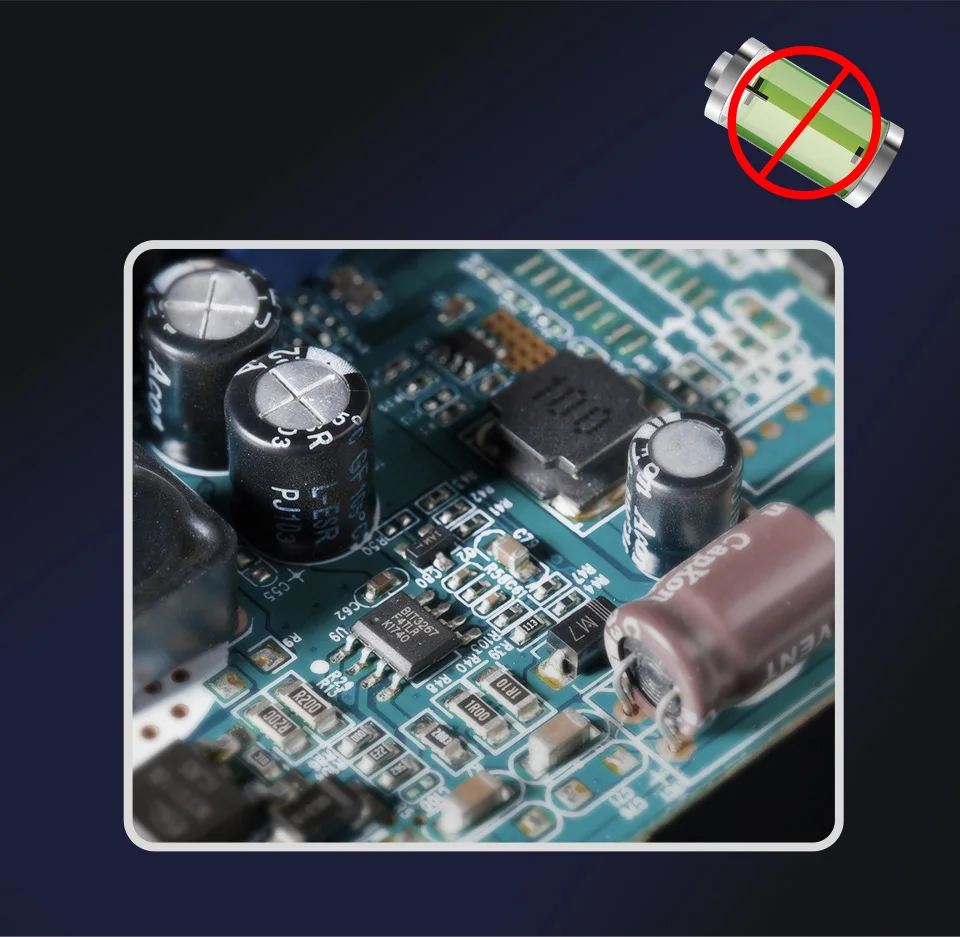

Supercapacitors empower driving recorders
Safe Shield: No explosion at high temperatures, no decay at low temperatures, stable protection throughout the entire process
Lifespan Journey: Hundreds of thousands of charge and discharge cycles, full range high-energy endurance
Environmental Model: Zero Heavy Metal Pollution, Together on the Green Journey
Time Lapse Video Function
Taking a 16G memory card as an example, only about one hour of video can be recorded in the 30-frame per second mode. After the time-lapse recording function is enabled, recording time under 1 frame per second mode will reach 30 hours (more than 24 hours), which will increase the maximum recording time and data storage by 30 times, ensuring the integrity of the recorded content, greatly saving memory Card space and protect your vehicle for more than 24 hours.(Note: Need to buy a buck line)
Buck line
Use the buck line to not occupy the cigarette lighter interface.
You will need to find two fuse slots to be used in this step.
1.A fuse Slot that provides constant power (RED wire will go here)
2.A fuse Slot that only provides power when you turn your key to ACC position (YELLOW wire will go here)
3.Connect the BLACK Wire to the Grounding Screw or Bolt.
About ashcam Installation
Supply power Method:
1. Connect the car Fuse box power supply. (Recommended, and need to buy buck line)
2. Cigarette lighter power supply connector.
Installation Steps:
1. Insert the connecting wire into the gap of the roof of the front windshield.
2. Take out the seal on the glass and the co-pilot cover.
3. Insert the connecting wire into the card slot.
4. Plug the 12V-24V power adapter into the vehicle’s 12V power(Cigarette Lighter) port.
Please Note:
1. Please use the original factory standard adapter charger, start and charge it, connect one end of the car charger to the device’s USB port, the other end into the car port, and the device will start once the car engine launch.
2. Not personally dismantling the machine, to avoid affecting the warranty.
About Rear Camera Installation
Please connect the rear camera’s Red cable wire with your car reverse lamp power’s Positive pole(+). and then plug the car charger into the cigar lighter to power supply the car dvr.When you get your car in Reverse Gear,the car dvr will automatically switch to the rear camera with parking line.Then the auto reversing function will work.
If you don’t need this function, please ignore the red wire, don’t need to connect anything.

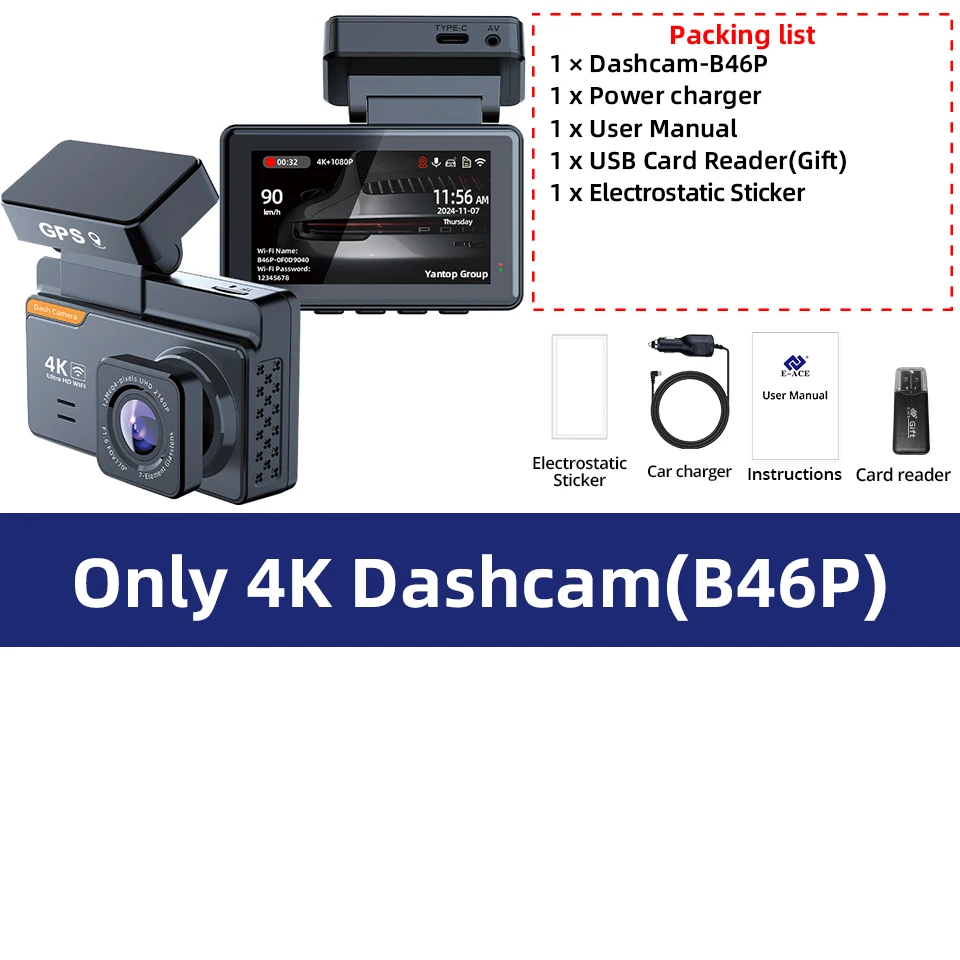

Packing List for different color name
-1 x 4K Dashcam(Without Rearview Camera)
-1 x Power charger
-1 x Electrostatic sticker
-1 x USB Card Reader (Gift)
-1 x User Manual

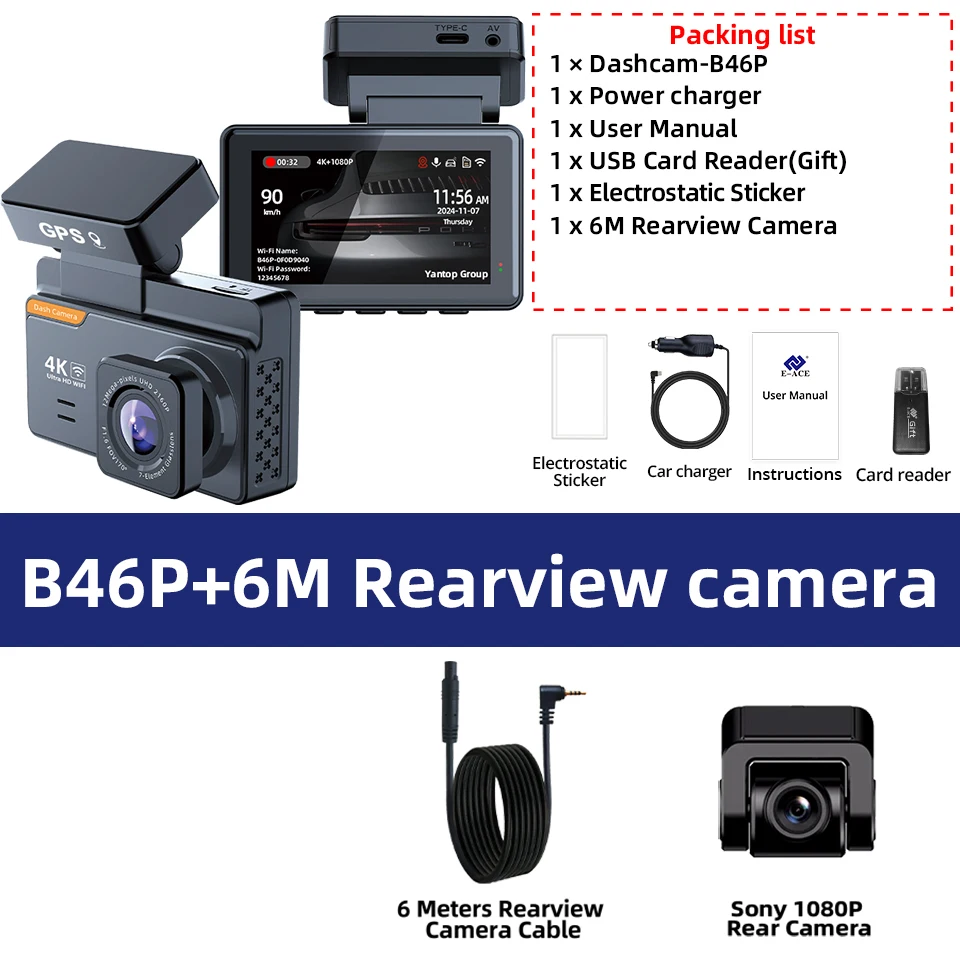

B46P-6M RCC
-1 x 4K Dashcam
-1 x Power charger
-1 x User Manual
-1 x USB Card Reader (Gift)
-1 x Electrostatic sticker
-1 x Sony 1080P Rearview Camera With 6 Meters Cable

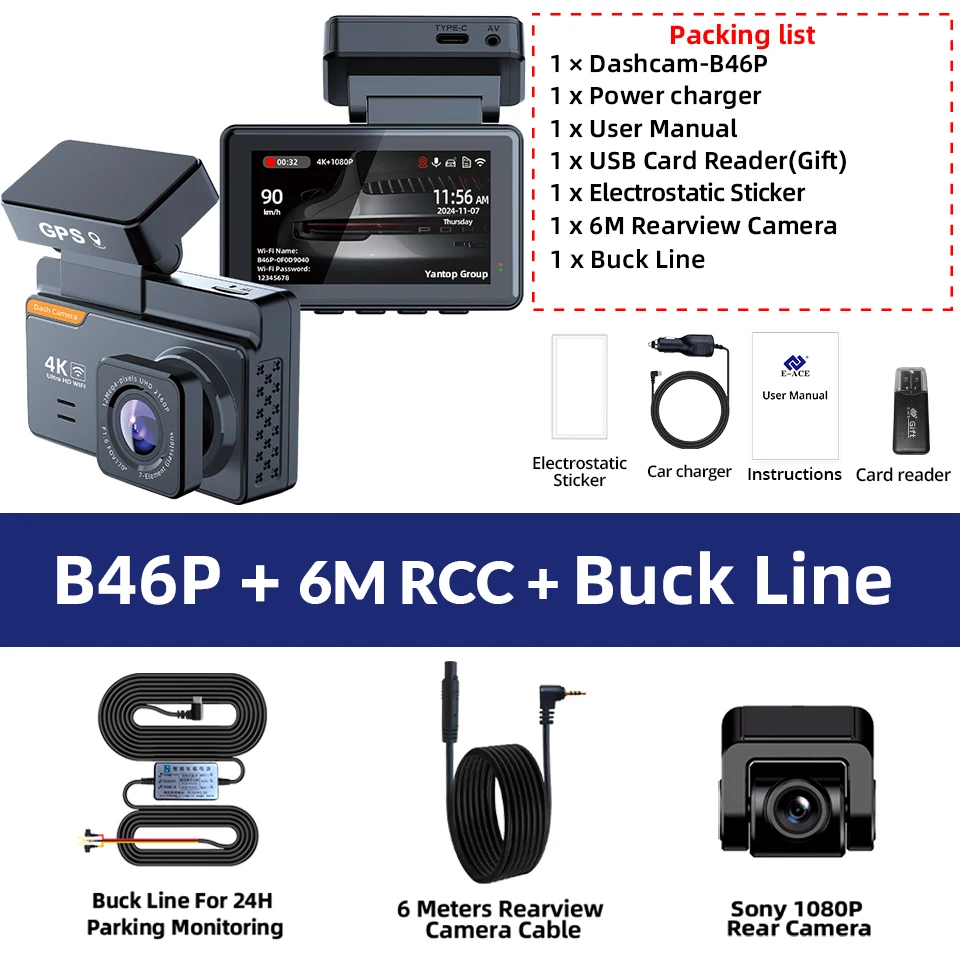

B46P-6M RC-BL
-1 x 4K Dashcam
-1 x Power charger
-1 x User Manual
-1 x USB Card Reader (Gift)
-1 x Electrostatic sticker
-1 x Sony 1080P Rearview Camera With 6 Meters Cable
-1 x Buck Line For 24H Parking Monitoring
