Description
Product Name : Push Button Switch With Box
Material : Plastic, Metal;
Action Type : Red Emergency Stop Button: Latching Black and White Push Button: Momentary
Contact Type : Red Emergency Stop Button: 1 NC Black Push Button: 1NO White Push Button: 1NO;Ith : 10A;Ui : 600V
AC-15 : 240V 3A;Uimp : 6kV;Terminal Number : 6

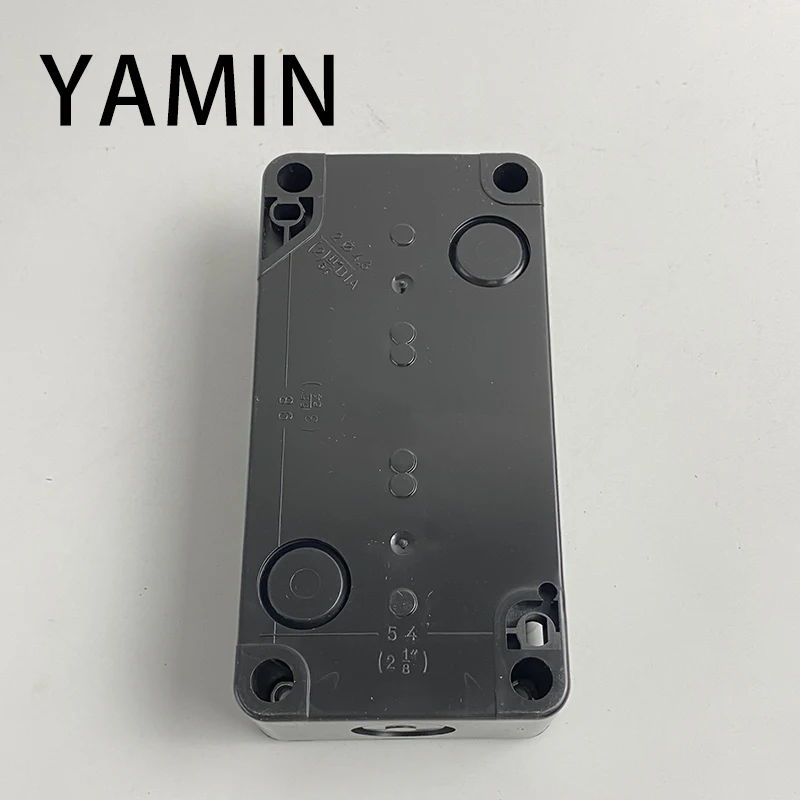

Mounting Hole Diameter : 8mm / 5/16″;
Hole Distance(center to center) : 118 x 51mm / 4.6″ x 2″(L*W);

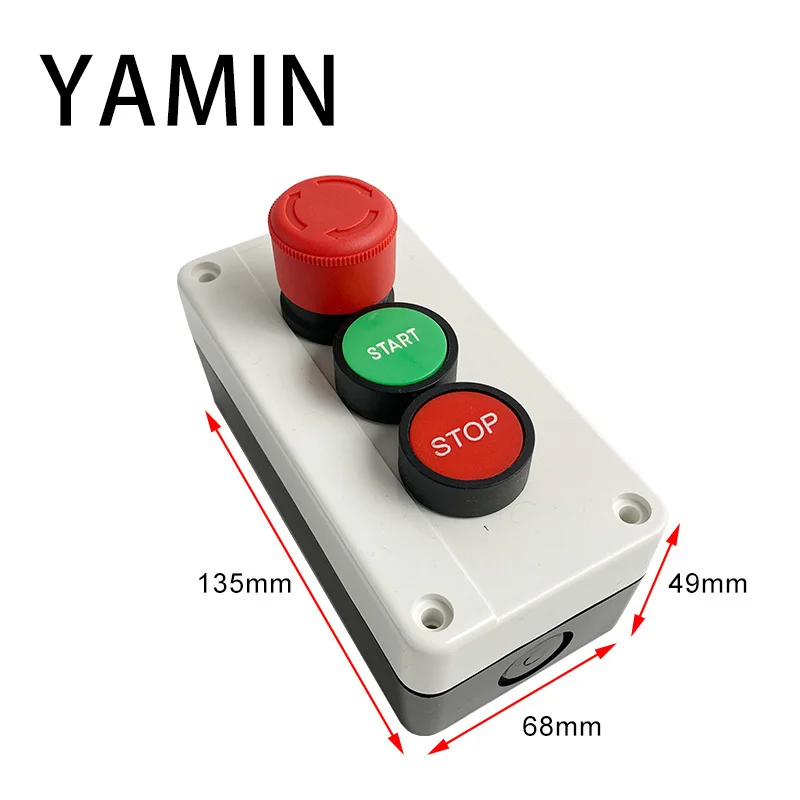

Total Size (Approx.) : 132 x 65 x 75m / 5.2″ x 2.6″ x 3″ (L*W*T)
Button Color : Red, Green;
Package Content : 1 x Push Button Switch Station

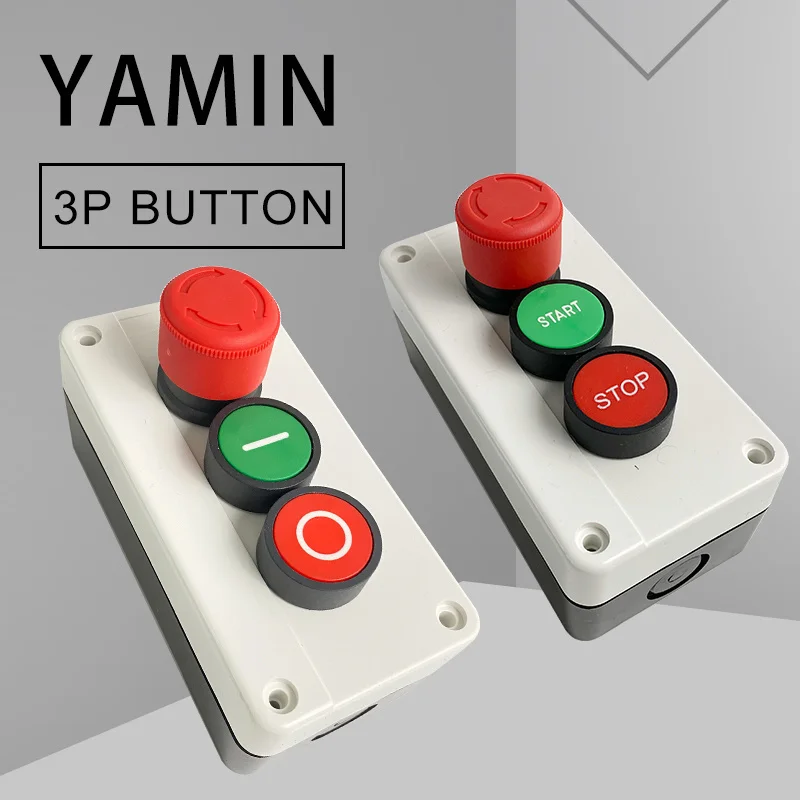

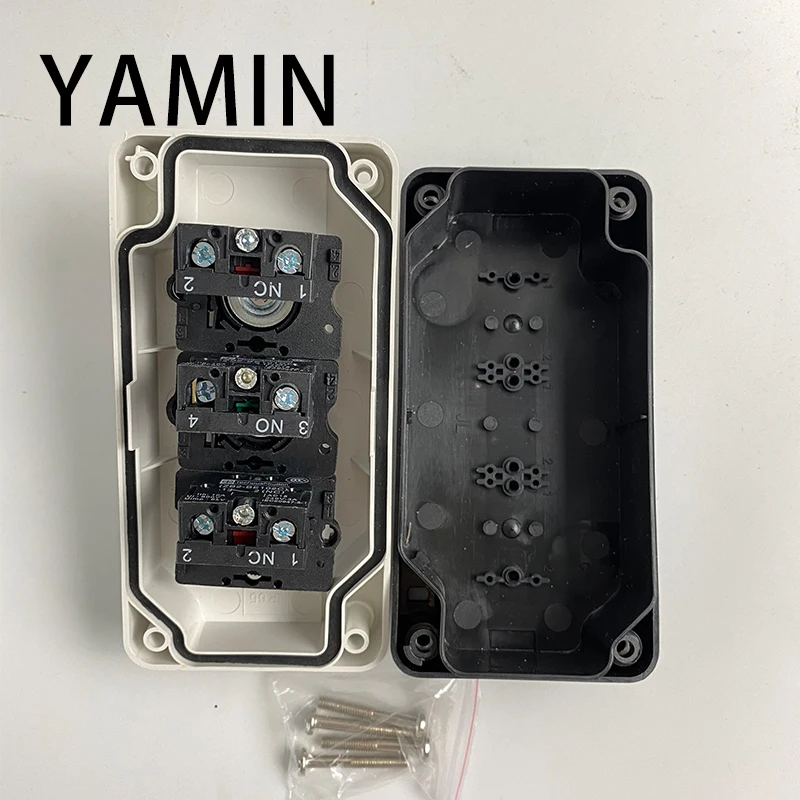

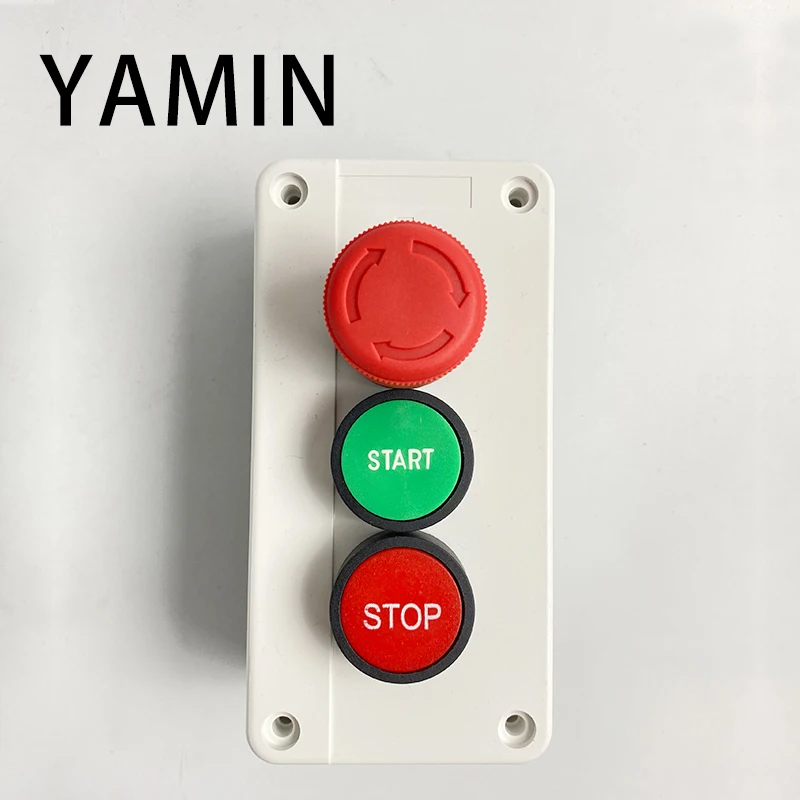

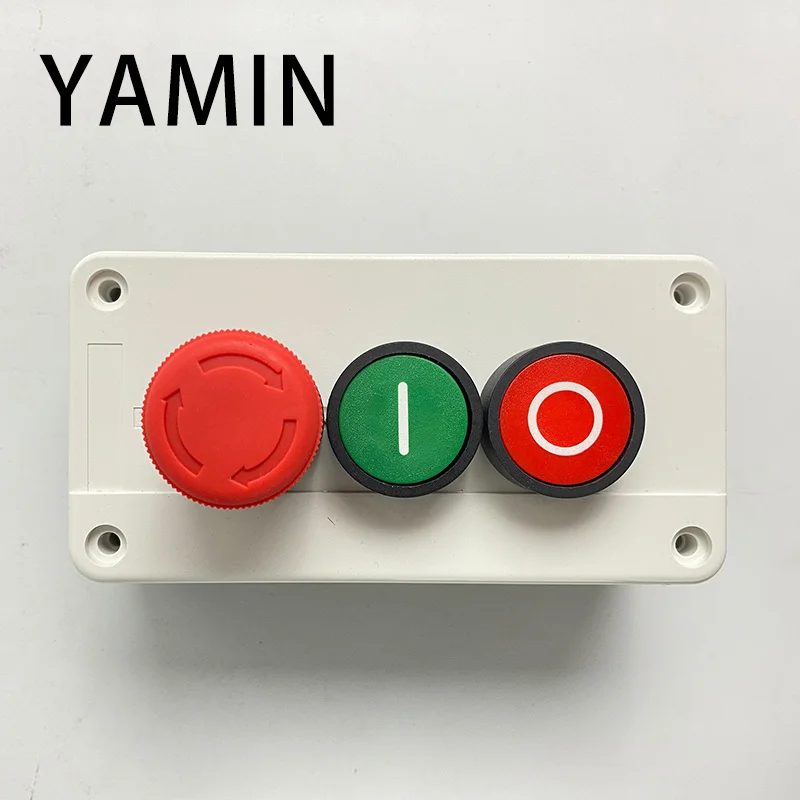

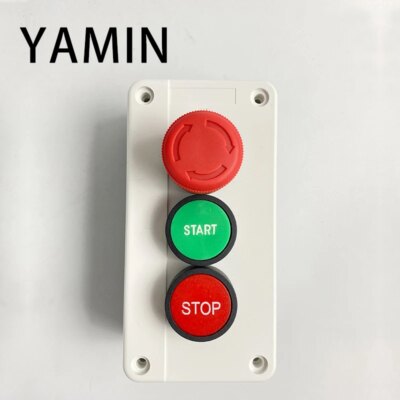

The push button switch station consists of three separate switches, one is a 1 NCemergency stop red push button switch, one is a 1 NO momentary red push button switch and one is a 1 NO momentary green flat push button switch.
Can be widely used to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
Comes with quick connect terminals to allow for fast connections.
