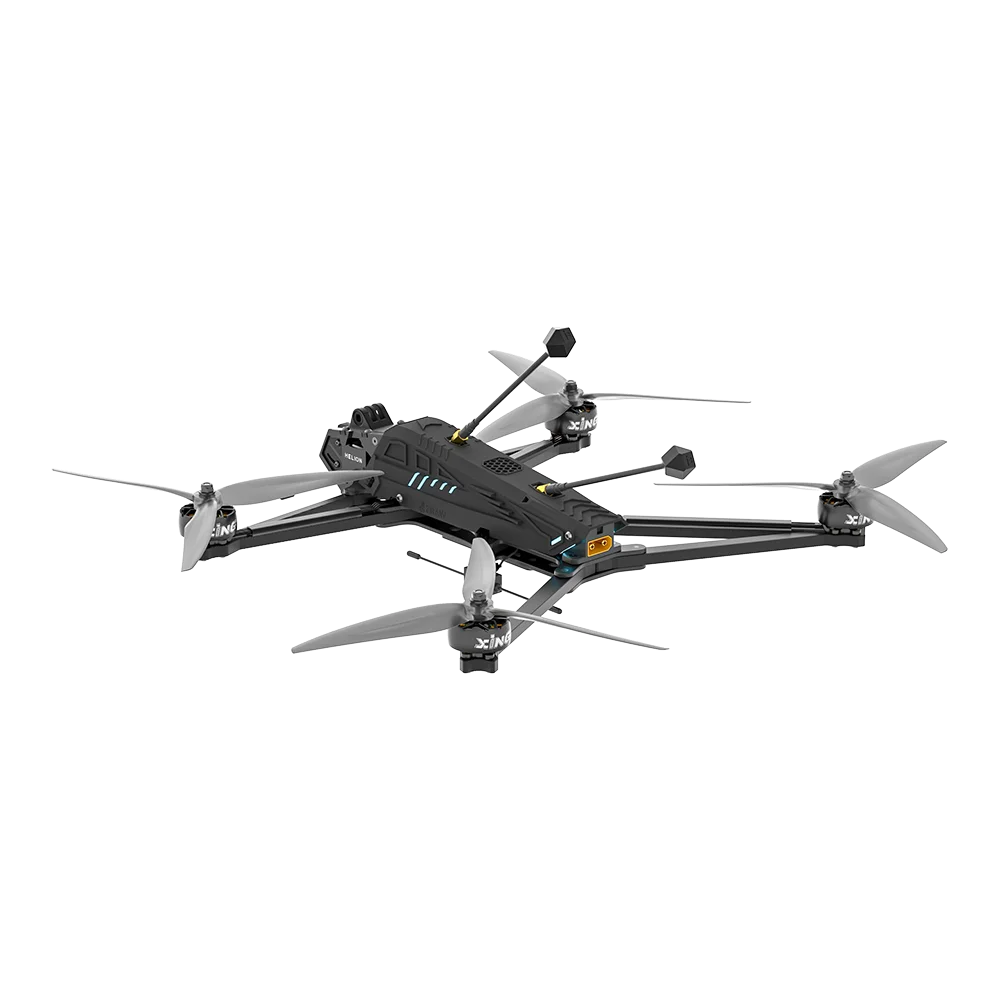

iFLIGHT Helion 10 O4 6S HD Drone BNF with O4 Air Unit Pro / 3110 900KV motor for FPV Long Range New

• HELION – The Long Range flagship by 2RAW and iFlight

• This drone was built to redefine Long Range. In order to meet the rising demands for more range, and more flight time while maintaining enough weight, to have excellent stability in even the windiest of conditions. With a prop size of 10 inches, Helion is not only capable of effectively carrying large (Recommended, 4500mAh Lipo and above) batteries but also ensuring great efficiency with ample power. You will have better dive recovery and more overall control than traditional long-range drones. Its unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train. Helion’s distinct frame design was scientifically optimized to balance stability, weight, and rigidity.

Highlights

Optimised Motors & Propeller

This latest XING motor was optimised between thrust and efficiency. Perfectly tuned to the 10 inch Gemfan propellers.

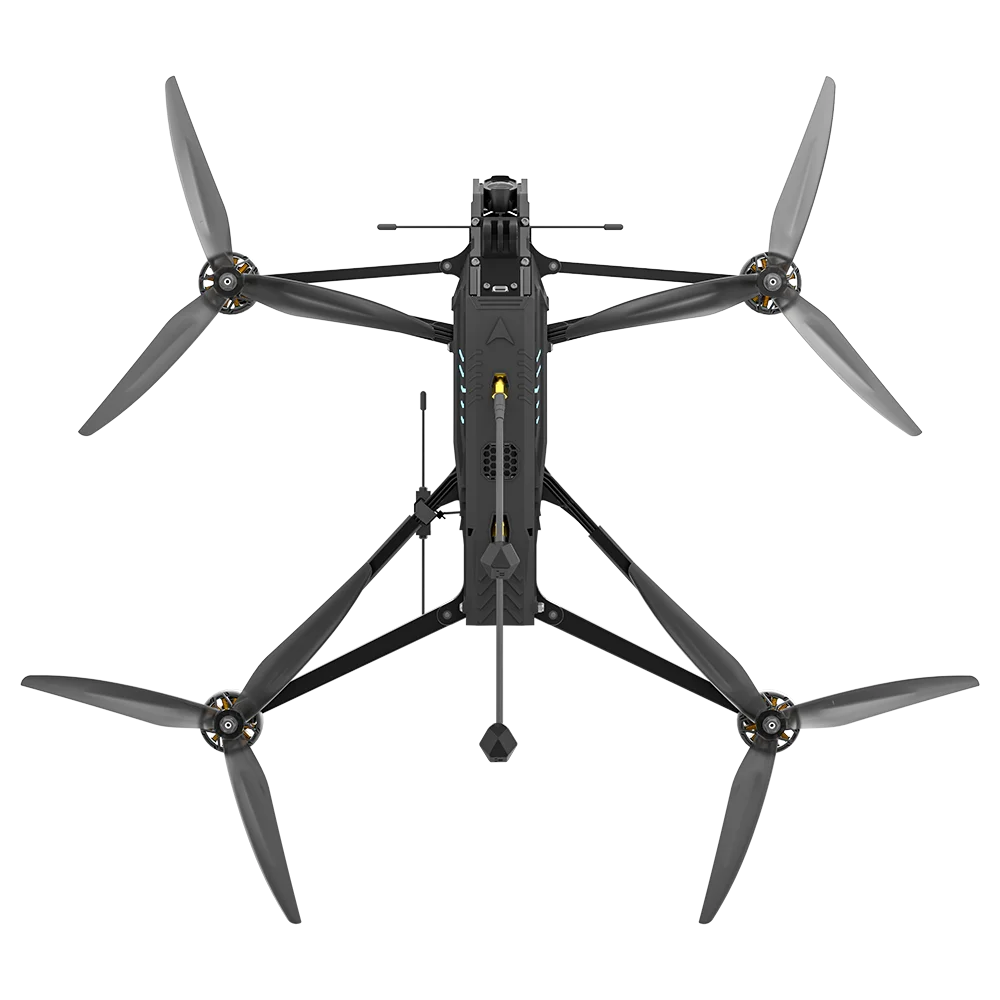

Aero-Shell

The unique aerodynamic shell allows for easy maintenance while protecting the cores of the power train. Users can simply open and close the shell when working on the drone. The idea was to protect the inside but give people full access when maintenance work is being performed on the drone.

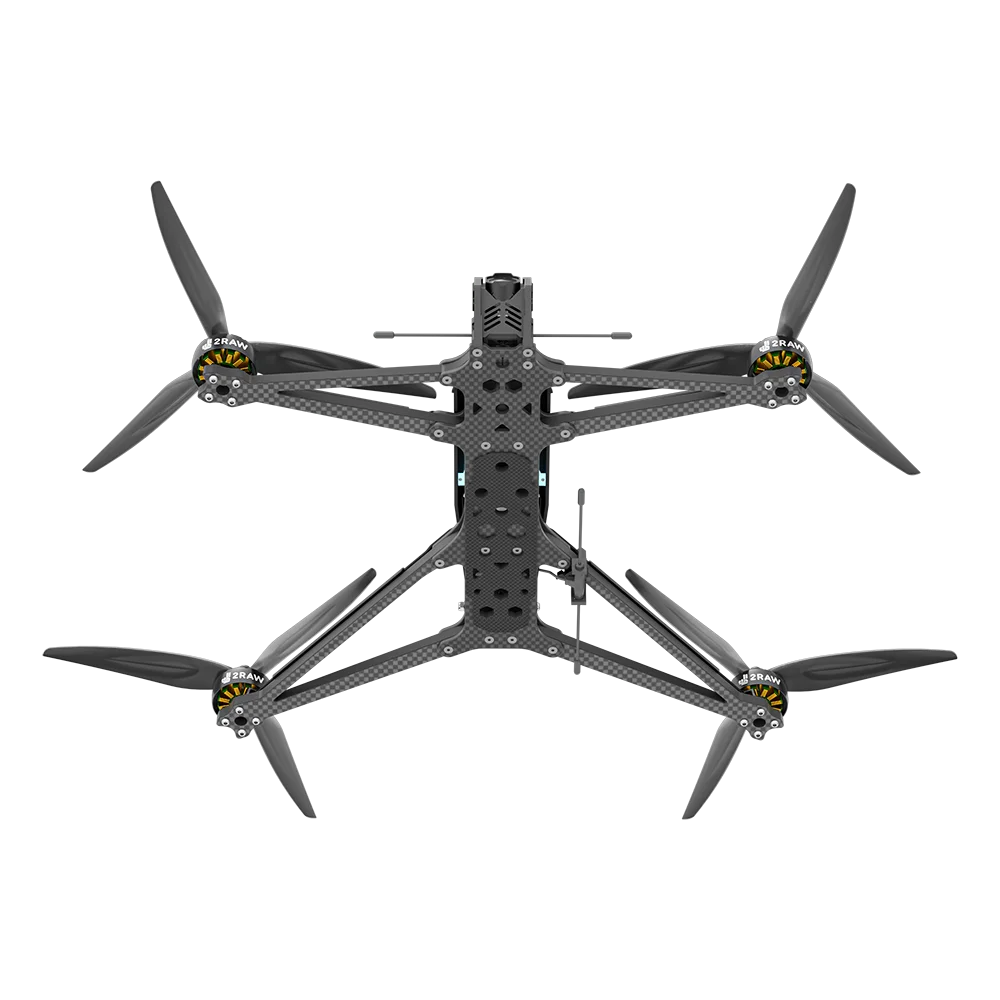

Innovative A-Frame for Maximum Performance

The frame was scientifically optimised and tested over months to find the balance between stability and weight. The A-Frame design minimises vibrations as well as torsion, one of the biggest problems with larger drones.

USB-C Power

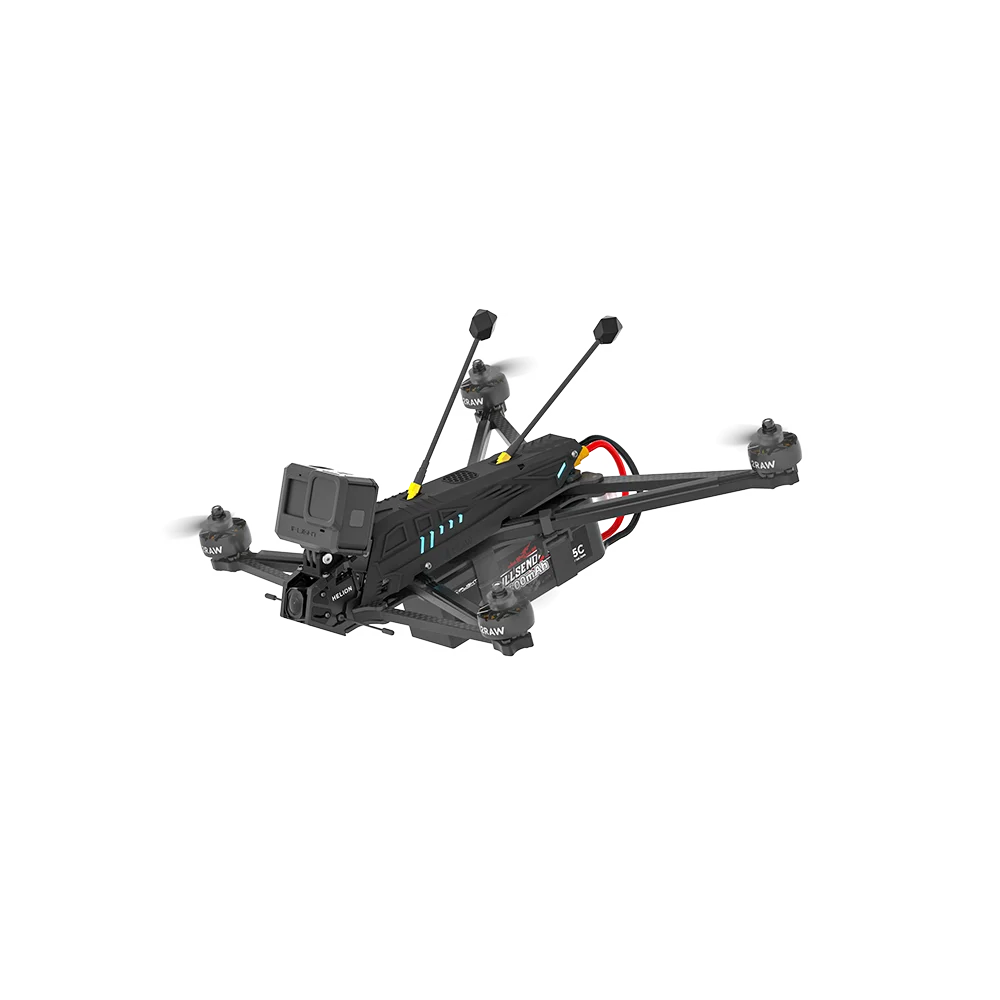

A USB-C Plug was added so you can power your action cam when running out of power. This was also built in for potential upcoming new small cameras making Helion more future proof

4K Stabilized Video with 155° Ultra-Wide Angle

Equipped with the latest DJI O4 Air Unit Pro, upgraded with a 1.1/1.3-inch image sensor, it captures delicate details in low-light environments. With a 155° ultra-wide angle, it captures breathtaking visuals. Enjoy real-time video transmission with up to 1080p/100fps for an immersive flying experience. (Source DJI)

GPS Pre-Installed for More Safety at A Distance

GPS functionality to find your way back on those ultra long range missions. Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behaviour; Setup instructions included). Custom iFlight 100mm LR antenna for best signal coverage even at long distances.

Specificaiton

• Product Name: Helion10 O4 Pro 6S HD

• FC: BLITZ F7 Flight Controller

• ESC: BLITZ E55 4-IN-1 2-6S 55A ESC

• Video Transmission: DJI O4 Air Unit Pro

• Geometry: A-Frame

• Frame: 418mm wheelbase

• Motor: Helion 10 3110 900KV motors

• Prop: GEMFAN 1050 propellers

• Weight: 950±20g

• Dimensions (L×W×H)324x264x63mm

• Max Speed: 140km/h

• Operating Temperature Range: -20° to 40° C

• Antennas: Dual Antennas

• GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

• Product Name: DJI O4 Air Unit Pro

• Image Sensor: 1/1.3-inch

• Lens: FOV: 155°

• ISO: 100-25600

• Video Resolution: 1080p/100fps H.265

• Video Format: MP4, Max Video Bitrate: 130Mbps

• Color Mode: Normal Mode/D-Log M

• Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)

• Live View Quality: 1080P@100fps

• Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz

• Transmitter Power (EIRP): 5.1GHz23dBm(CE)/5.8GHz33dBm(FCC)/14dBm(CE)/30dBm(SRRC))

• Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)

• Communication Bandwidth: Max 60 MHz

• Antenna: Dual antennas

• Built-in Storage: 4GB

• Supported SD cards: microSD (up to 512GB)

• Operating Temperature: -10° to 40° C

• Weight: Air Unit (camera module included): Approx. 32 g

• Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)

Packing List

• 1 x Helion 10 O4 Pro 6S HD

• 2 x Battery pad

• 2 x GEMFAN 1050 propellers(Pairs)

• 2 x Battery strap

• 1 x Screw bag

• 1 x Amass XT90 to XT60 H Adapter Cable

Important

• All iFlight BNFs are tested before shipment to guarantee the highest quality.

• If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.

Note

1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:

(1) Any military combat purpose or military combat related use;

(2) Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.

2. iFlight Partners must strictly adhere to applicable export control and sanction laws as well as any written compliance requirements regarding these controls issued by iFlight from time to time.

If Party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
