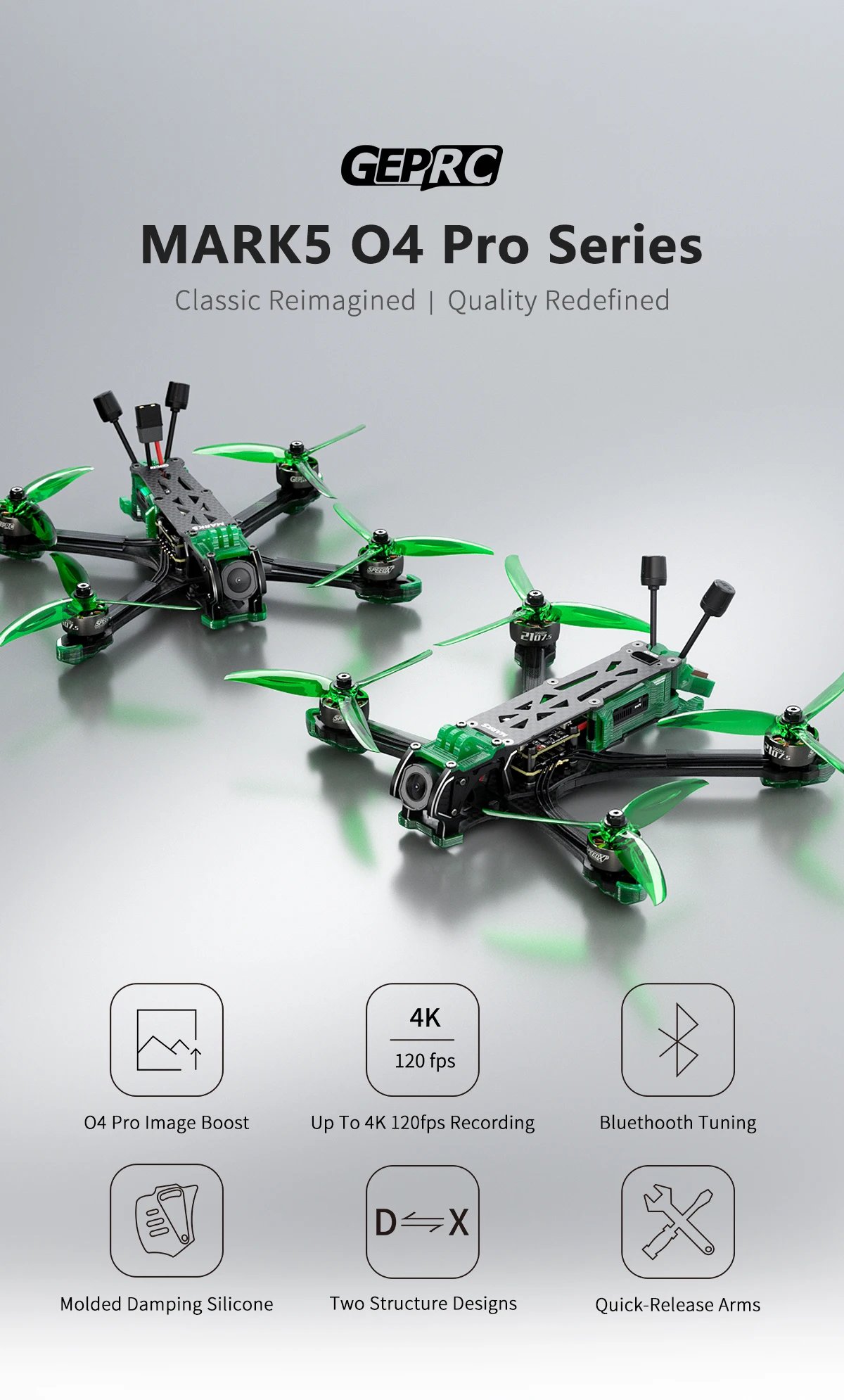

GEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter Freestyle

Summary

The GEPRC team developed the MARK5 O4 Pro series specifically for the O4 Air Unit Pro VTX. With its 1/1.3-inch image sensor, the O4 Air Unit Pro takes digital HD video quality to the next level, offering enhanced low-light performance and sharper visuals. It supports up to 4K 120fps recording, with real-time transmission reaching 1080P 100fps.
The MARK5 O4 Pro features a newly designed aluminum camera mount and molded silicone damping to minimize vibrations and reduce resonance for the O4 Pro camera.

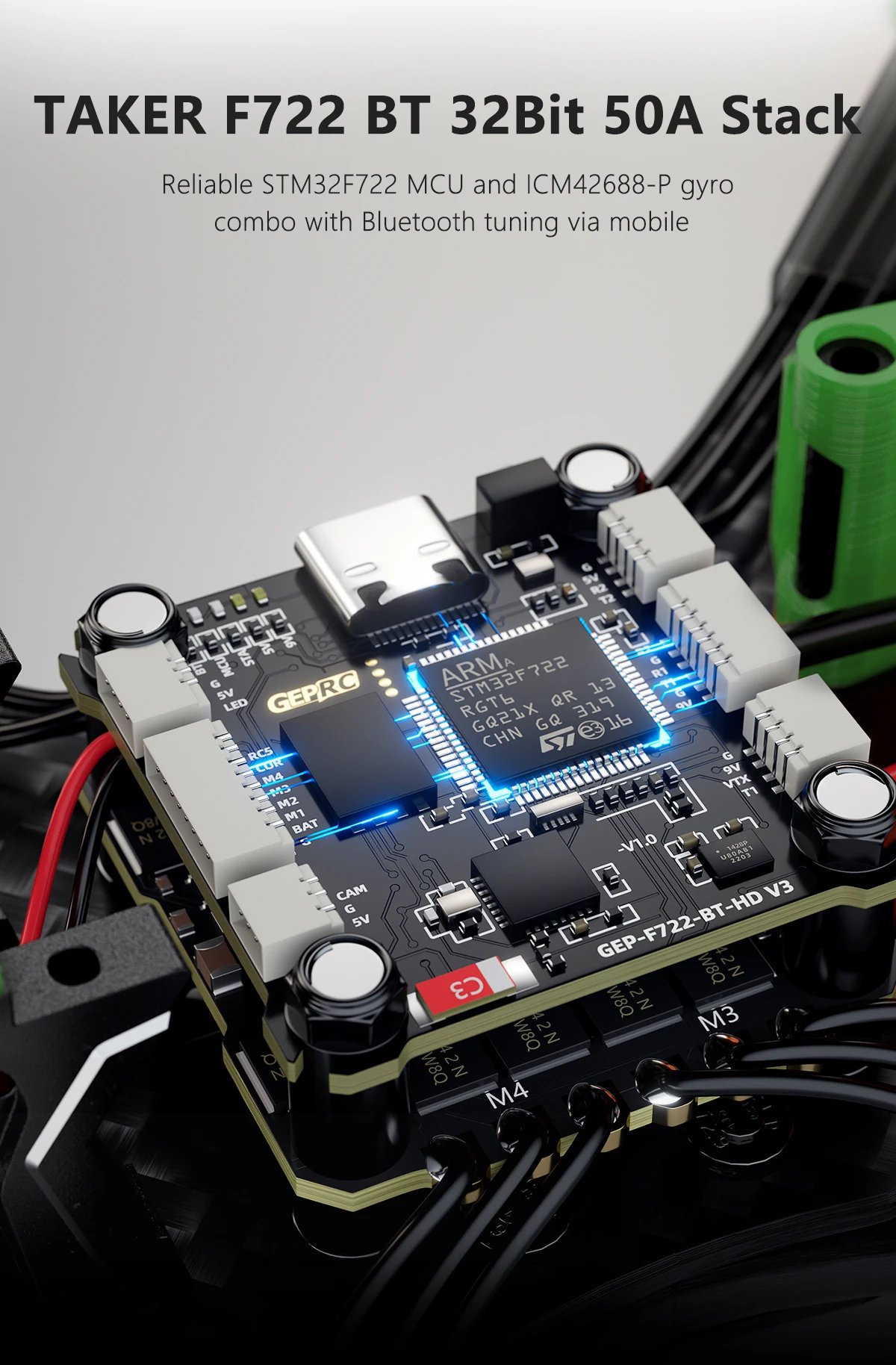

Powered by the TAKER F722 BT 32Bit 50A stack and 2107.5 1960KV motors, it delivers smooth, responsive flight and ultra-stable footage.

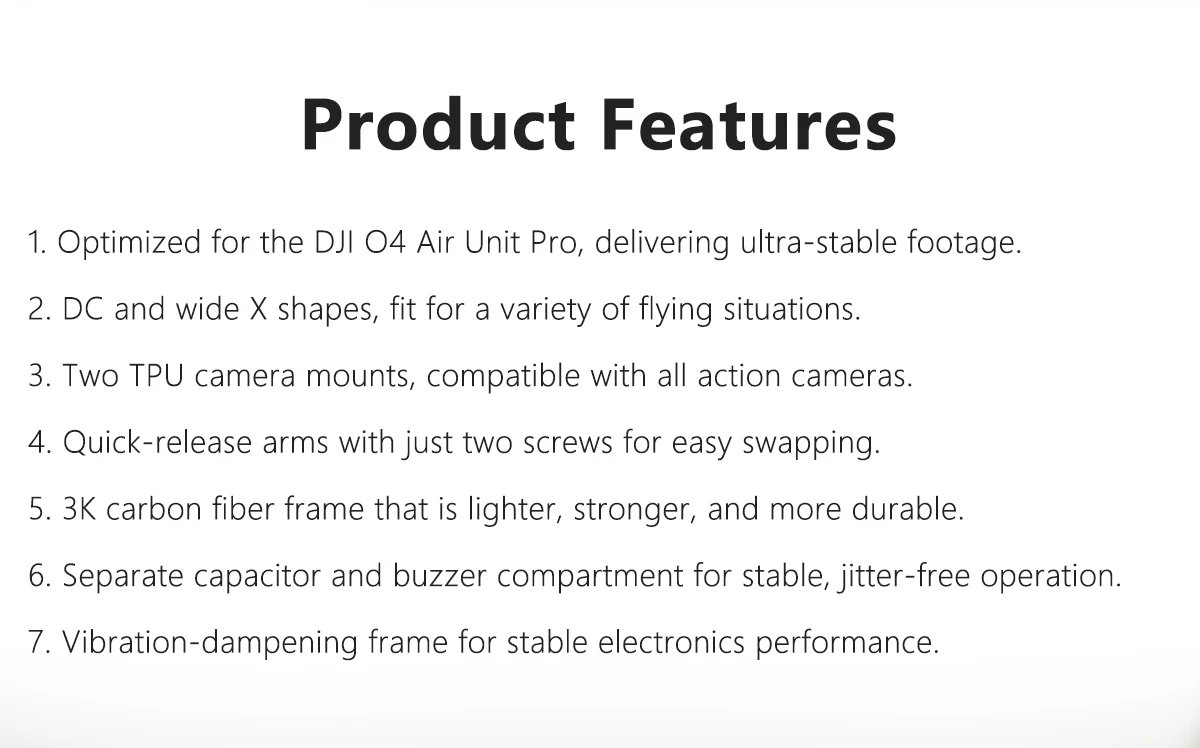

Features

1. Equipped with O4 Air Unit Pro for clear, reliable video transmission.

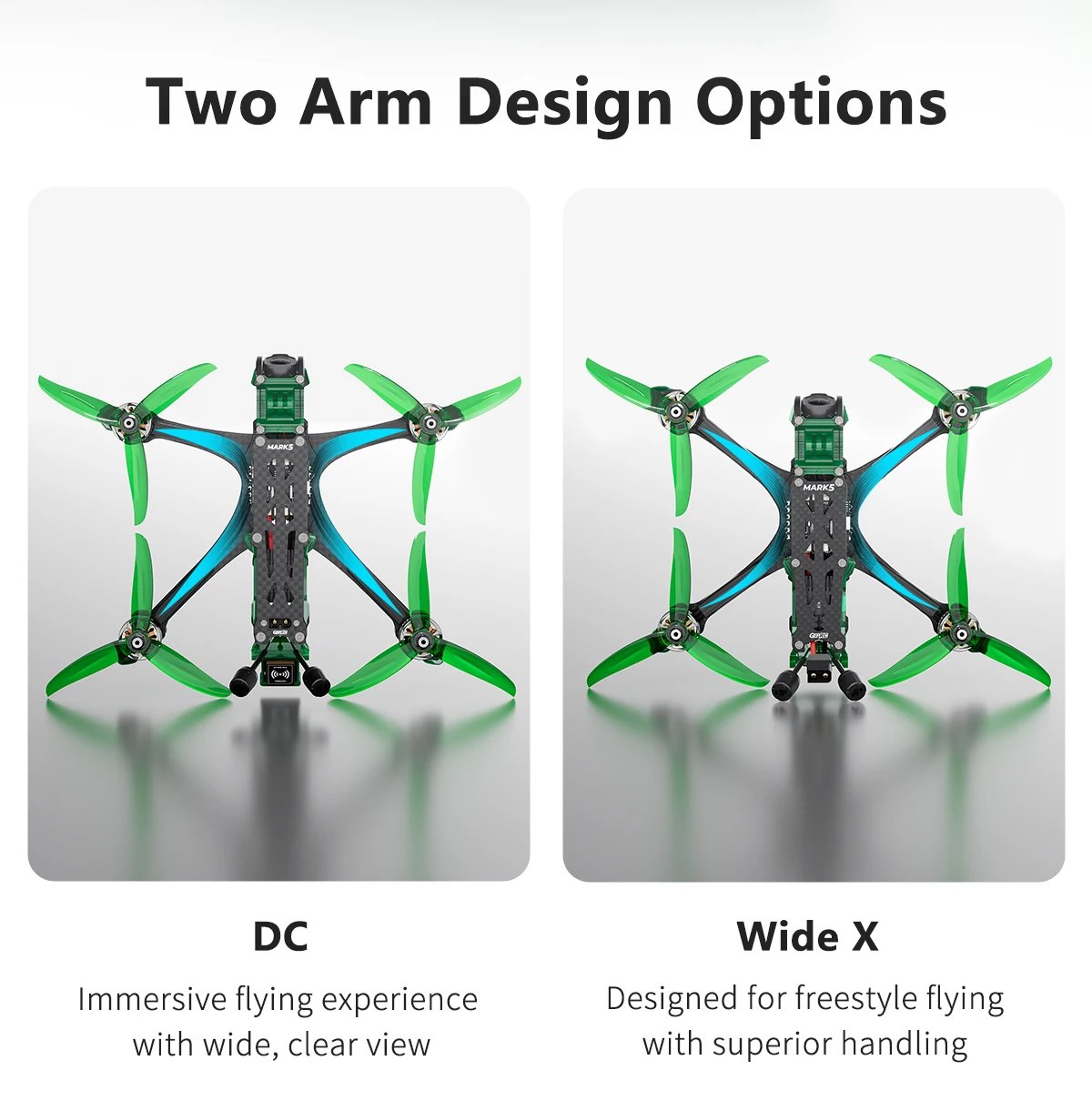

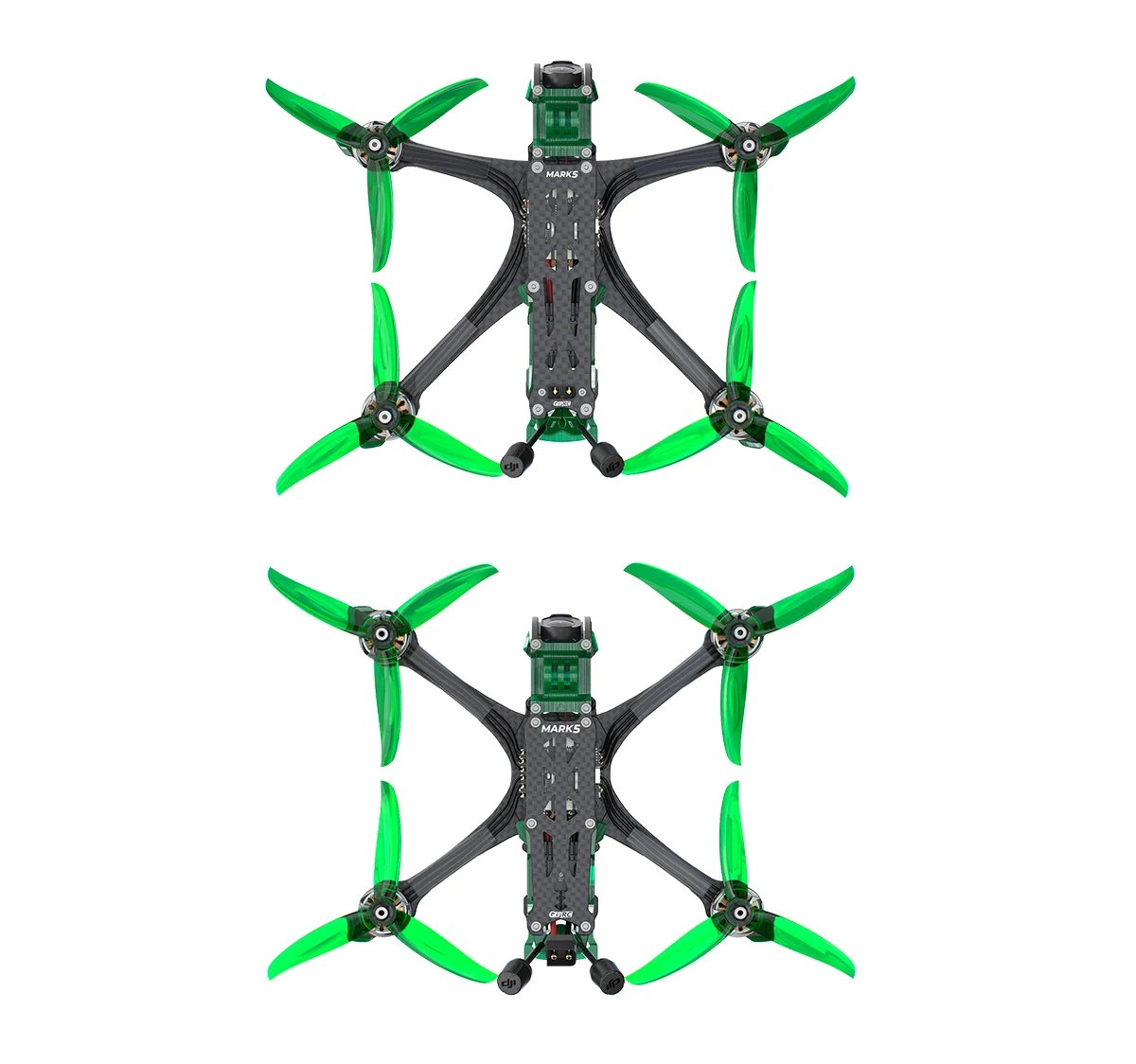

2. DC and wide-X frame options for different flying needs.
3. Paired TAKER F722 BT 32Bit 50A stack with 2107.5 1960KV motors delivers ample power.
4. Bluetooth tuning via mobile app makes adjustments effortless.
5. Quick-release arms with two-screw swap for easy maintenance.
6. Aluminum camera mount with silicone damping reduces vibration and resonance for the O4 Pro camera.

7. Dedicated compartment for the capacitor and buzzer ensures a stable, jitter-free operation.
8. Optimized frame damping reduces vibration, keeping electronics running smoothly.

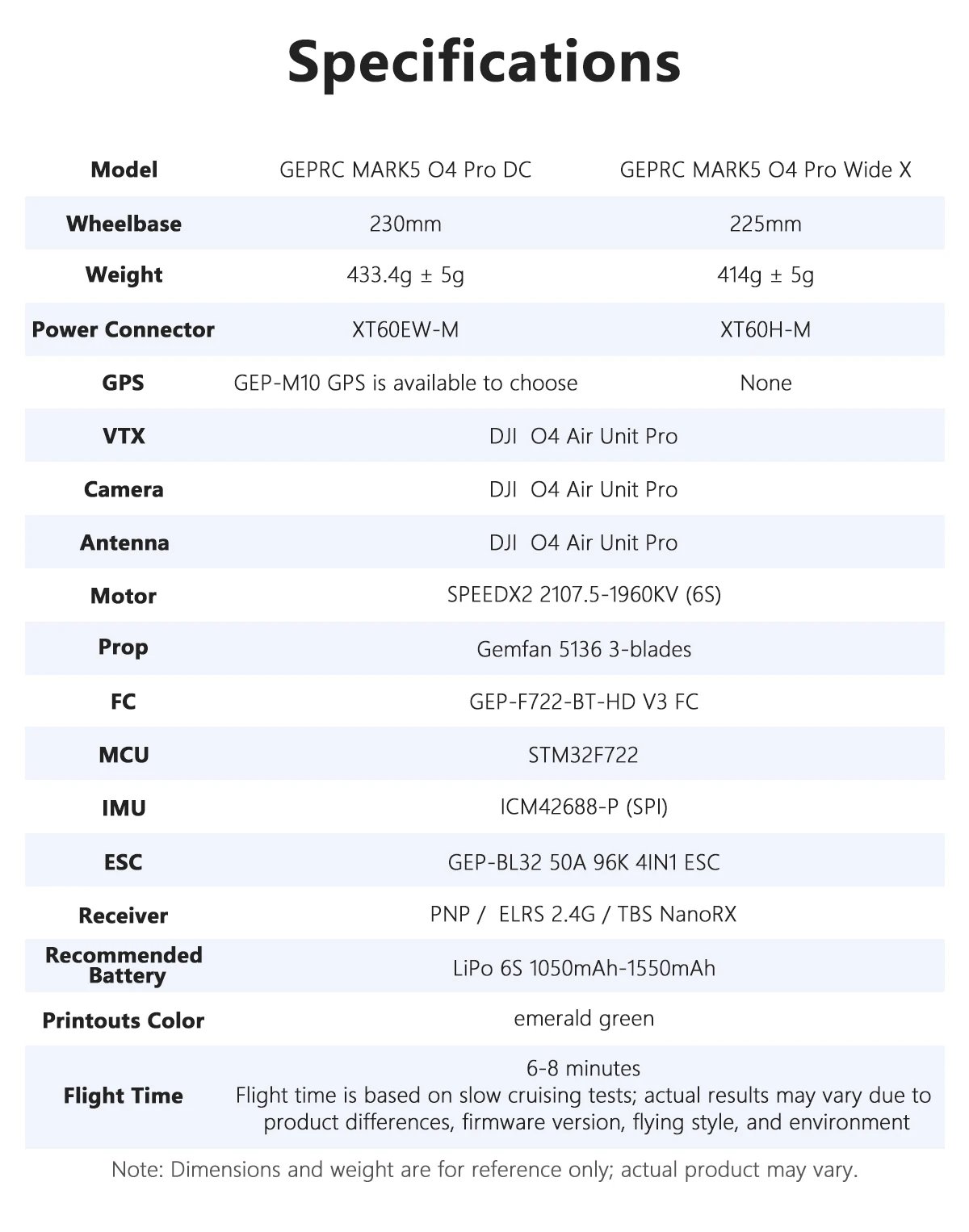

Specifications-D C Version

  • Model: MARK5 O4 Pro DC FPV

  • Wheelbase: 230mm

  • VTX: O4 Air Unit Pro VTX module

  • Camera: O4 Air Unit Pro camera module

  • Antenna: O4 Air Unit Pro Antenna

  • Motor: SPEEDX2 2107.5 1960KV

  • Prop: Gemfan 5136

  • FC: GEP-F722-BT-HD V3

  • MCU: STM32F722

  • IMU: ICM42688-P(SPI)

  • OSD: BetaFlight OSD w / AT7456E chip

  • ESC: GEP-BL32 50A 96K 4IN1 ESC

  • Power Connector: XT60EW-M

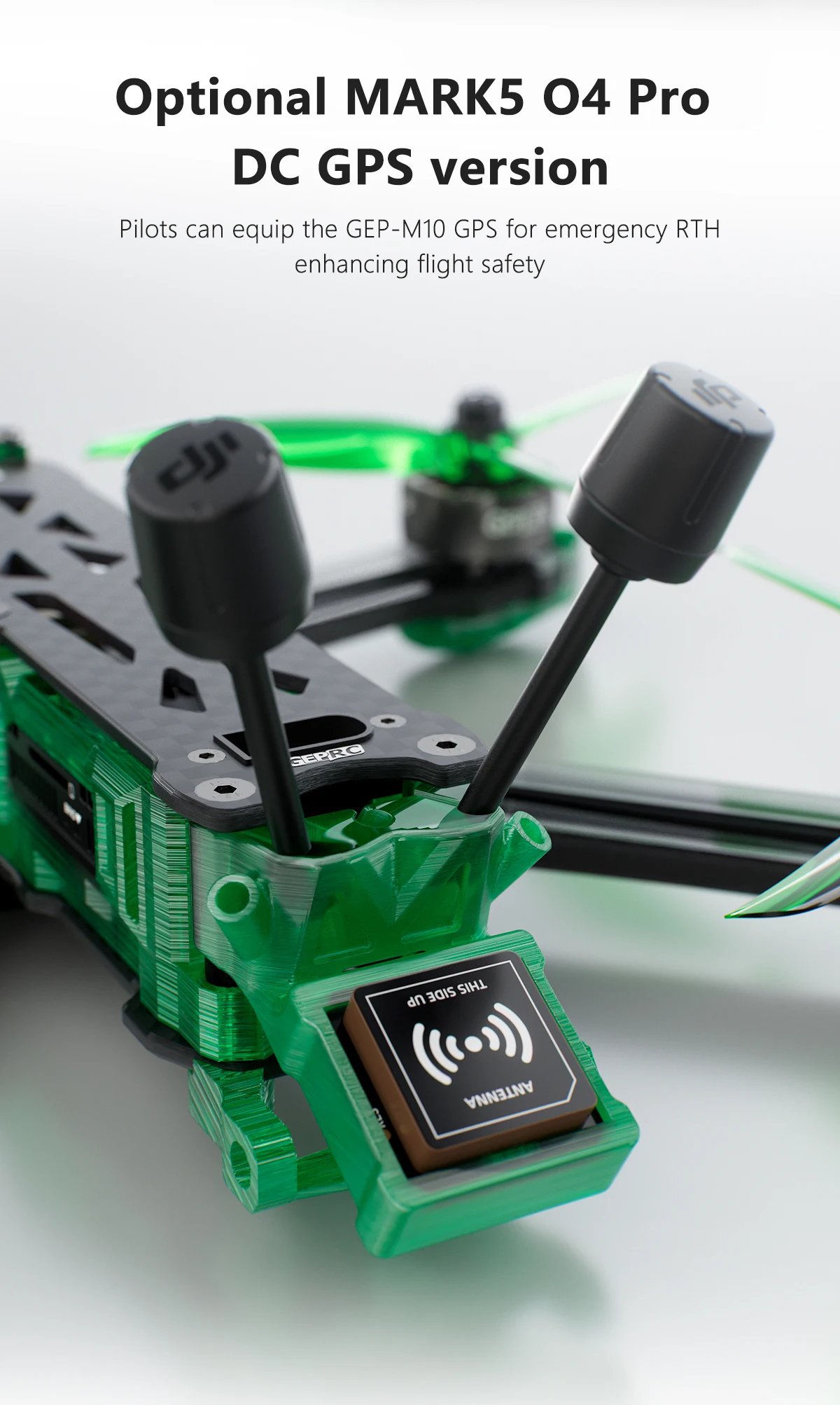

  • Optional GPS:GEP-M10 GPS

  • Receiver: PNP / ELRS 2.4G / TBS NanoRX

  • Recommended battery: LiPo 6S 1050mAh-1550mAh

  • Printouts Color: emerald green

  • Weight: 433.4g ± 5g

  • Flight Time: 6-8 minutes(Based on slow cruising tests, the actual may vary due to product differences, firmware version, flying style, and environment. For reference only)

Specifications-wide X Version

  • Model: MARK5 O4 Pro Wide X FPV

  • Wheelbase: 225mm

  • VTX: O4 Air Unit Pro VTX module

  • Camera: O4 Air Unit Pro camera module

  • Antenna: O4 Air Unit Pro Antenna

  • Motor: SPEEDX2 2107.5 1960KV

  • Prop: Gemfan 5136

  • FC: GEP-F722-BT-HD V3

  • MCU: STM32F722

  • IMU: ICM42688-P(SPI)

  • OSD: BetaFlight OSD w / AT7456E chip

  • ESC: GEP-BL32 50A 96K 4IN1 ESC

  • Power Connector: XT60H-M

  • Receiver: PNP / ELRS 2.4G / TBS NanoRX

  • Recommended Battery: LiPo 6S 1050mAh-1550mAh

  • Printouts Color: emerald green

  • Weight: 414g ± 5g

  • Flight Time: 6-8 minutes(Based on slow cruising tests, the actual may vary due to product differences, firmware version, flying style, and environment. For reference only)

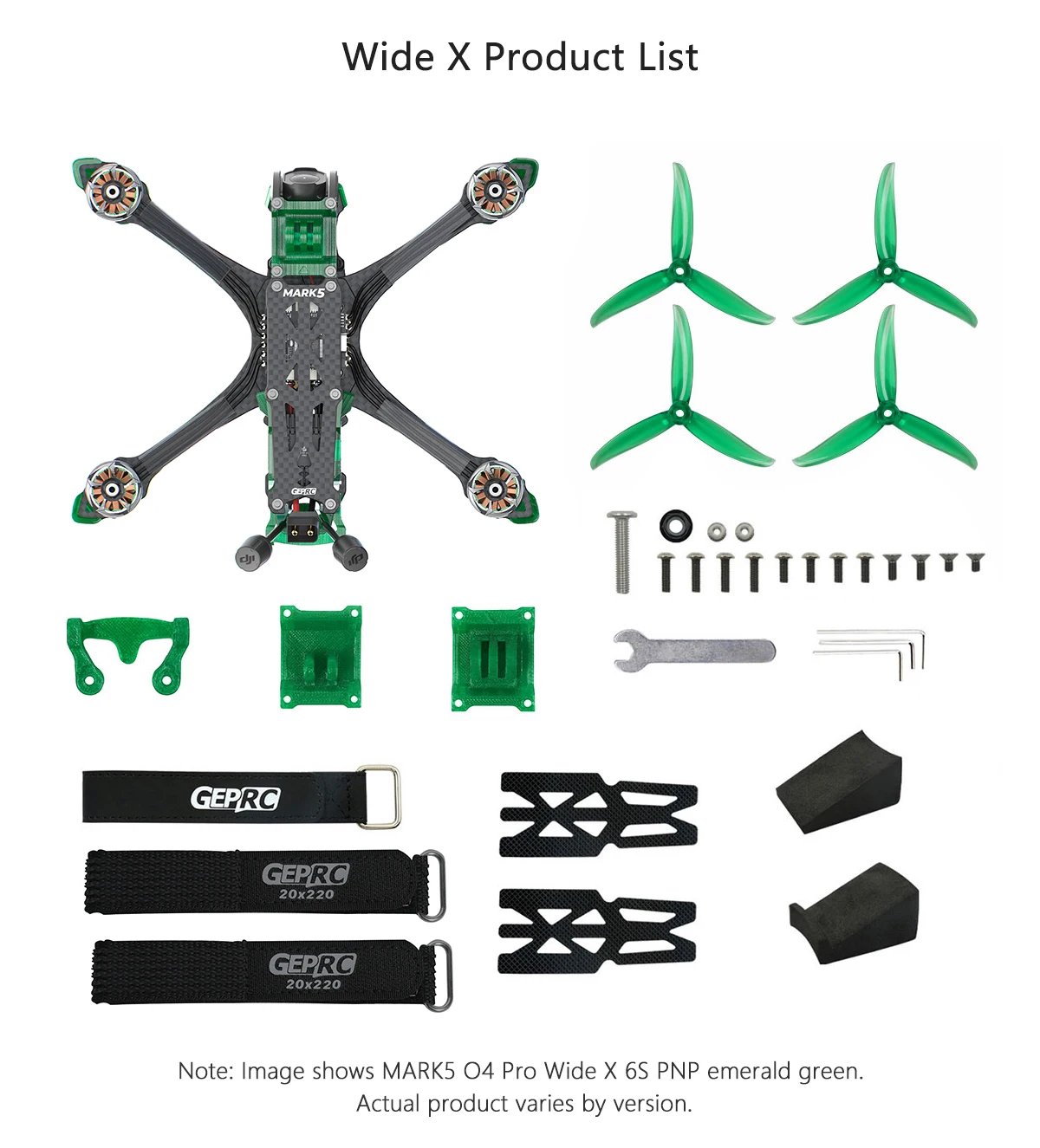

Product List

1 x GEPRC MARK5 O4 Pro FPV
1 x Gemfan 5136(2CW 2CCW)
1 x 15*250mm strap
2 x 20*250mm straps
2 x Battery anti-slip pads
1 x 3D printouts pack
1 x Spare screw pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x L-shaped screwdriver 3mm
1 x M8 wrench

Spare Screws Included:
1 x M5 Flange Nylon Knurled Nut
2 x M2 Stainless Steel Press-fit Nuts
1 x M5*25 Stainless Steel Button Head Hex Screw
4 x M3*10 Button Head Hex Screws
4 x M3*8 Button Head Hex Screws
2 x M3*8 Countersunk Hex Screws
2 x M3*5 Countersunk Hex Screws
GEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter FreestyleGEPRC MARK5 O4 Pro FPV Drone VTX O4 Air Unit GPS TAKER F722 Stack 2107.5 1960KV RC FPV Built Bluetooth Quadcopter Freestyle

—————-Warranty Policy————–

Warranty Policy Does NOT Cover What?

Crashes or fire damage caused by non-manufacturing factors, including but not limited,to pilot errors. Water damage or other damages caused by improper installation,incorrect use,or operation not in accordance with officialinstructions or manuals.
Damage caused by a non-authorized service provider.
Damage caused by unauthorized modification of circuits and Error weld mismatch or misuse of the battery and charger.

Damage caused by operation in bad weather (i.e. strong winds,rain,snow,sand/dust storms,etc)

  • Damage caused by operating the product in an environment with electromagnetic interference

  • (i.e. in mining areas or closeto radio transmission towers,high-voltage wires,substations,etc.)

  • Damage caused by operating the product in an environment suffering from interference from other wireless devices (i.etransmitter, video-downlink,Wi-Fi signals,etc.)

  • Damage caused by a crashes when components have aged or been damaged.

  • Damage caused by operating the unit with a low charge or defective battery of any form.

  • Damage resulting from any non-GEPRC technical or other support(online community for example),such as assistance with;how-to; questions and or inaccurate product set-up and installation.

  • GEPRC is not responsible for issues involving 3rd party products and warranty. For example with issues involing Caddx and D J l,the customer must get warranty support directly from the 3rd party company

Purchasing Matters needing attention

1.When players purchase model aircraft products,they need to understand the relevant basic operation knowledge

2.Model aircraft have certain dangers,children need to touch the model under the supervision of adults. Make sure the flying environment is safe and away from people when flying the model

3.When flying in the outer field,you should pay attention to the relevant regulations of the local government or relevant management agencies to avoid unnecessary losses.

4.Before flying the model,please ensure that the model is securely connected,all equipment is working properly,and all control actions are responding normally to avoid accidents.

5.In the store to purchase model products abnormal situation can not be solved,please contact customer service technical support for help,such as do not consult technical support to solve their own or do not operate according to technical support guidance caused by the loss and accident the store does not assume responsibility for compensation.

6.The model aircraft model has a certain risk,please be sure to operate in a safe situation,your purchase behavior represents that you have recognized the above situation and bear the corresponding responsibility,the improper use of products,did not pay attention to safety caused by the loss and injury,the store does not b

Additional information

Weight9 kg
Dimensions9 cm
Brand Name

DJIRCTOY

Remote Distance

2000 meters

GPS

No

Video Maximum Resolution[Pixel X Pixel]

1080i/P(1920*1080)

Max Wind Speed Resistance

< 10 KM/H

Camera Features

1080p HD Video Recording

Camera Mount Type

Fixed Camera Mount

Max Takeoff Weight

<1kg

Display Control

No

Category

Camera Drone

Motor Type

Brushless Motor

Equipped with Aerosol Spraing System/Spread Tank Volume

No

Integrated propeller guard

Not Include

Flight Time

others

Obstacle avoidance types

No support

Aircraf Operating Frequency

5.8 GHz

Origin

Mainland China

High-concerned chemical

None

Camera Integration

Camera Included

Sensor Size

1/1.28 Inches

Drone Weight

433.4g

Connectivity

Remote Control

Aerial Photography

Yes

Control Channels

8 CHANNELS
