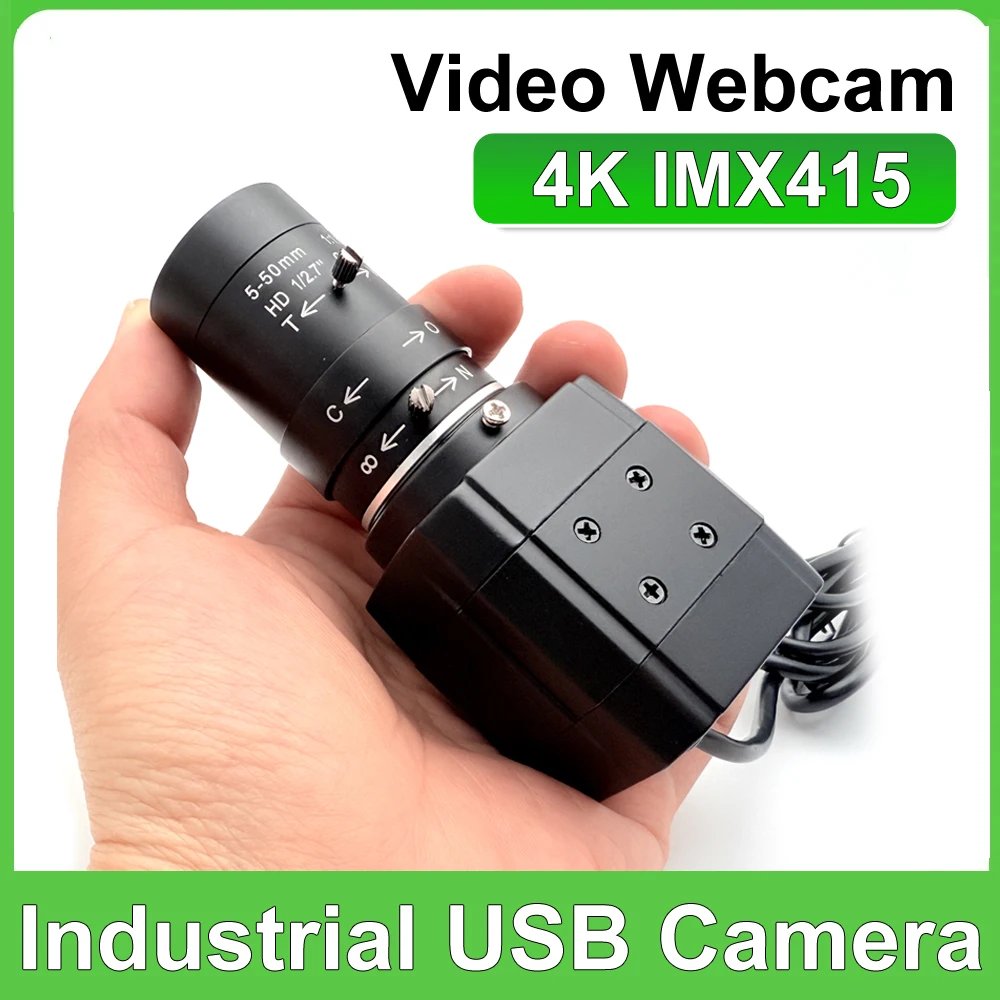

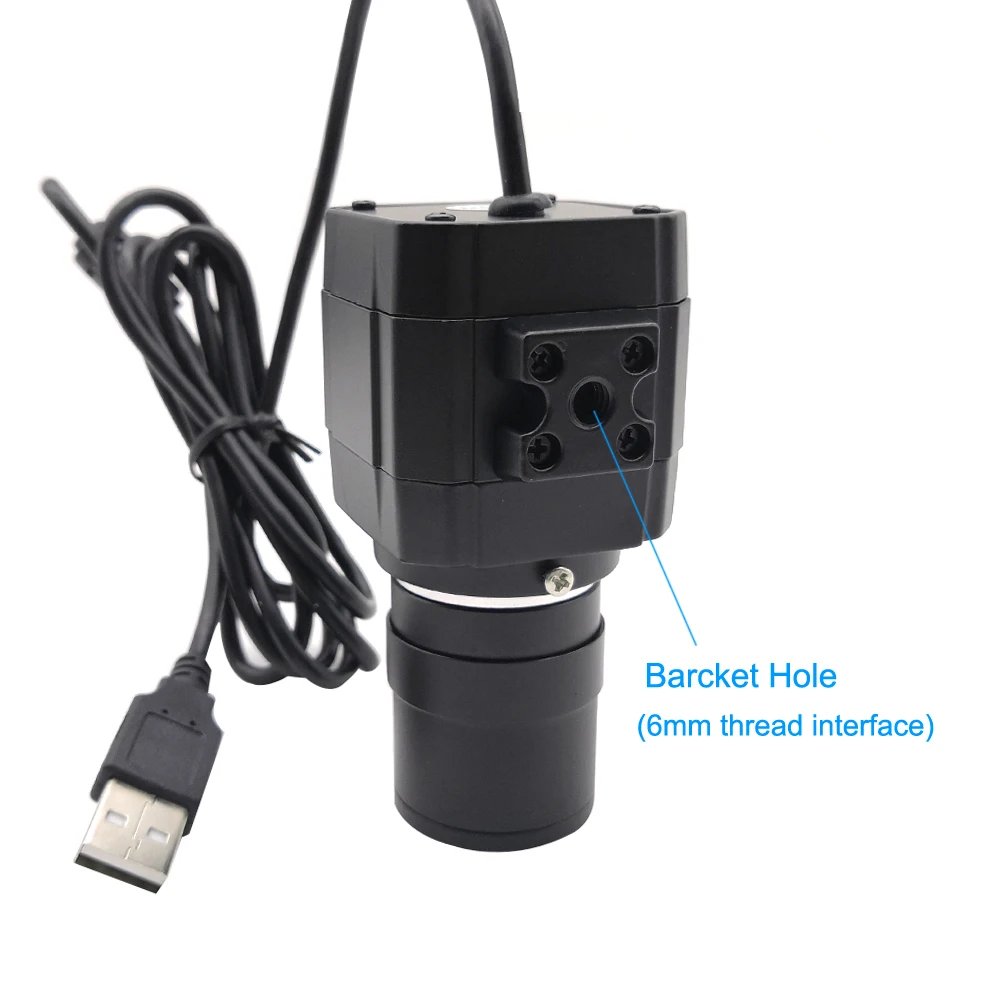

HD CS 5-50mm Varifocal Lens Industrial 30fps 4K 8MP CCD IMX415 USB Webcam 2K 4MP F5253 PC Video Usb Camera UVC OTG Live Teaching

The HD 2K 4.0MP USB camera (model: NE-FH8852-4053 serials) is ideal for many applications like security systems, portable video system, webcast, video teaching, industrial.

Feature:

*F5253 4.0MP sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate MJPG– deliver 30 fps in 2560×1440 resolution, 30 fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Android, Linux, Windows , MAC, SP2 or above.

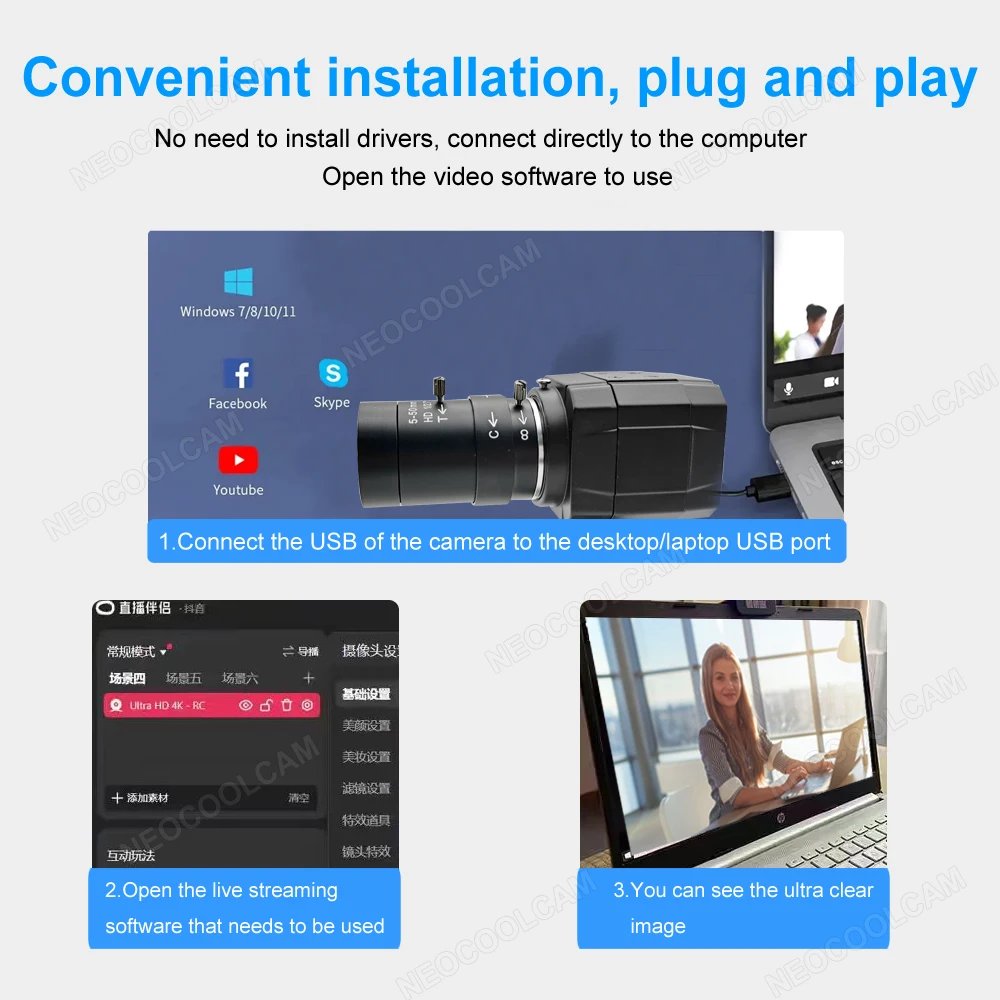

*Camera with UVC, Drive-free.

——————————————————————————

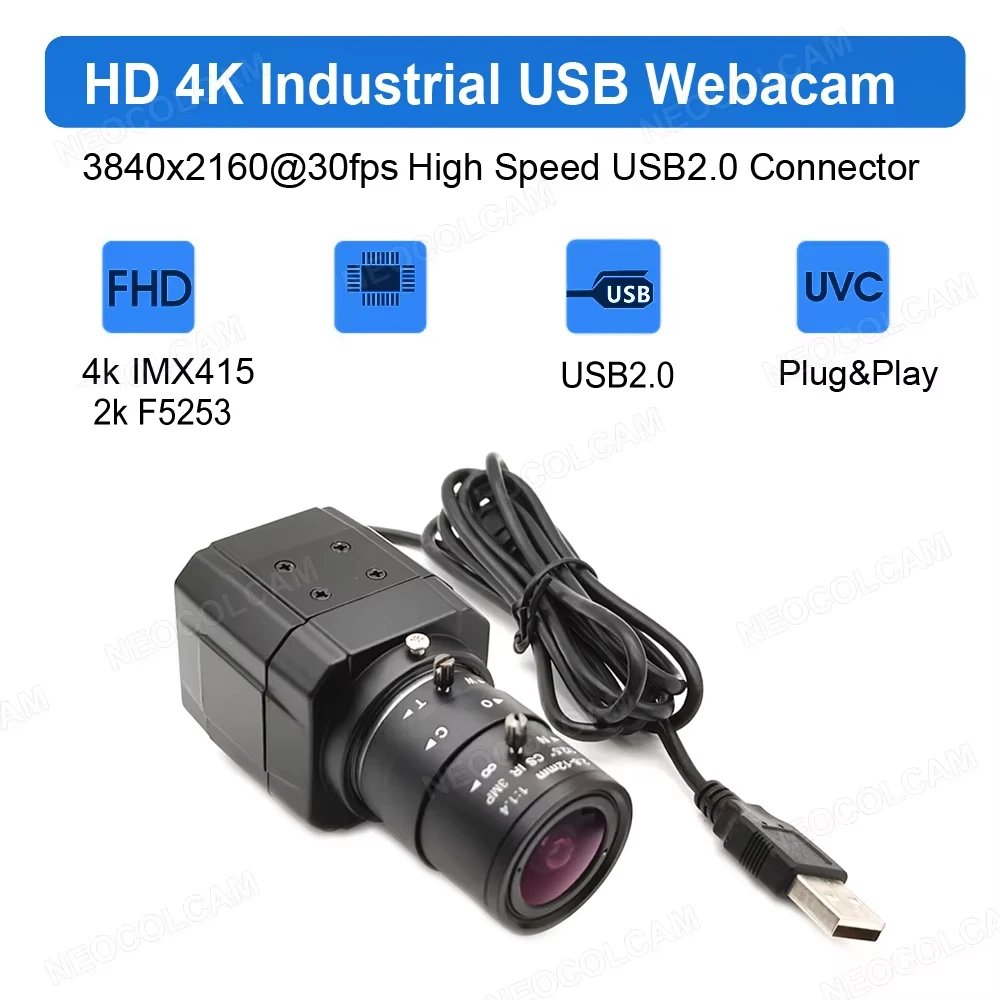

4K 8MP IMX415 USB Camera:

Sensor: Sony IMX415 (1/2.8” )
Max Resolution: 3840(H) *2160 (V)
Sensitivity: 1000mV/Lux-sec
Image area: 6100µmx4524µm

Picture format MJPEG / YUY2（YUYV）
Resolution & FPS
MJPEG
3840×2160 30fps 2560×1440 30fps
1920×1080 60fps 1600×896 30fps
1280×720 30fps 1024×576 30fps
800×600 30fps 800×480 30fps
640×480 30fps 640×360 30fps
424×240 30fps 352×288 30fps

YUY2
3840×2160 1fps 2560×1440 1fps
1920×1080 5fps 1600×896 10fps
1280×720 30fps 1024×576 30fps
800×600 30fps 800×480 30fps
640×480 30fps 640×360 30fps
424×240 30fps 352X288 30fps

Center Definition 1000LW/PH (Center)
S/N (Signal Noise Ratio) 26dB
Sensitivity 0.65V/lux-sec@550nm
Low illumination 0.2lux
Shutter Electronic rolling shutter / Frame exposure
Interface USB2.0 High Speed
AEC Support
AEB Support
AGC Support
Adjustable Parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure

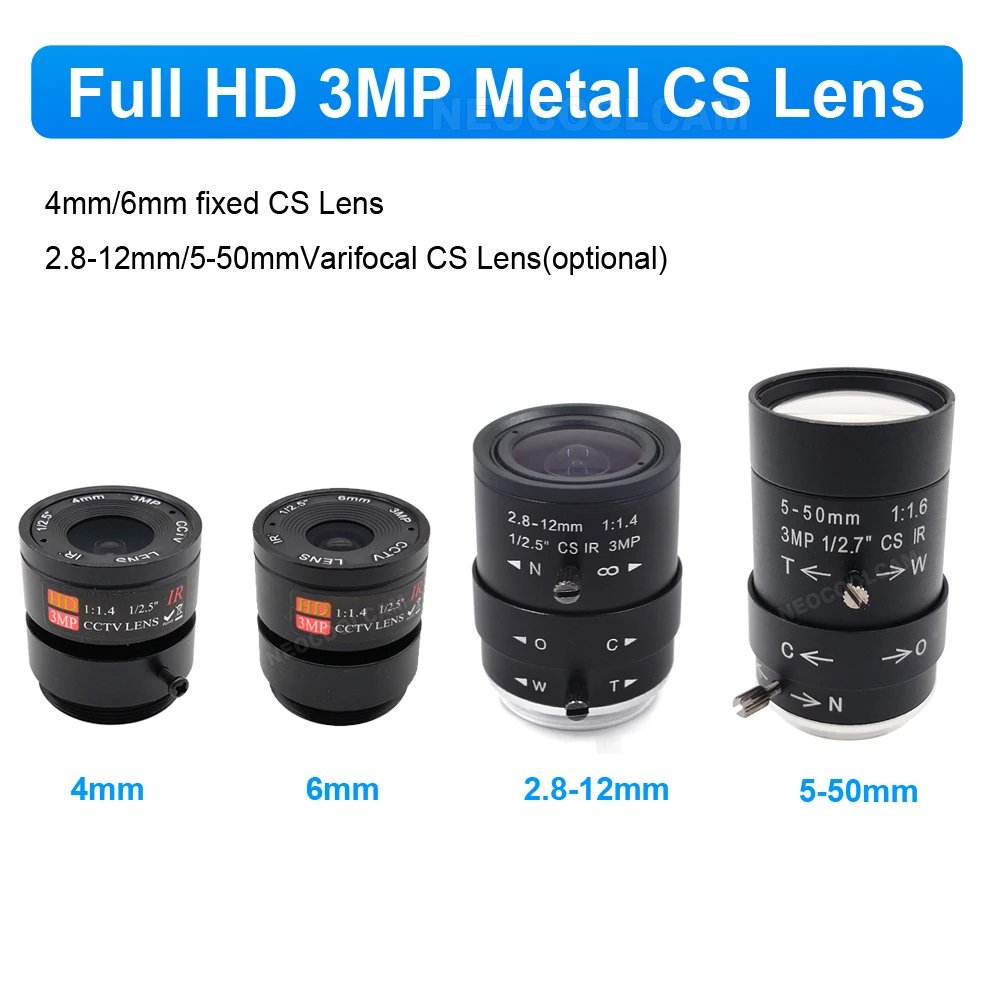

Lens Size: 2.8-12mm /5-50mm Manual Varifocus Lens//6mm fixed Lens (Optional)

Relative Illumination (Sensor): 70%
Power Supply & Connector USB BUS POWER 4P-2.0mm socket
Power DC5V
Current 200mA
PCB Board Size 32mm × 32mm
Storage Temperature -20°C to 65°C
Working Temperature 0°C to 60°C
USB Cable: 1M
Operating System Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC
