Description
【Best-selling products】IP Network Camera, click the image for direct access to the purchase channel ▶

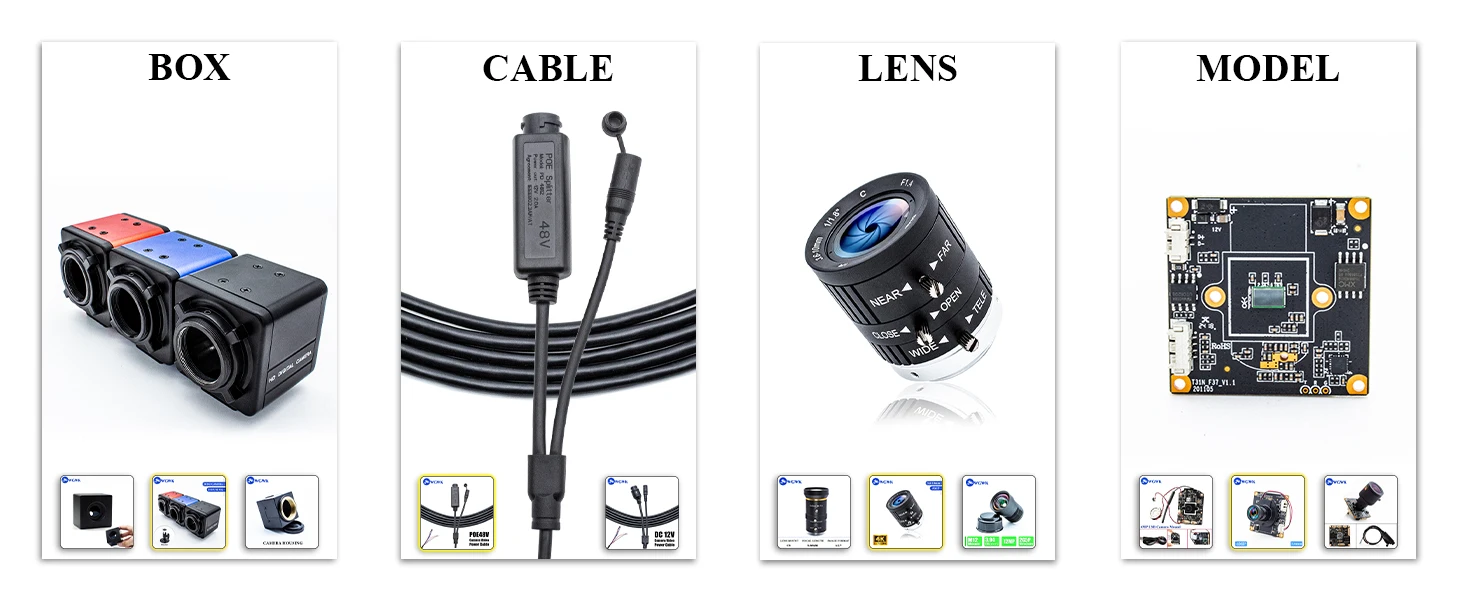

Enhance the flexibility and efficiency of your industrial applications by choosing our customizable industrial cameras! Whether it’s the housing design, cable length, lens specifications, or special features, this camera can provide you with tailored solutions.

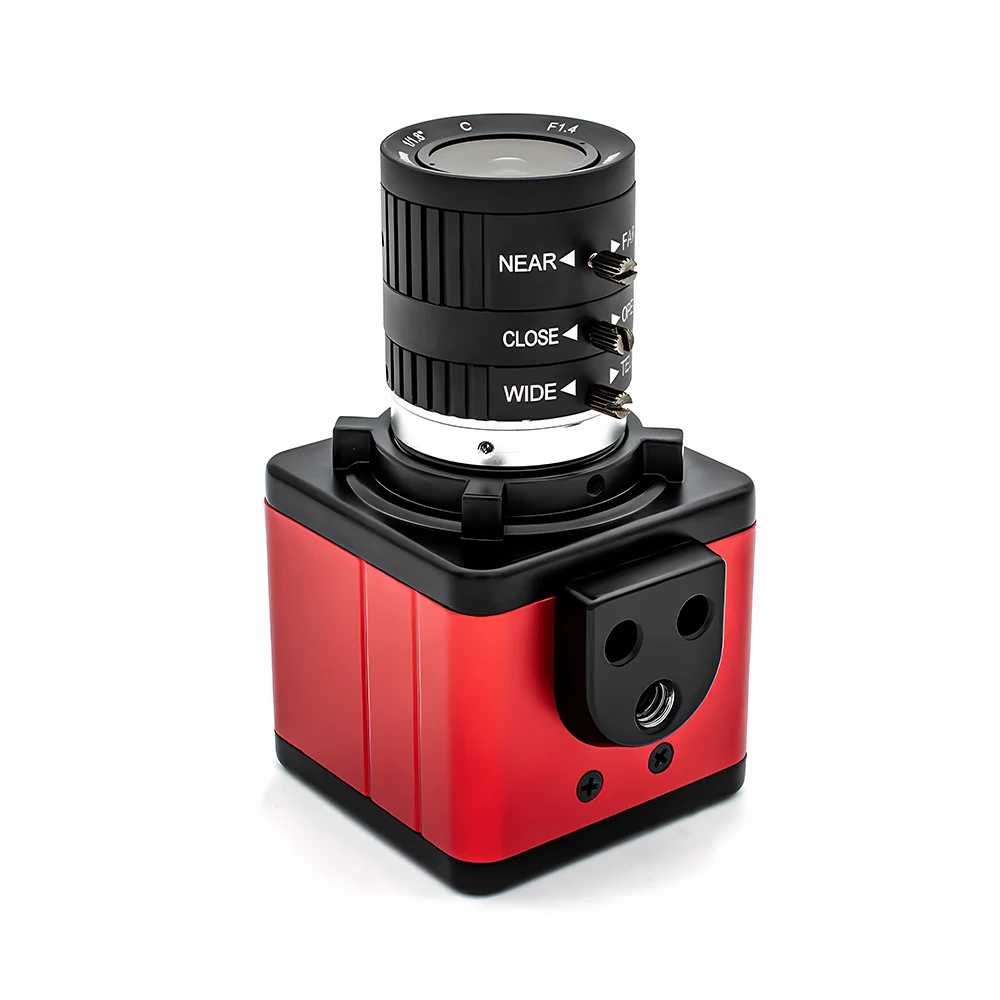

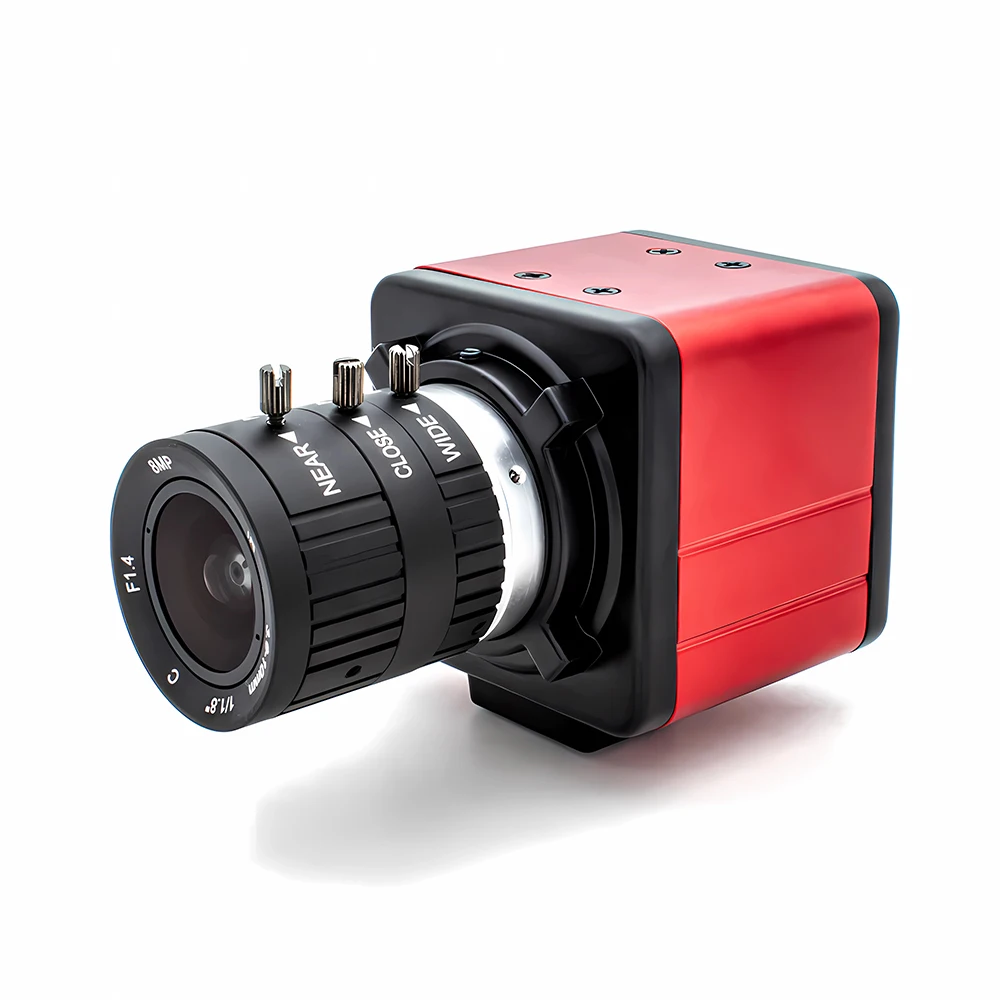

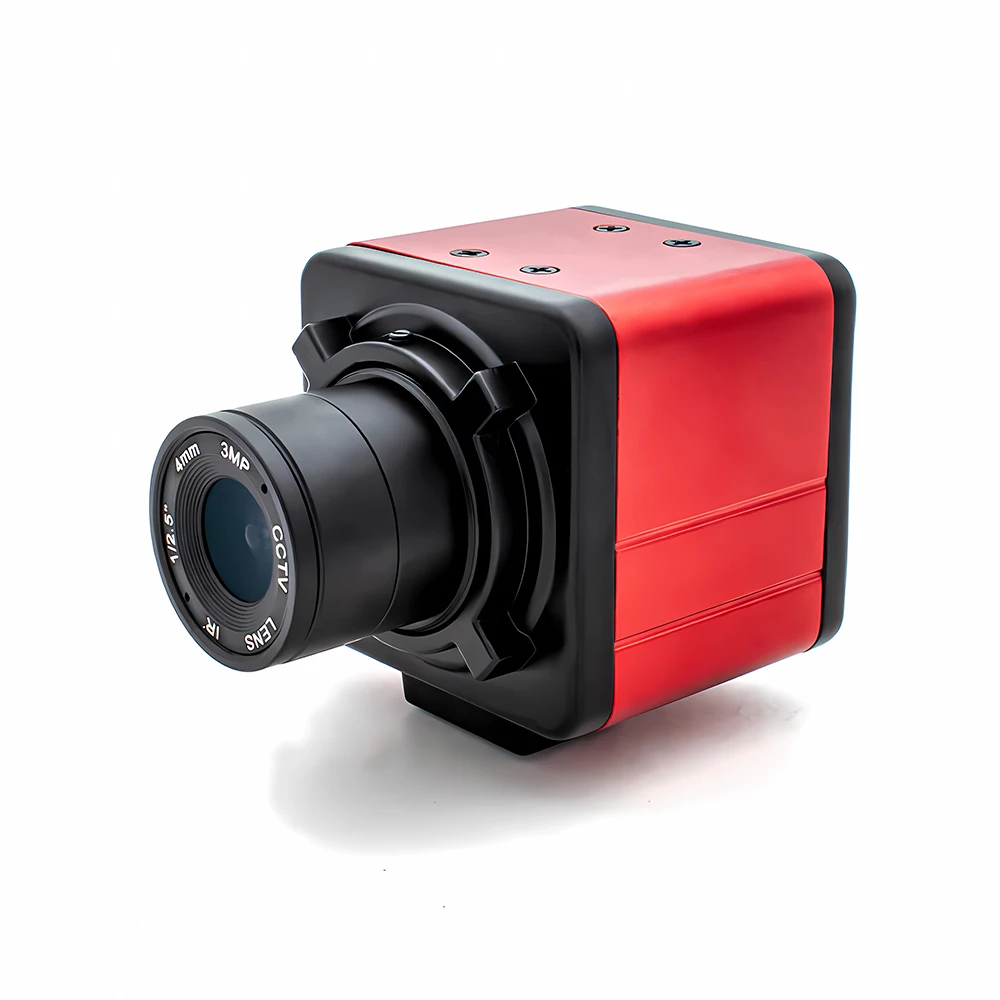

WGWK 4K IP Camera Smart Home 3/4/5/8MP HD Security Camera Auto Tracking Network Safety Security Surveillance Mini Onvif POE Webcam
NOTE:

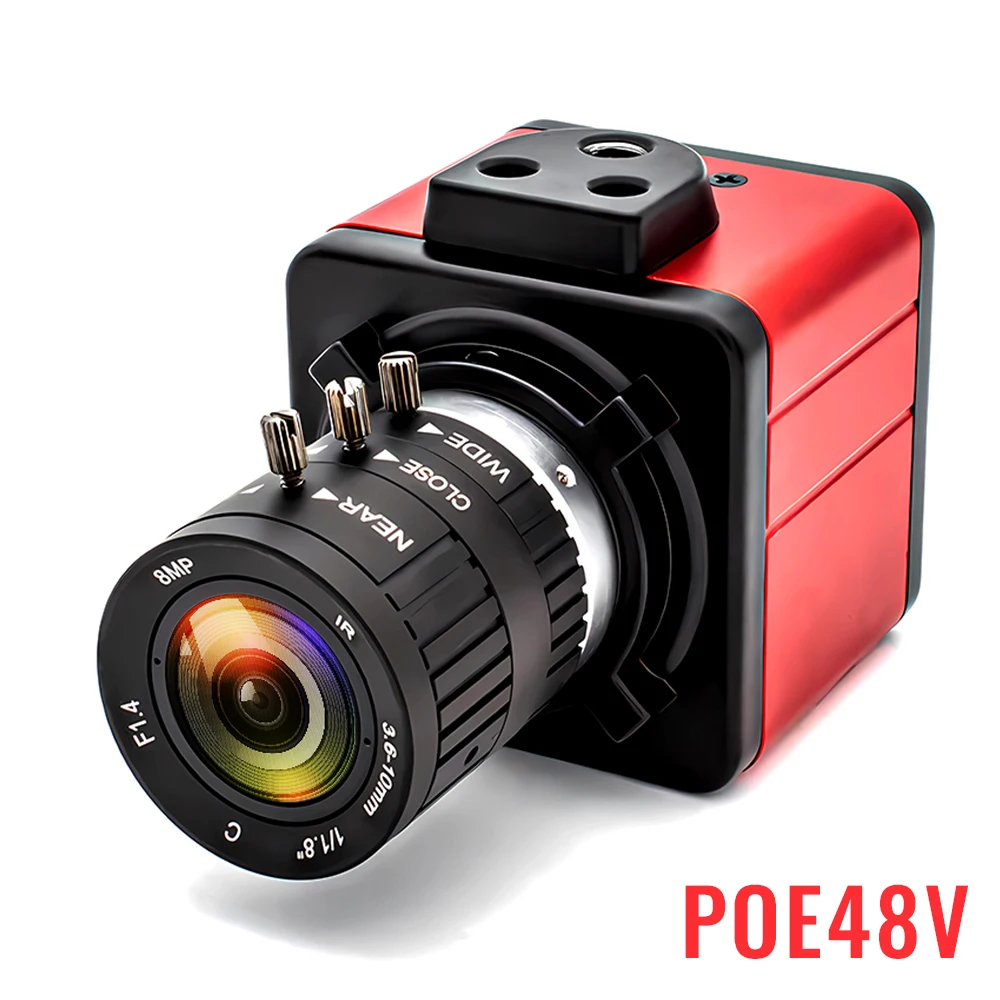

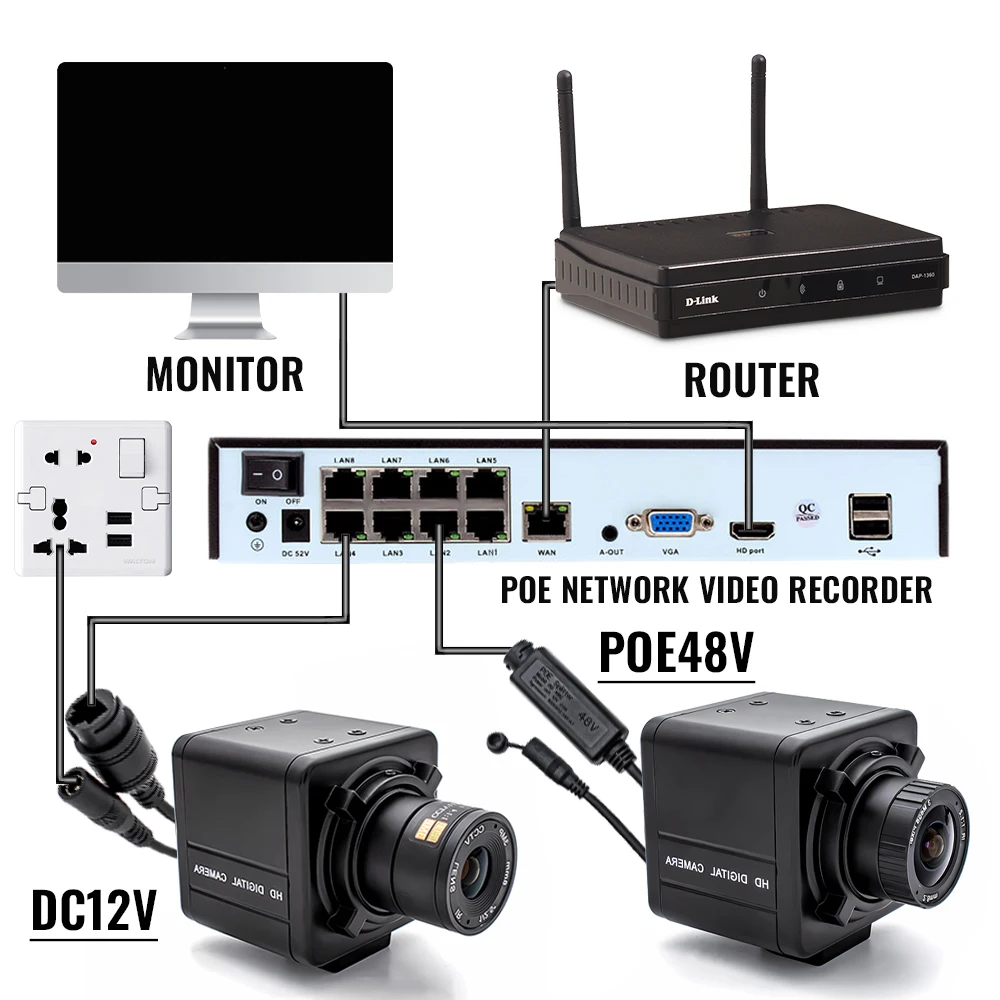

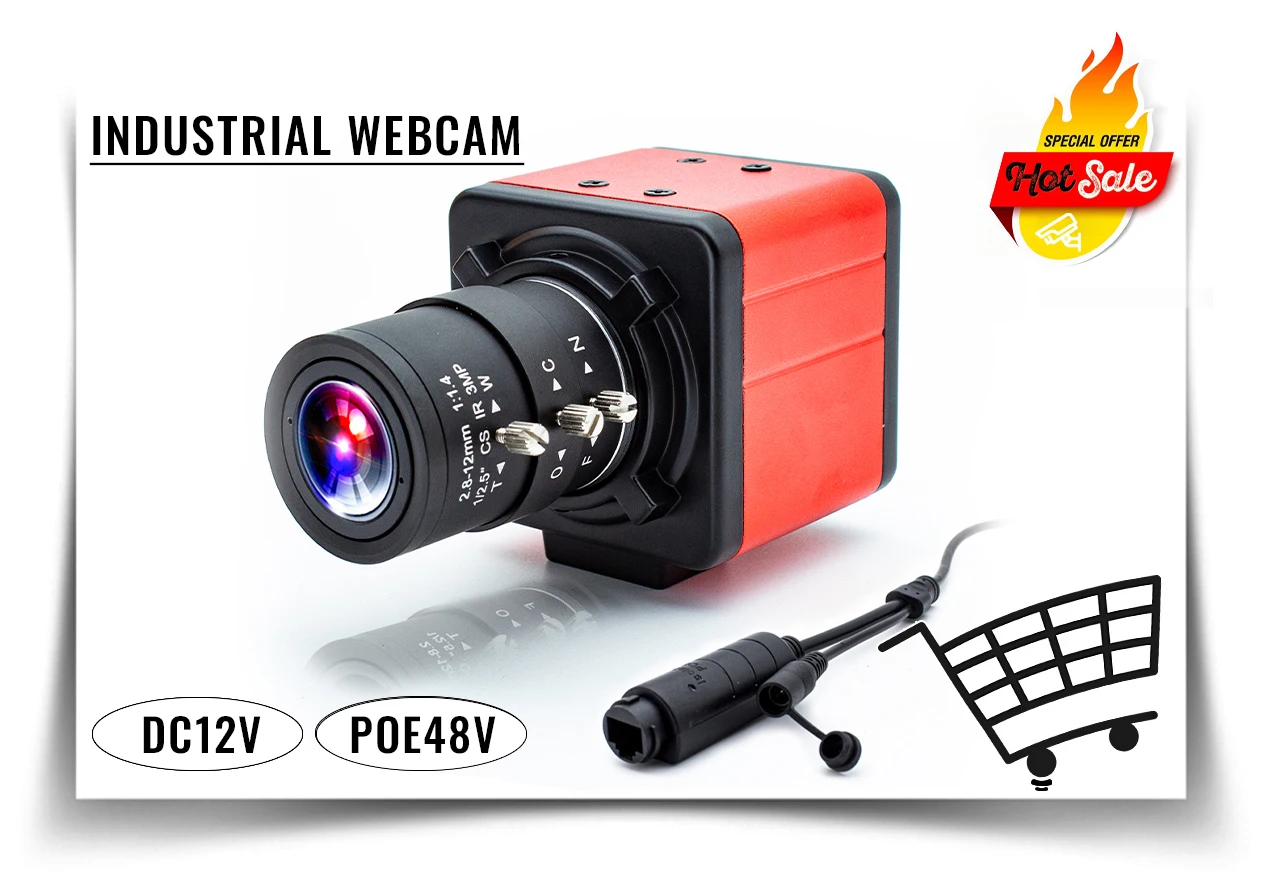

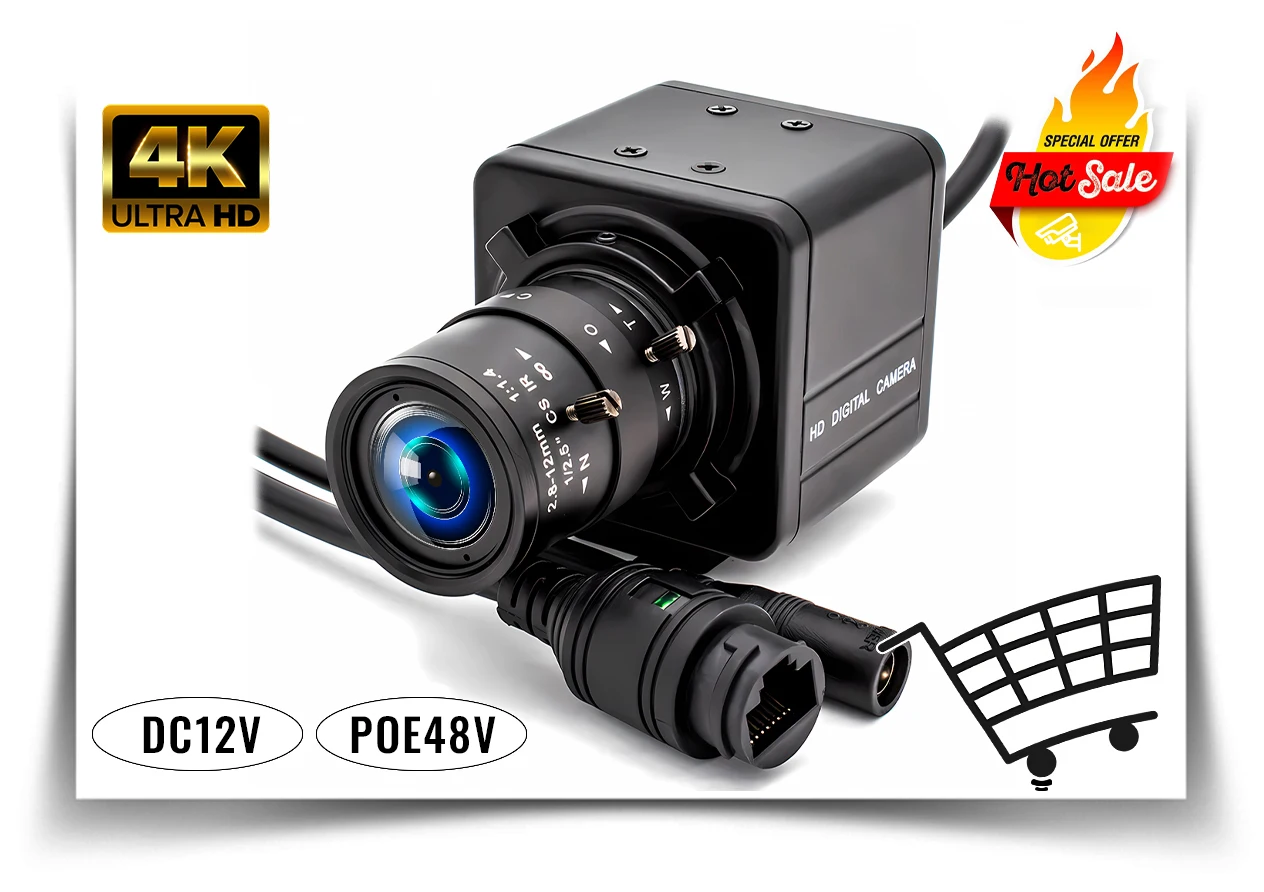

1. Not included Power Adapter, Please contact customer service if you need Power Adapter.（you can choose 48V POE to power on through Ethernet cable interface without the need for a power adapter)

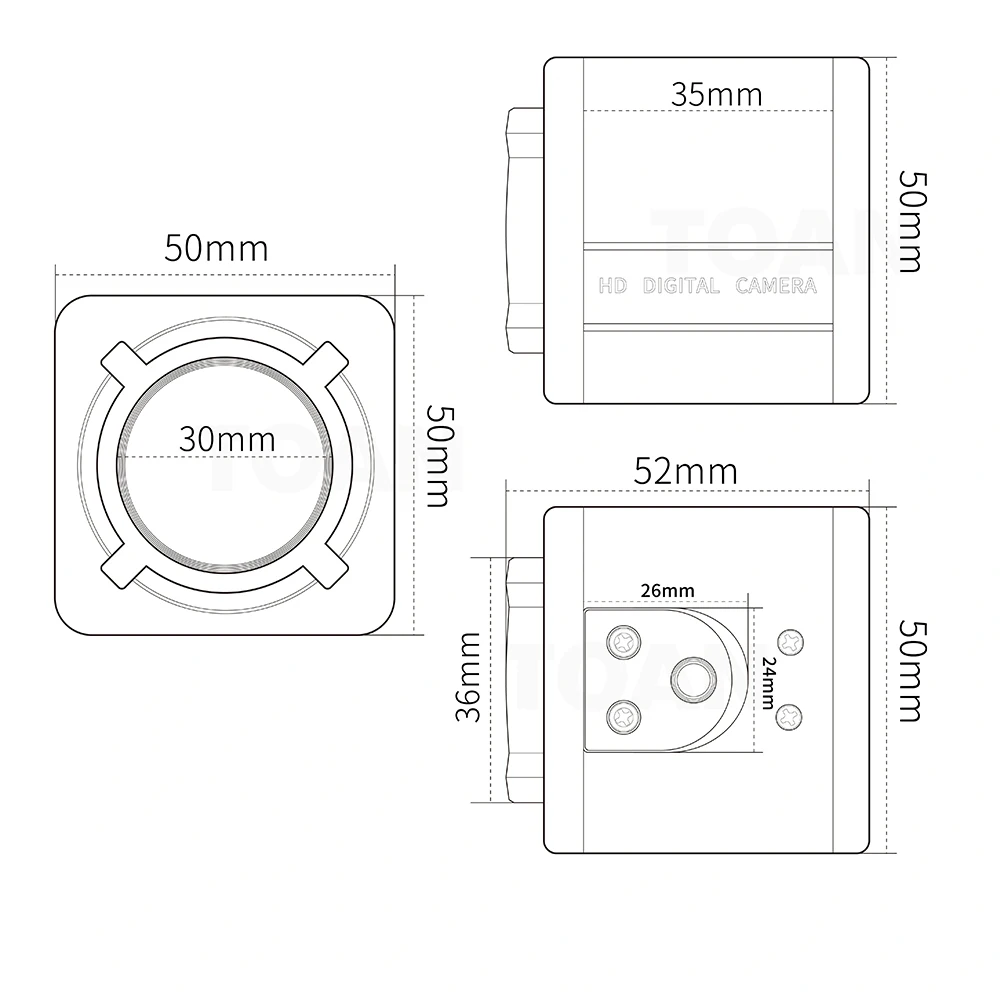

2.Due to manual measurement, please allow an error of 2-3mm
Experience our webcam, featuring high frame rates, excellent low-light performance, and optional lenses to ensure clear and detailed images. Its ultra-compact design is perfect for various embedded applications, elevating your visual experience to the next level!
1.High quality 3/4/5/8MP HD IP Camera

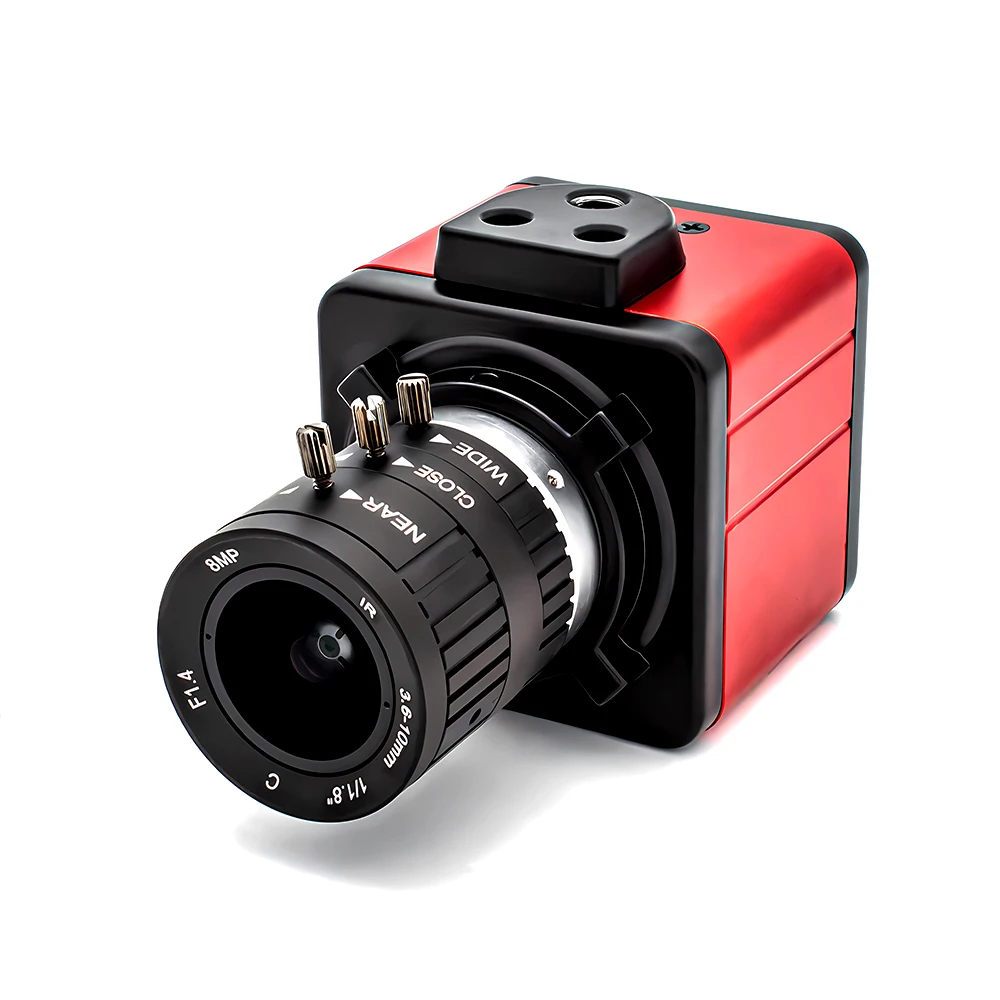

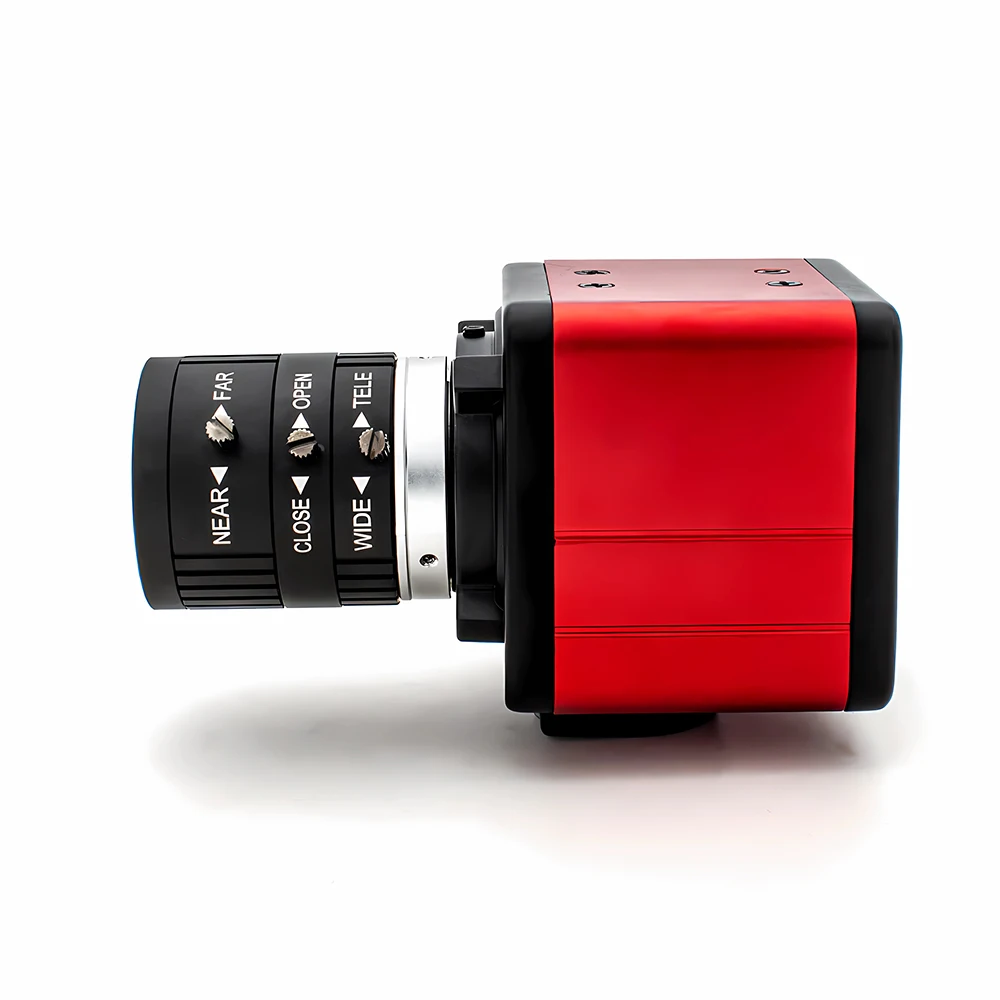

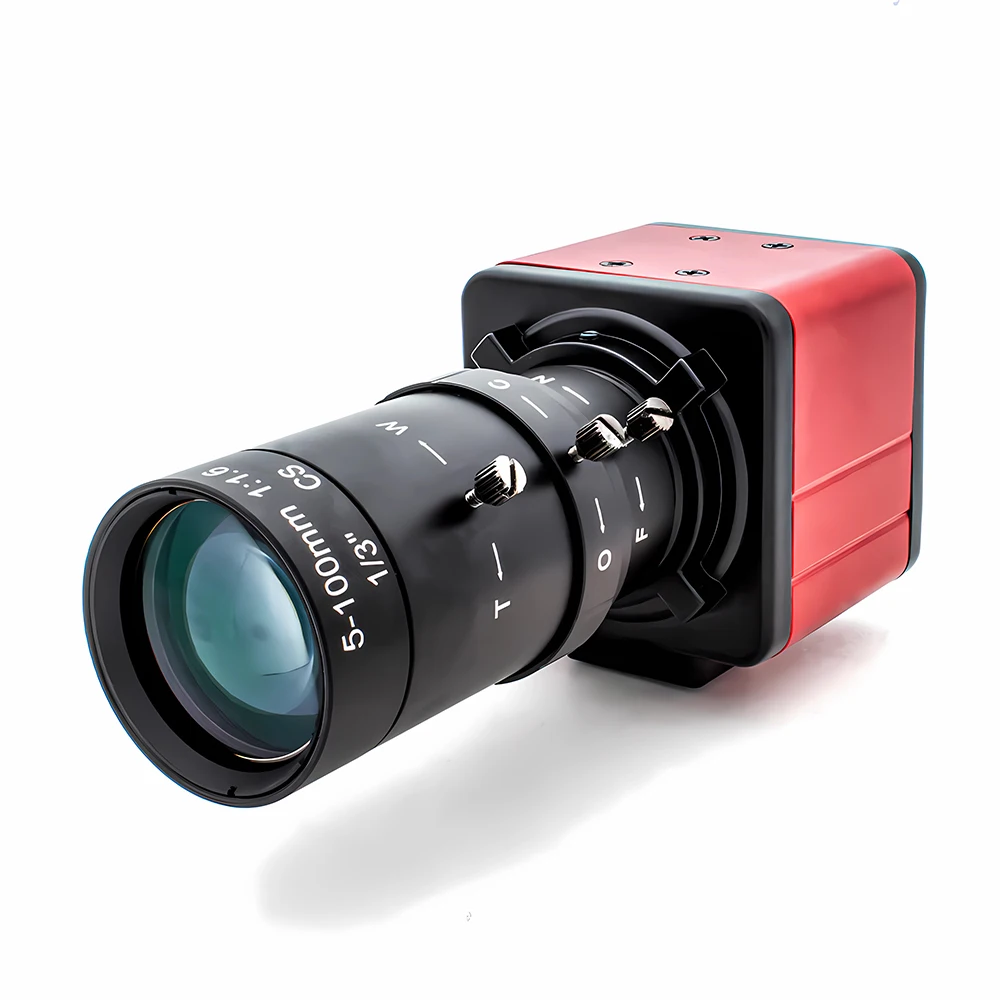

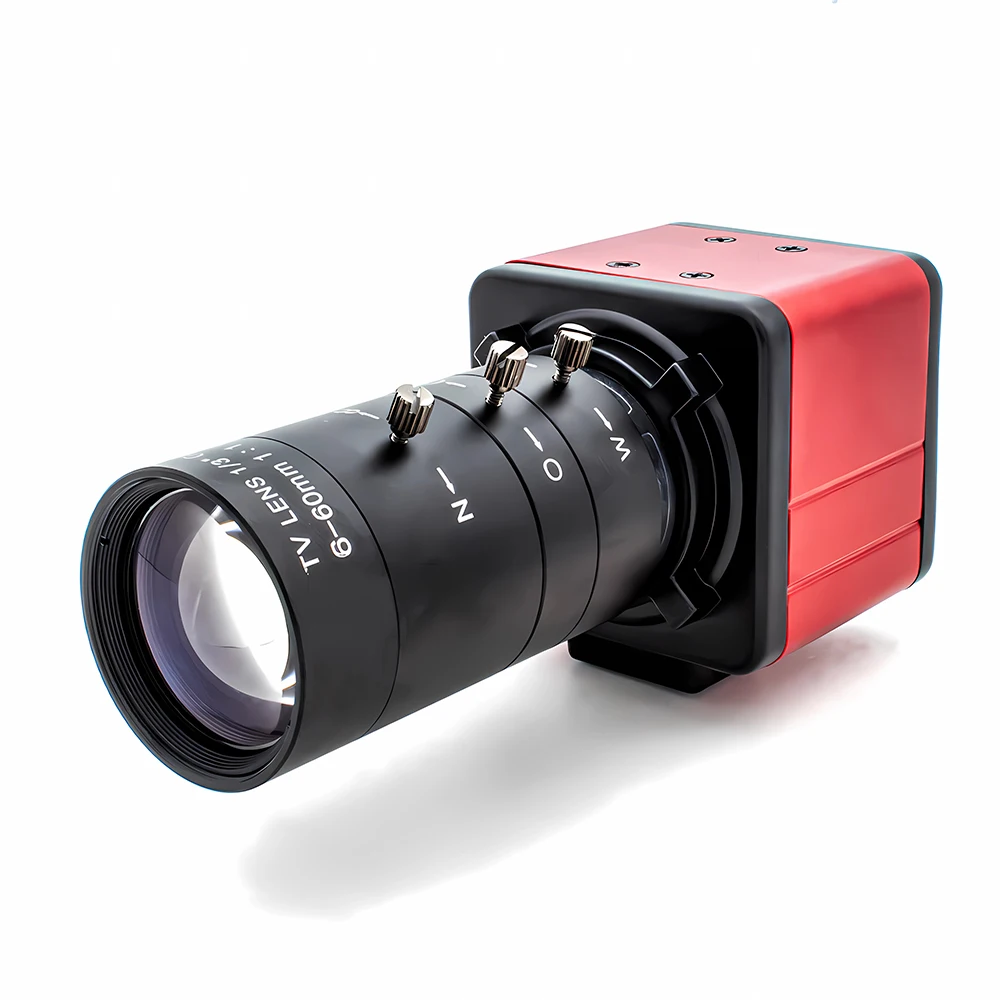

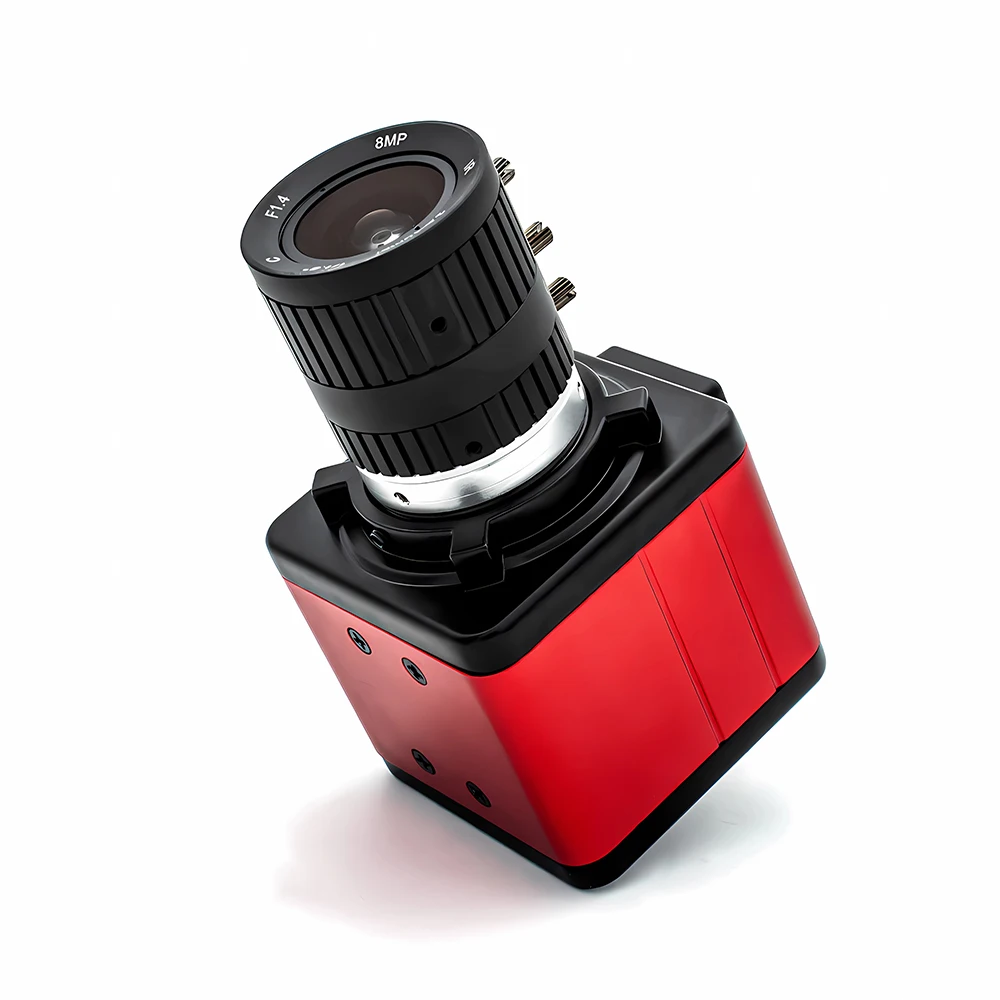

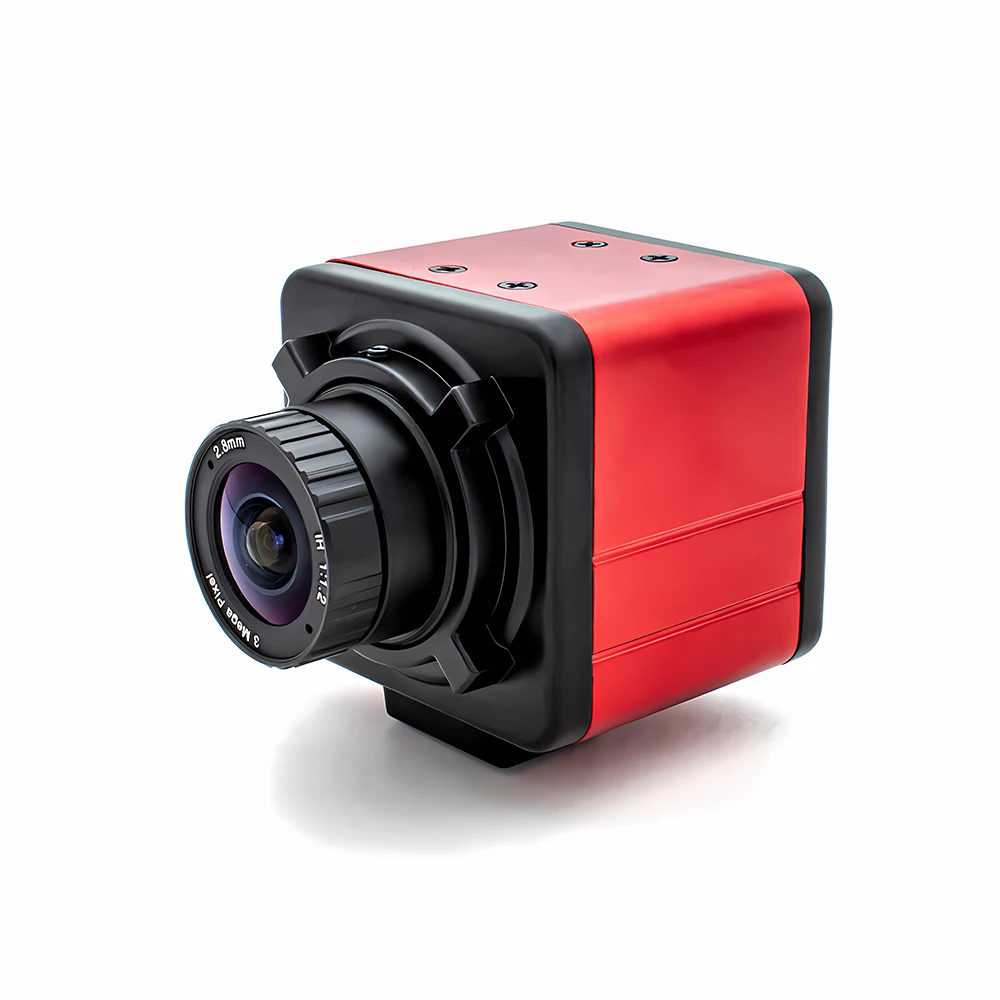

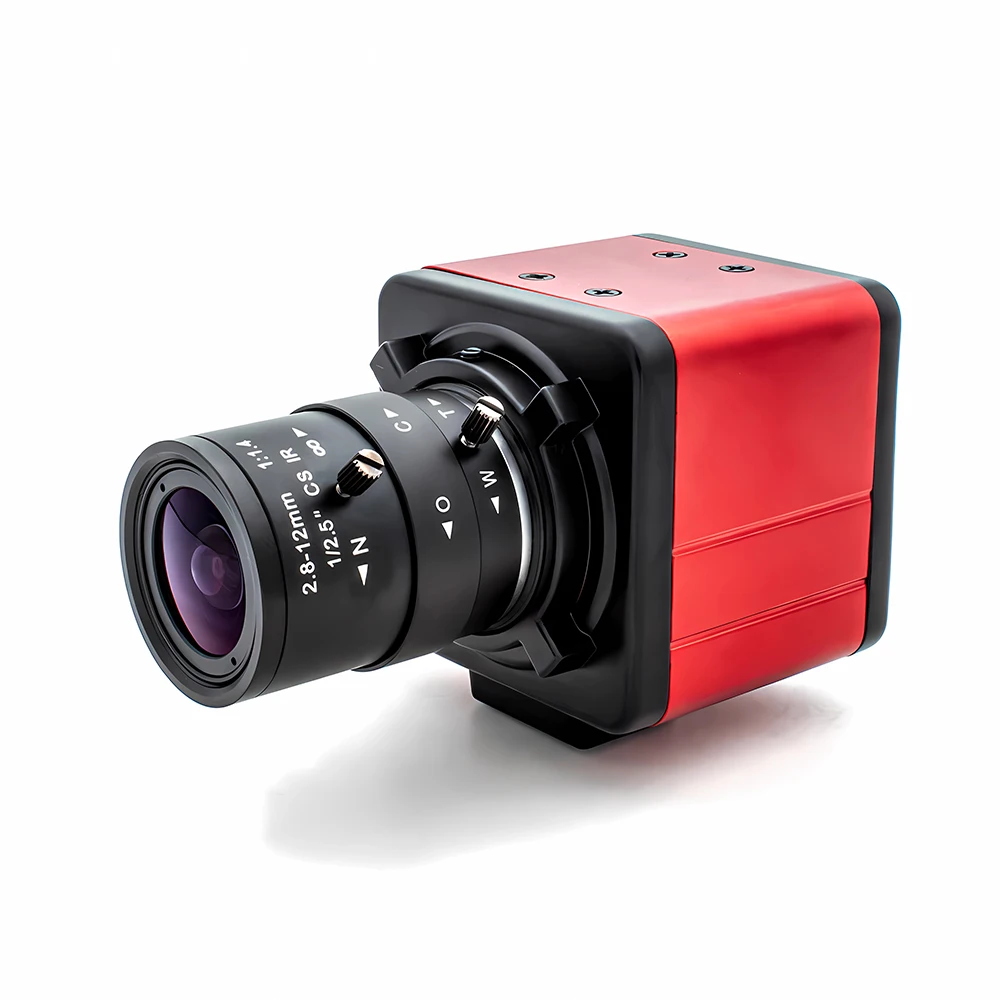

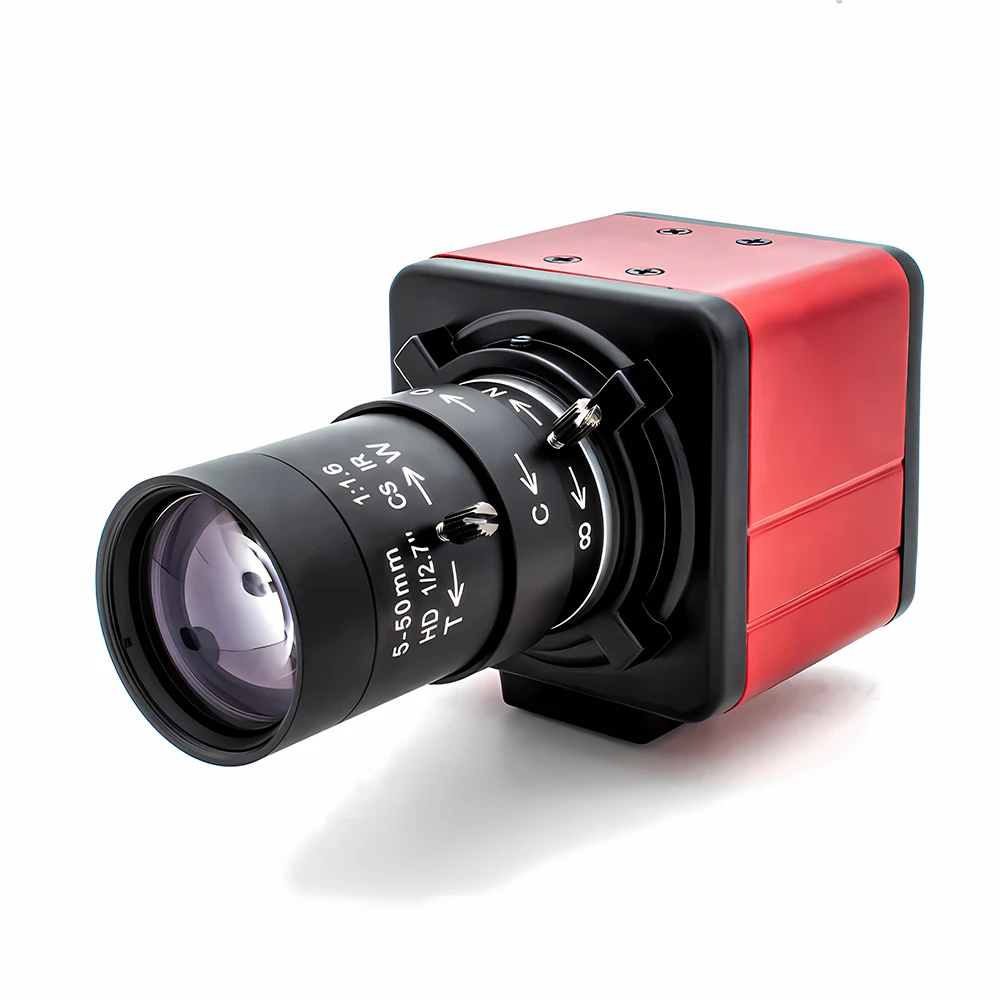

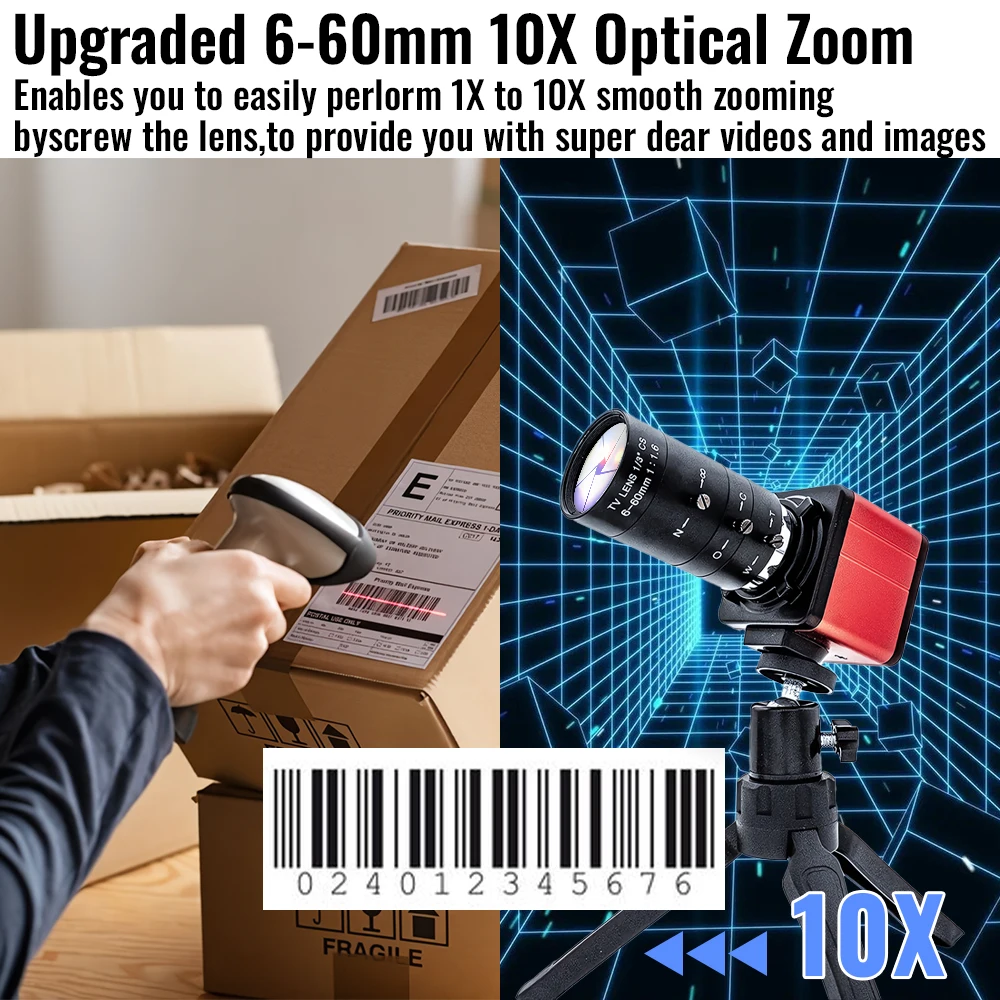

2.2.8-12mm/3.6-10mm/5-50mm/6-60mm/5-100mm Lens can choose
3.High frame rate MJPG– deliver 25fps in 2560×1440 resolution, 25fps in 1920X1080 resolution.
4.CMOS Sensor for high quality image and low power consumption.
5.Super small outline and thin profile for embedded applications.
6.high pixel technology for sharp image and accurate color reproduction.
7.low light performance – ideal for any lighting condition.
-3/4/5/8MP high-definition resolution, low illumination, clear and delicate images;
-Supports 2D/3D noise reduction and digital wide dynamic function;
-Advanced H.265+(compatible with H.265/H.264) video compression technology, ultra-low bit rate, high-definition image quality;
-Supports ONVIF protocol and can access third-party backend/platforms;
-Support mobile monitoring (iOS, Android);
-Support multiple cloud technologies, achieve network penetration, front-end and back-end docking, and push alarm information to mobile phones and other functions;
|
OS |
Parameters |
3/4/5/8MP |
|
kernel |
System |
Windows,Mac OS |
|
Video |
Image sensor |
8MP Super Low illuminance COMS image sensor |
|
Video Codec |
H.265 main profile and baseline |
|
|
Support mobile phone |
All phone |
|
|
P2P |
PHONE,IE,P2P Client global Internet |
|
|
Video Resolution |
8MP(3840*2160)@15fps/5MP(2880*1624)@25fps/4MP(2560*1440)@25fps/3MP(2560*1440)@25fps |
|
|
Video compression |
32Kbits/S～12280Mbits/S |
|
|
Store |
SD card |
NA |
|
Client/Browser |
Support |
|
|
Record |
Client |
support |
|
Browser |
Support |
|
|
SD CARD |
not Support |
|
|
Playback |
Client |
support |
|
Browser |
Support |
|
|
SD CARD |
not support |
|
|
Audio |
Audio input |
Mic is builded in camera |
|
Audio output |
SNA |
|
|
Audio Codec |
G.726/G.711 |
|
|
Internet |
Internet face |

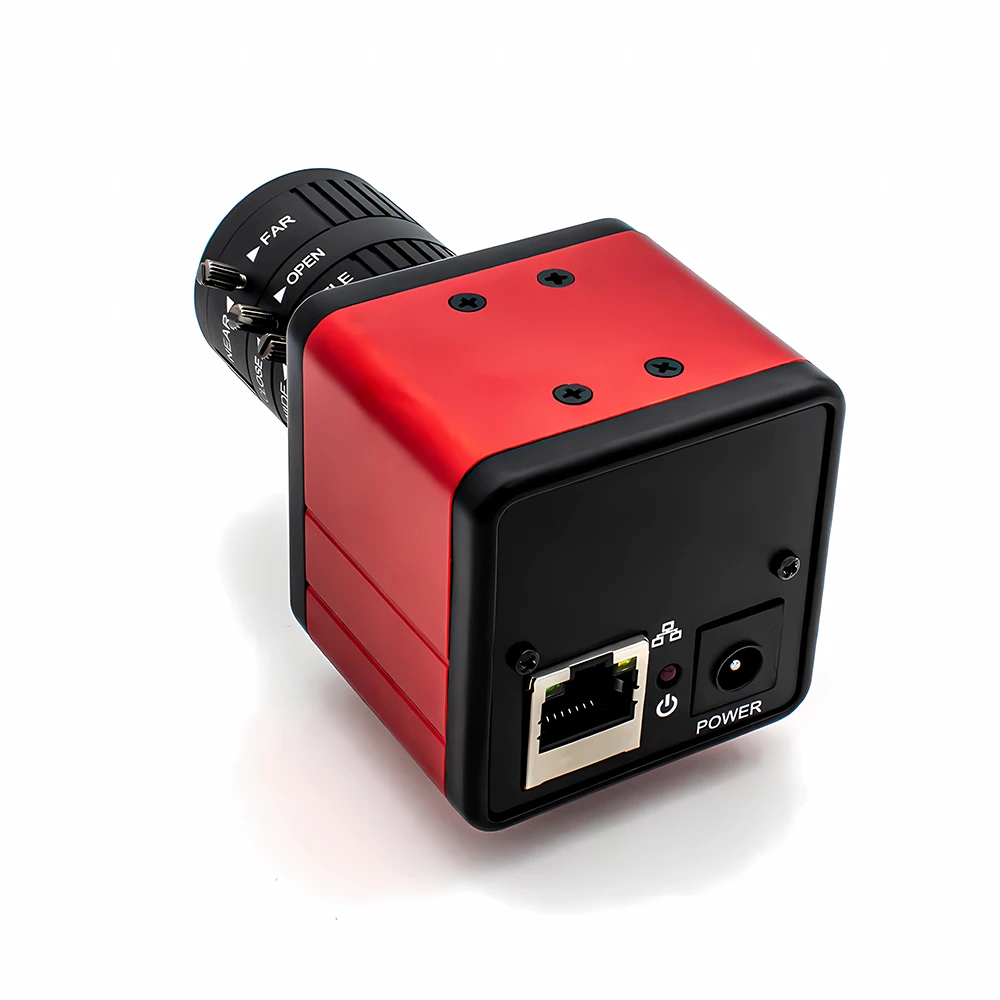

10Base-T/100Base-TX, POE |
|
Network Protocol |
TCP/IP,https,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP |
|
|
Access Protocol |
ONVIF |
|
|
Alarm |
Motion detection |
At most 4 respective regions |
|
Alarm linkage |
Alarm picture send E-mail, alarm images upload FTP server |
|
|
Snap |
Time snap |
Regular support capturing images to the FTP server |
|
safe |
User management |
Provide three levels of rights management (admin, user, guest), support to modify login user name and password |
|
Other |
Inter Power,consumption |
DC12V 2A/POE (The package does not provide a power adapter) |
|
Working temperature |
-40℃ ～ +55℃ |
|
|
Working Humidity |
10-95% |
About RTSP
Address stream:
Enter the network URL in Please enter network URL:
rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
10.6.3.57 This is the IP of the connected device
:554 This is the port number of the RTSP service, which can be changed in the device’s network service
user=admin This is the login user name for the device
password= Password blank
channel=1 First channel
stream=0.sdp？Main code stream
stream=1.sdp？Auxiliary code stream
rtsp://192.168.1.10:554/user= admin&password=&channel=1&stream=0.sdp?
rtsp://10.6.3.57:554/user=admin&password=&channel=1&stream=0.sdp?
10.6.3.57 is the device IP address
:554 is RTSP port，can reset in device network service
user=admin is device user’s name
password= no pass word
channel=1 refer to Channel No.1
stream=0.sdp？ mainstream
stream=1.sdp？ substream
About computer operation and use
Make sure the camera is connected to the power supply and network
(the signal light flashes to prove that everything is normal)

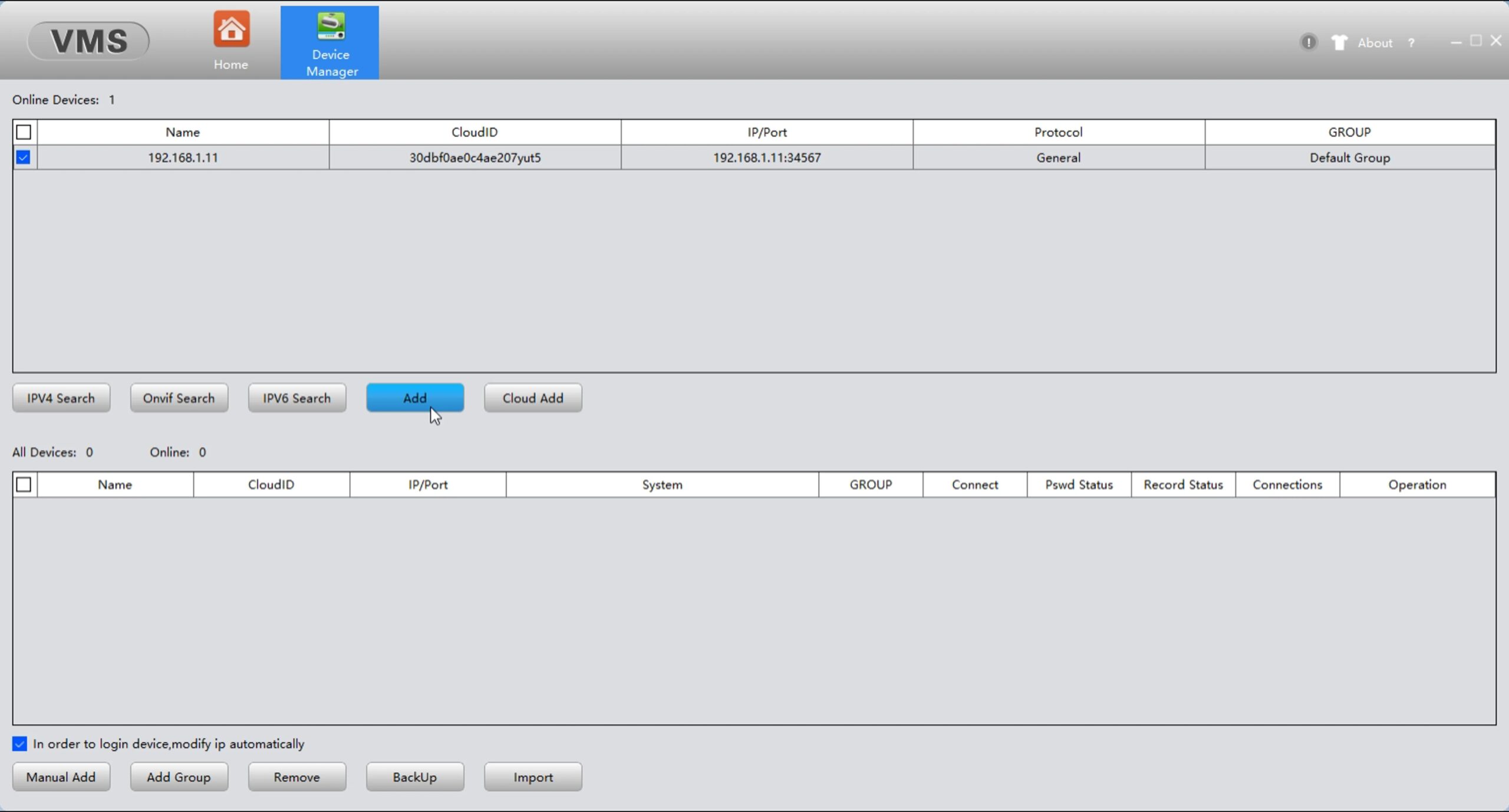

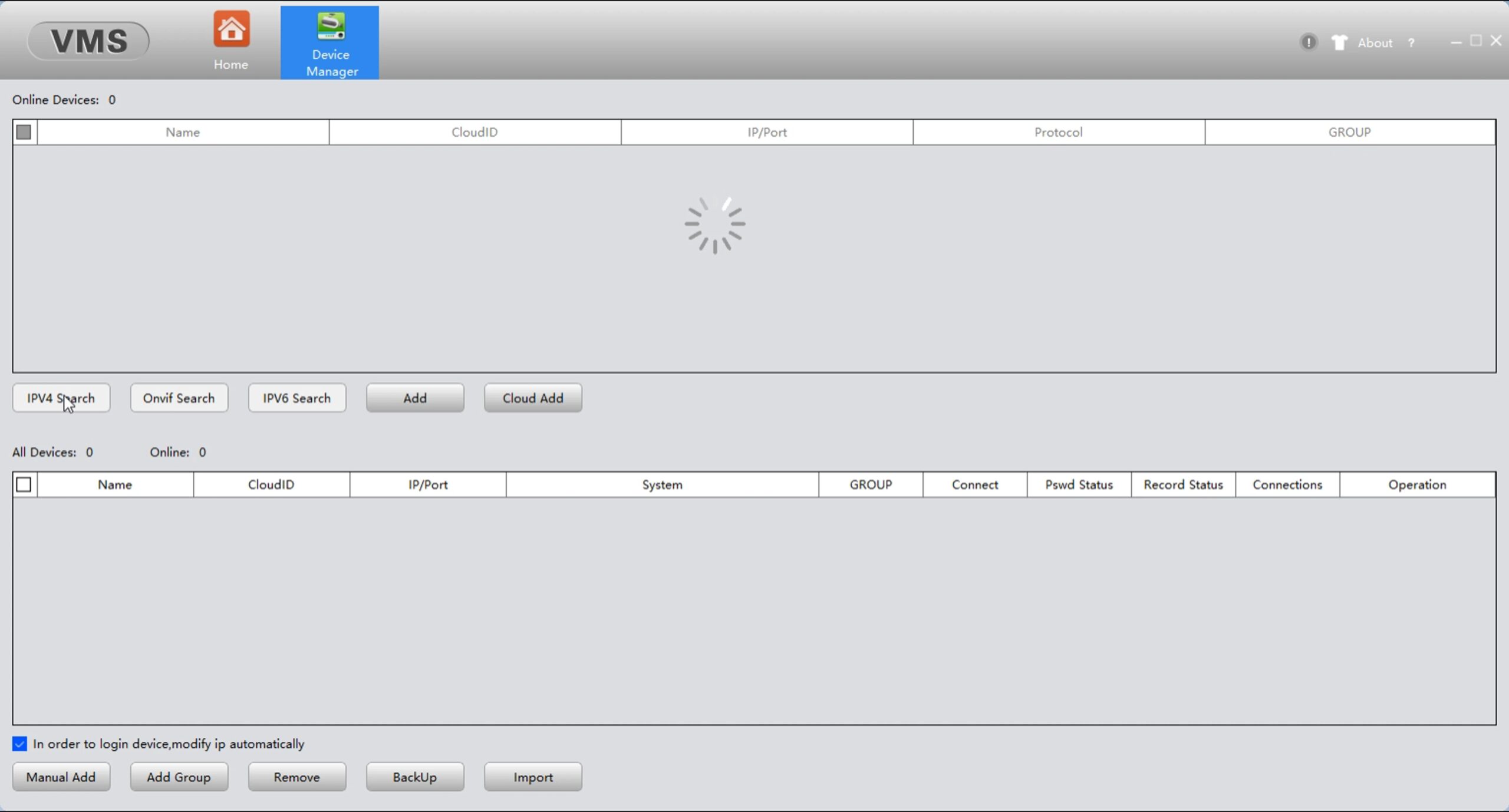

Step 1 : Install VMS
Contact customer service to obtain the installation package.

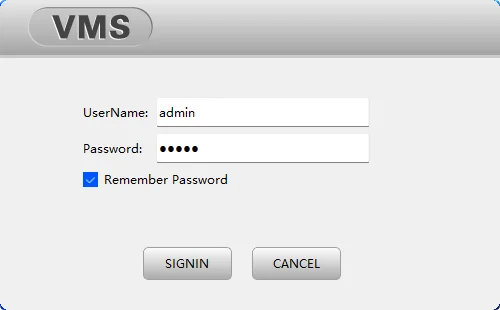

Step 2: Login VMS
UserName: admin,Password:admin

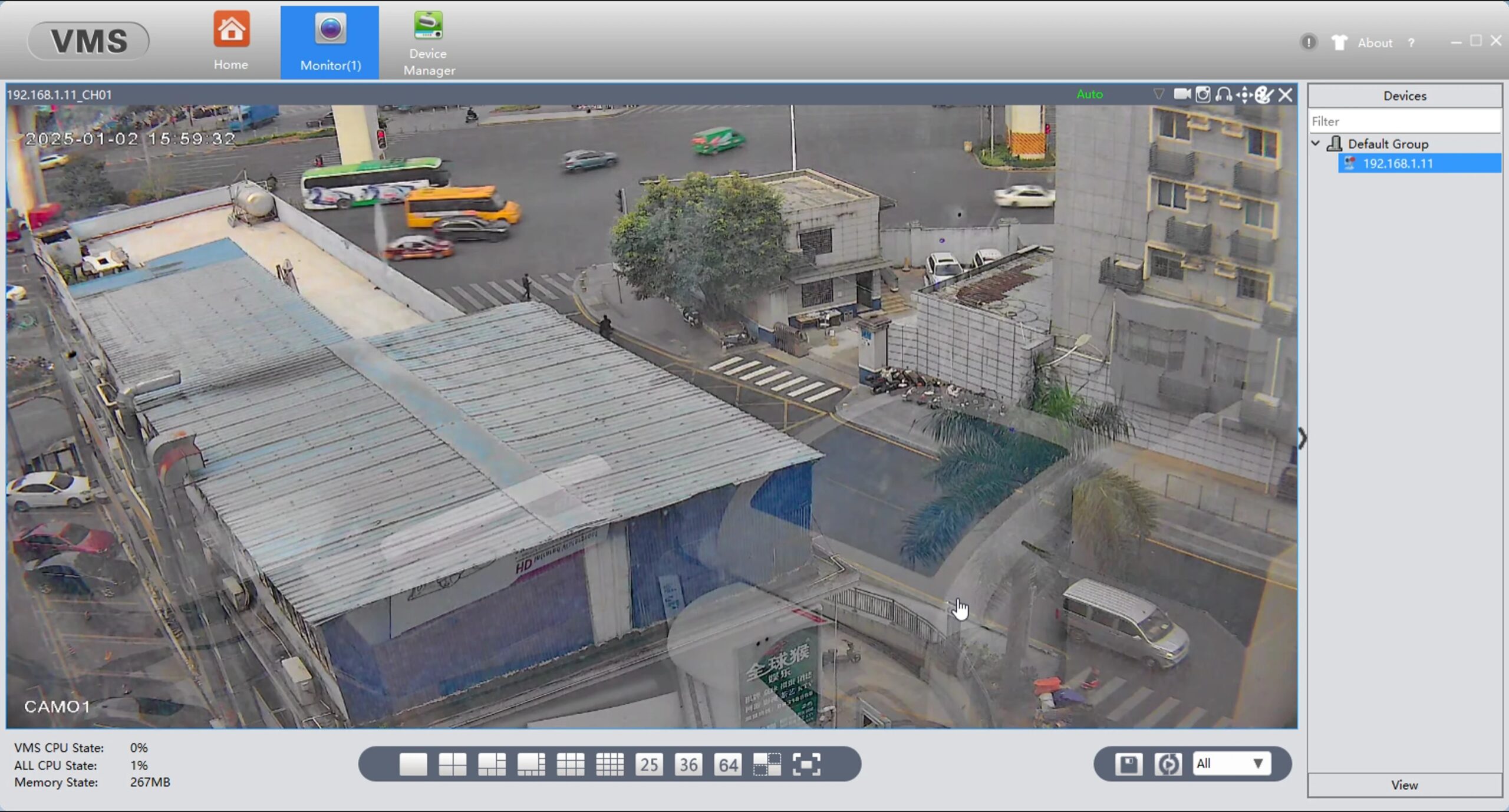

Step 3: Find your camera and add
APP download: Search XMEye in Apple Store
